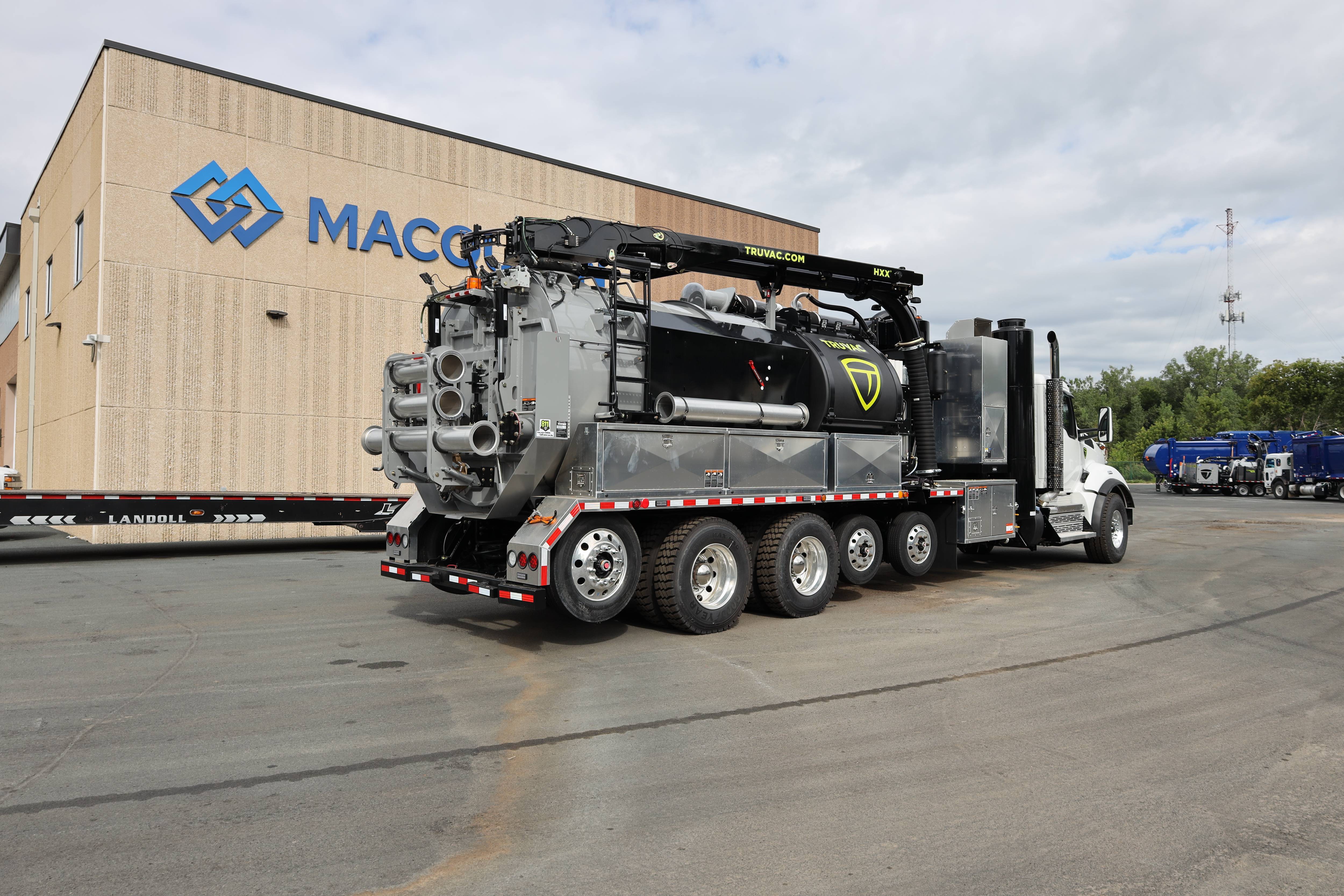

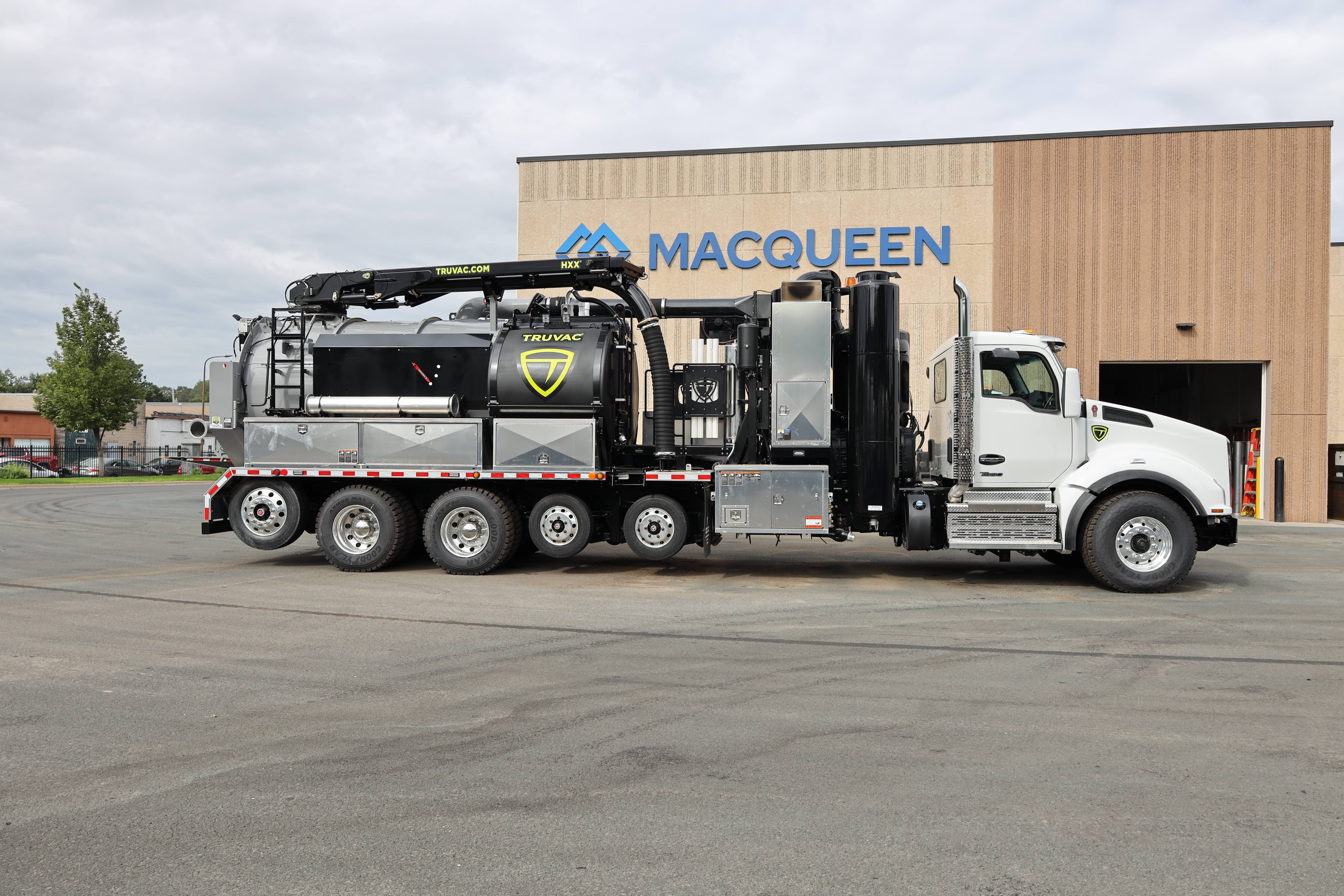

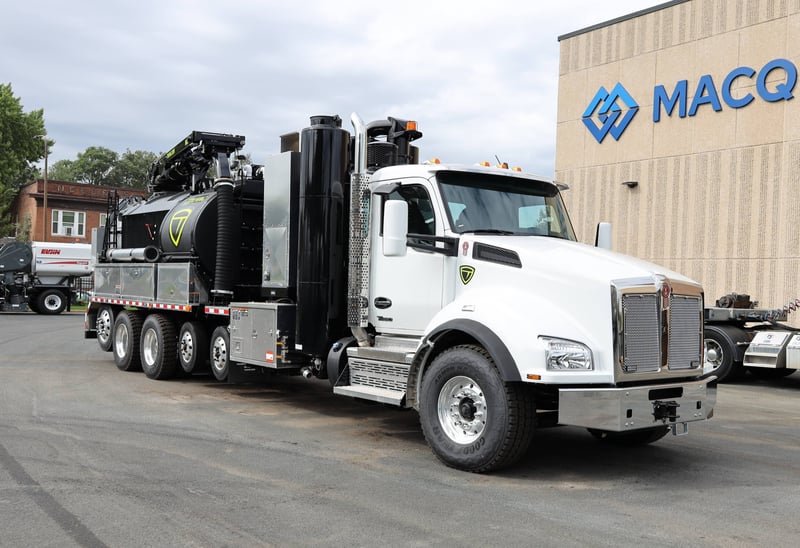

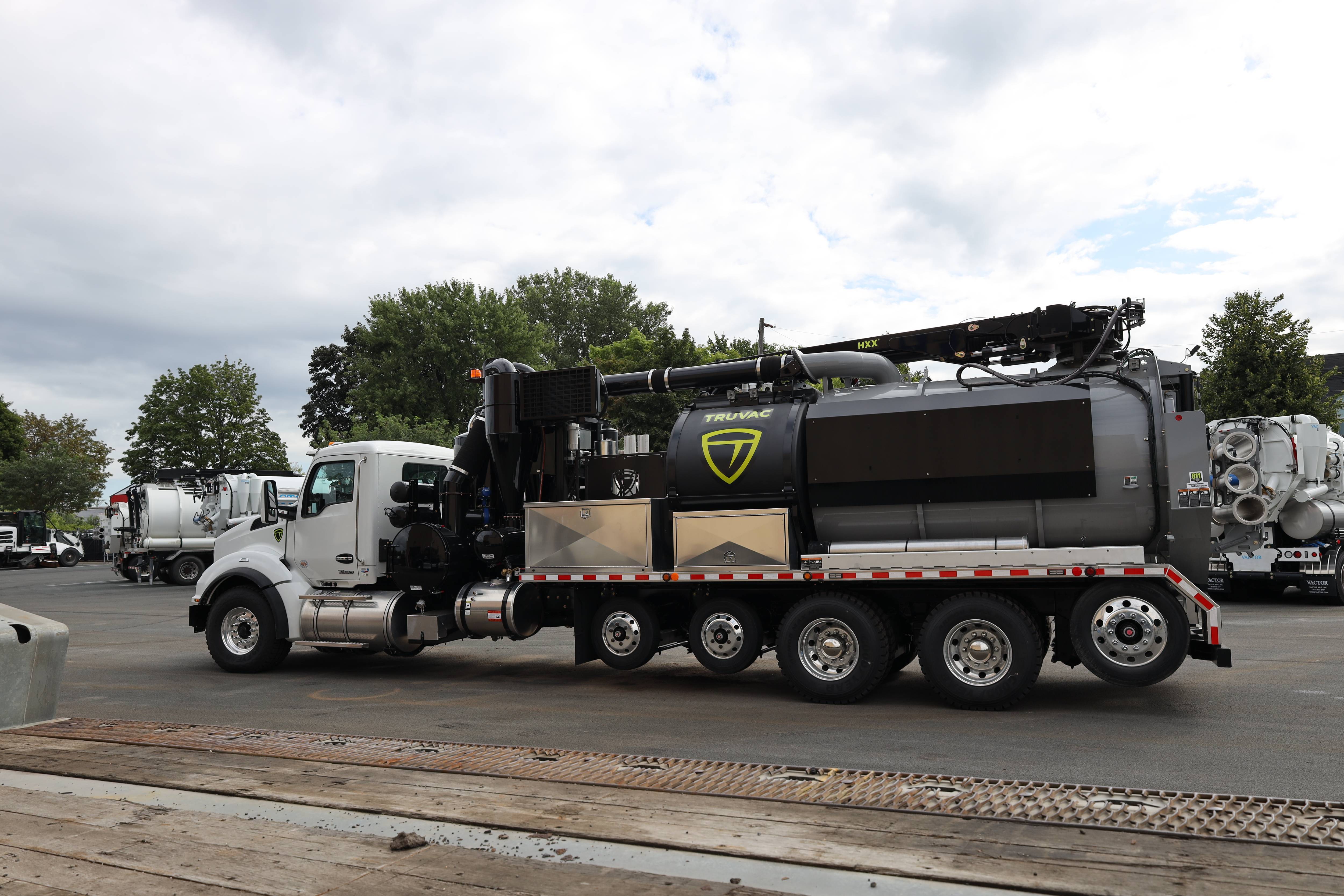

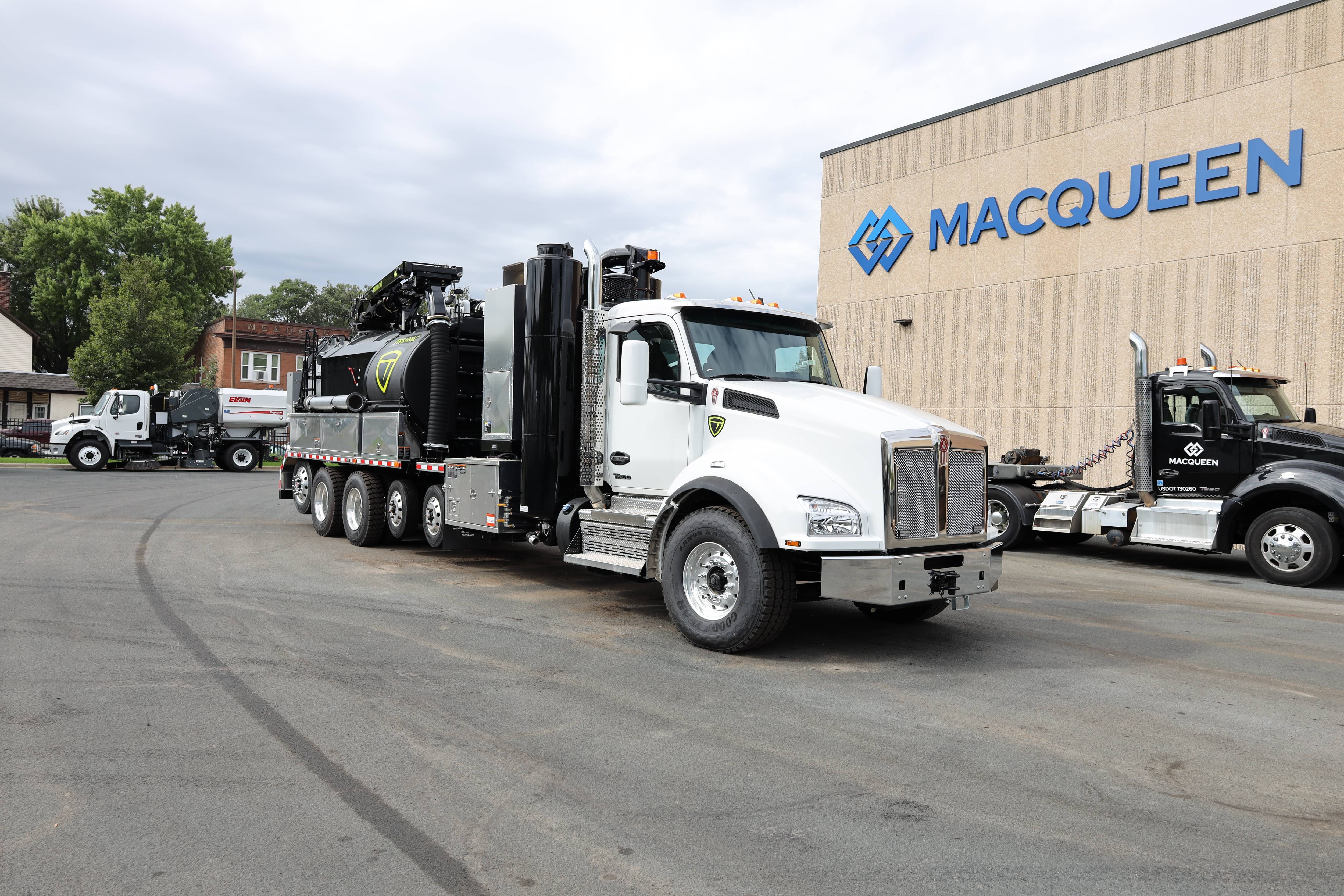

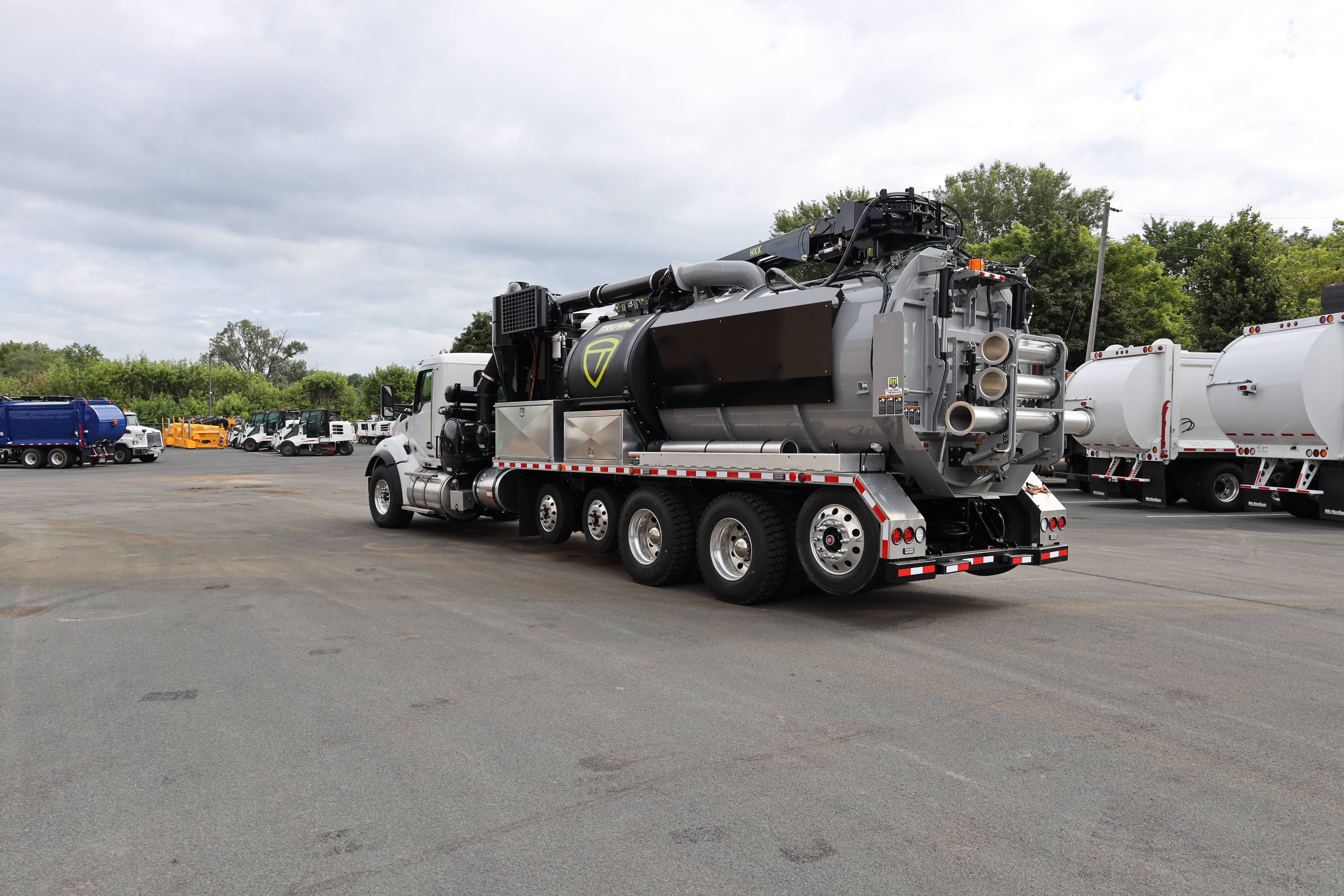

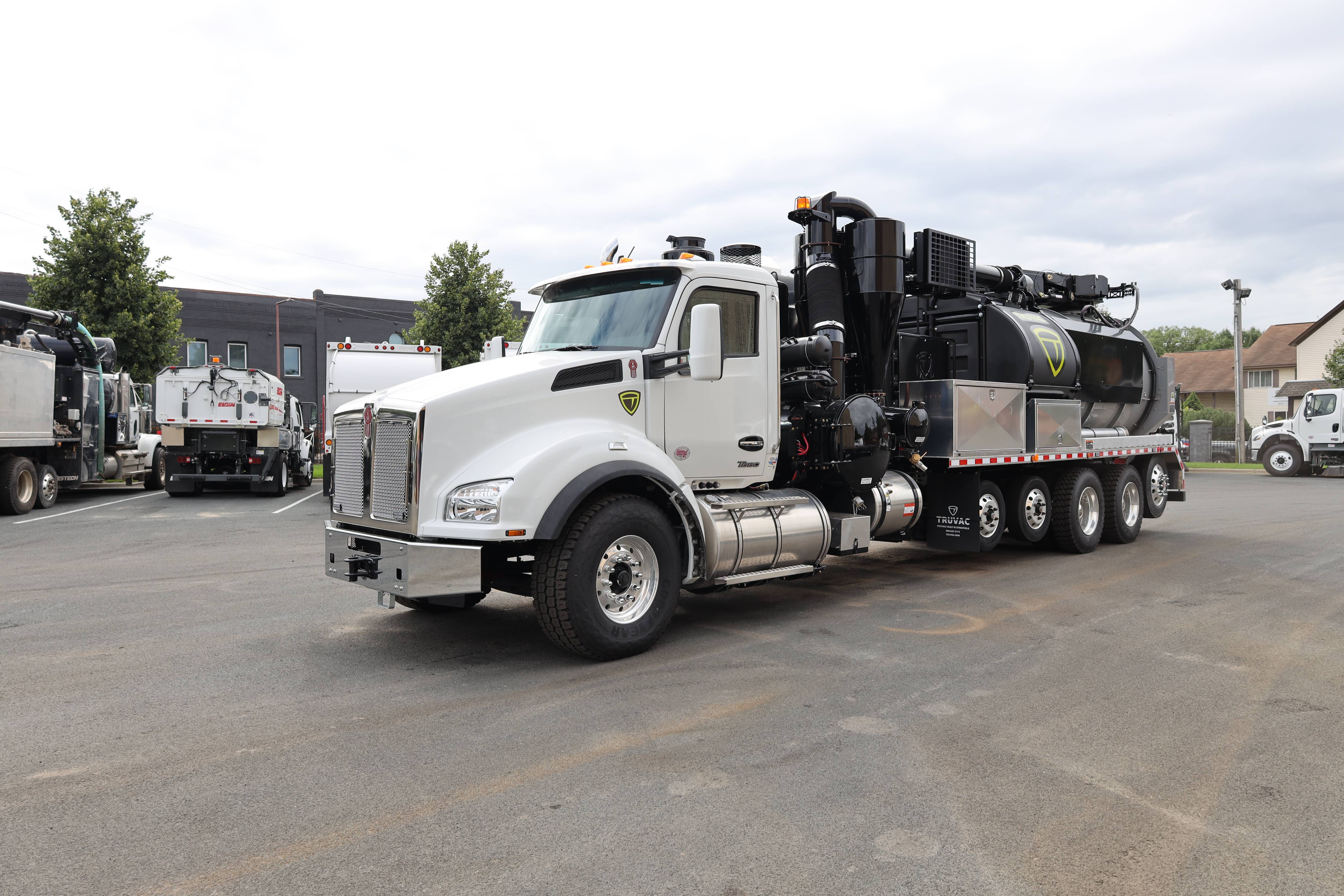

2025 Truvac HXX Quint Axle

Chassis

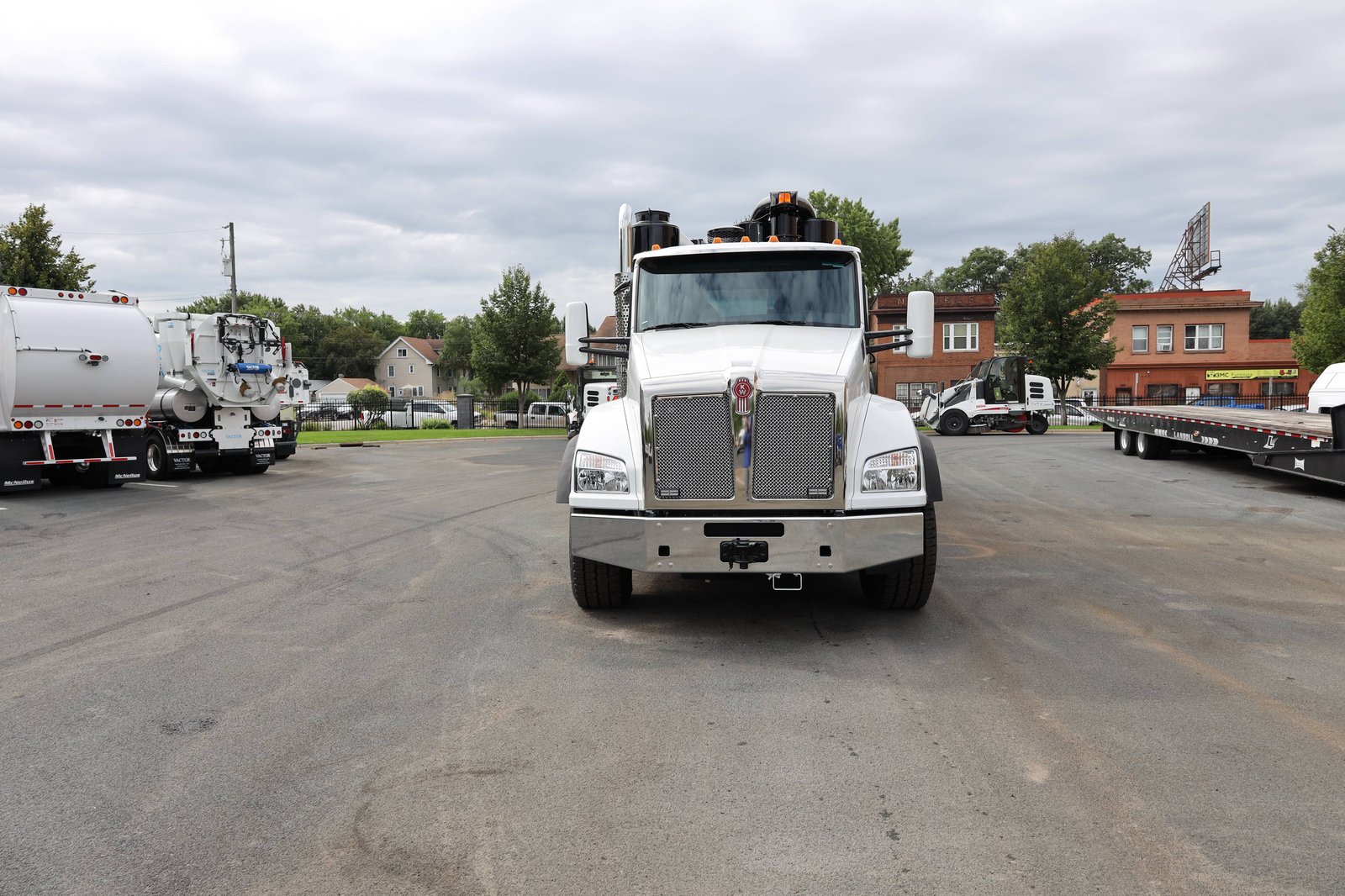

Model: 2025 Kenworth T880 SBA
Engine: 500 HP
Transmission: Automatic

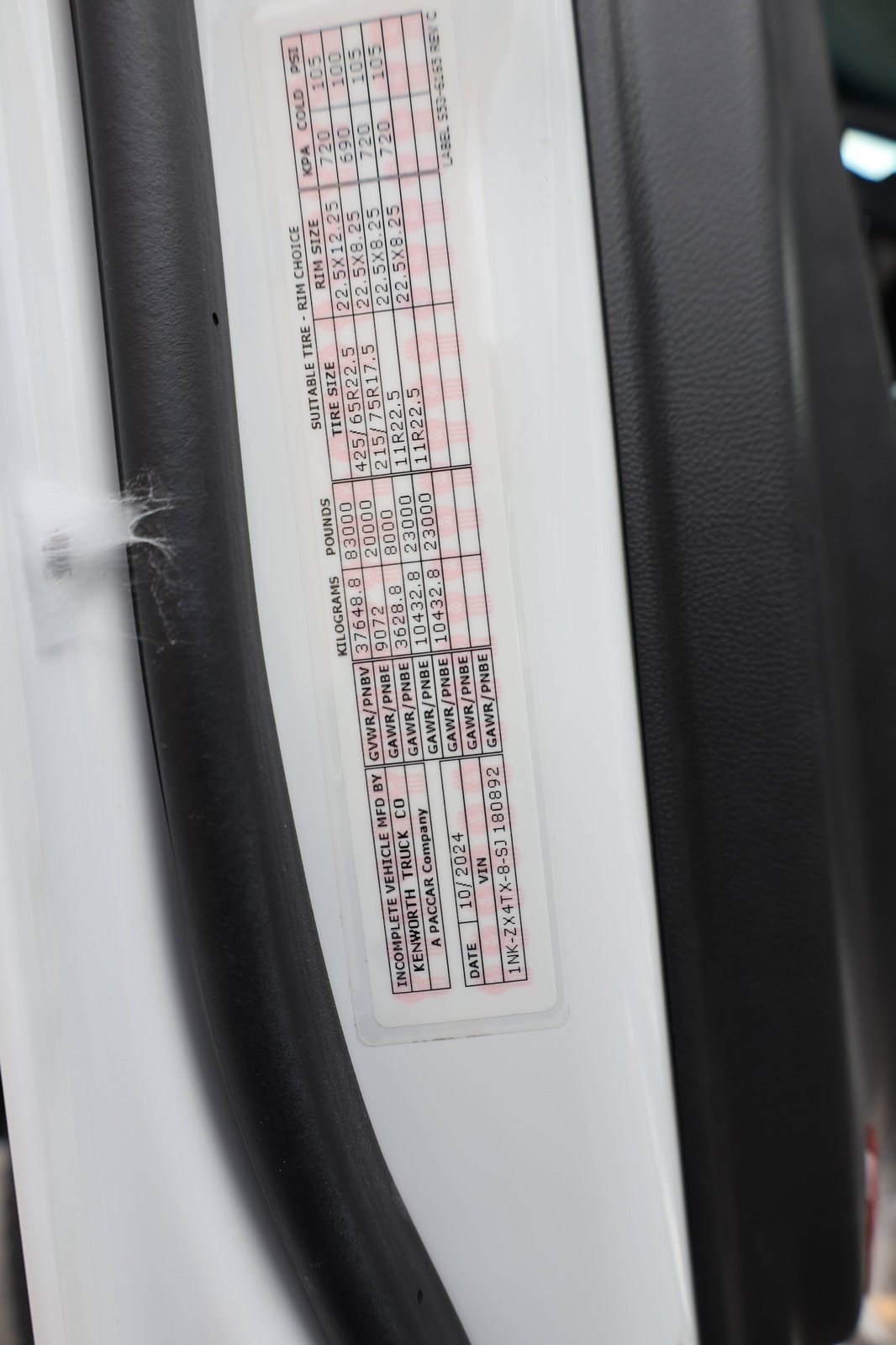

GVWR: 95,500 lbs
Axle Configuration: Tandem Axle with Dual Pusher & Tag Axles
Fenders: Aluminum
Mud Flaps: Included
Electrical: Sealed System with Circuit Breakers
Tool Storage:

• Driver Side Toolbox: 36"W x 52"H x 30"D

• Water Tank Toolbox (Driver Side)

• Control Cabinet Toolbox: 36"W x 24"H x 12"D

• Water Pump Cabinet Toolbox: 50"W x 30"H x 30"D

• Over-Fender Rear Right-Hand Toolboxes

• Rear Camera System

• Electronic Back-Up Alarm

• Rear & Front LED Beacons with Limb Guards

• LED Worklights:

  • (2) Boom

  • (8) Work Zone

• Road Salt Protection Package

• Laminated Lube Chart

• Standard Manual with Cloud Parts Access

• Grounding Cable from Debris Body to Subframe

• Mandatory Mounting Included

Body

Vacuum & Debris System

• Vacuum Blower: Hibon 8702, 27" PD

• Vacuum Line: 8" ID with Relief Valve

• Debris Tank: 12 yd³ Extended Steel Body

• Dump Hoist: Double Acting

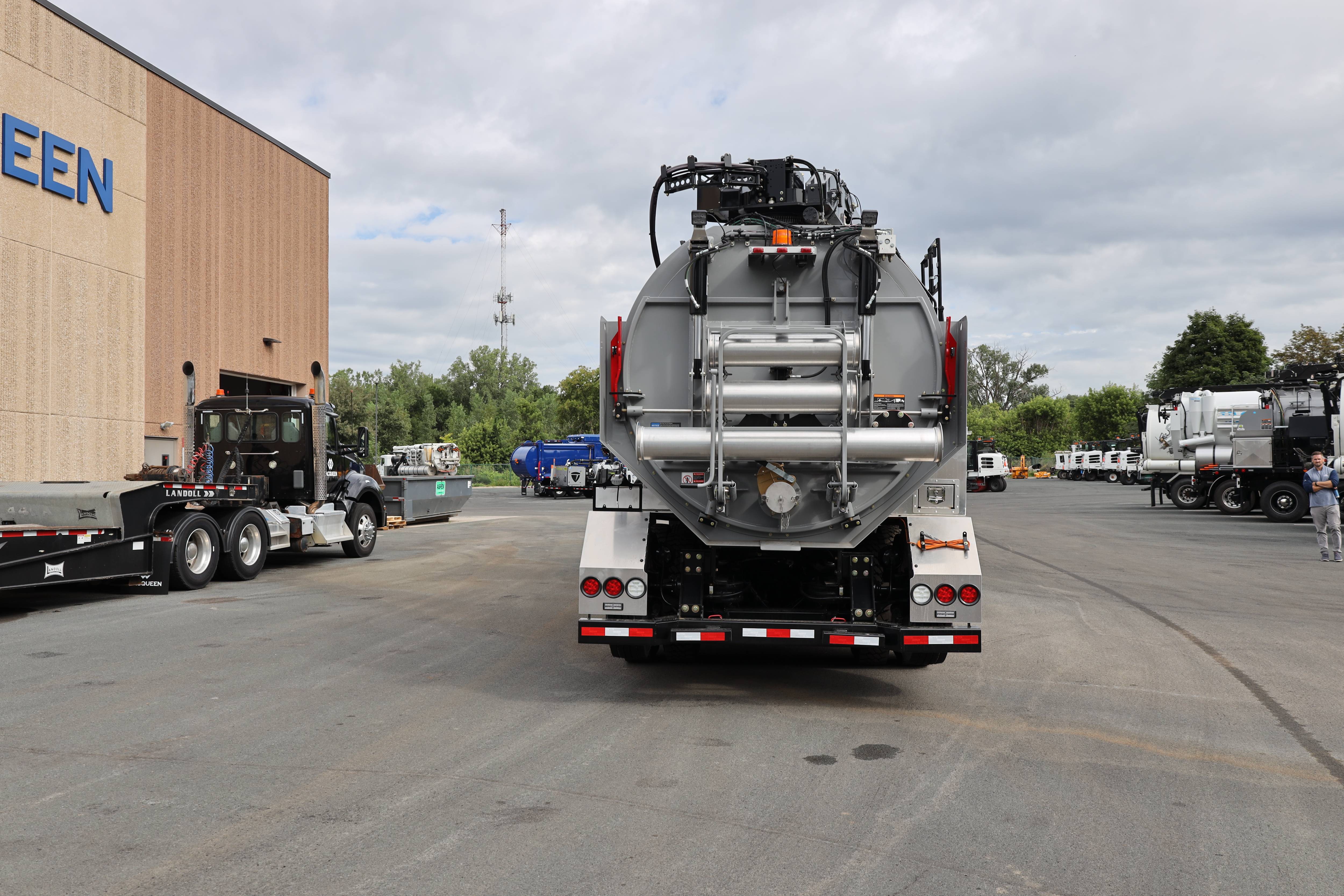

• Door: Flat Rear Door with Hydraulic Locks & Lift

• Knife Valve: 6" Rear Door Cam-Lok (6:00 Position)

Deflectors & Accessories:

• • Debris Body Deflectors

  • Electric Vibrator

  • Rear Door Splash Shield

  • Float Ball Screen (Perforated Plastic)

• Inspection Access: 8" Port with Ladder

• Float Shutoff System: Stainless Steel

• Body Up Alarm & Position Indicator

• Cyclone System: Dual Cyclone Separators + Cyclone Drain Valve

Water System

• Capacity: 1200 Gallon Poly Water Tank

• Pump: 20 GPM @ 3000 PSI (Upgraded)

• Heating & Protection:

  • 800,000 BTU Water Heater (12V)

  • Glycol-Heated & Foil-Backed Insulation

  • Remote Mounted Heated Drain Valve

  • Cold Weather Package 3 (PTO Recirculator + Antifreeze Tank)

• Valves & Fill:

  • 2" Y-Strainer with 25' Fill Hose

  • 2.5" Cam-Lok Fill Fittings

  • 3" Water Tank Drain

• Indicators:

  • Electronic Low Water Indicator (Duplicate Removed)

  • Digital Pressure Gauge

Boom & Hose Systems

• Boom Type: 7 ft. Telescoping, 320° Rotation

• Boom Elbow: Telescopic Hard Hat Style

• Features:

  • Removable Turret Box

  • Manual Hydraulic Override Pump

  • Boom Out of Position Indicator/Alarm

• Hose Reels:

  • Main: 75' Retractable Handgun Reel (5/10 GPM Kit)

  • Secondary: Rear Manual Pullout Electric-over-Hydraulic Retract w/ 1/2" x 75' Hose

• Hose Accessories:

  • Control Panel Boom Controls

  • Wireless Remote (Pump & Vacuum Relief)

  • Hydro Excavating Nozzles with Single Jet Spinner

  • Digging Lance Package

  • 3 Fixed Jet Nozzles

  • 1 Vactor Rotator Nozzle

  • 8" Vacuum Tube Package with 8" Dig Tube

Control & Monitoring

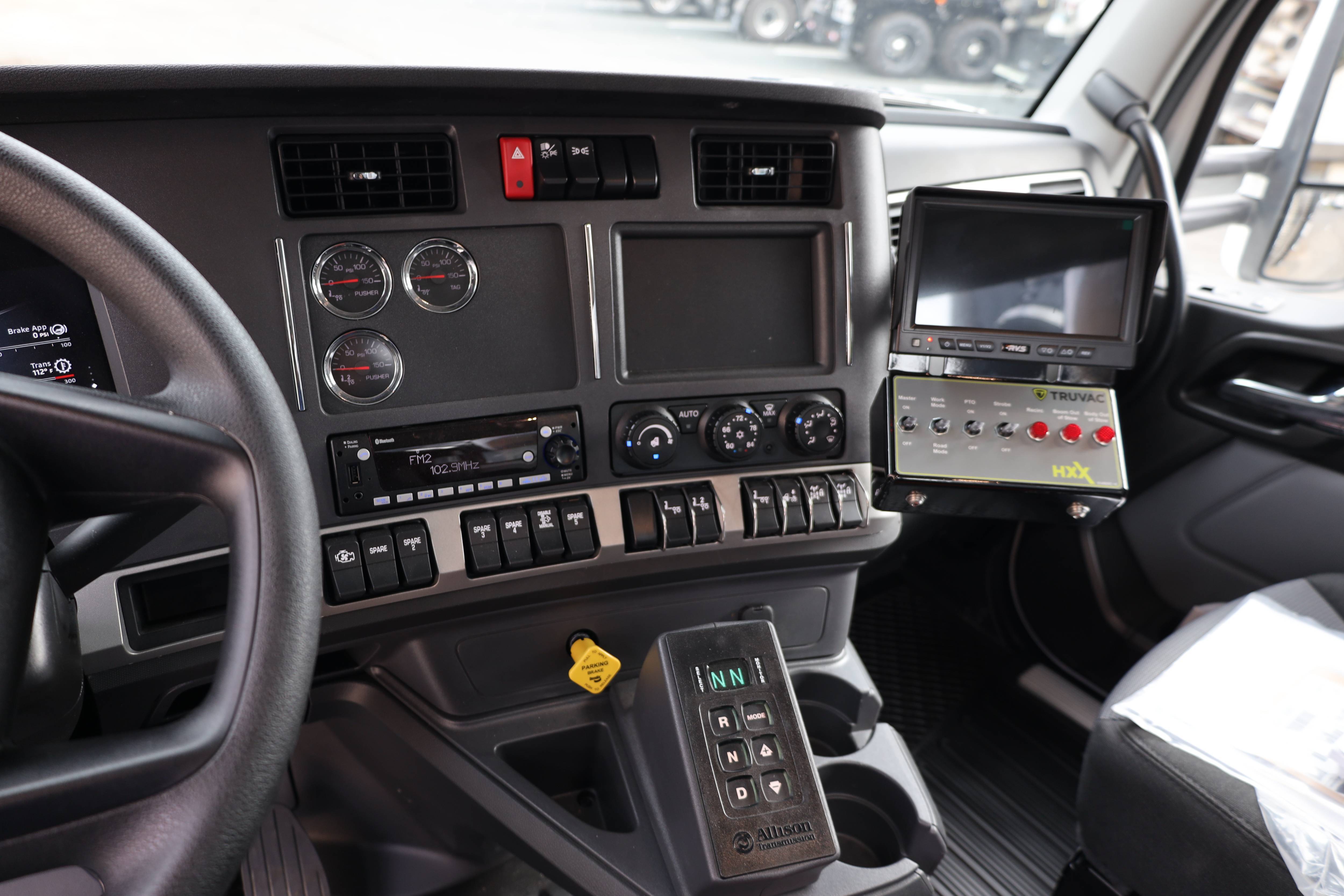

• Wireless Handheld Remote

• Body and Boom Position Alarms

• ISO 46 Hydraulic Oil

• Hydraulic Tank Shutoff Valves

• Boom and Water System Control Panel

Additional Features & Storage

• Folding Pipe Rack (Rear Door)

• Air Purge System

• Lube Manifold

• Hydrant Wrench & Tool Package

• Paint: DuPont Imron Elite
