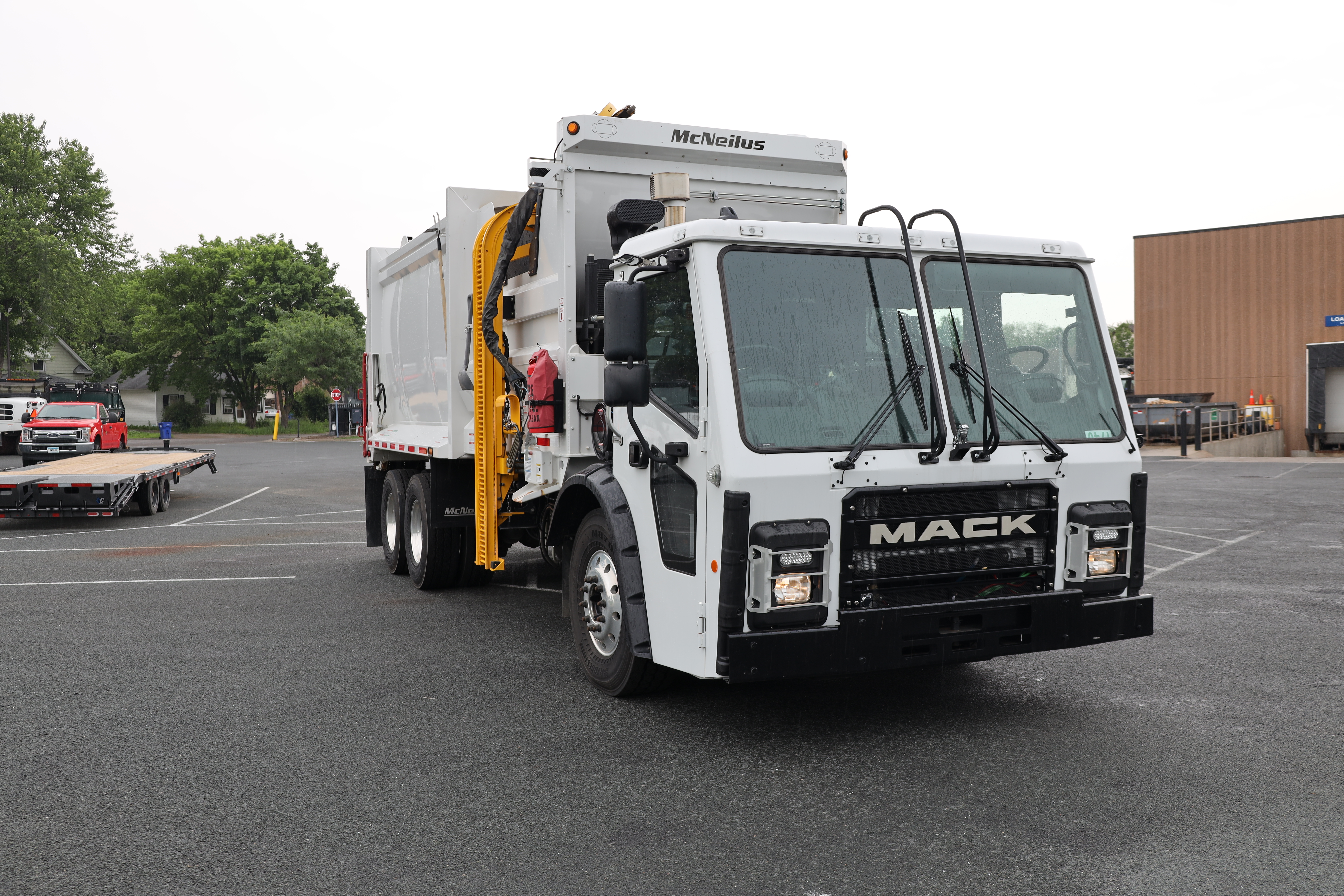

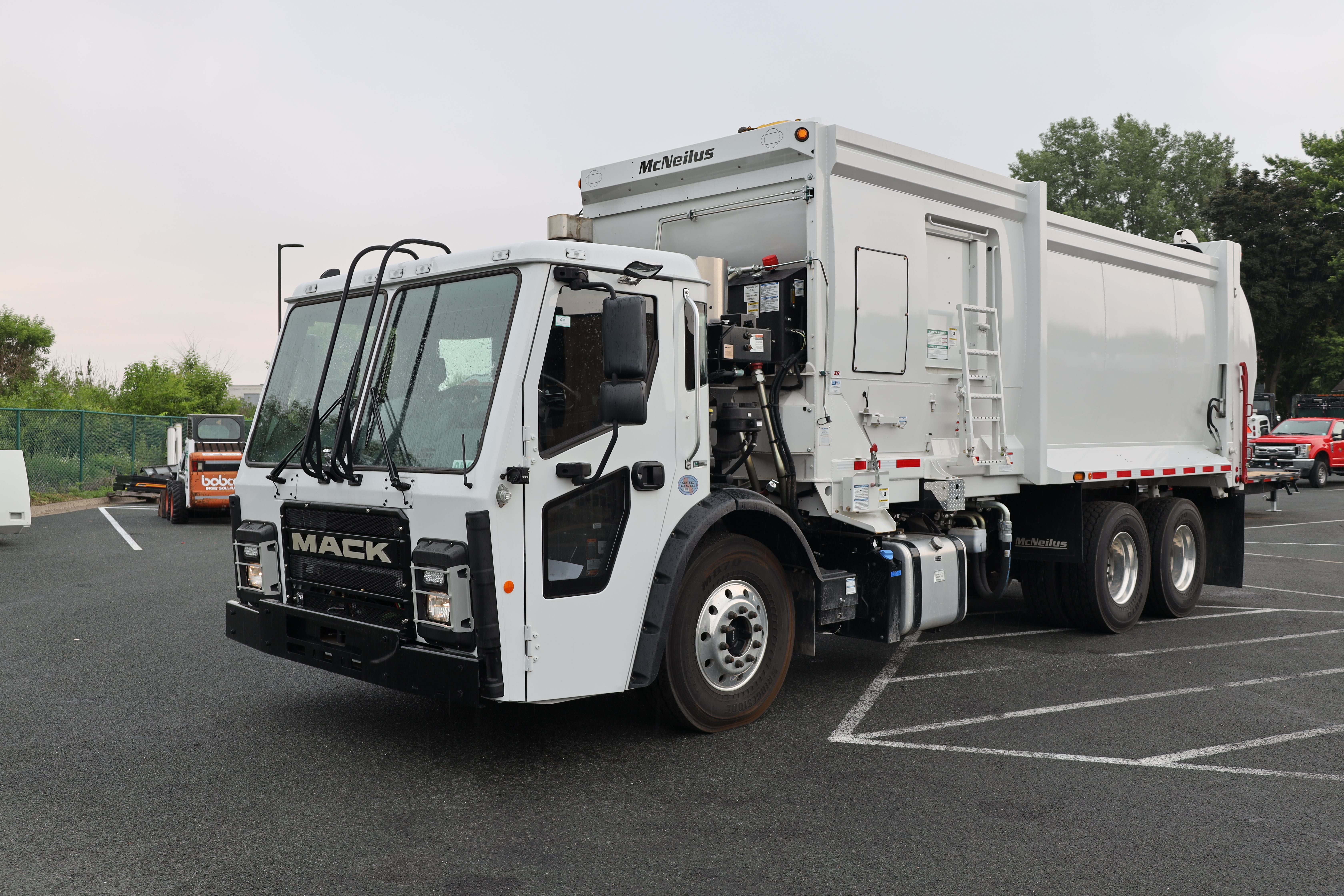

2025 McNeilus ZR

Chassis

• Packer Type: ZR Model 48
• GVW Category: 33,001 lbs or greater

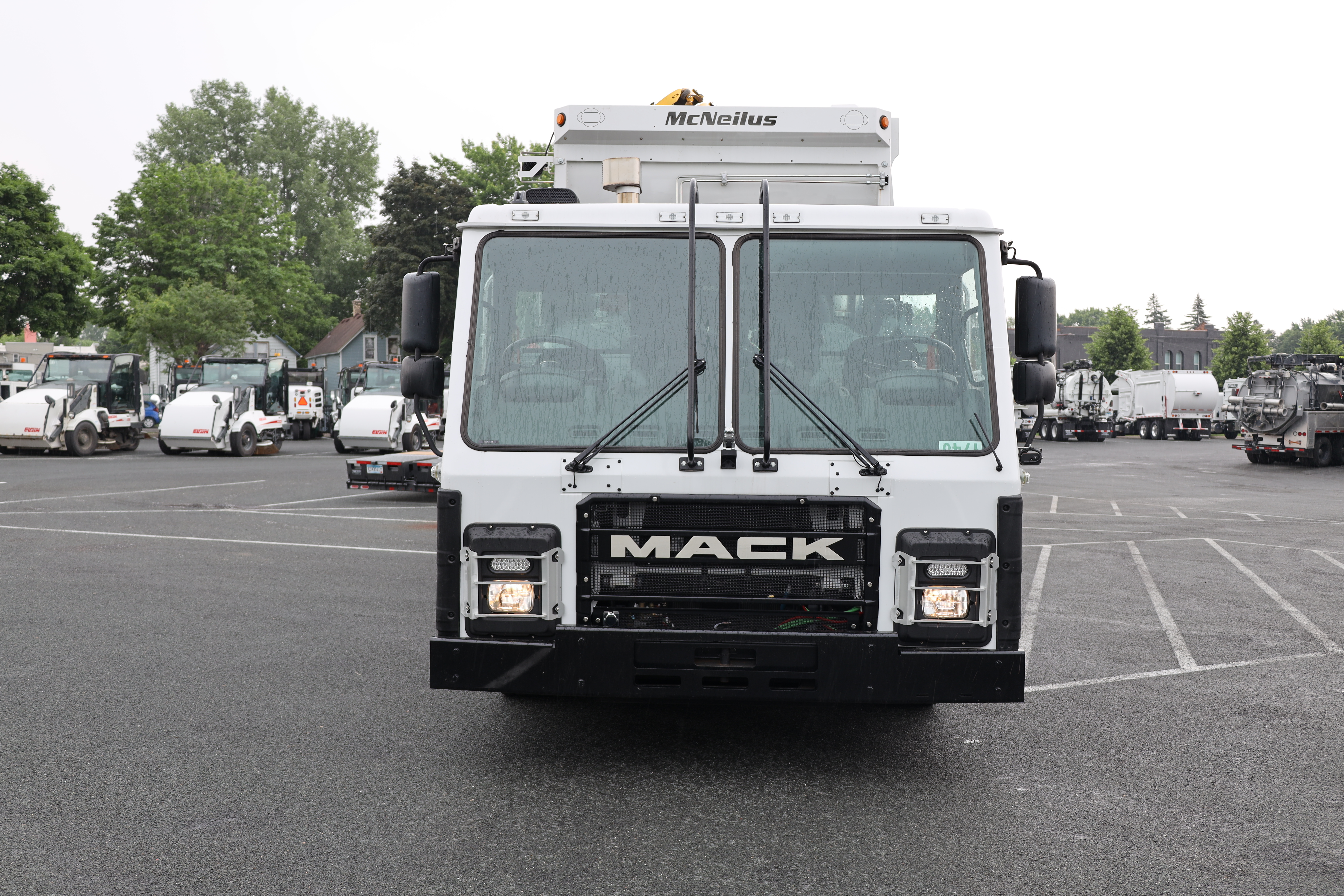

• Chassis: Mack LR 64R (Dual Axle)

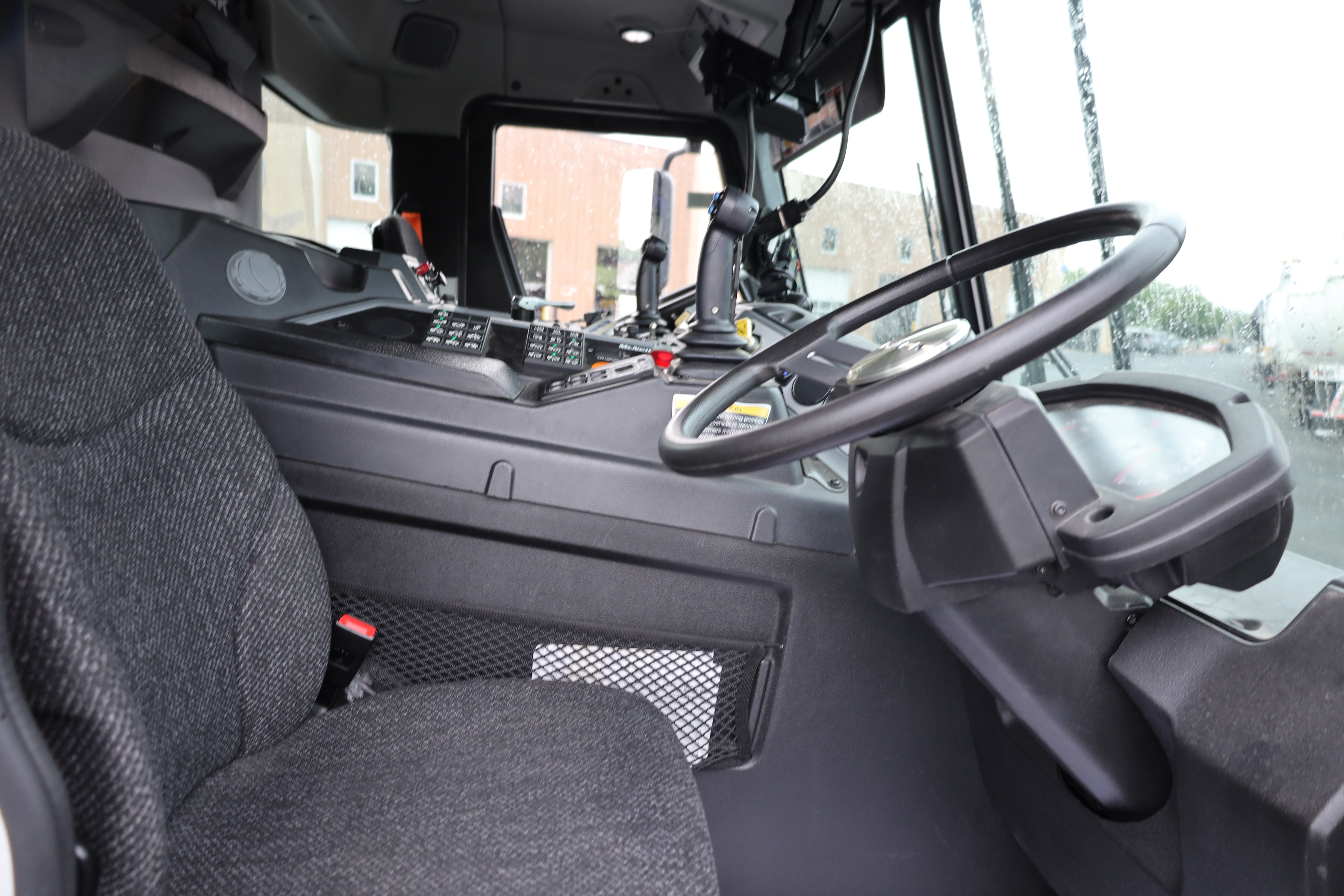

• Steering: Dual seated steering
• Fuel: Diesel (Stainless Steel tank)
• Engine: Mack (Post-1/1/2017 emissions) – >300 HP
• Transmission: Allison 4500 RDS with guard
• Exhaust: Left-hand vertical
• Suspension: Front: Spring shackle wide - Rear: Mack Camelback spring
• Pump Drive: SS CV DS remote mount constant mesh PTO

Body

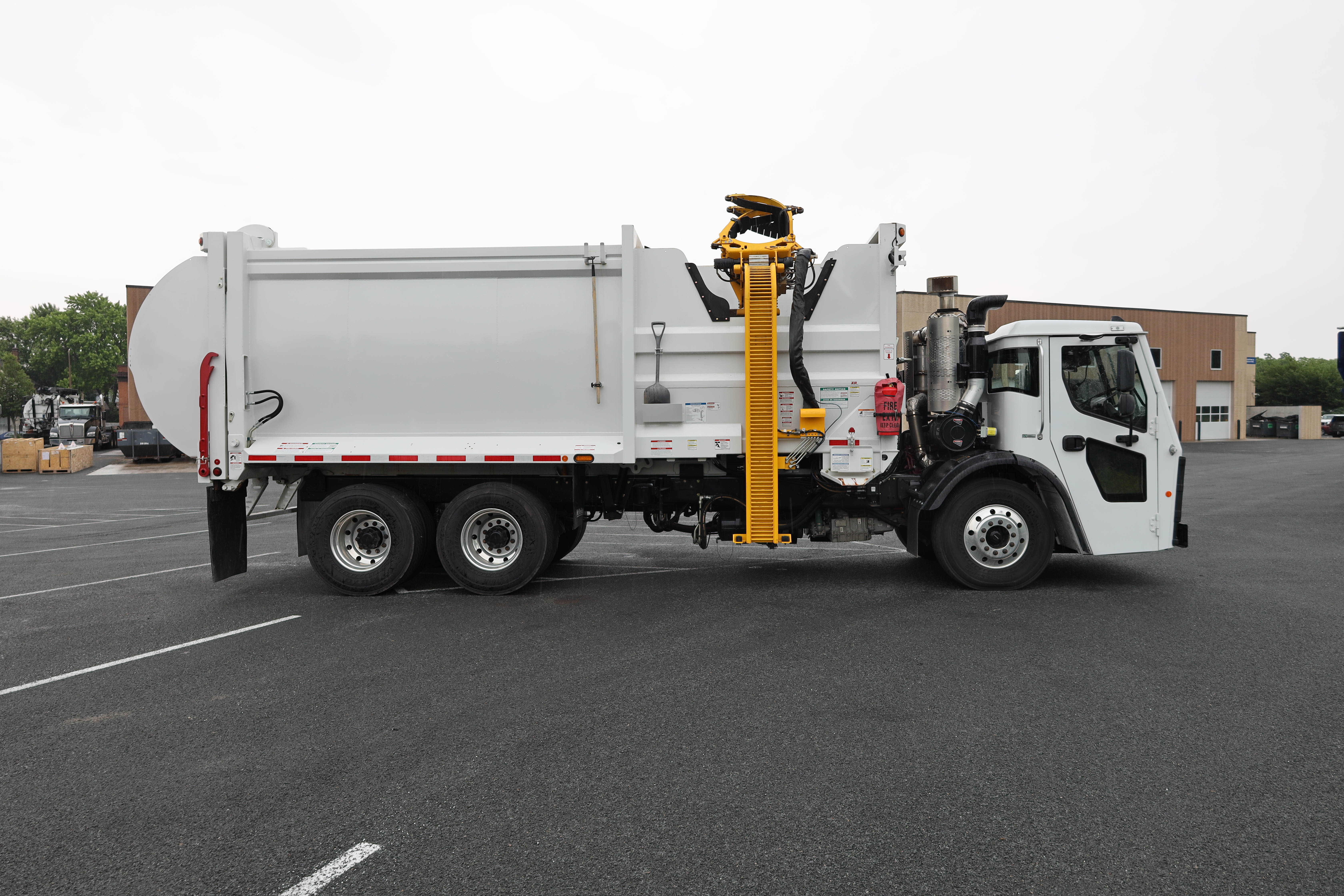

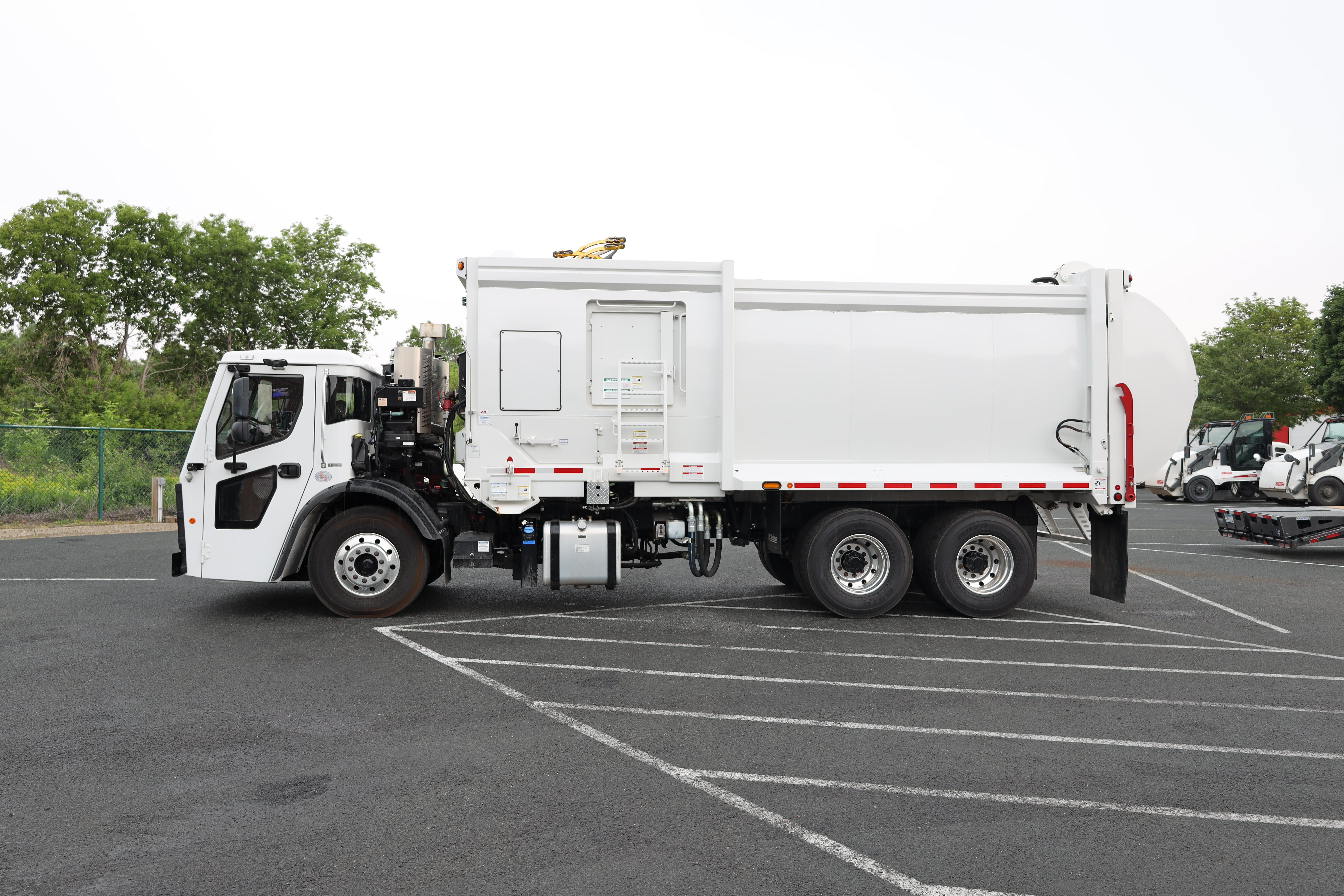

• Model: ZR Zero Radius ASL 28-yard

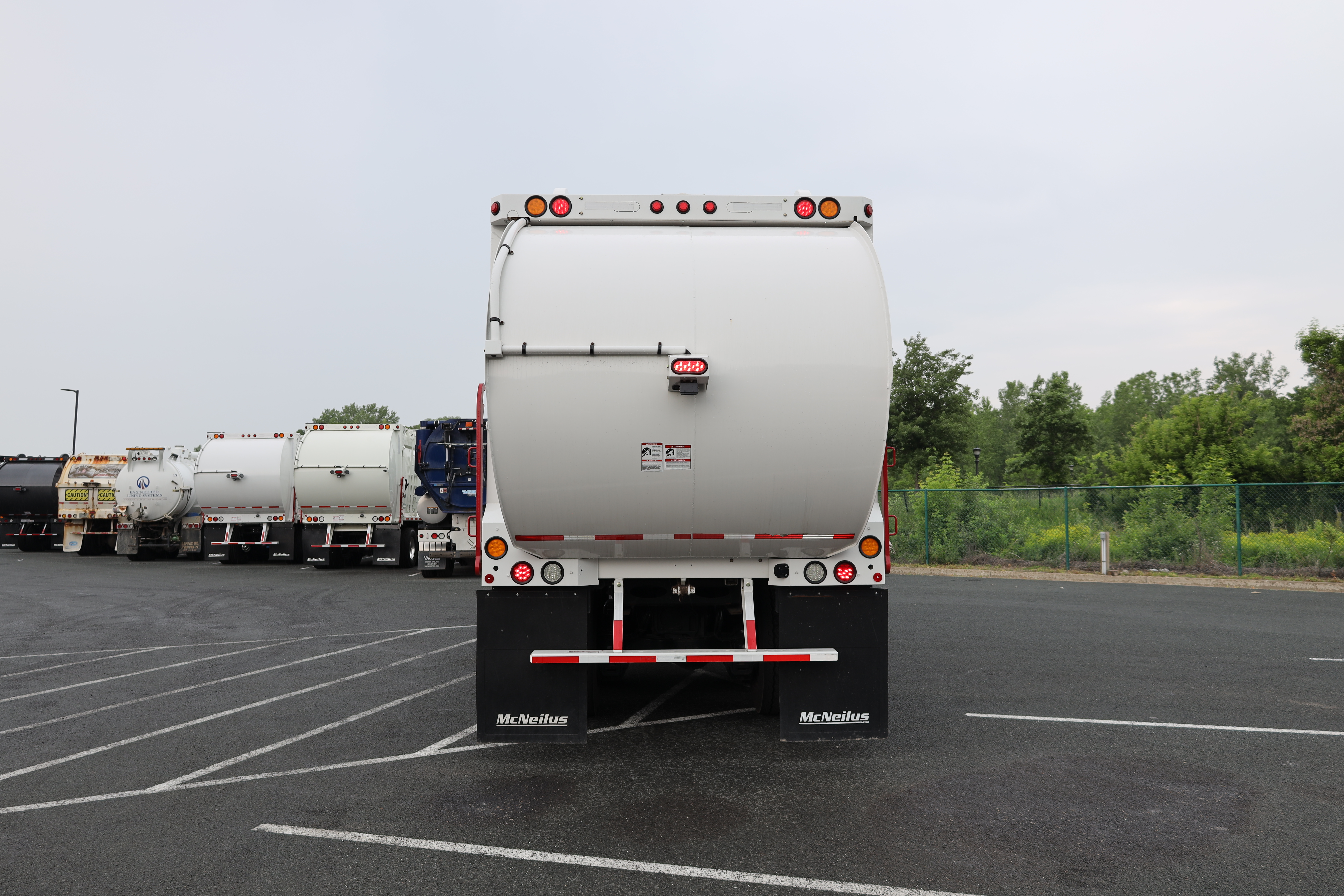

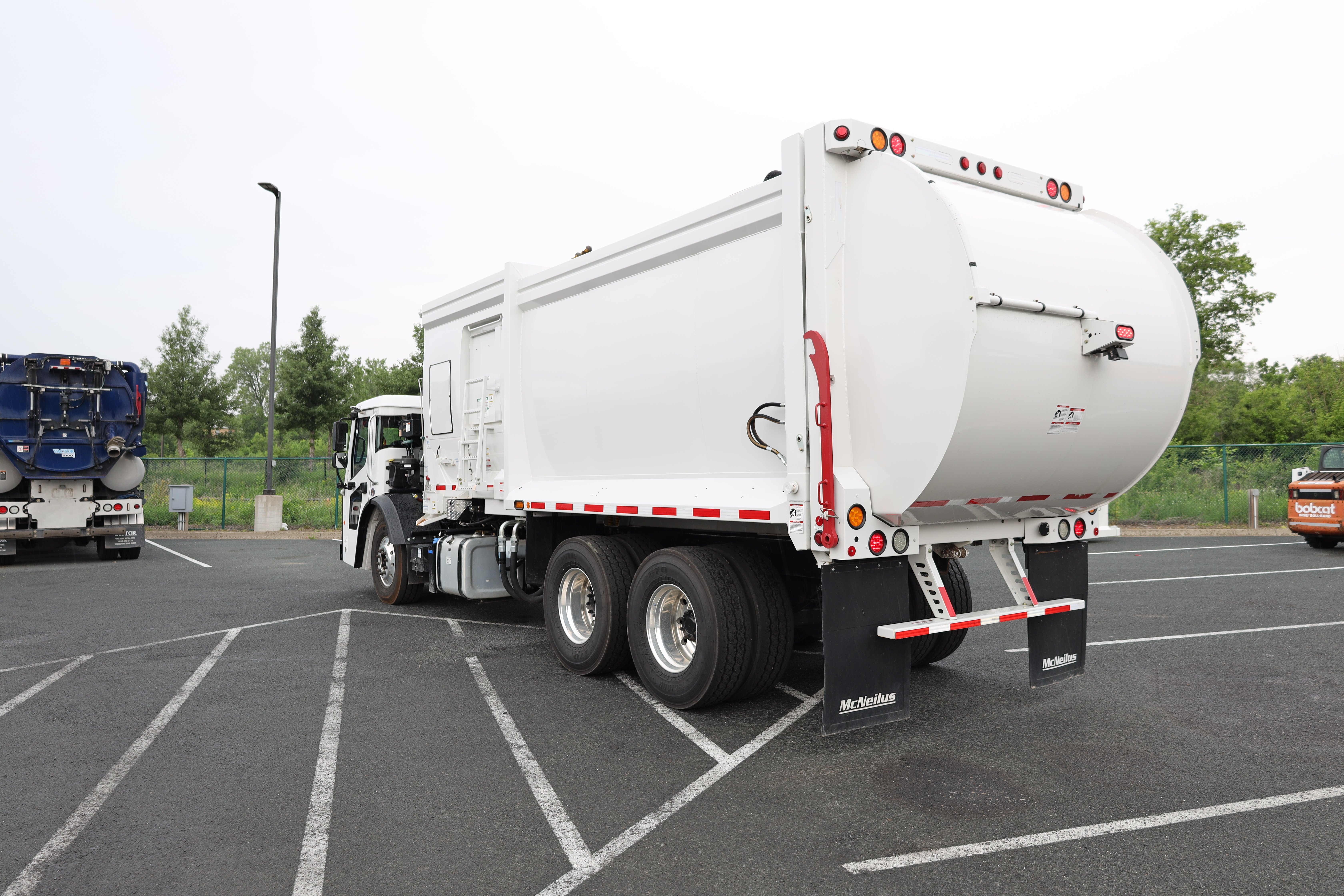

• Tailgate: 72" wide, 10 GA AR200 side panels, hard rubber seal
• Hopper: Cover panel (ZR only), 3/16" AR400 with 1/4" liner

Body Options

• Tailgate Type: Non-TG-mounted CNG
• Controls: Switches in dash
• Cameras/Guards: Hopper light cam guard,
• Packer Follower: Standard 10 GA 50KSI panel with hinge cover
• Floor: 3/16" AR400 with 1/4" liner
• Wear Protection: X-Wear standard
• Cleanout Tray: Curbside and street side
• Telematics: Enabled

Hydraulics

• Pump: Piston
• Reservoir: Steel, SS inside of body (frame-mounted street side)
  Filters:
  • Return: Schroeder (in-reservoir)
  • Cylinders: Mailhot (packer/ejector)
    Cooler & Temp Monitoring:

• Hydraulic cooler

• Built-in display gauge

• Temp sensor in reservoir

• Shutoff Valve: Red handle ball valve
• Sample Port: KP14NV 90-degree check
• Service Lift: Service lift – ZR only

Lighting

• DOT Lights: Economy LED
• Smart Lights: 4" programmable amber strobes (tailgate)
• Center Stop Light: Economy LED (center of TG)
• Work Lights: 5" LED (hopper, arm)
• Display Location: Dash (RAM mount)

Camera System

System: 3rd Eye 7" Monitor (Color, 4-port)
Mount: Overhead RAM mounted
Cameras: Qty 3

• Street side mirror-mounted

• Rear hopper (SS)

• Tailgate reverse camera
  Display in Reverse: Tailgate cam
  DVR in Cab: None

Arms & Forks

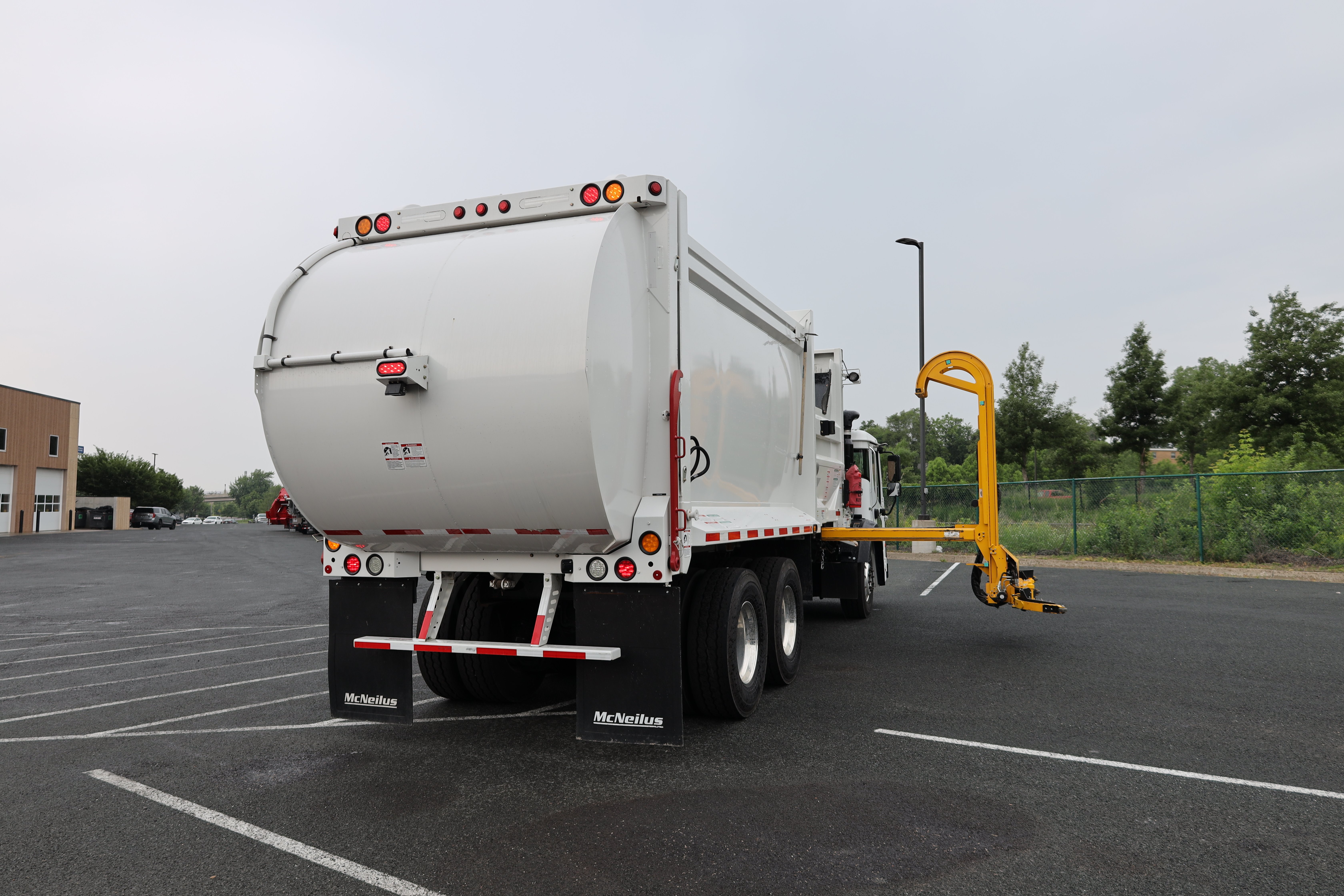

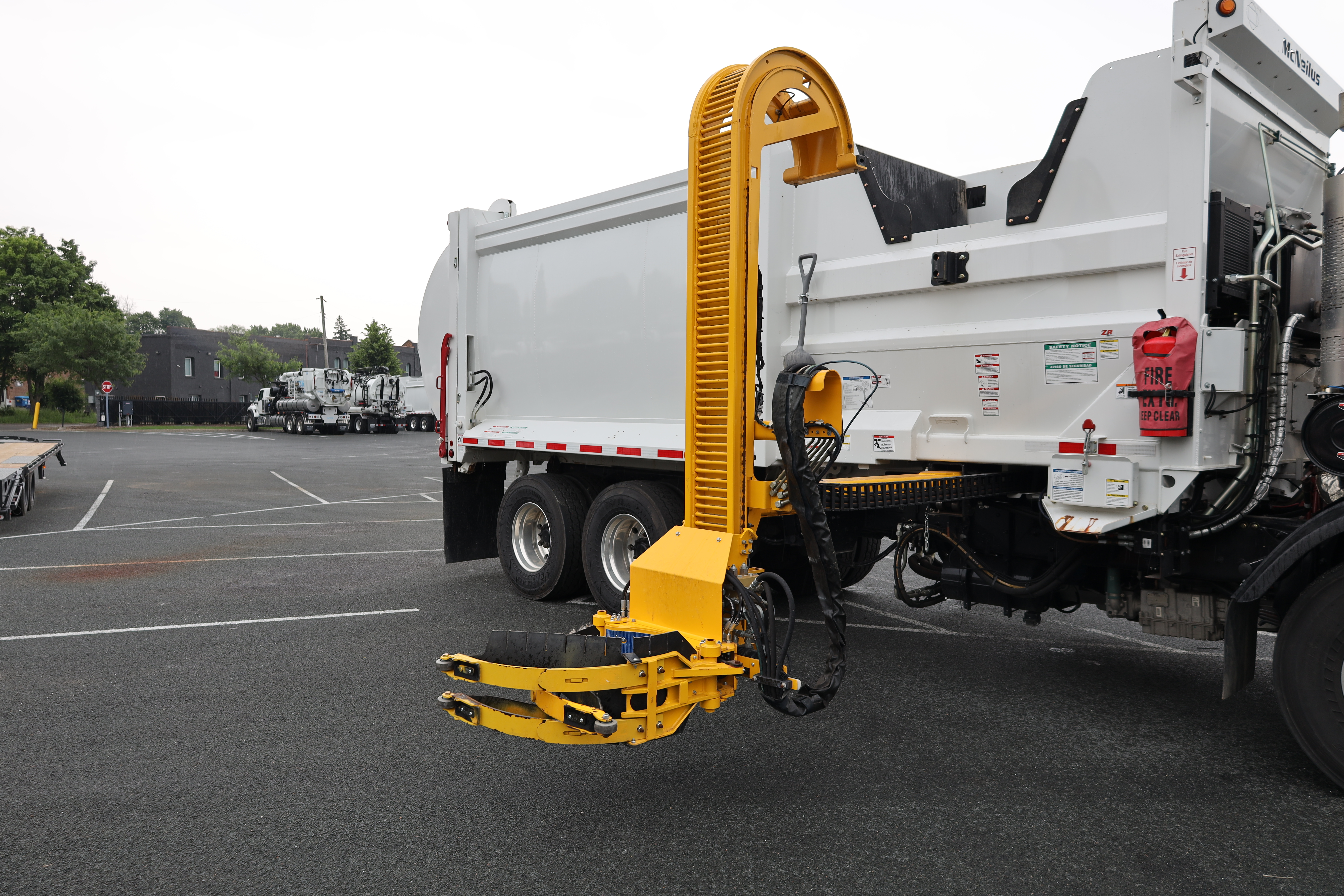

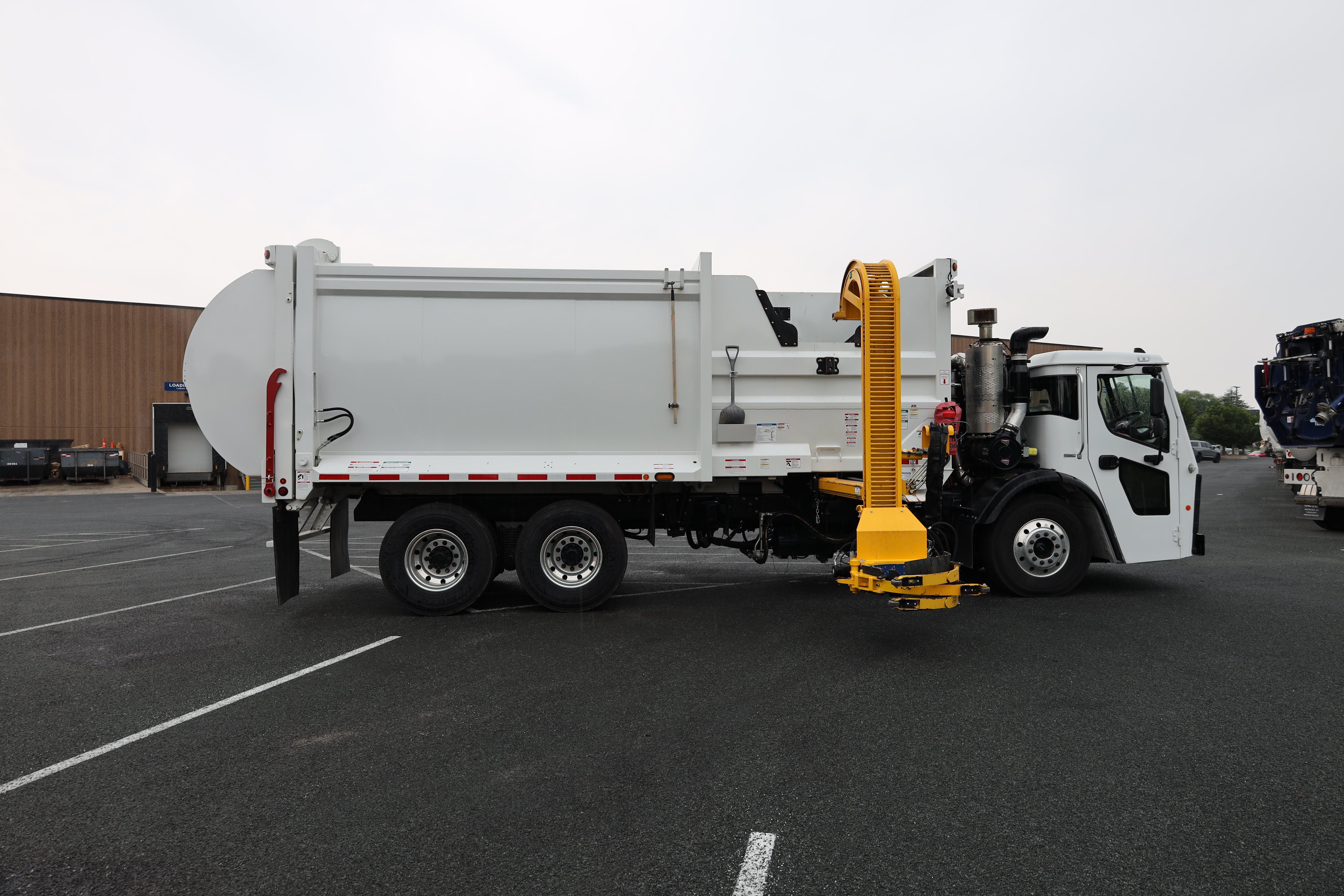

• Model: ZR 6' Arm – 96 gal
• Fingers: Extended finger grabber

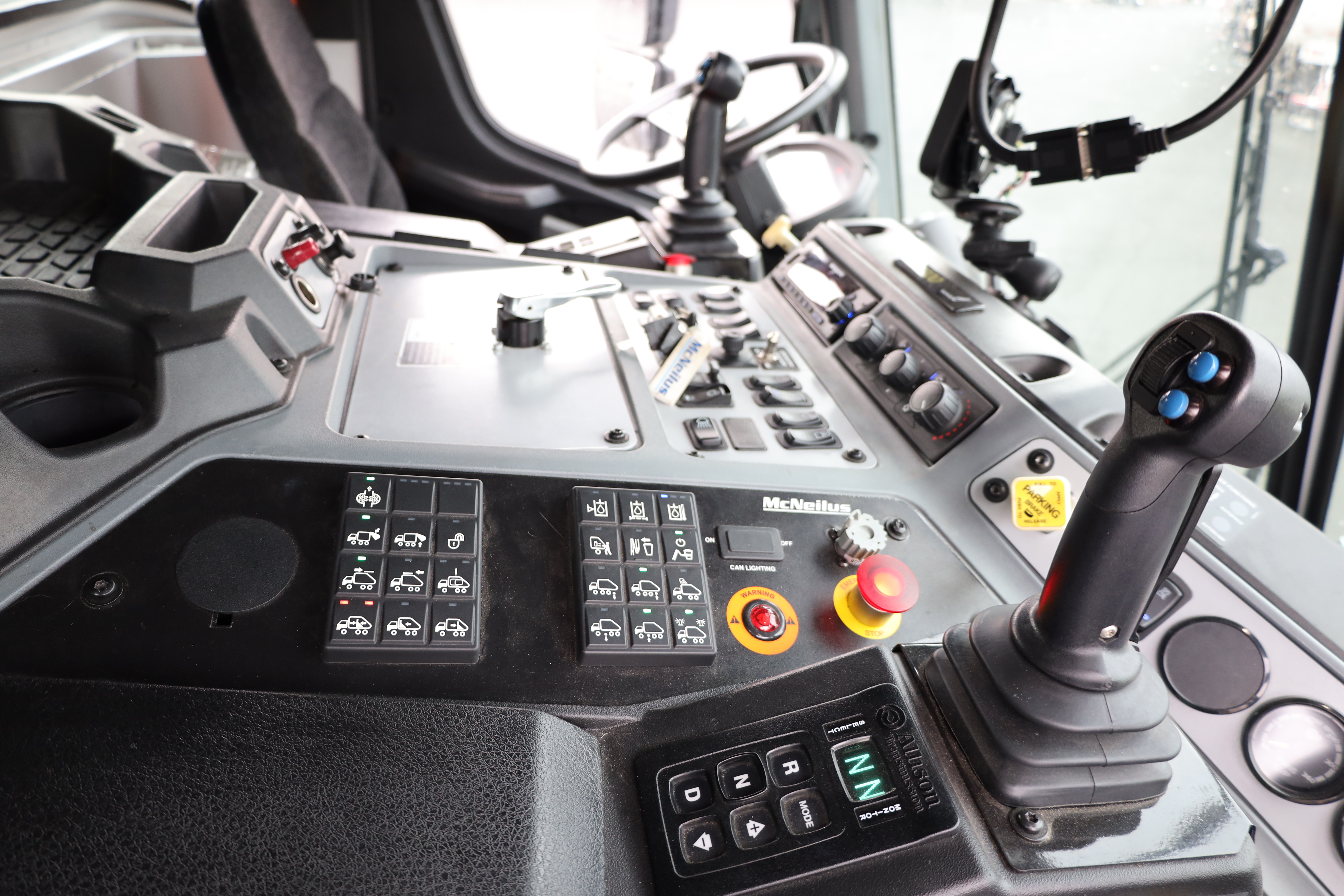

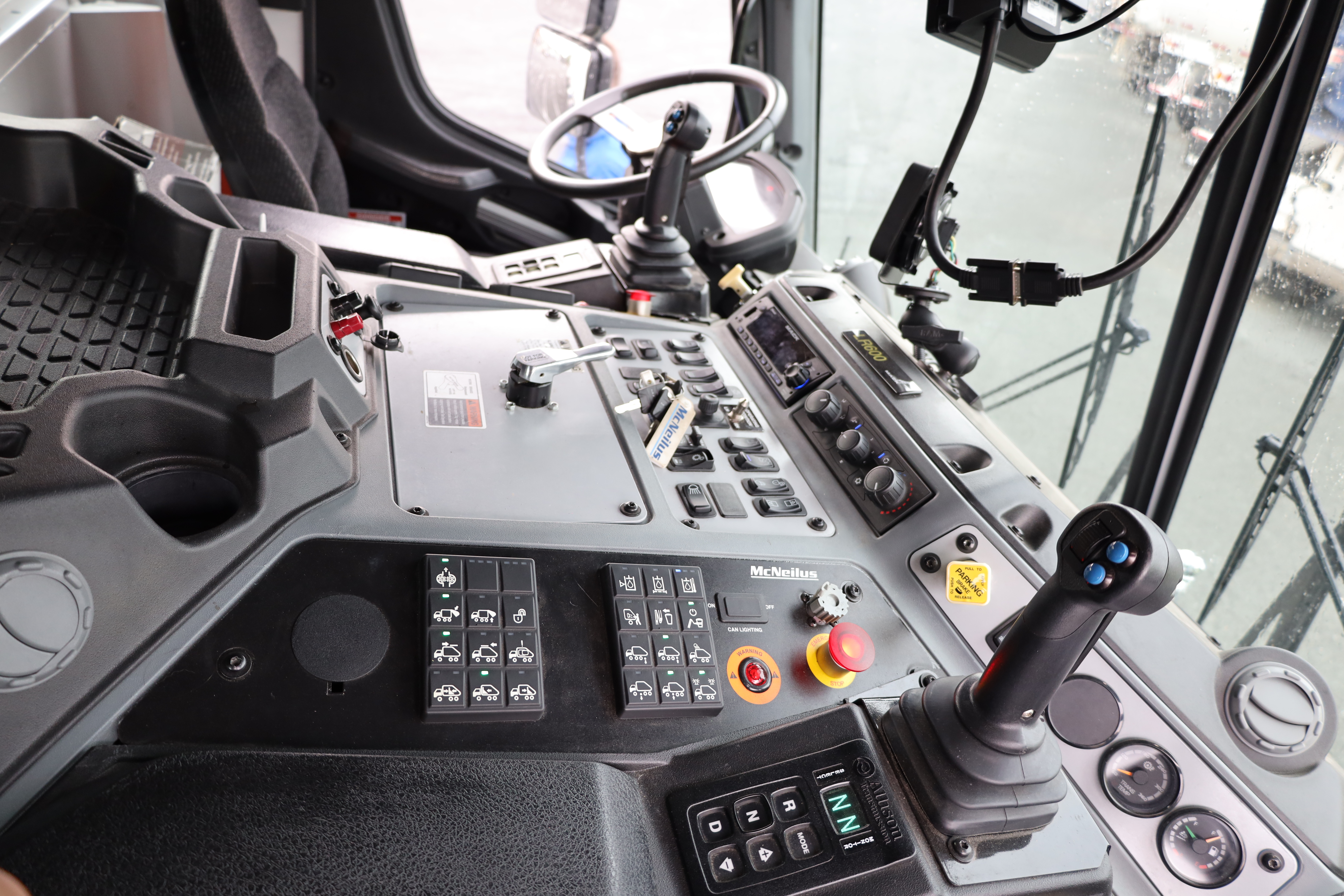

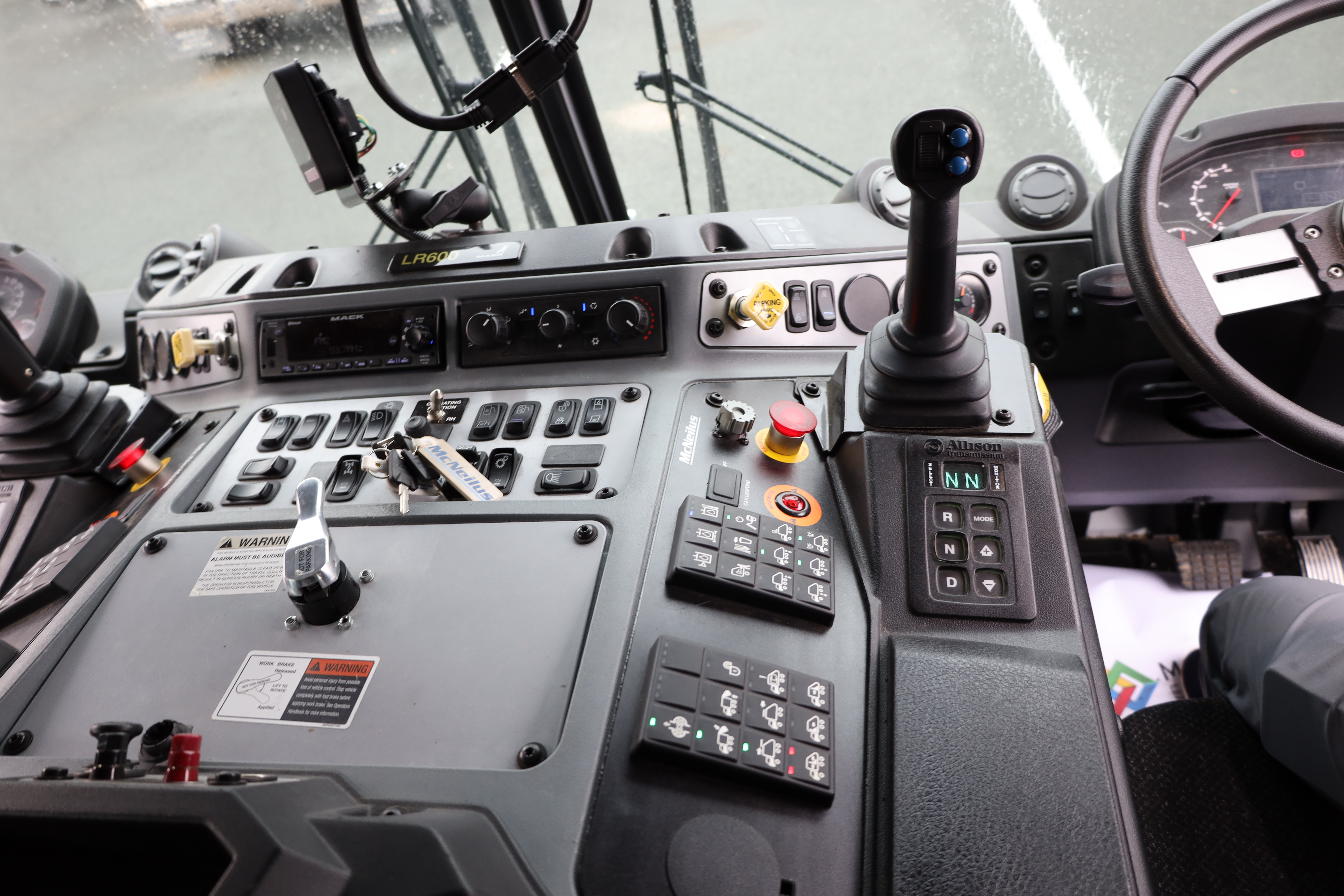

• Controls: Dual joystick (cab mounted)
• Digital Features: Can counter in digital display, grabber open interlock (standard in ZR software)

Misc. Body Equipment

• Mudflaps: Black with McNeilus logo (rear)
• Backup Alarm: ECCO dual-tone
