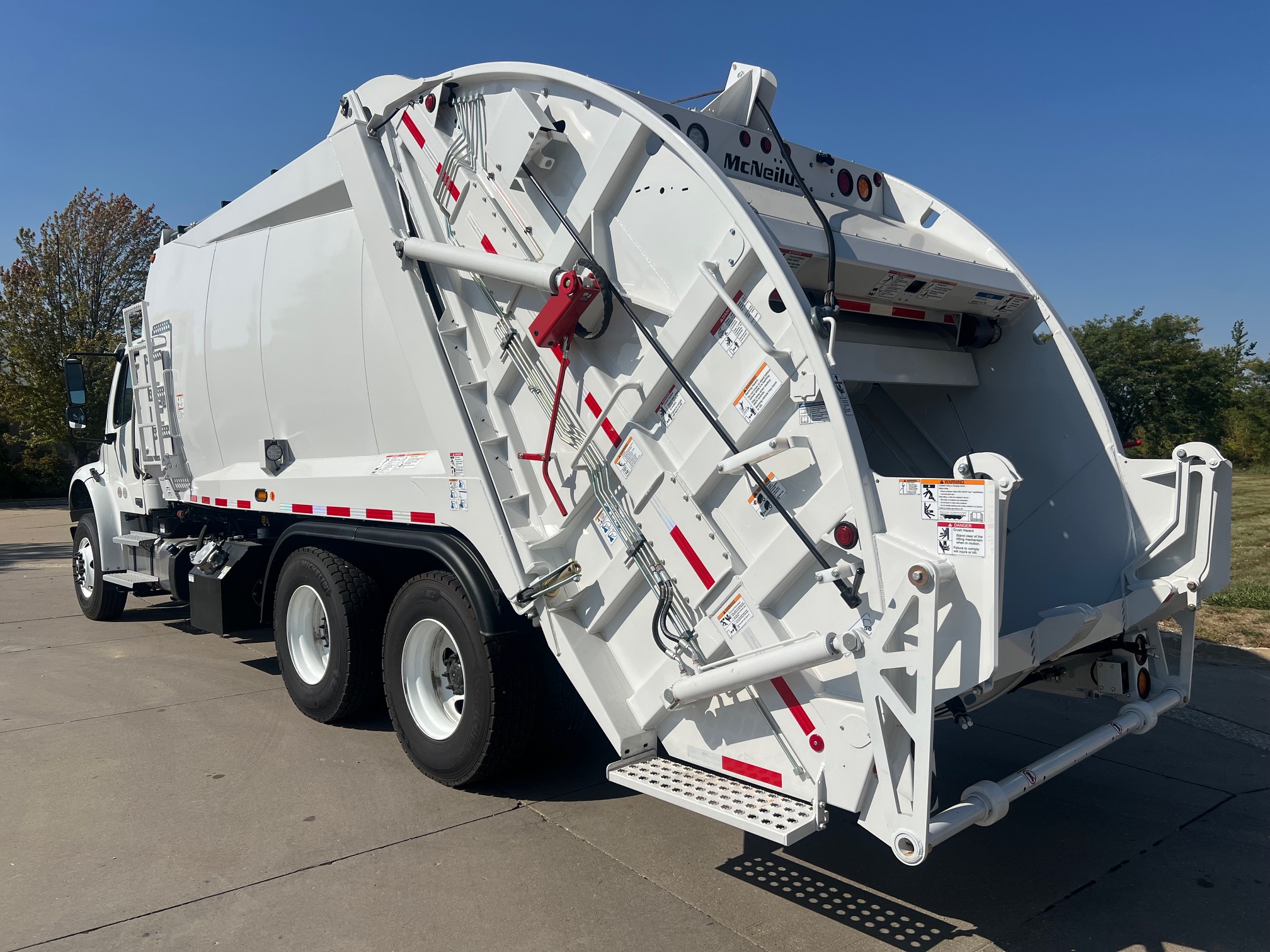

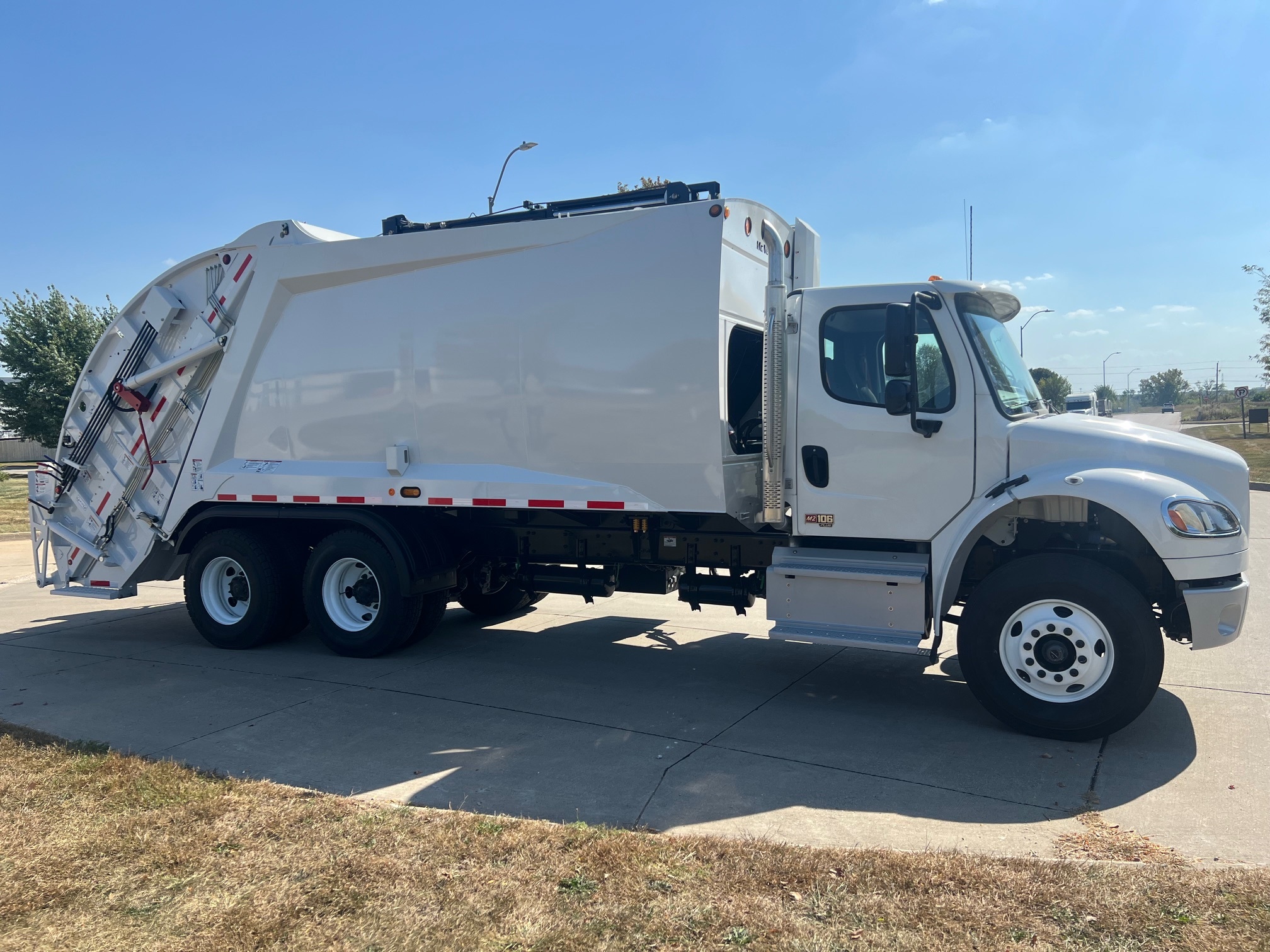

2025 McNeilus Heavy Duty

Chassis

Packer Type: 3.5 yd³ Tailgate – Heavy Duty Rear Loader

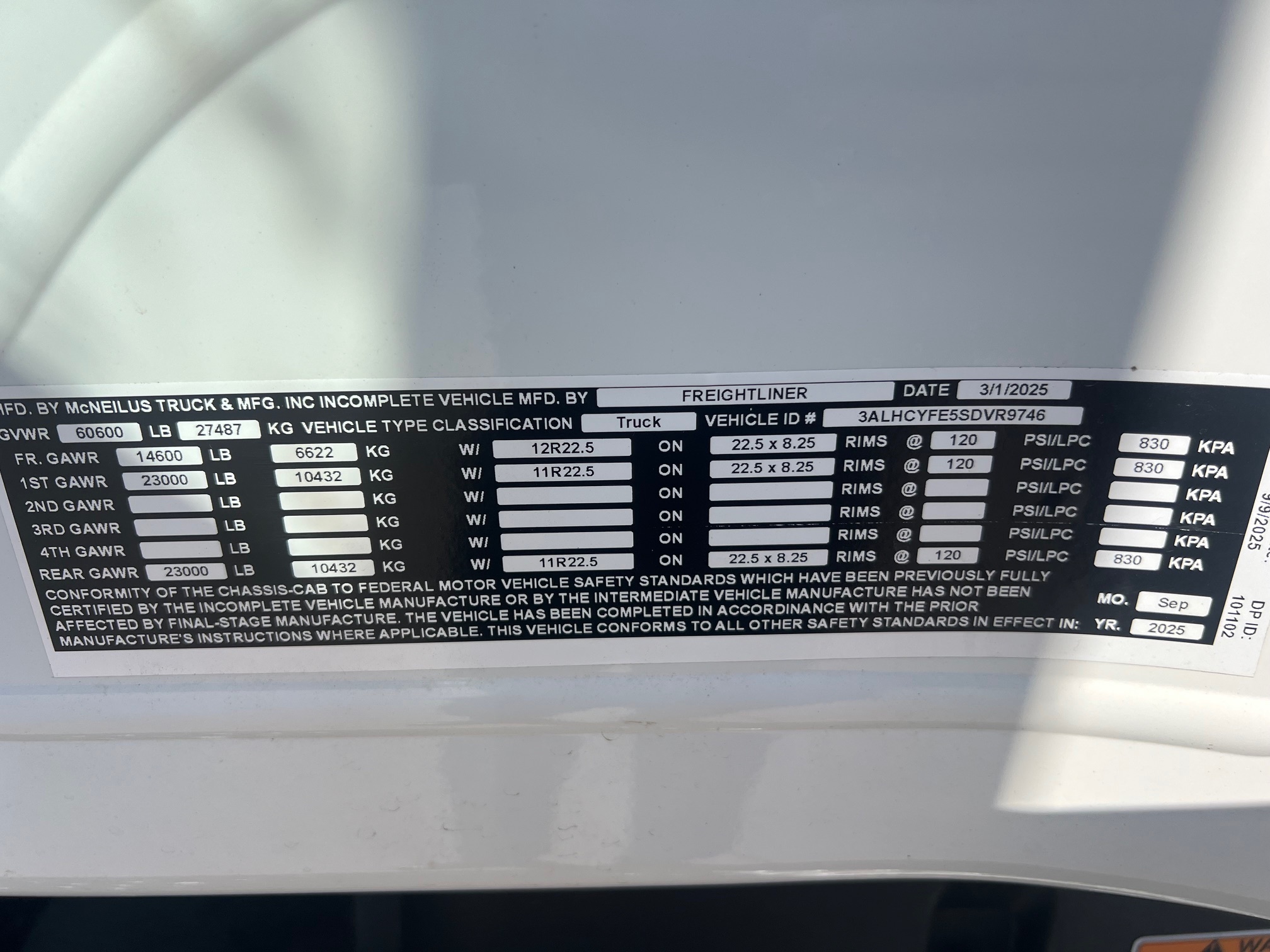

GVW Category: 33,001 lbs or greater

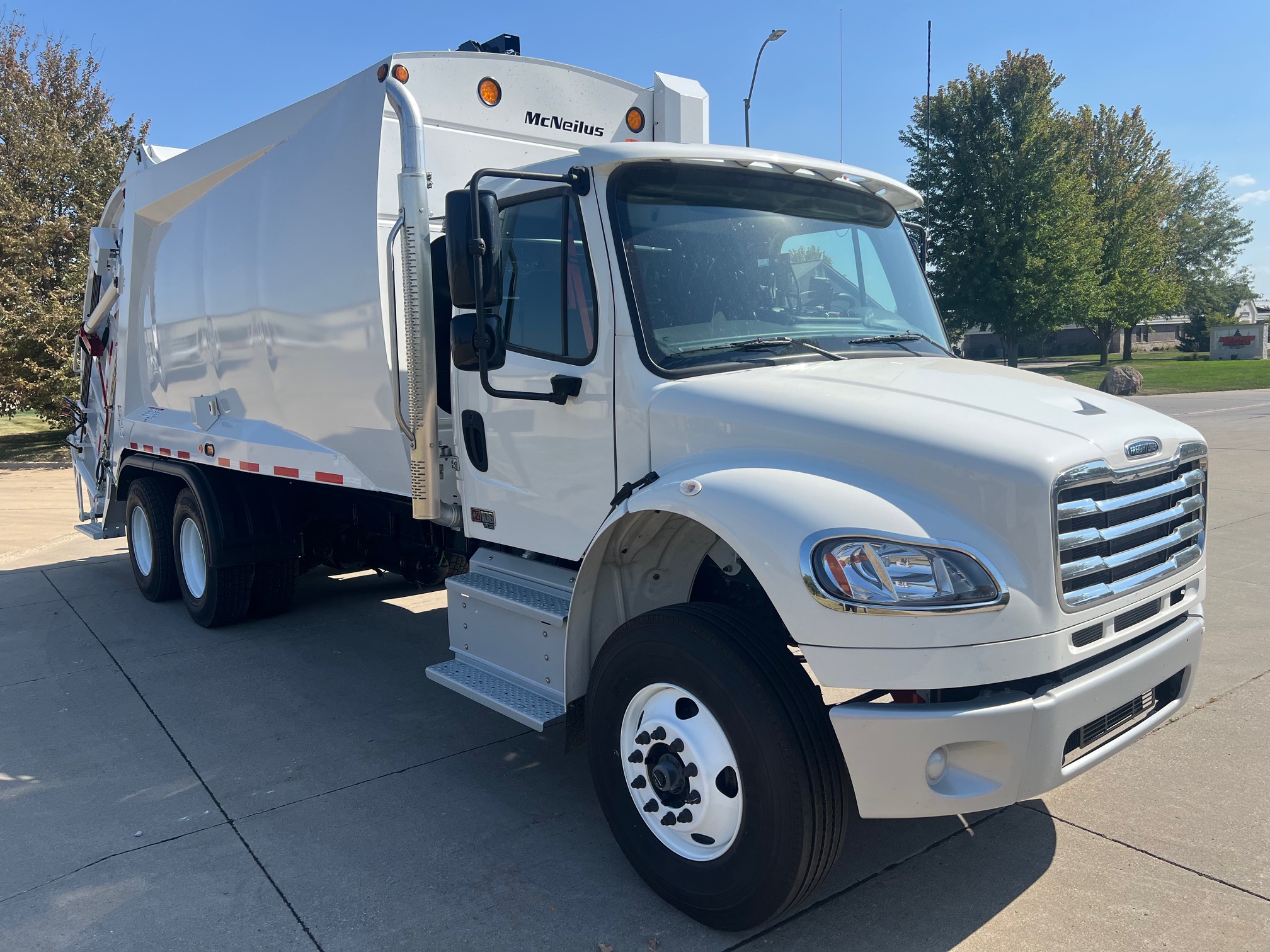

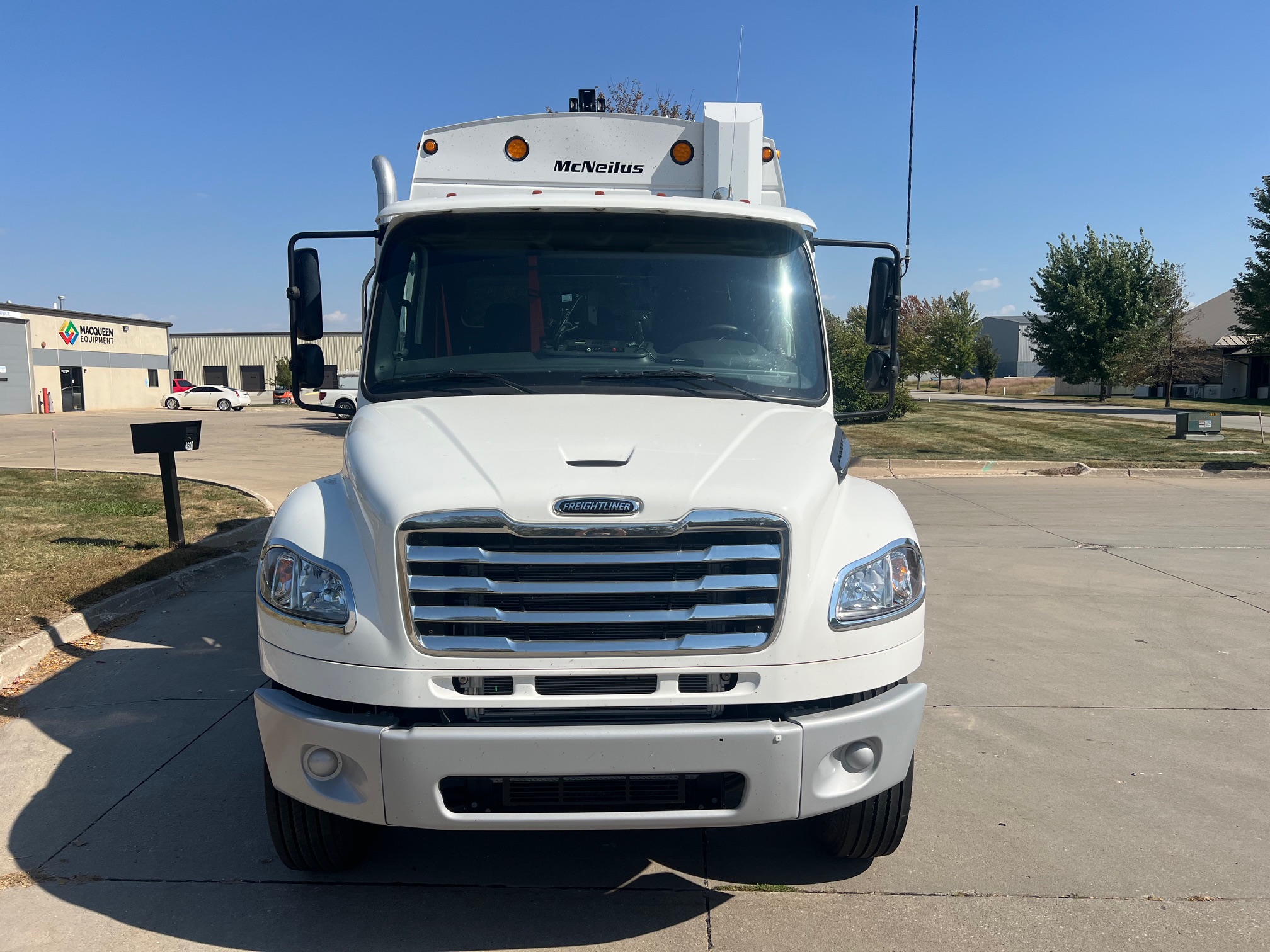

Chassis: Freightliner M2-106 (2025)
Steering: Streetside seated
Fuel: Diesel
Engine: Cummins ISL/ISC (Post-1/1/2017 emissions) – >300 HP
Transmission: Allison 3000 RDS
Transmission Oil Cooler: Not included
Double Frame: Yes
Cab Mirrors: Aero style
Pump Drive: Remote constant mesh
Exhaust: Left-hand vertical
Suspension: Rear – Hendrickson Haulmaax spring
Rear Axle Arrangement: Dual tire tandem axle
Battery Box: Street side frame mounted

Body

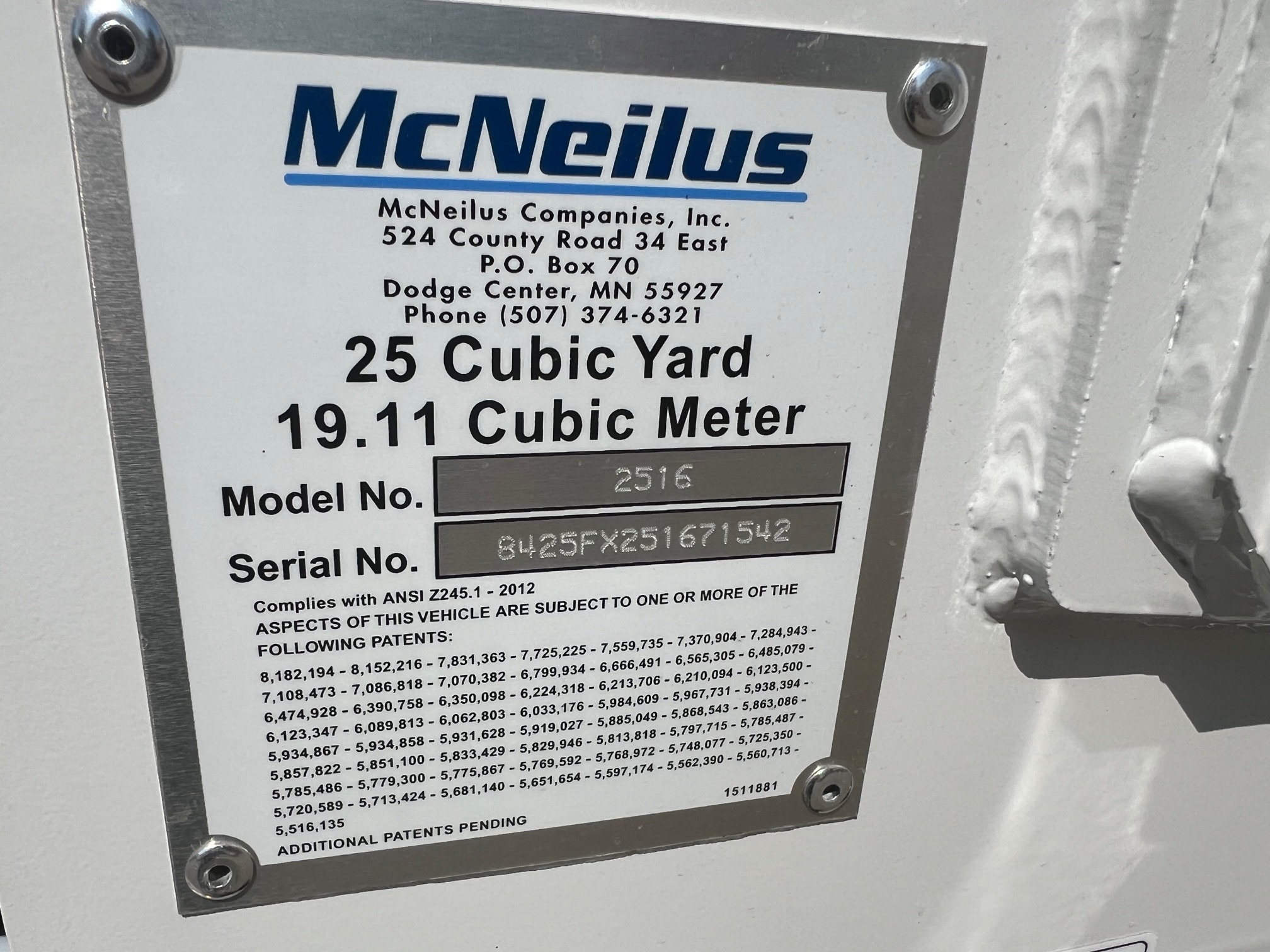

Model: 2516 REL 3.5HD
Capacity: 25 yd³ Rear Loader
Body Floor: 3/16" AR200
Hopper Bottom: 1/4" AR200 with 1.5" center sump drain
Hopper Liner: 3/16" AR200
Roof: Standard
Access Door: Stainless steel, forward hinged
Access Ladder: ANSI fold-up with auto-shutdown
Tube Cover: Standard front hydraulic tube cover
End Cap Reinforcement: Included
Throttle Advance: Keypad – curbside tailgate

Body Options

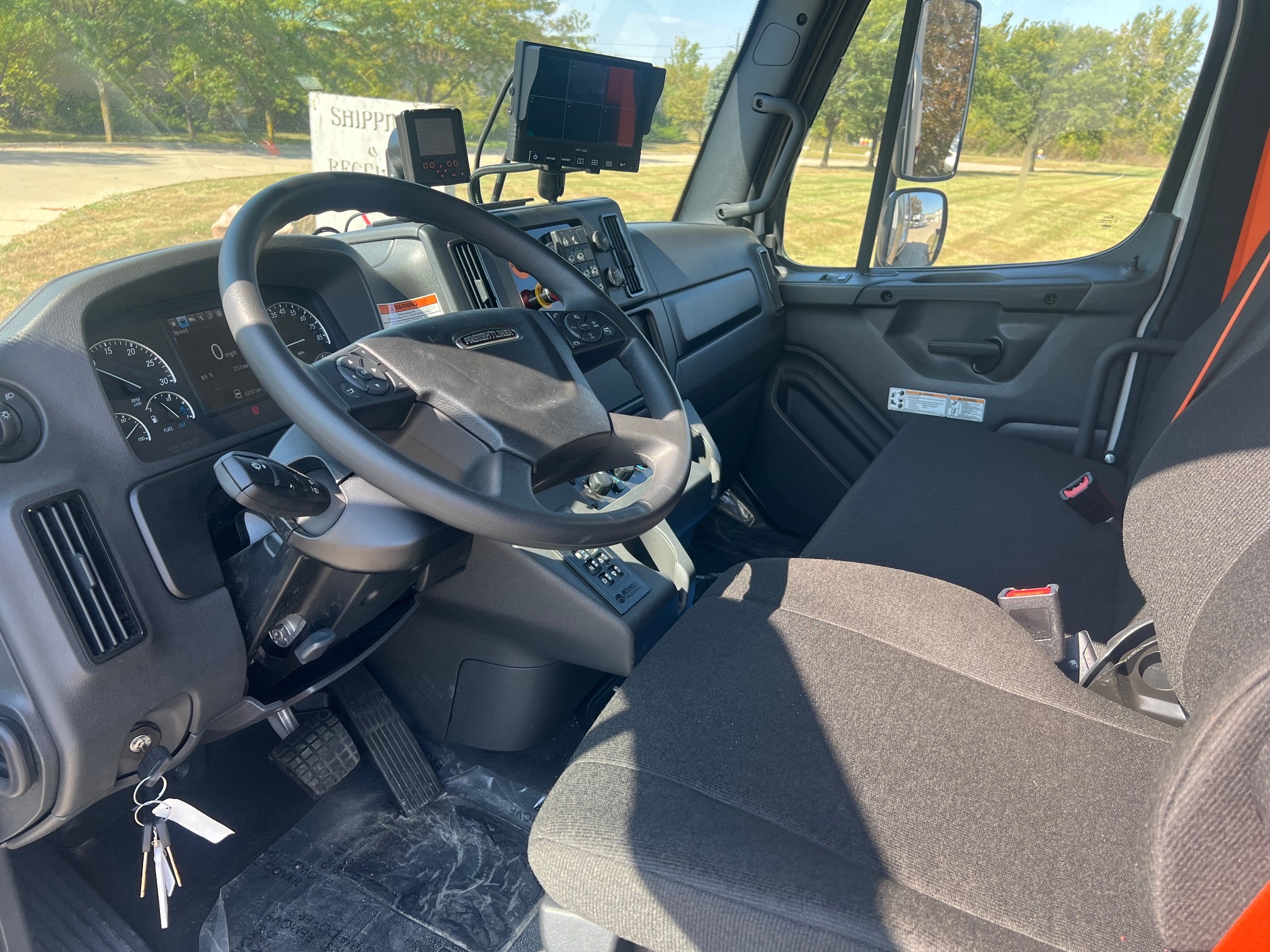

Cab Controls: In-dash control switches
Tailgate Mounting: Upper hole
Power Distribution Module: Front of body, stainless steel top
Load Edge: B-Type (Standard/Bayne)

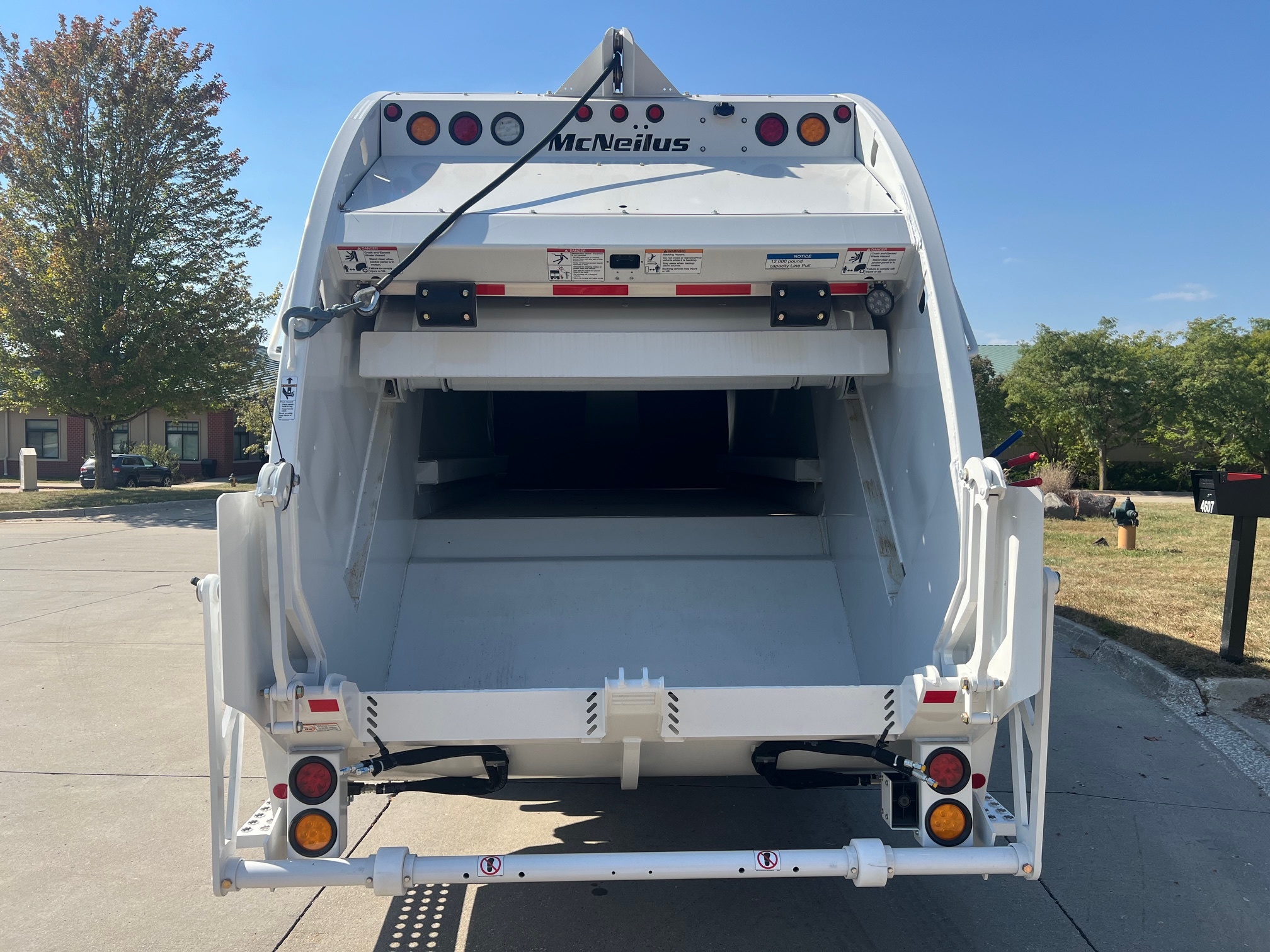

Tailgate:

• Lock: Turnbuckle lock

• Lift Cylinder: Standard

• Steps: Adjustable height (16"–24")

• Seal: Standard height
  Packer/Sweep Panels: Standard
  Slide & Sweep Controls: Curbside standard linkage
  Slide & Sweep Pins: Nitrited
  Reever System:

• Model: 12K

• Controls: Curbside
  Hook Retaining Loop: Streetside
  Cart Tipper Kick Bar: 32" arms
  Kick Bar Controls: Curbside
  Roller Quantity: 2
  Dock Bumper Pads: 2 black rubber
  Guides and Latches: Yes

• Style: B-Type (Standard/Bayne)

• Inside Width: 80" (Standard)
  Quick-Tip Plumbing: Not included
  Plastic Fenders (Rear): Black Minimizer tandem axle
  Dock Handle (CS): Not included
  Telematics: Enabled

Hydraulics

Pump: Gear pump
Reservoir: Standard steel rectangle (street side)
Filters:

• Return: Schroeder in-reservoir

• Sample Port: Check fluid KP14NV 90°
  Cylinders: Mailhot (ejector), Rosenboom (slide & sweep)
  Cooler & Monitoring:

• Breather: Filler/breather on reservoir

• Filler Cap: Standard

• Temp Monitoring: Not specified
  Shutoff Valve: Gate valve with red handle
  Hose Wrap: Cordura wrap (required hoses)
  Return Valve: Not included
  TG/Ejector Valve Location: Front of body
  Low Oil Warning: Warning light

Lighting

DOT Lights: Economy LED
Smart Lights: 4" Peterson – Tailgate & Front of Body (Qty 6)
Center Stop Light: Economy LED
Mid-Body DOT Light: Oval amber turn signal/marker
Work Lights:

• Hopper: Two 5" Economy round LEDs

• Mid-Body: Box-mounted 5" Economy LED
  Tailgate Corner Lights: 4" amber turn signals
  Reverse Lights: Truck-Lite 4" single (upper rear)
  Work Light Switches:

• Mid-Body: Single switch

• Hopper: Keypad curbside tailgate

Camera System

System: SSV 9" Monitor/DVR (6-port)
Monitor Mount: Center overhead with swivel
Monitor Display (Reverse): Tailgate camera
Backup Camera: Center tailgate cylinder support beam
Cameras: Qty 1
Assist Lights: Dual 5" Economy round LEDs

Residential Options

Cart Tipper Configuration:

• Location: Curbside and streetside (standard gate)

• Type: Prep for future tipper

• Mount Style: Recessed

• Make: Perkins D6220 prep

• Controls: Manual linkage (CS and SS)

• Mount Style: Bolted
