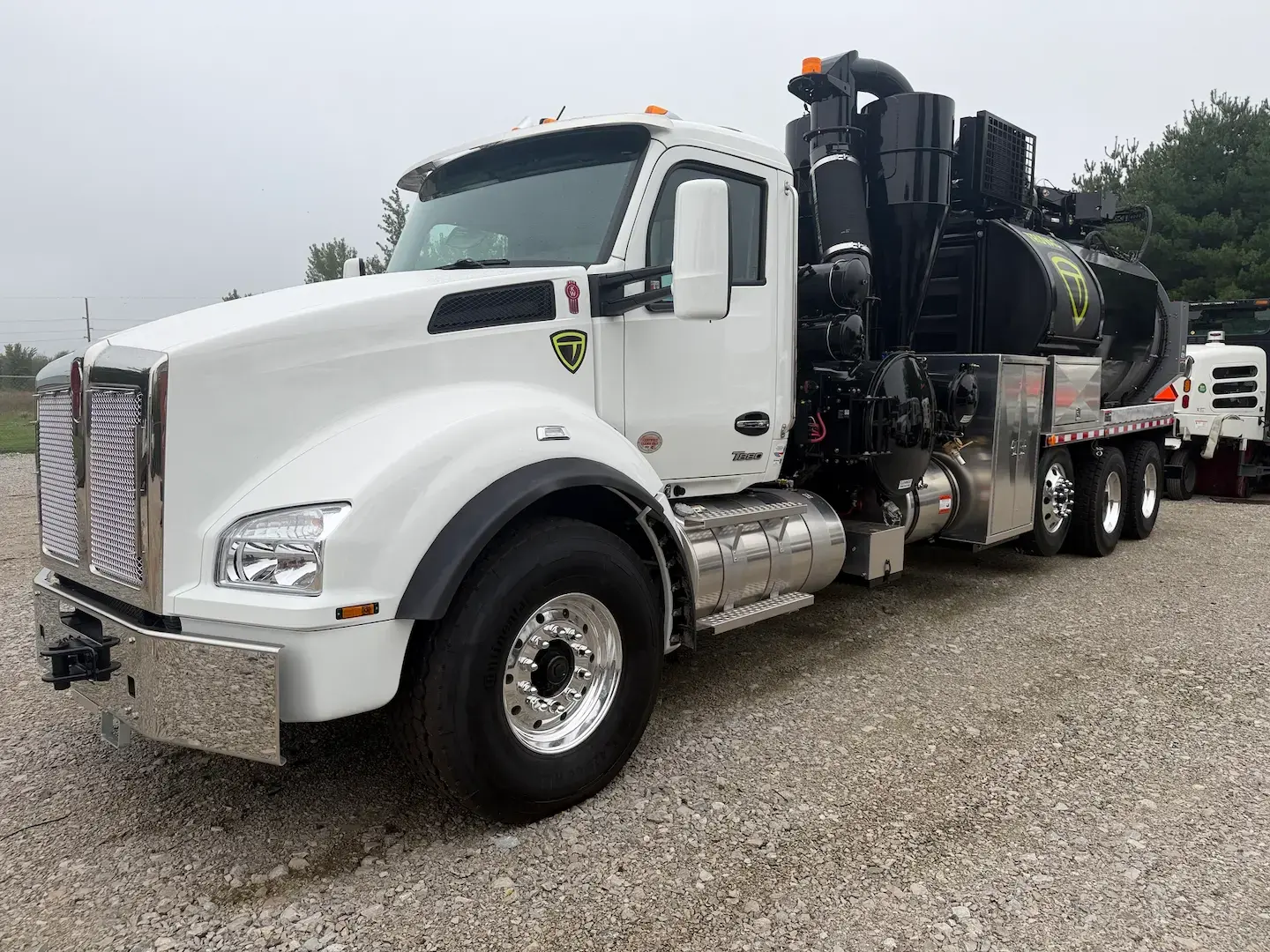

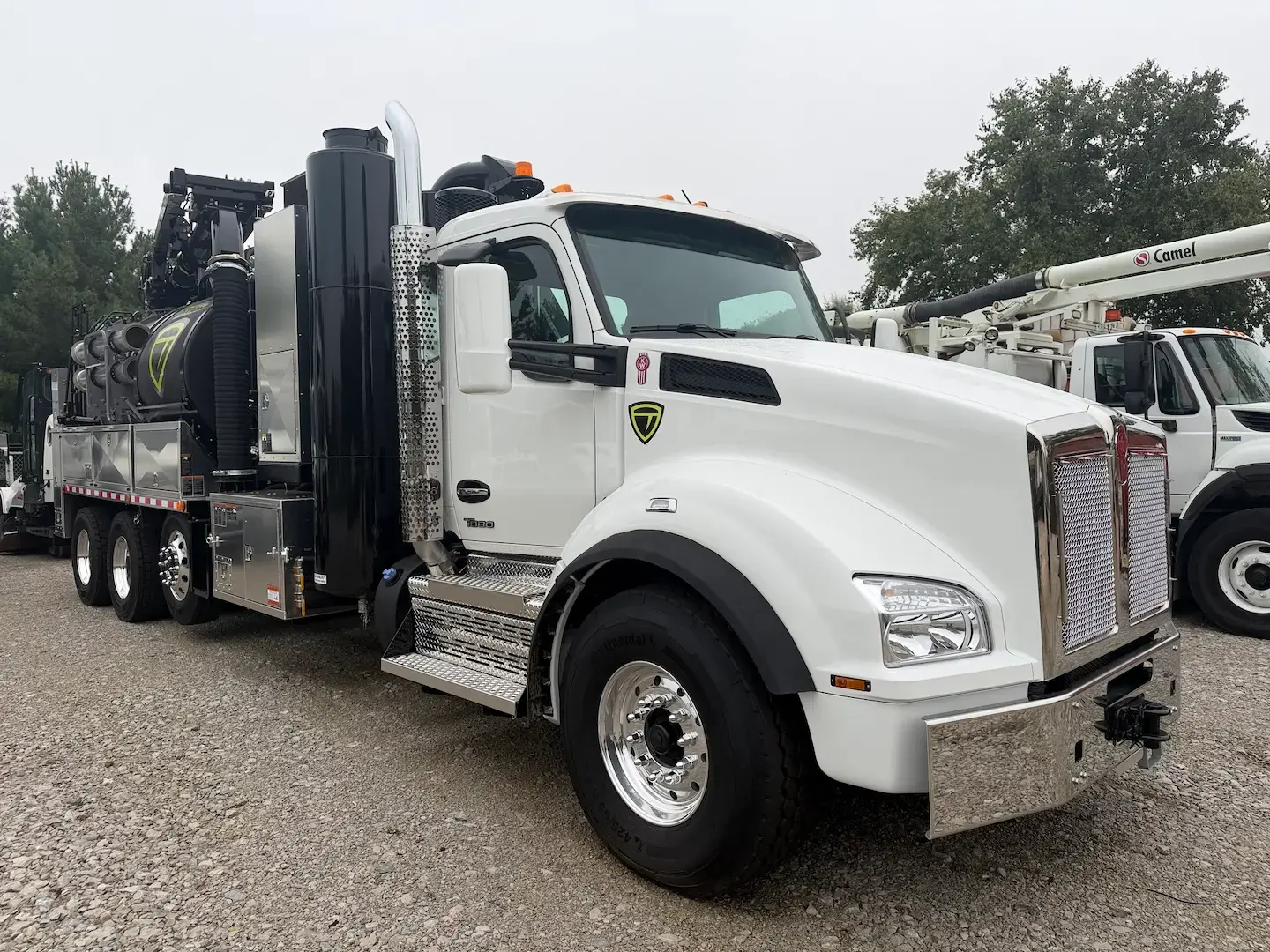

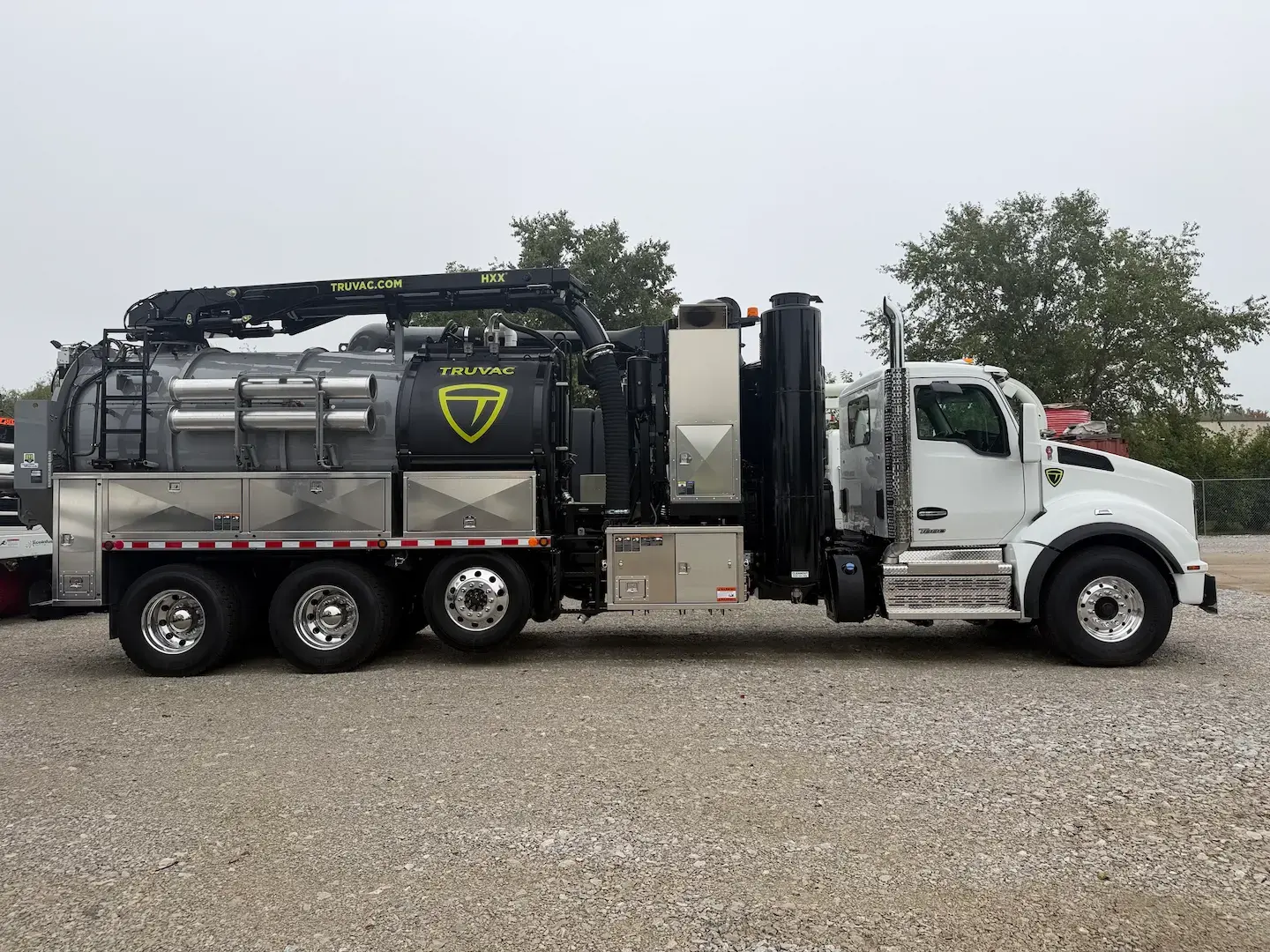

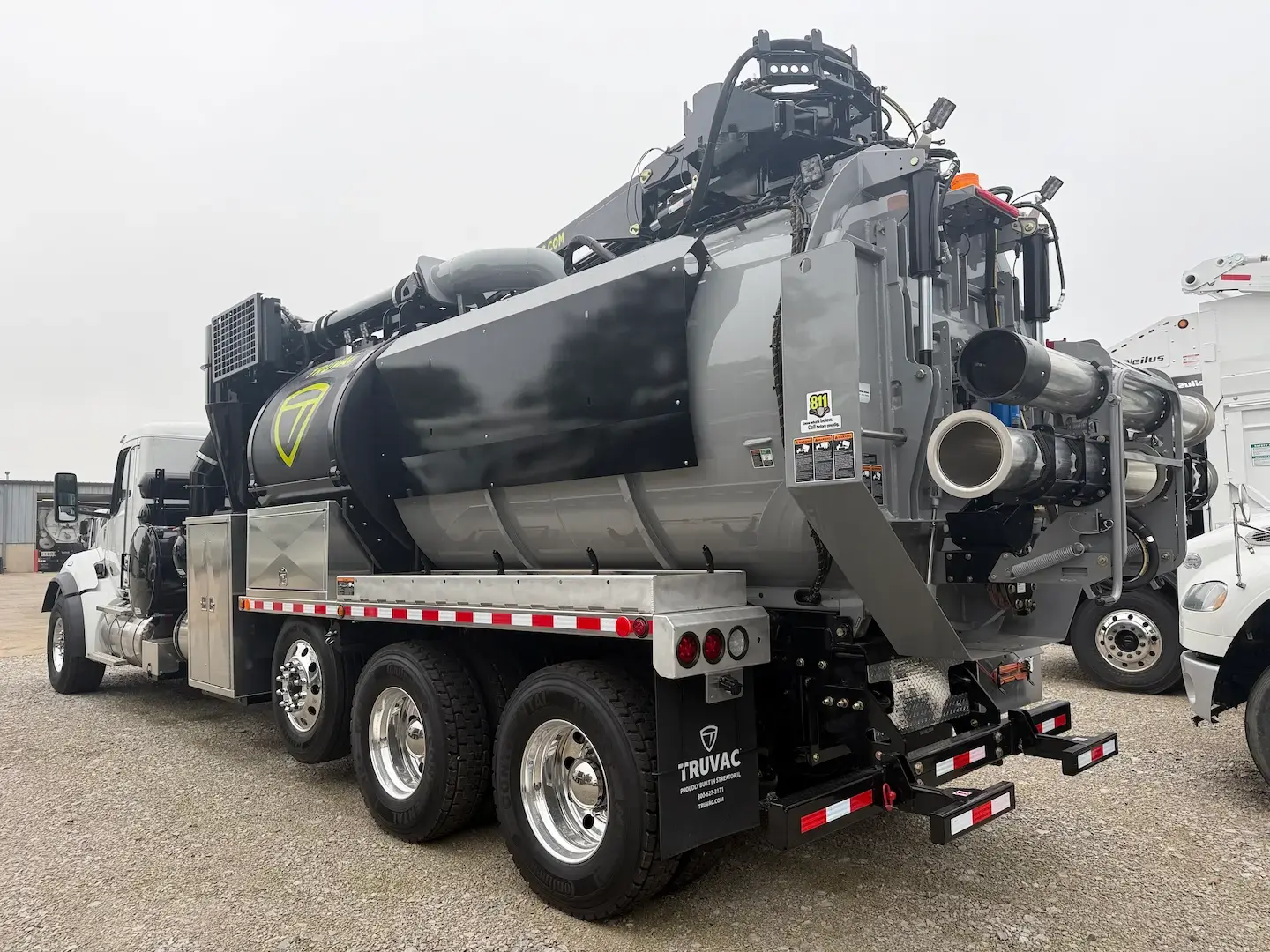

2027 TRUVAC HXX

Chassis Specifications

• Chassis: 2027 Kenworth T880 SBA, 8x4
• Engine: Cummins X15 – 450 HP
• Transmission: Automatic
• GVWR: 78,350 lbs
• Safety & Visibility: Rear camera, electronic back-up alarm, rear tow hooks, wheel chocks, front/rear LED beacons & LED work zone lighting
• Storage: Multiple frame, water tank and heated/insulated toolboxes

Body Specifications

Vacuum & Debris System

• Vacuum: 27" Hibon 8702 PD blower with 8" ID vacuum system
• Debris Body: 12 yd³ extended steel body with double-acting dump hoist
• Dual cyclone separators with cyclone drain valve
• Flat rear door with hydraulic locks/lift & 6" Cam-Lok knife valve
• Stainless steel float ball shutoff with perforated screen
• Electric debris body vibrator & sludge pump off-load circuitry
• Vacuum relief, debris deflectors, rear splash shield & air purge

Water & Hydro Excavation

• Water Capacity: 1,200-gallon poly tank
• Water System: 20 GPM @ 3,000 PSI with Multi Flow system
• Water Heater: 800,000 BTU, 12V
• Cold Weather Package 3: PTO cold weather recirculator & antifreeze tank
• Heated water tank drain and glycol-heated/insulated toolboxes
• Digging lance package with hydro excavation nozzles, single jet spinner, (3) fixed jet nozzles & Vactor rotator nozzle
• Handgun kit with 75' retractable reel

Boom & Controls

• Boom: 7' telescoping boom with 320° rotation & removable turret box
• Hard Hat style telescopic boom elbow
• DigRight Technology
• Handheld wireless pump/vacuum relief & body function controls
• Second operator station with passenger-side spring retract hose reel
• Boom and body out-of-position alarms
• Manual boom hydraulic override

Additional Equipment

• 8" vacuum tube package with 8" dig tube
• Folding curbside & rear door pipe racks
• Hydraulic tank shutoff valves & ISO 46 hydraulic oil
• Lube manifold with chart
• Streetside billboards
