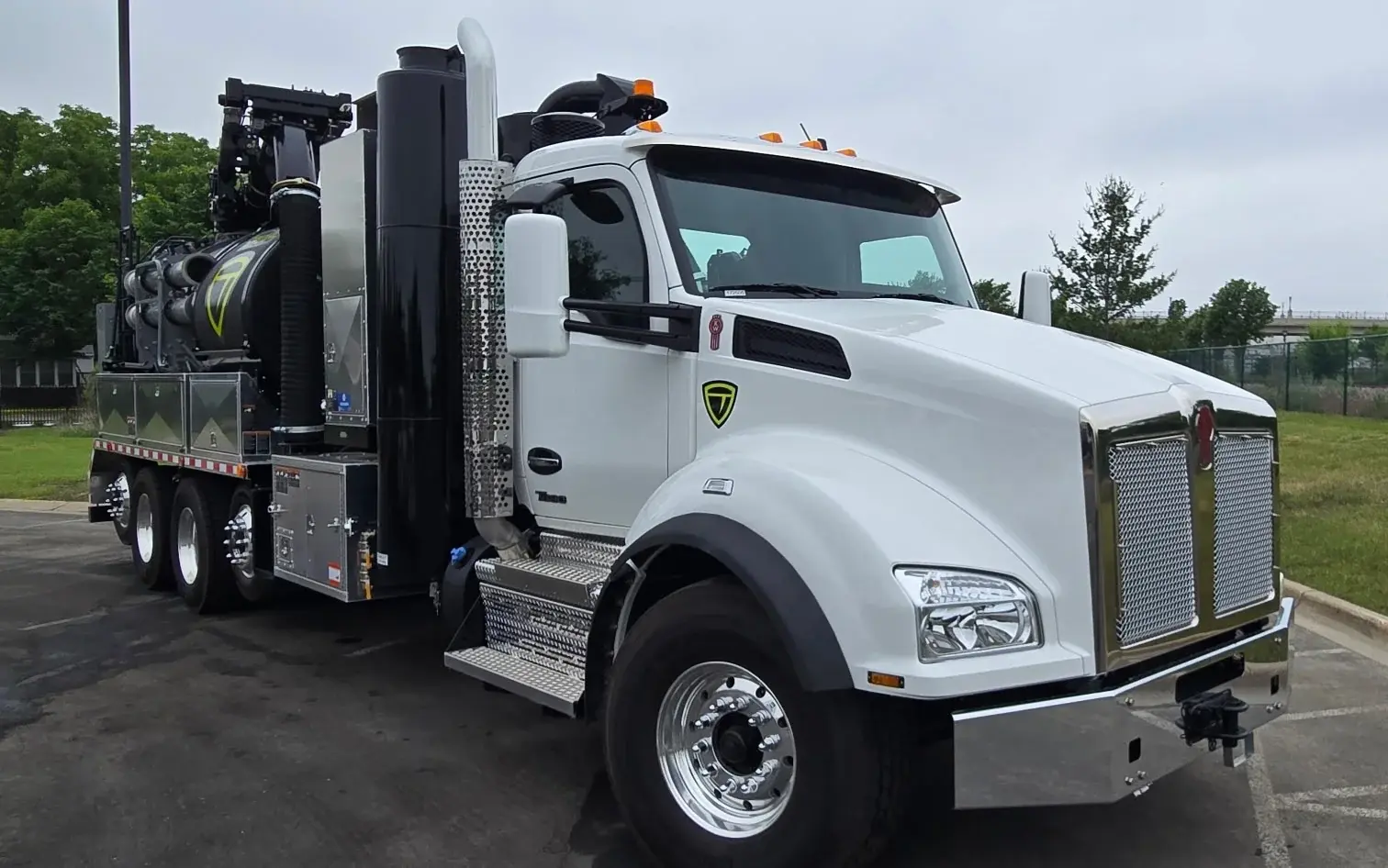

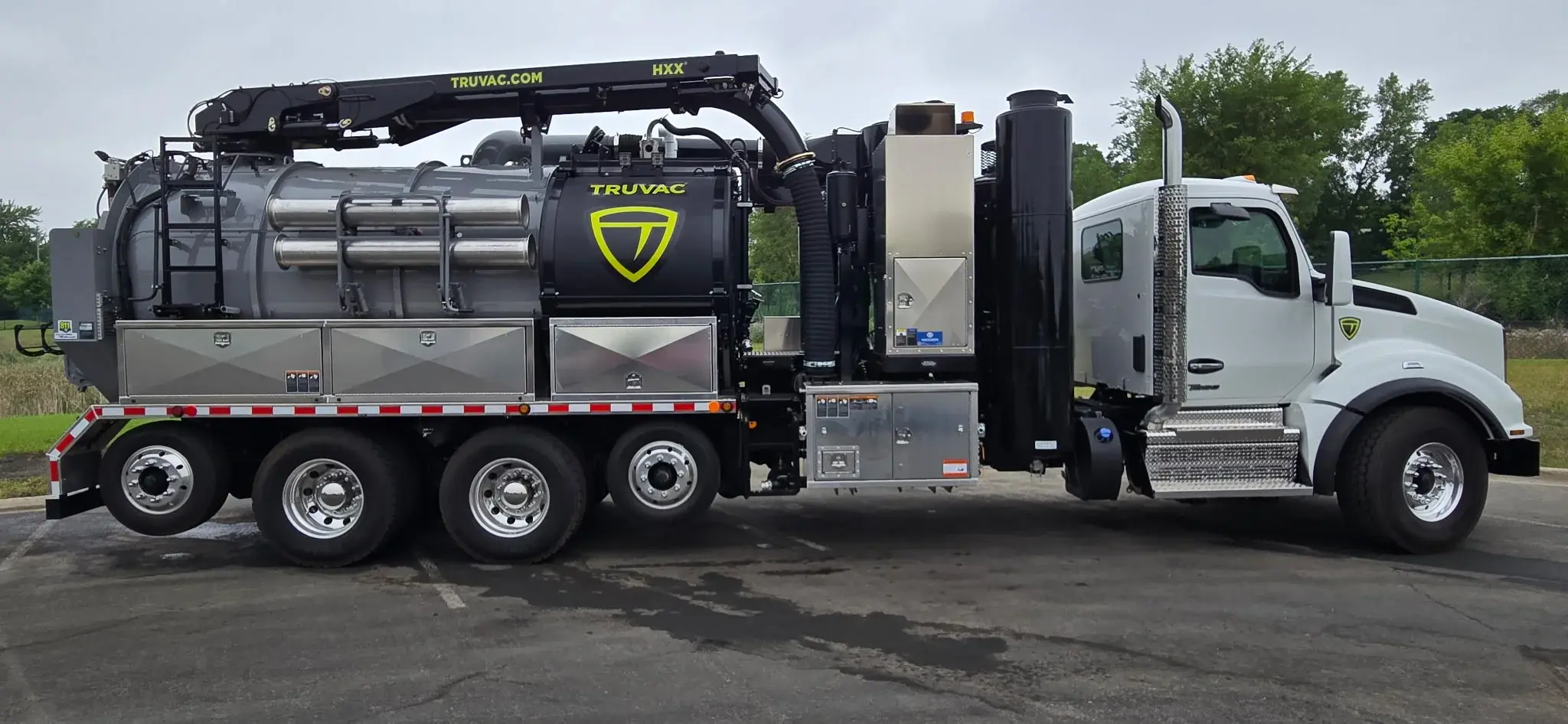

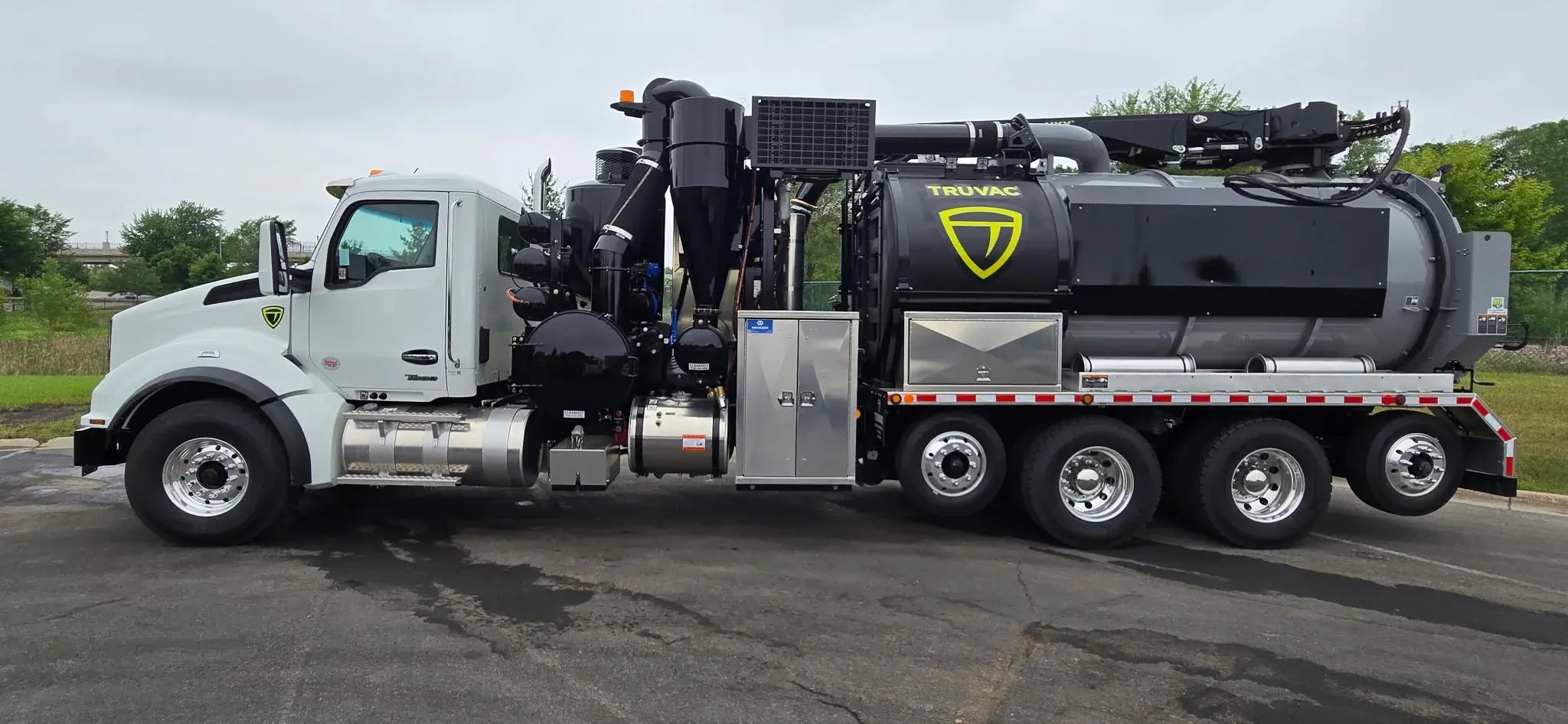

2026 TRUVAC HXX

Chassis Specifications

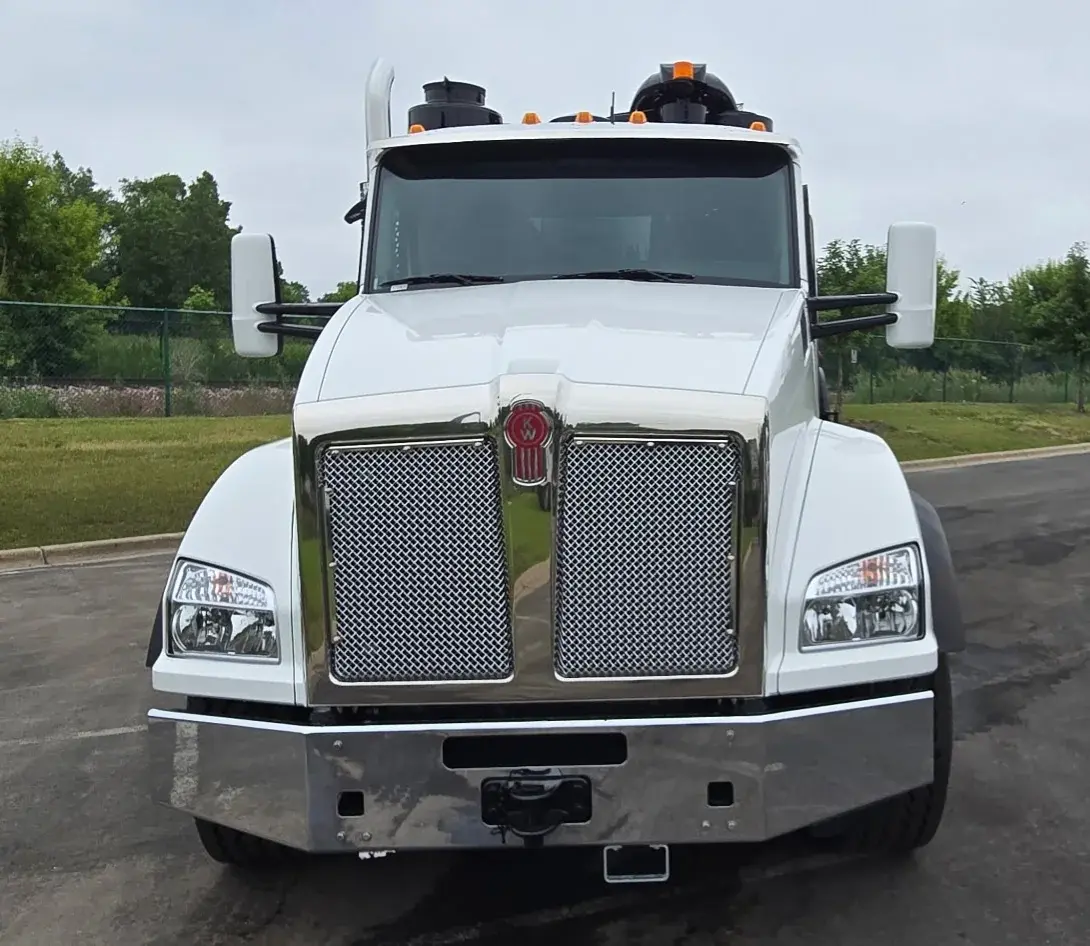

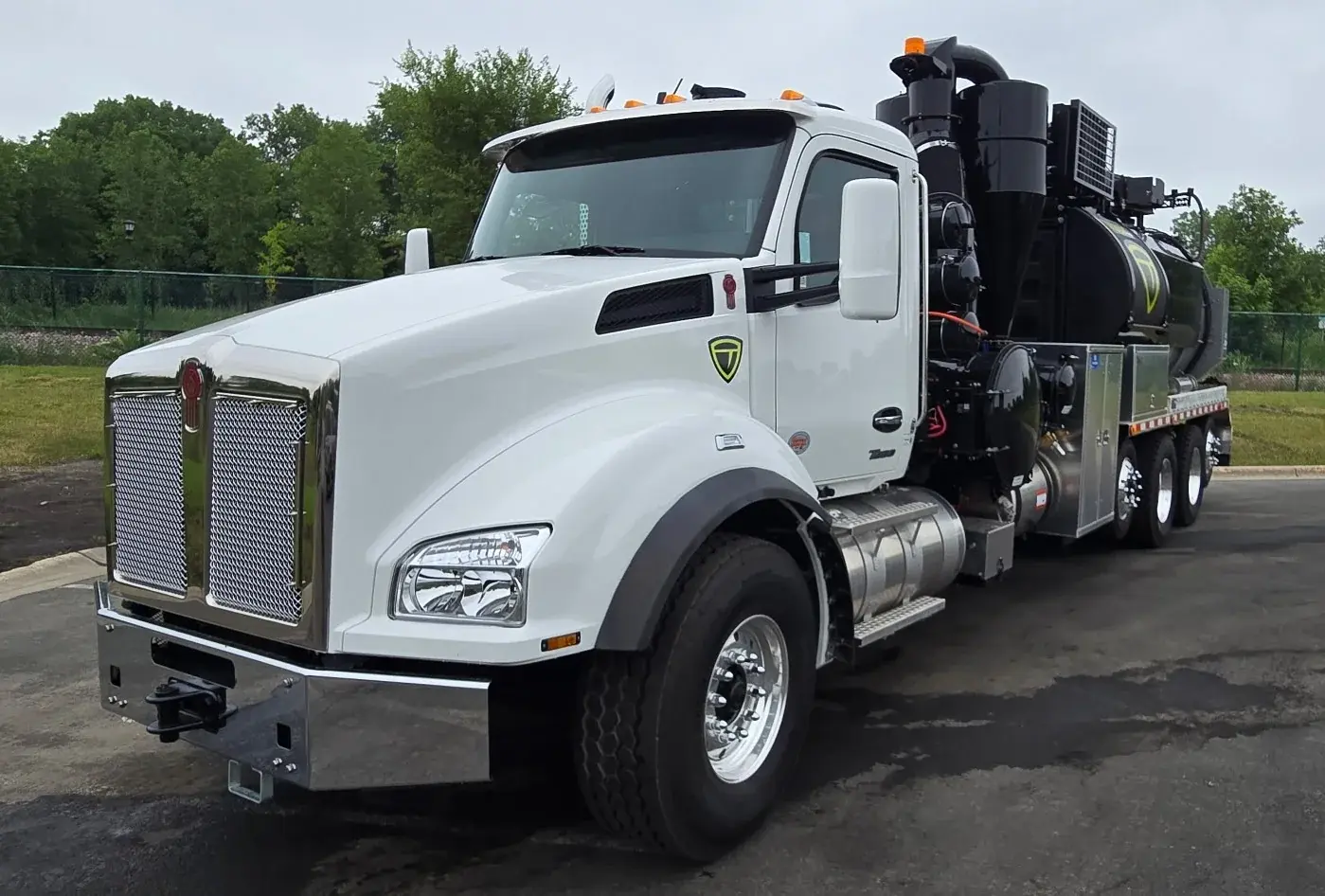

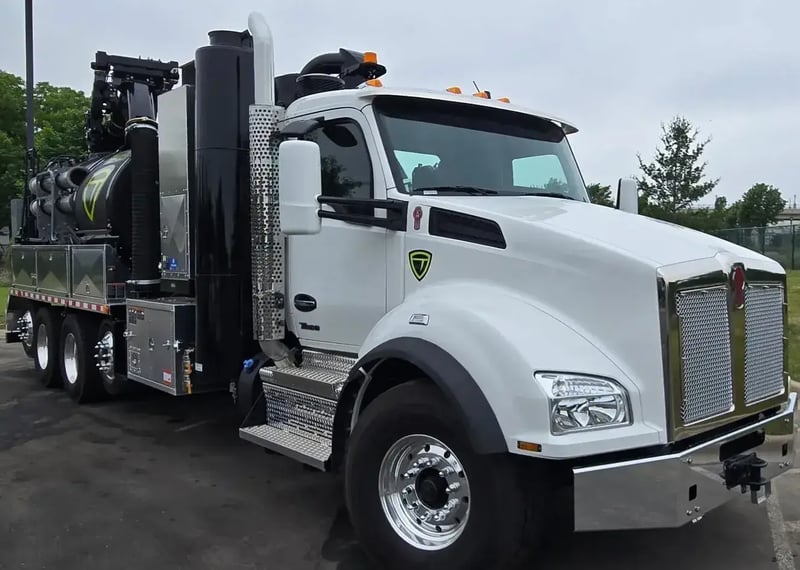

• Chassis: 2026 Kenworth T880 SBA, 10x4

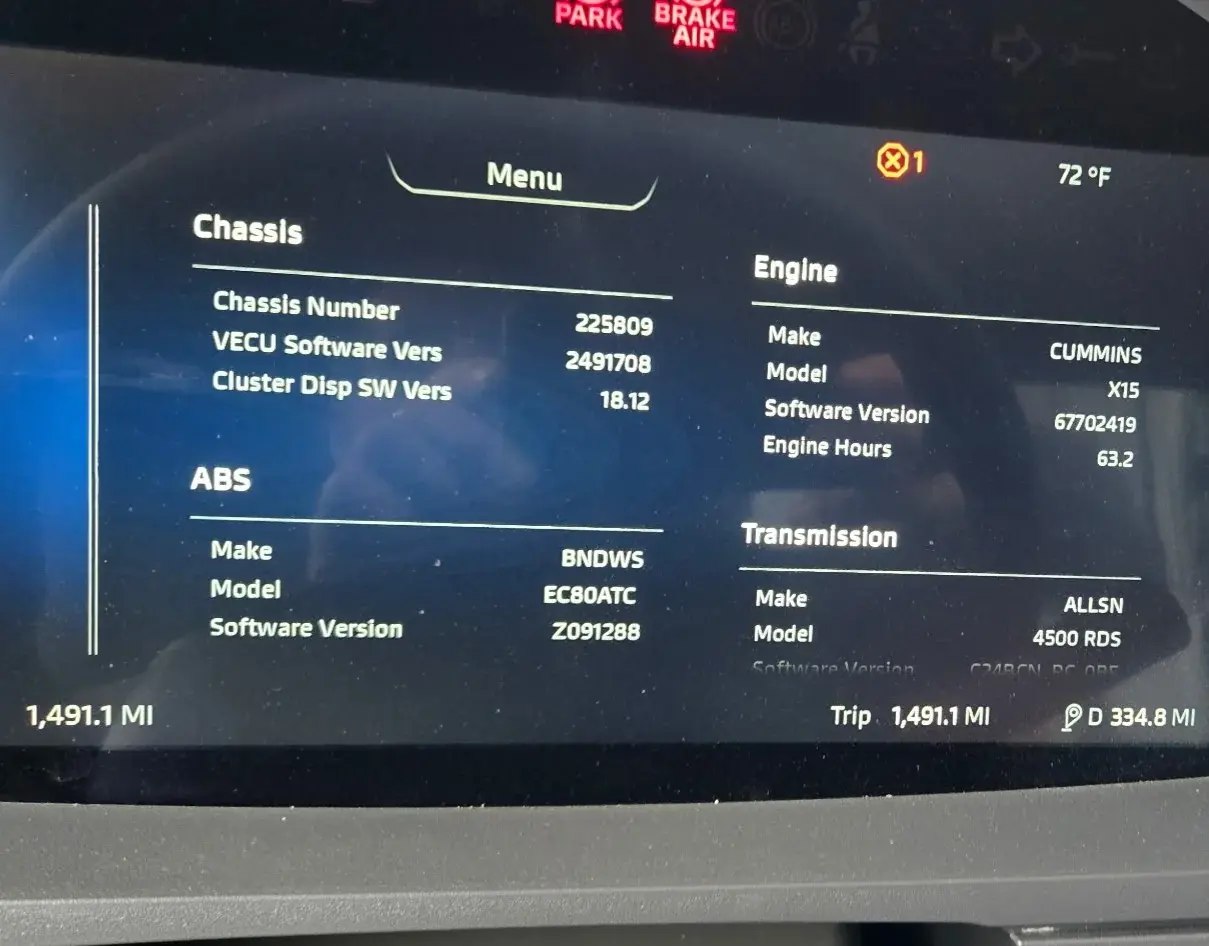

• Engine: Cummins X15 – 500 HP
• Transmission: Automatic

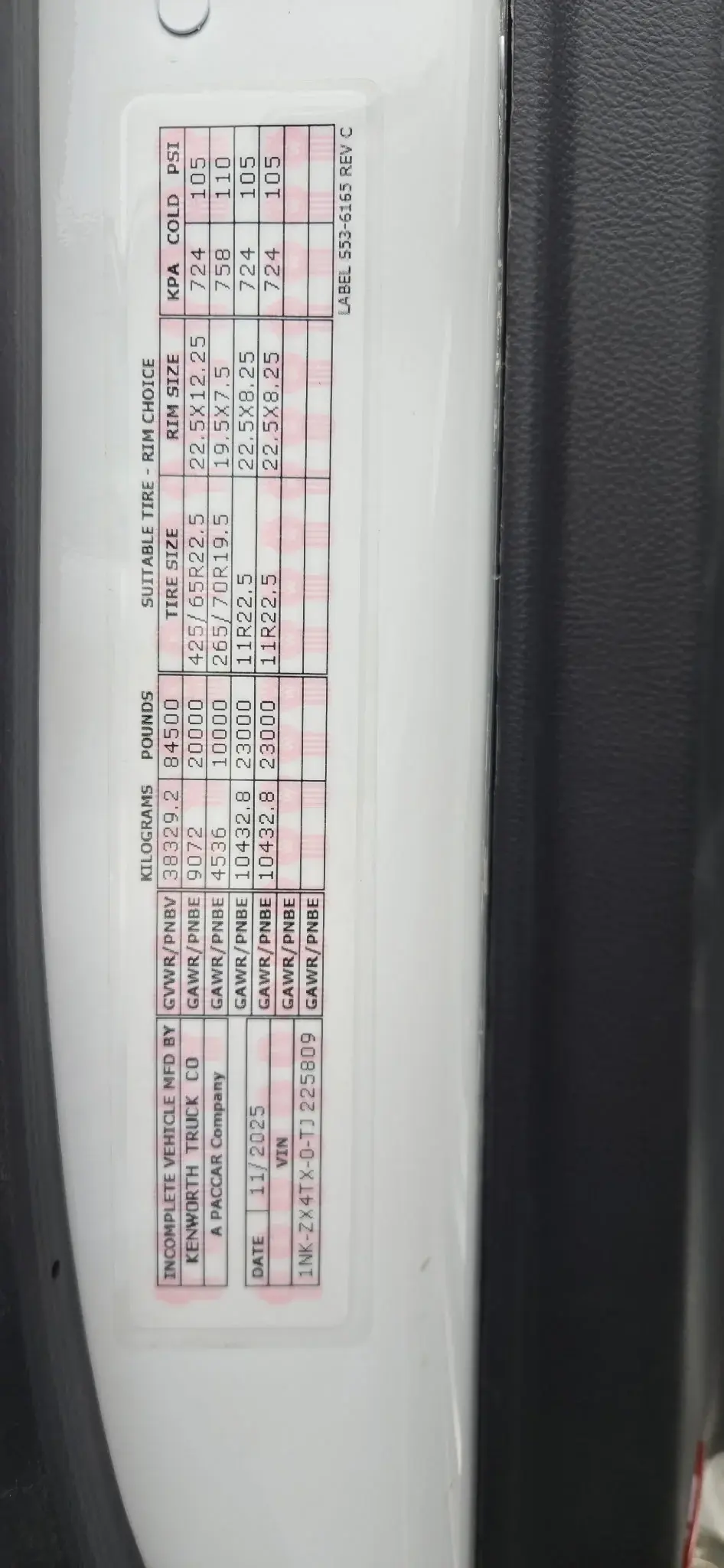

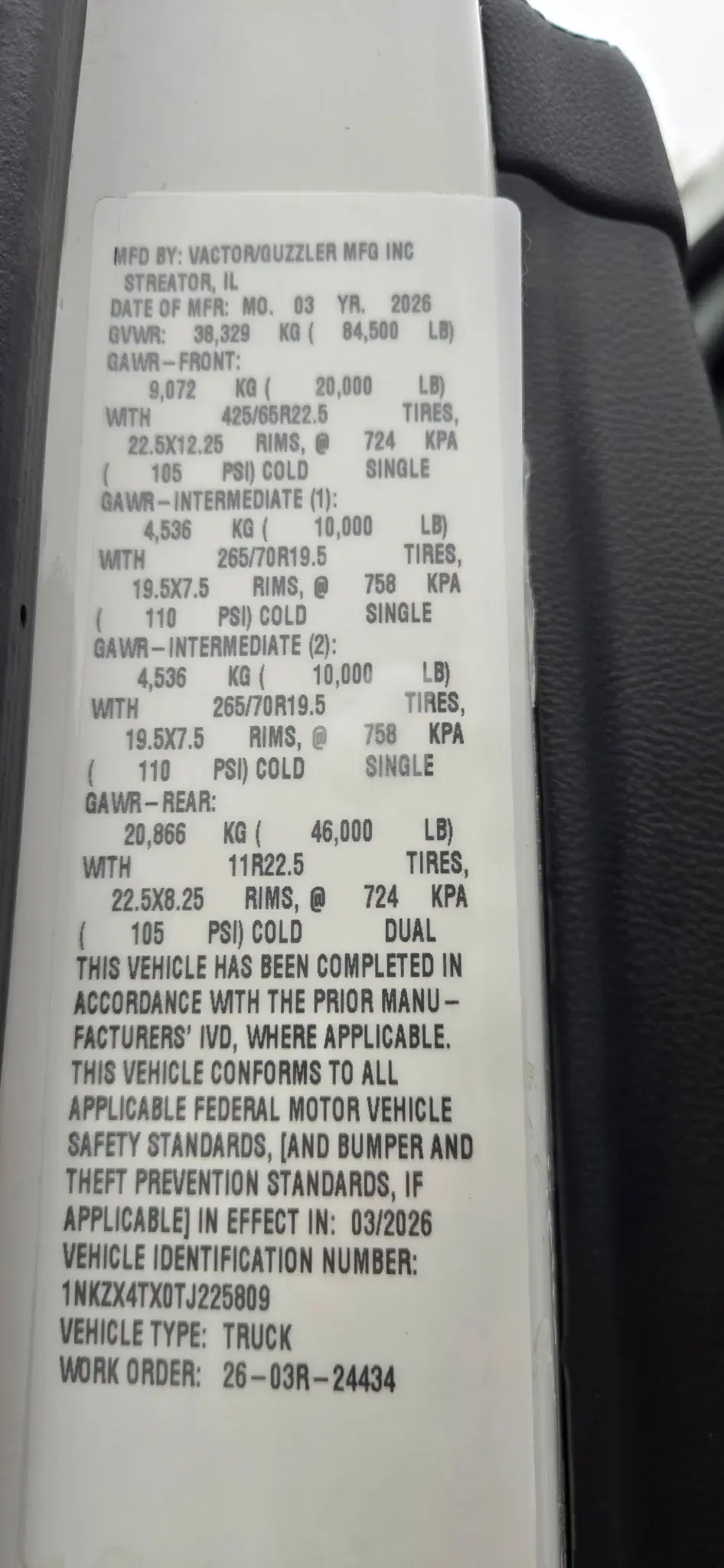

• GVWR: 84,500 lbs

Electrical & Safety

• Sealed Electrical System
• Circuit Breakers
• Electronic Back-Up Alarm
• Rear Camera System
• Rear Tow Hooks
• Wheel Chocks with Holders
• Grounding Cable (Body to Chassis)
• ISO 46 Hydraulic Oil

Lighting

• Front & Rear LED Beacon Lights
• (2) Boom Worklights
• (8) LED Work Zone Lights

Storage

• Driver Side Vertical Toolbox – 36"W x 52"H x 30"D (Heated & Insulated)
• Water Tank Toolbox – Driver Side
• Driver Side Subframe Tool Tray
• Control Cabinet Toolbox – 36"W x 24"H x 12"D
• Water Pump Cabinet Toolbox – 50"W x 30"H x 30"D
• Heated & Insulated Over-Fender Rear Toolboxes

Body Specifications

Vacuum & Debris System

• 27" Hibon 8702 PD Blower
• 12 yd³ Extended Steel Debris Body
• 8" ID Vacuum System with Relief Valve
• Dual Cyclone Separators with Drain Valve
• Double Acting Dump Hoist

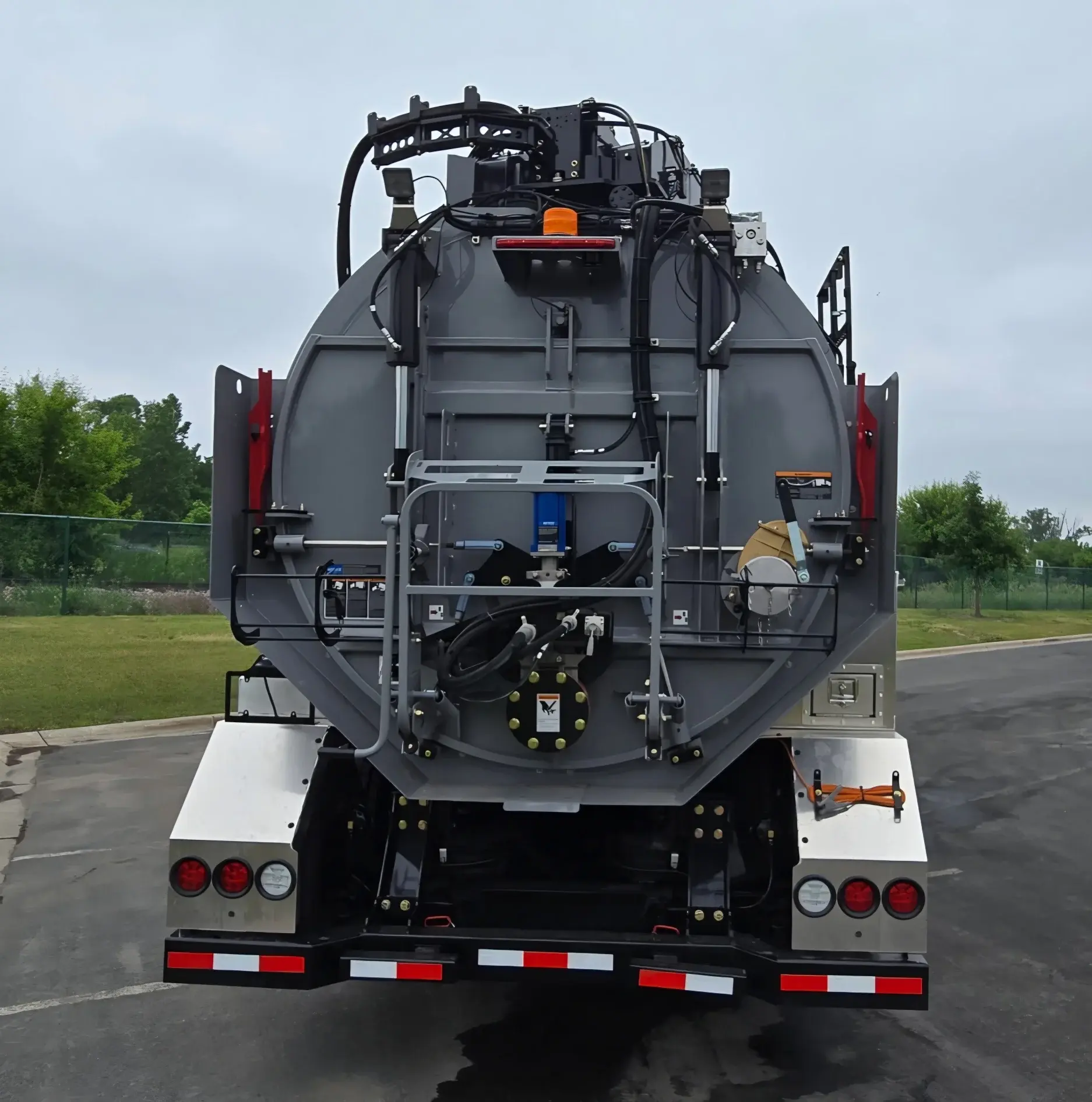

• Flat Rear Door with Hydraulic Locks & Lift
• 6" Rear Door Knife Valve (Cam-Lok, 3:00 Position)
• Debris Deflectors & Electric Vibrator
• Stainless Float Ball Shut-Off with Perforated Screen
• 8" Inspection Port with Ladder
• Debris Body & Boom Position Alarms
• Sludge Pump Off-Load Circuitry
• Air Purge System

Water System

• 1,200-Gallon Poly Water Tank
• 20 GPM @ 3000 PSI Water System
• Multi-Flow Water Controls
• 2" Y-Strainer with 25' Fill Hose
• 2.5" Cam-Lok Fill Fittings & 3" Drain
• Electronic Low Water Indicator
• 800,000 BTU Water Heater (12V)
• Remote Heated Drain Valve
• Glycol-Heated & Insulated Components
• Cold Weather Package 3 with PTO Recirculator & Antifreeze Tank

Boom & Excavation System

• 7' Telescoping Boom with 320° Rotation
• Removable Turret Box
• Hard Hat Style Telescopic Boom Elbow
• DigRight Technology
• Boom Control Panel with Manual Hydraulic Override
• Wireless Remote (Pump & Vacuum Relief)
• Wireless Remote for Body Functions
• Second Hose Reel Control with Electric-over-Hydraulic Retract
• Boom Out-of-Position Alarm

Hydro Excavation Equipment

• Handgun Kit (5/10 GPM) with 75' Retractable Reel
• Digging Lance Package
• Hydro Excavation Nozzles with Single Jet Spinner
• (3) Fixed Jet Nozzles
• (1) Vactor Rotator Nozzle
• 8" Vacuum Tube Package with Dig Tube
• Hydrant Wrench & Tool Package
