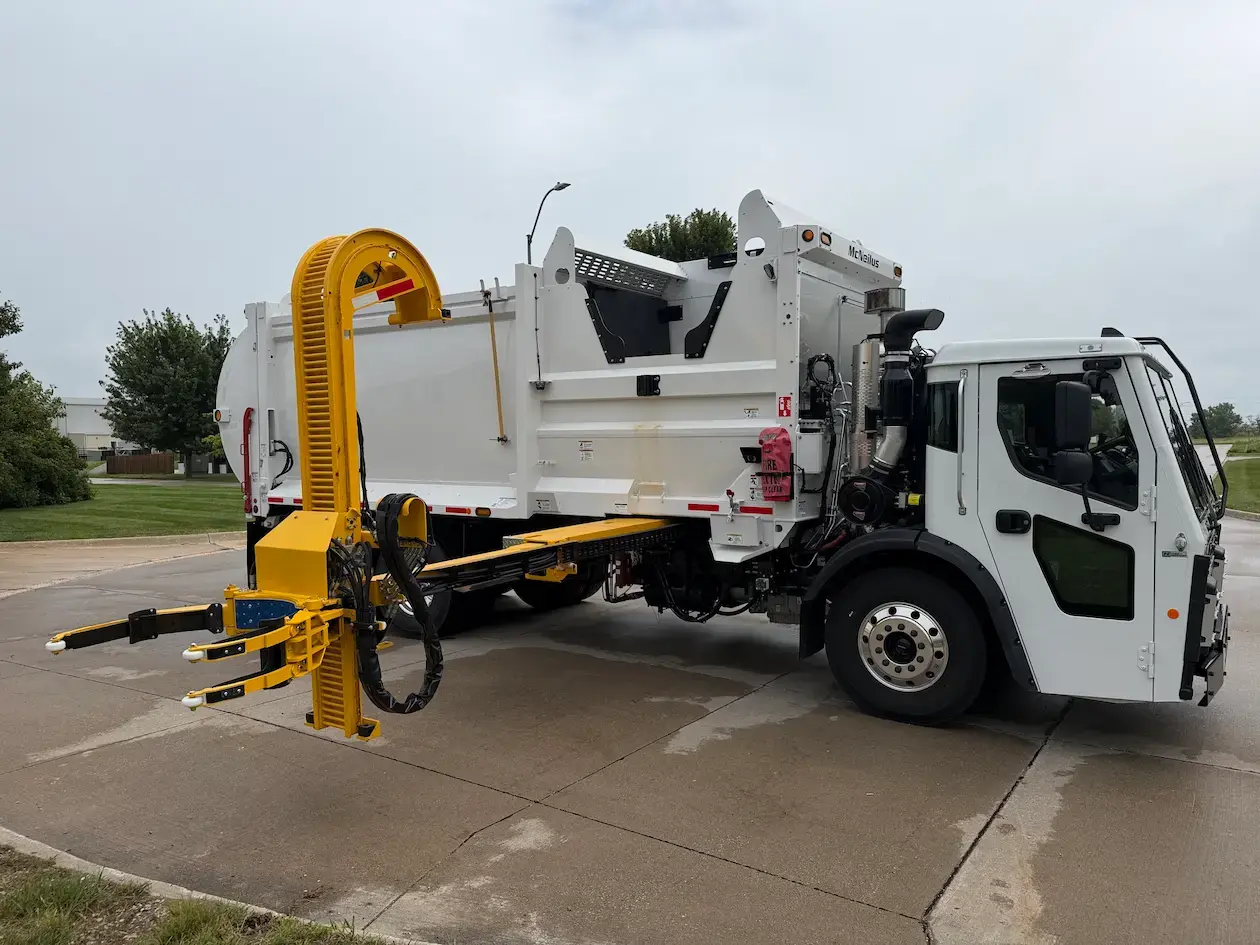

2026 McNeilus ZR

Chassis

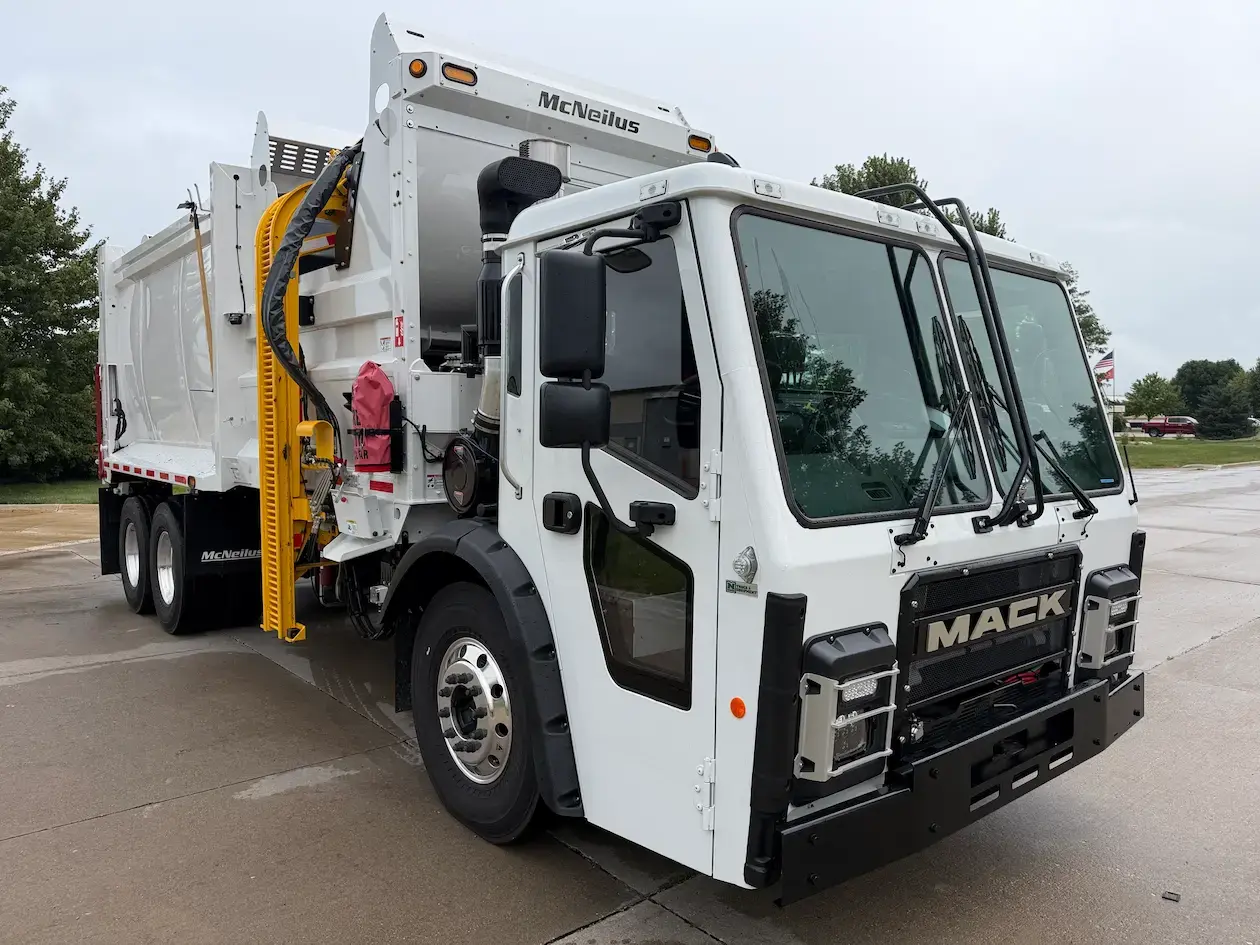

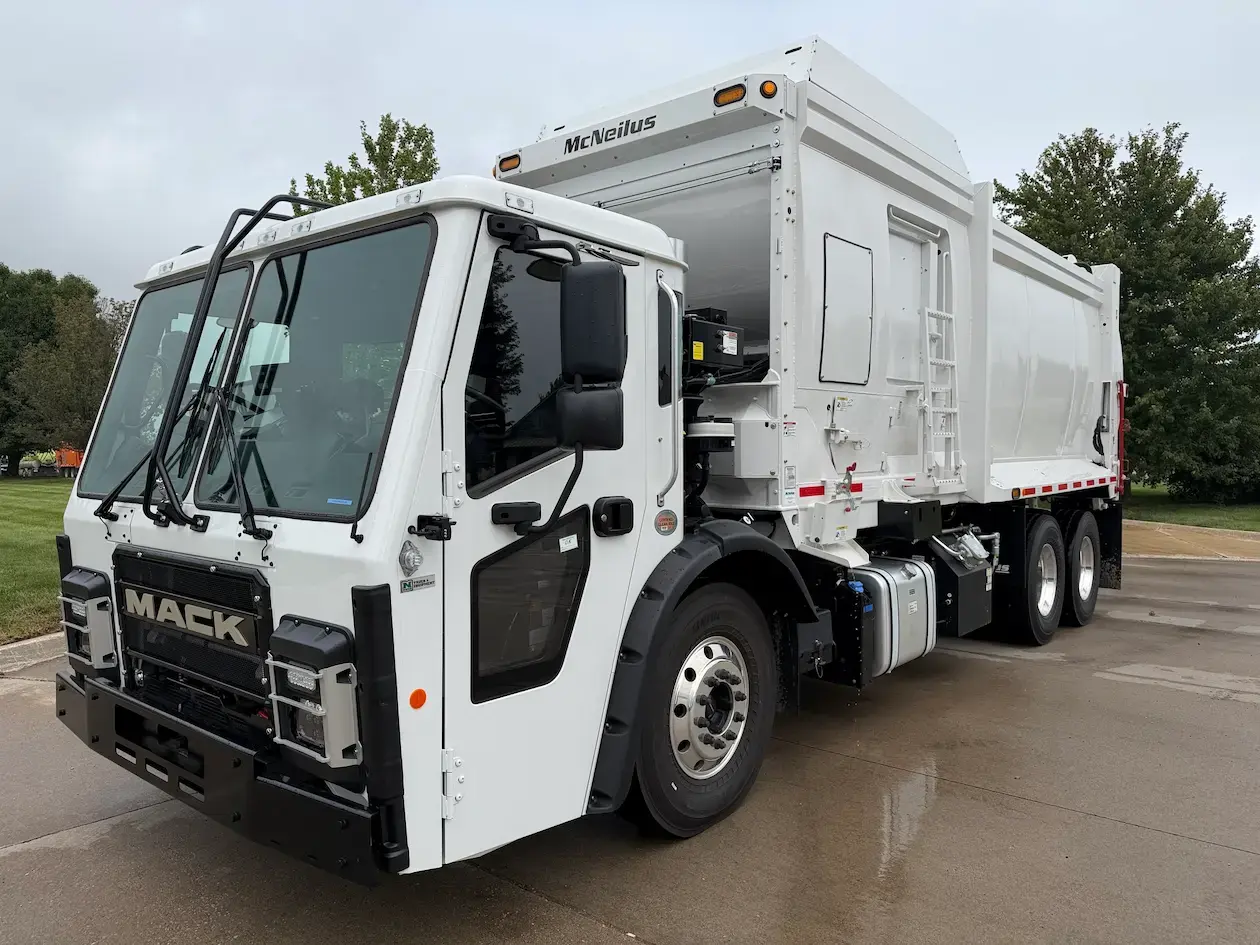

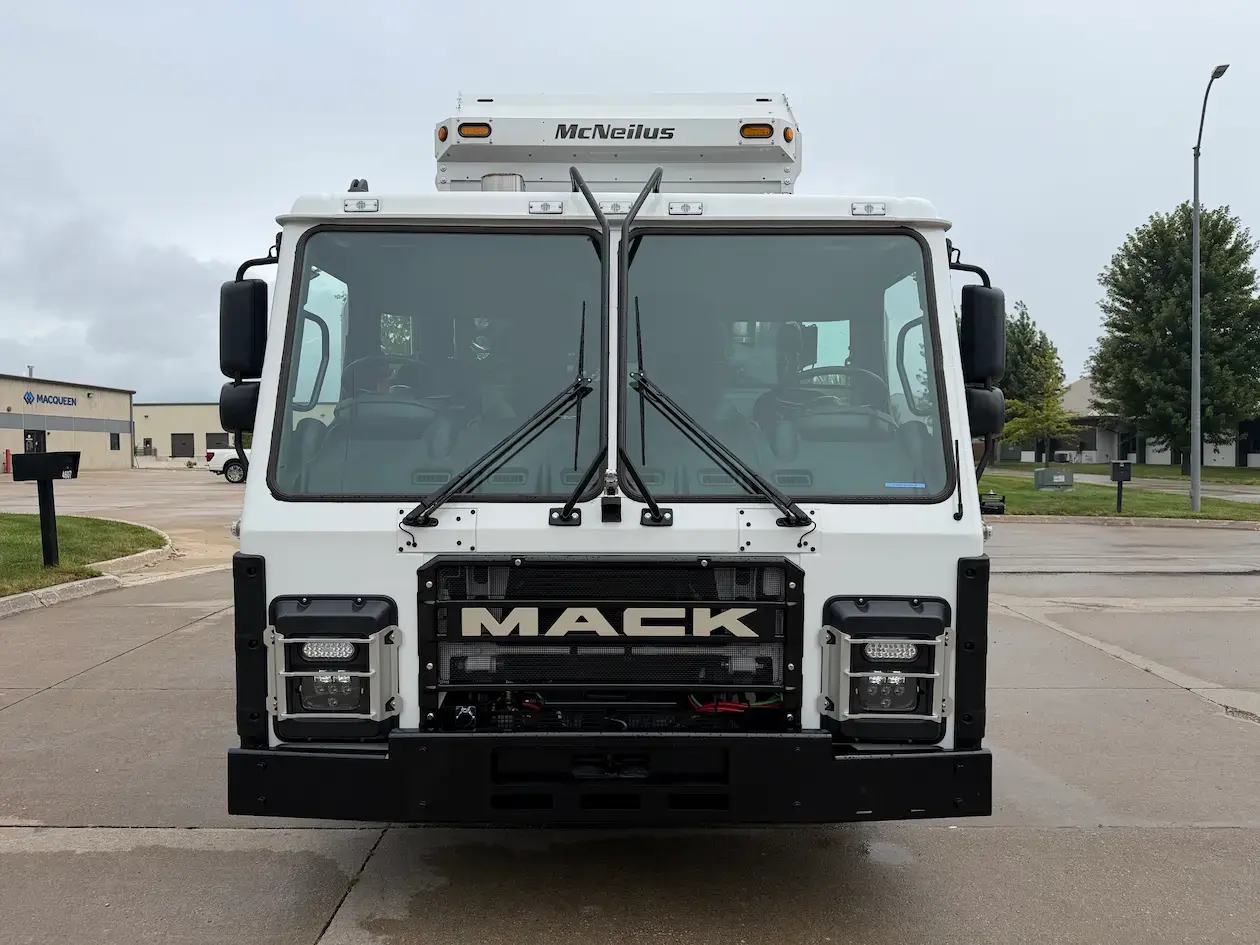

• Chassis: Mack LR 64R Dual Axle
• GVW: 33,001 lbs or greater
• Engine: Mack diese

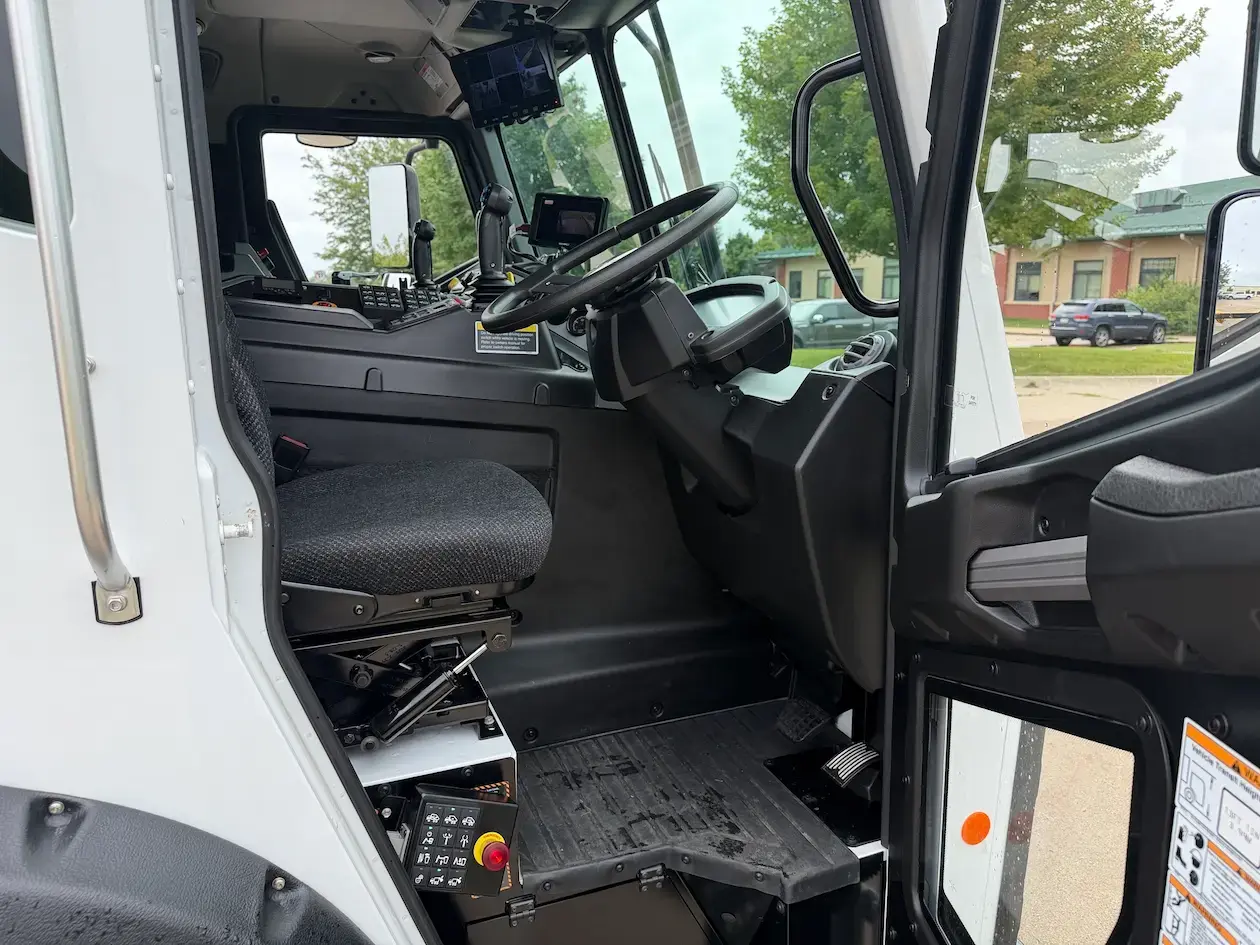

• Steering: Dual seated steering
• Transmission: Allison 4500 RDS automatic
• Suspension: Hendrickson Haulmaax rear
• Pump Drive: Constant mesh PTO

Body

• Model: McNeilus ZR Zero Radius ASL (Model 2848)
• Capacity: 28-yard low-profile body
• Construction: AR200 floor with AR400 hopper floor and 3/16" AR400 hopper wall liner

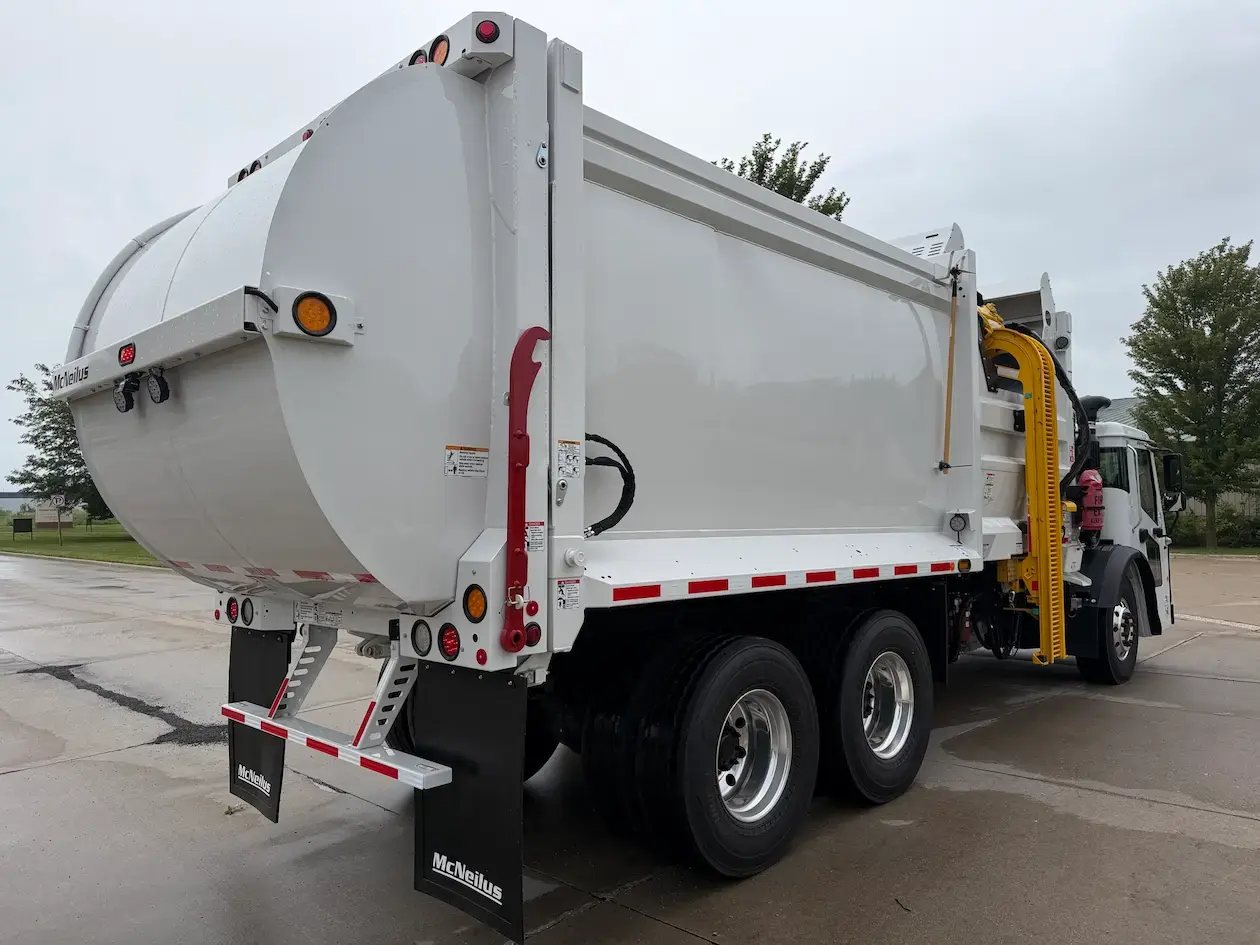

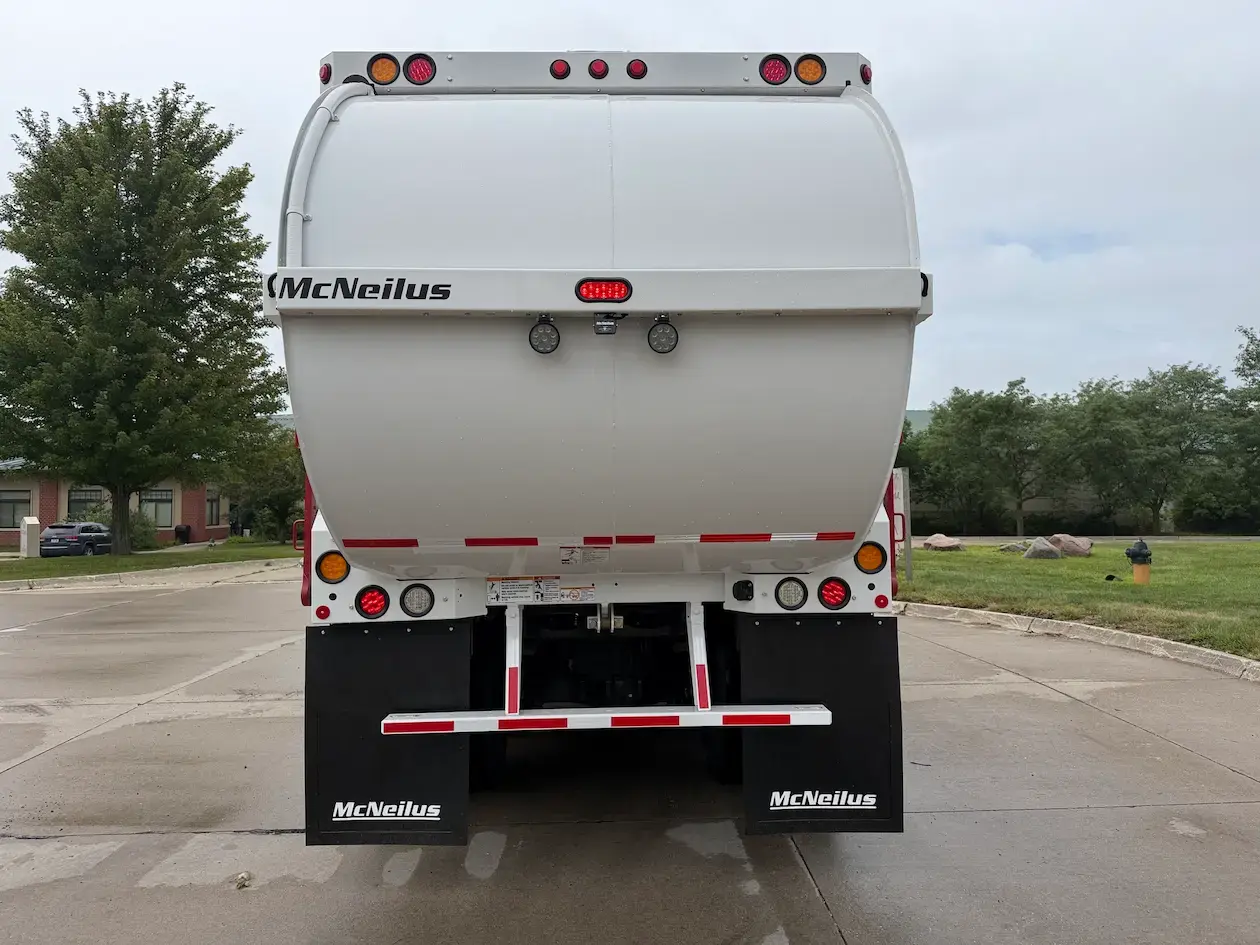

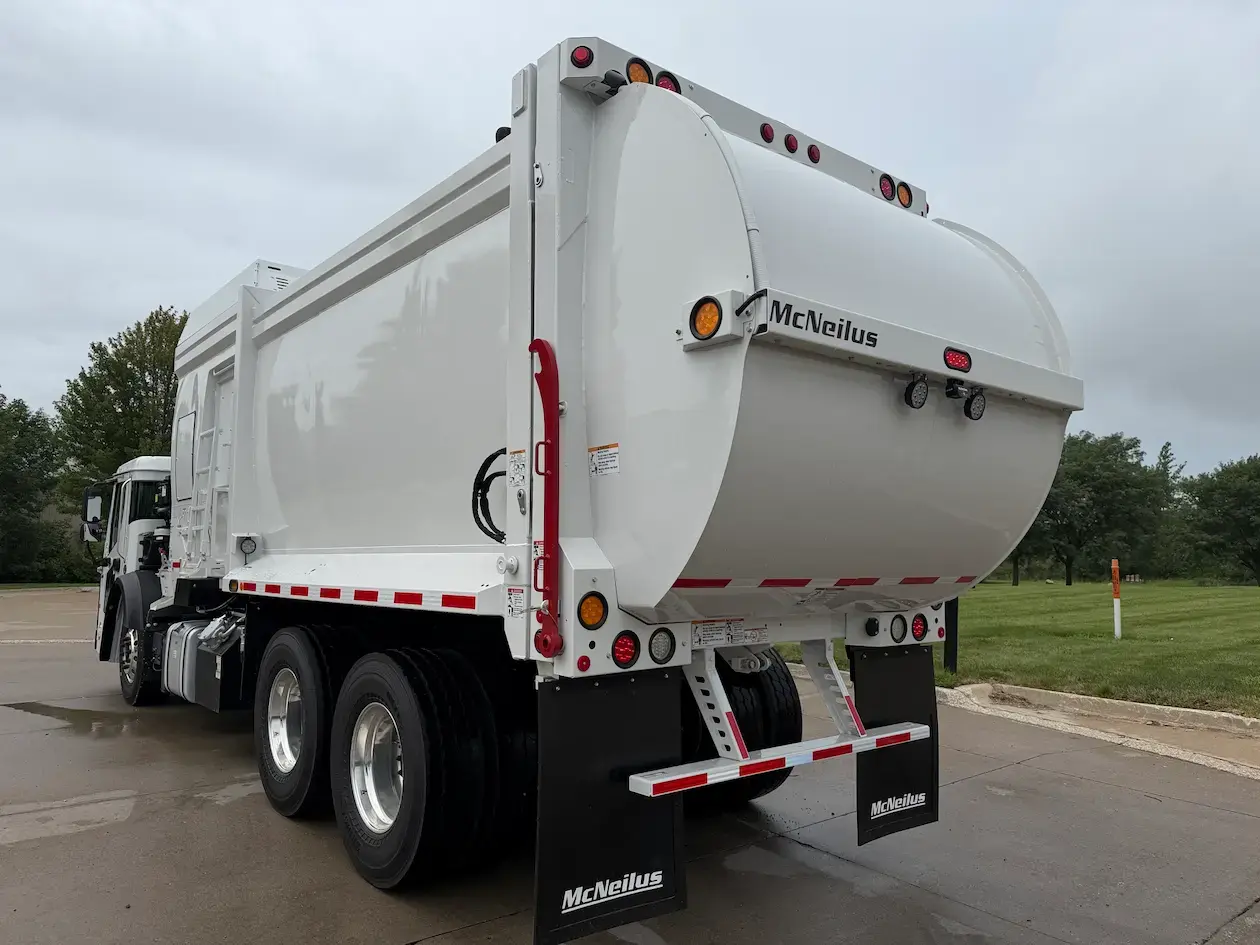

• Tailgate: 72" heavy-duty tailgate with AR200 side panels and hard rubber seal
• Wear Protection: X-Wear package with reinforced packer follower
• Wind Deflector: Low-profile hopper wind deflector
• Telematics: Factory equipped

Hydraulics

• Piston hydraulic pump with Mailhot cylinders
• HYDAC pressure filter and Schroeder return filter
• Frame-mounted hydraulic reservoir
• Hydraulic pressure test port and low oil warning
• Liftable body without service lift

Lighting

• Full LED lighting package
• Programmable Smart Strobes
• LED hopper, arm, and mid-body work lights
• LED center stop light

Camera System

• SSV 9" monitor with 6-port DVR capability
• Four-camera system including:
  • Street-side cab camera
  • Rear hopper camera
  • Down-looking arm camera
  • Tailgate reverse camera
• Dual LED tailgate assist lights

Arms & Automation

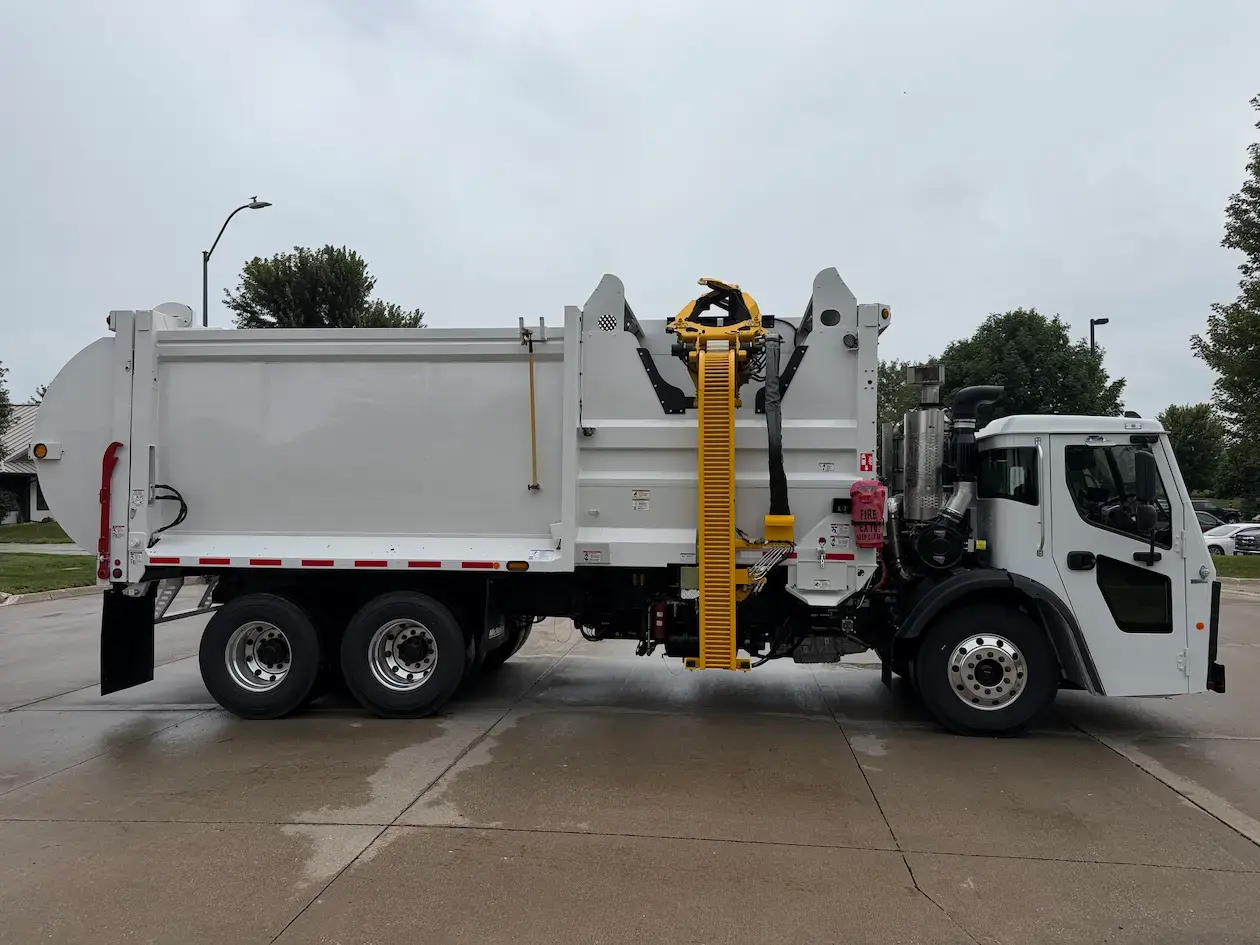

• 12' Extended Reach ZR automated arm
• 96-gallon cart capability
• Dual joystick controls
• Standard finger grabber
• Digital can counter
• Grabber interlock
• CartSeeker™ full automation

Additional Features

• LIXO contamination detection system
• ECCO dual-tone backup alarm
• 7 MPH tailgate-open speed interlock
• Clean-out hoe and body-mounted holder
• 11" plastic shovel with curbside holder
• Black McNeilus mudflaps
• 5 lb ABC fire extinguisher
• VG104 body undercoating
• Goldenrod yellow automated arm
• ANSI English safety decals
