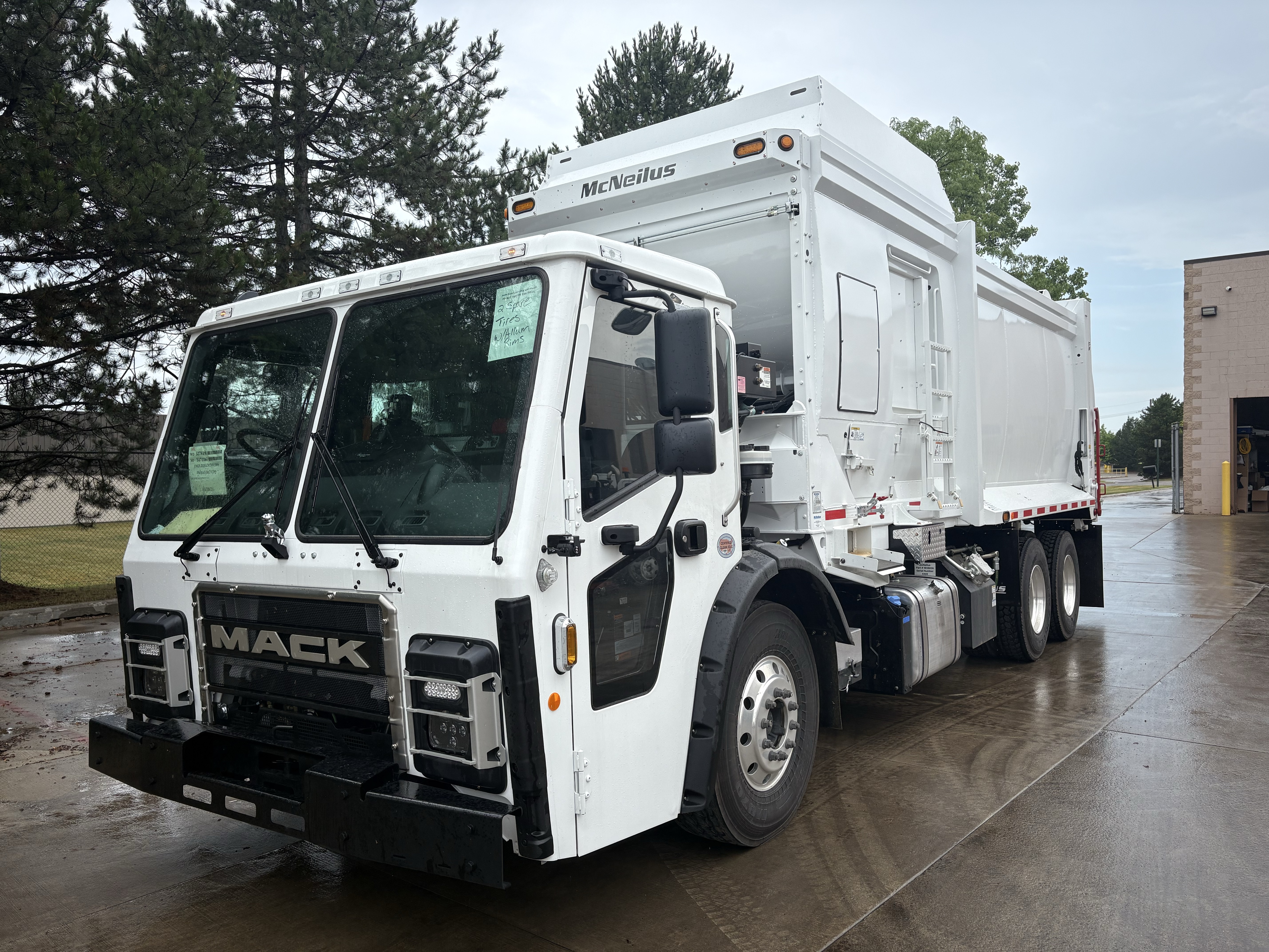

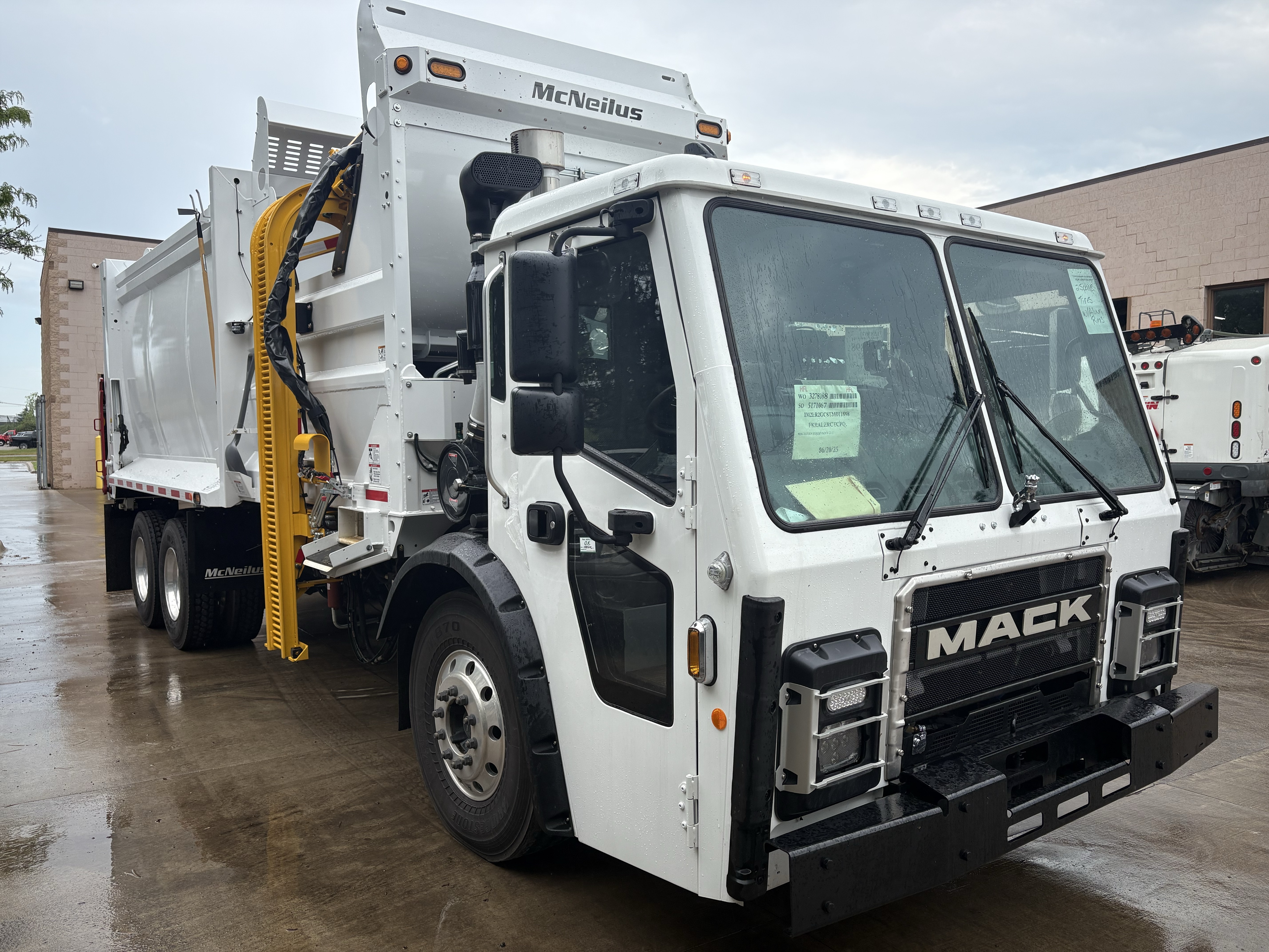

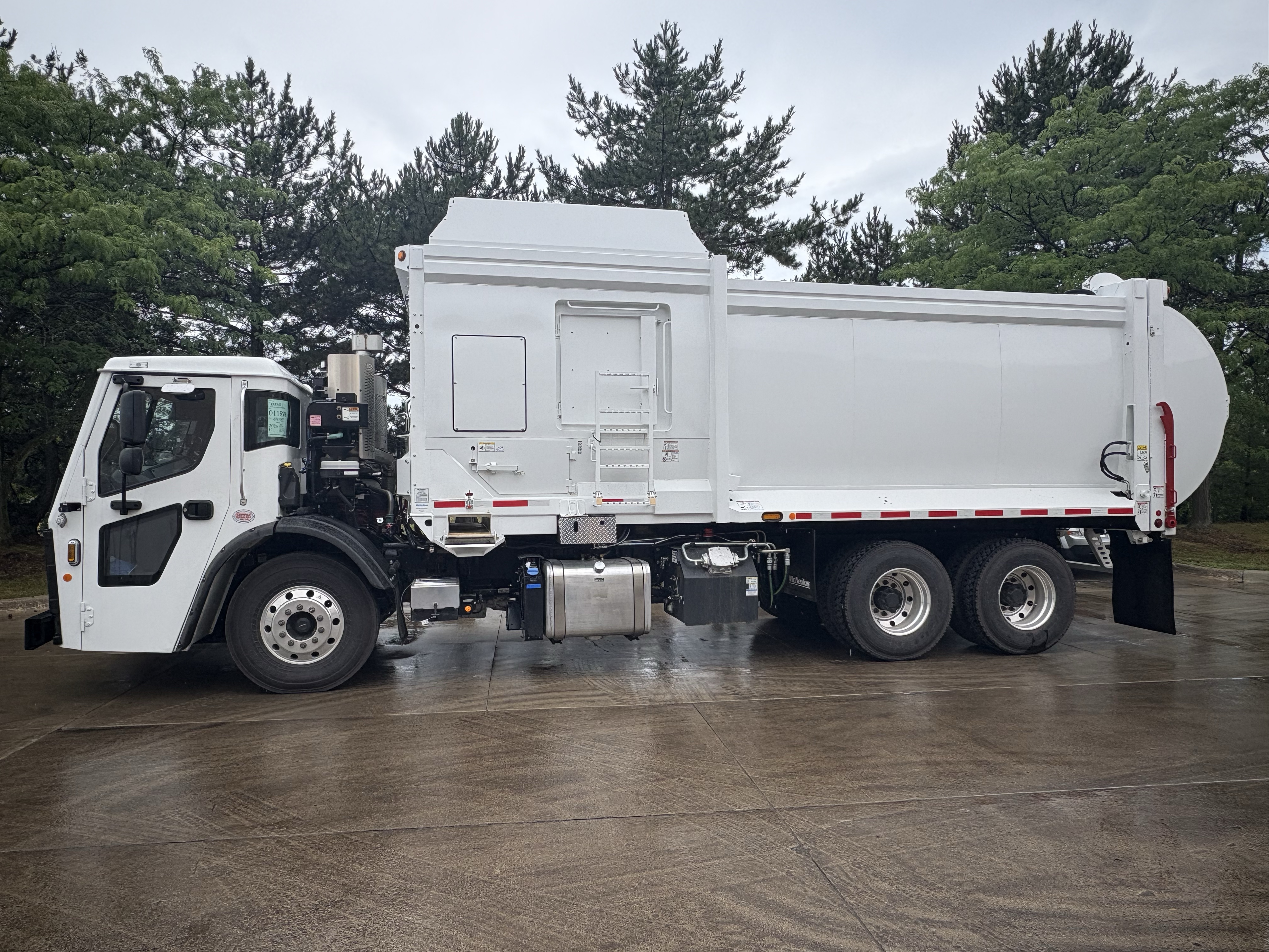

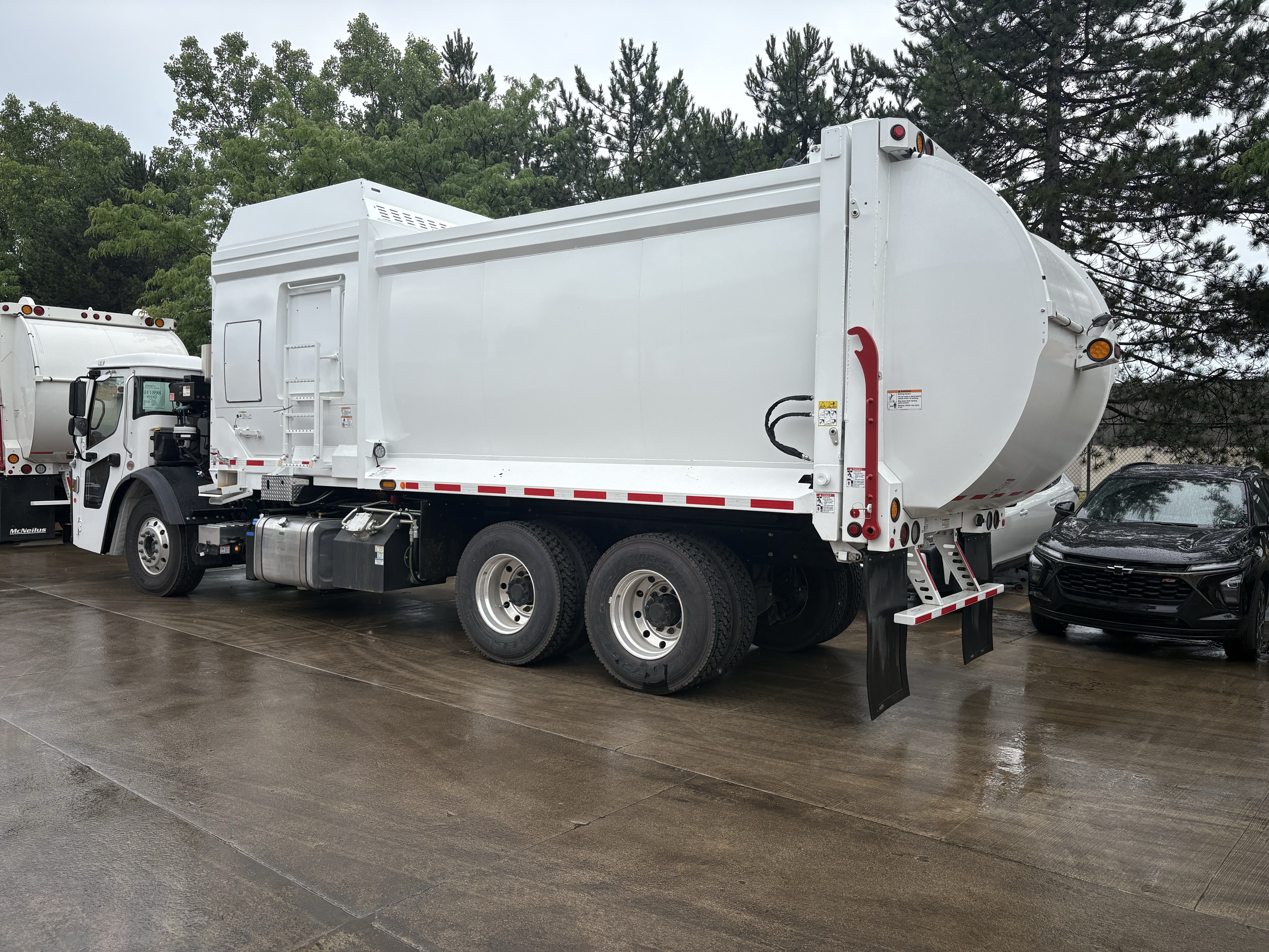

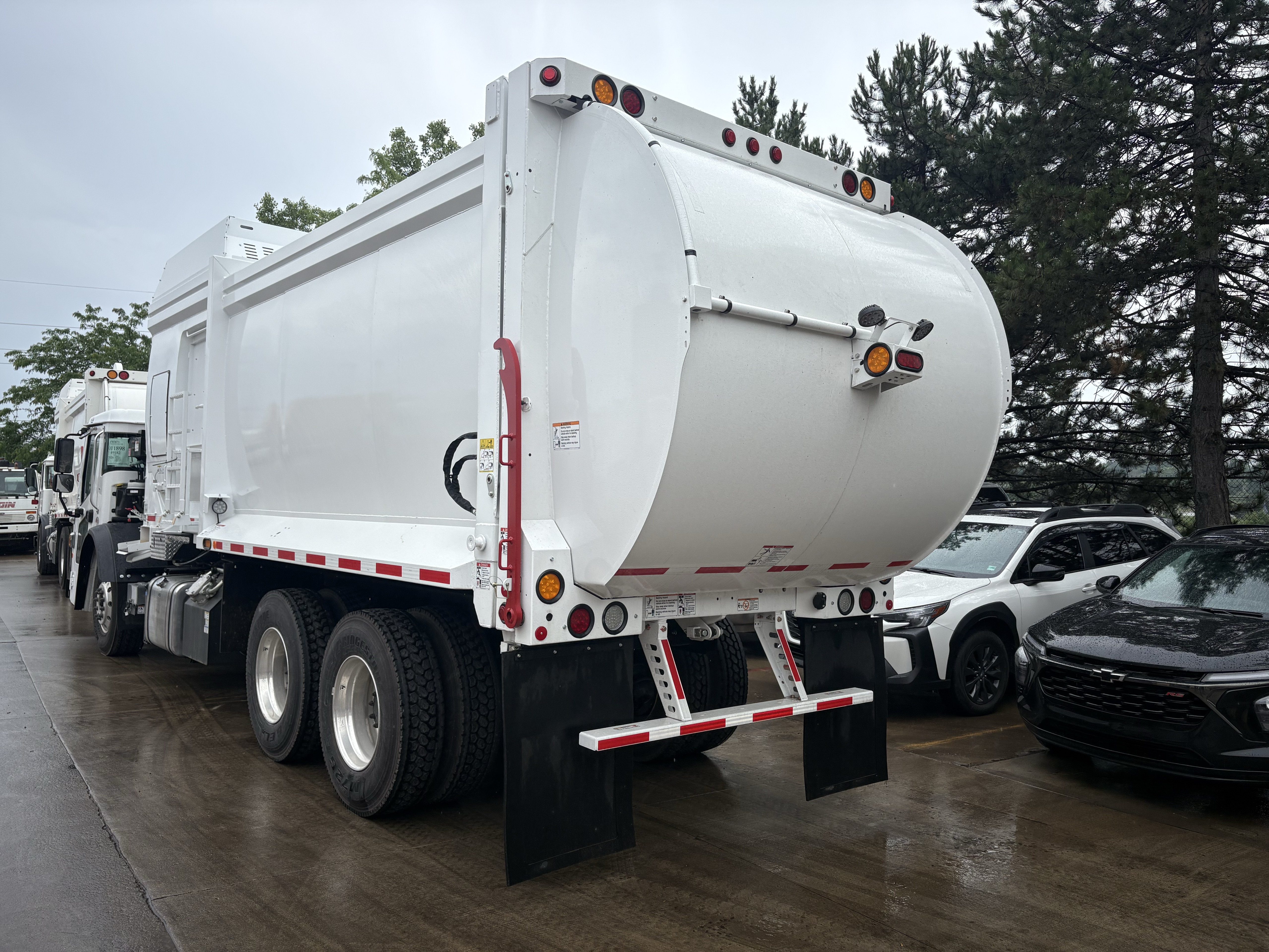

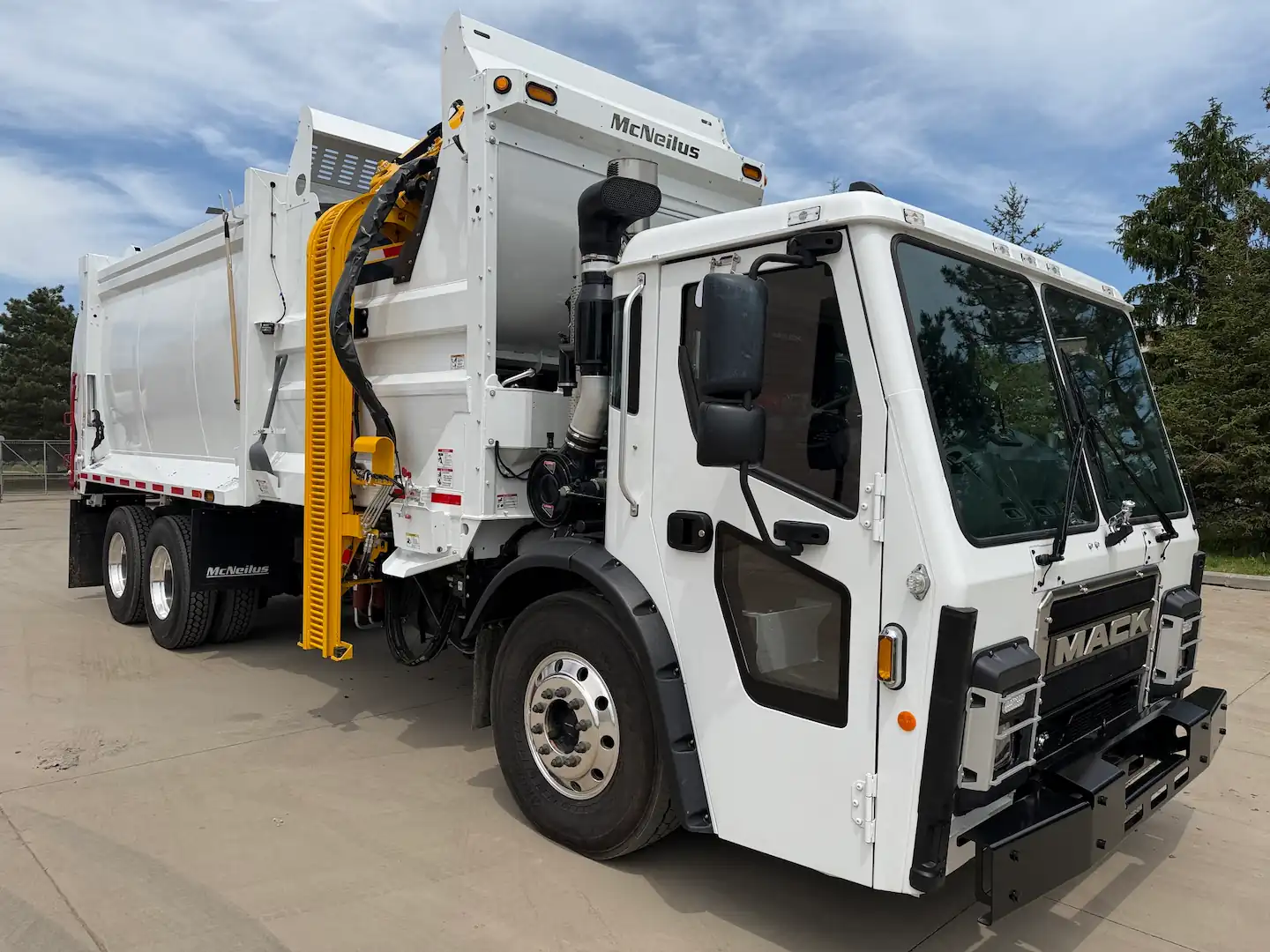

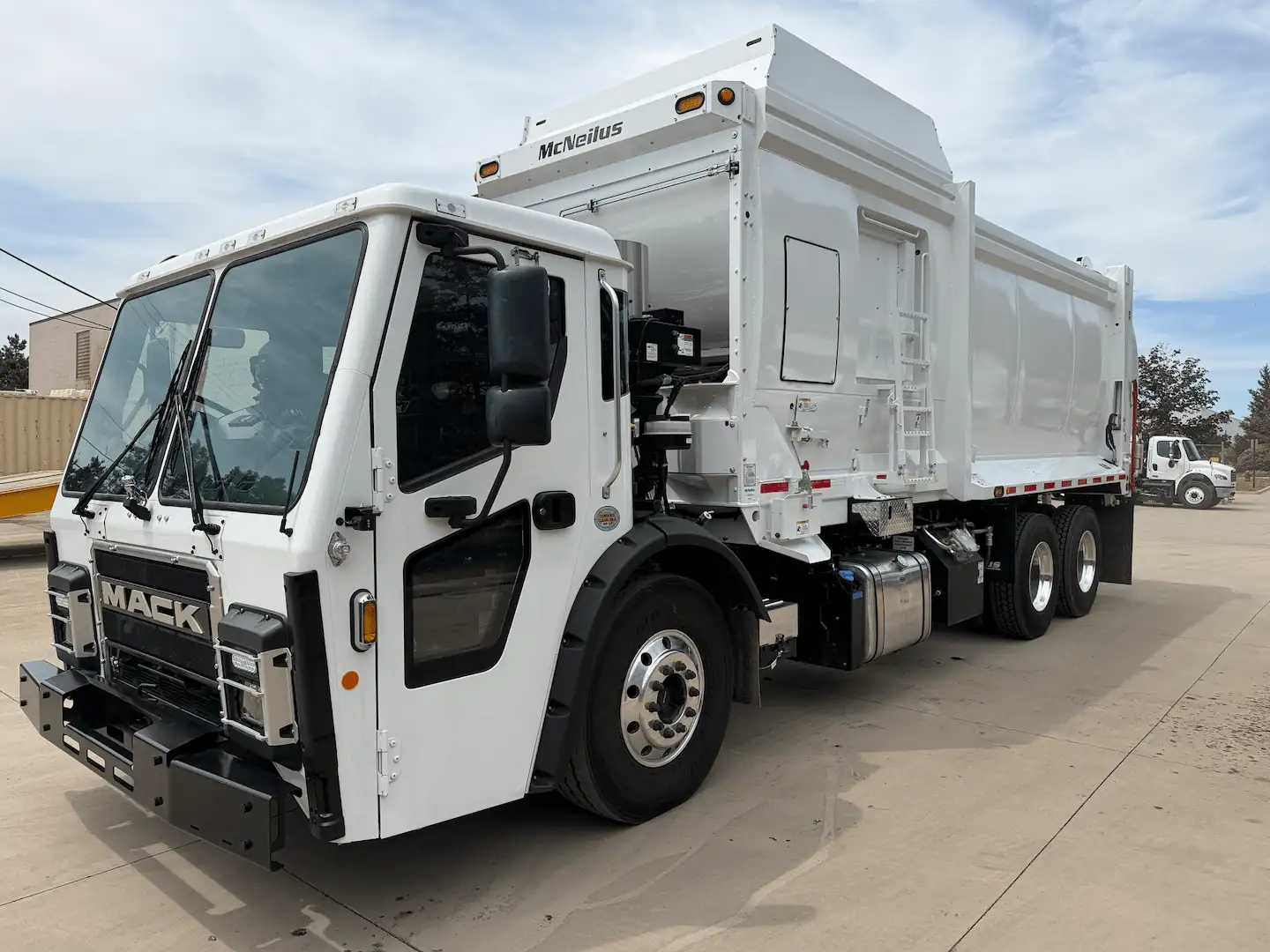

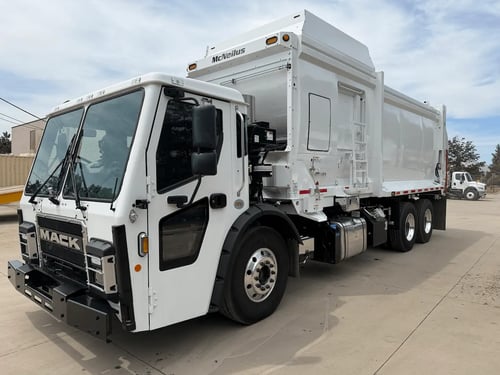

2026 McNeilus ZR

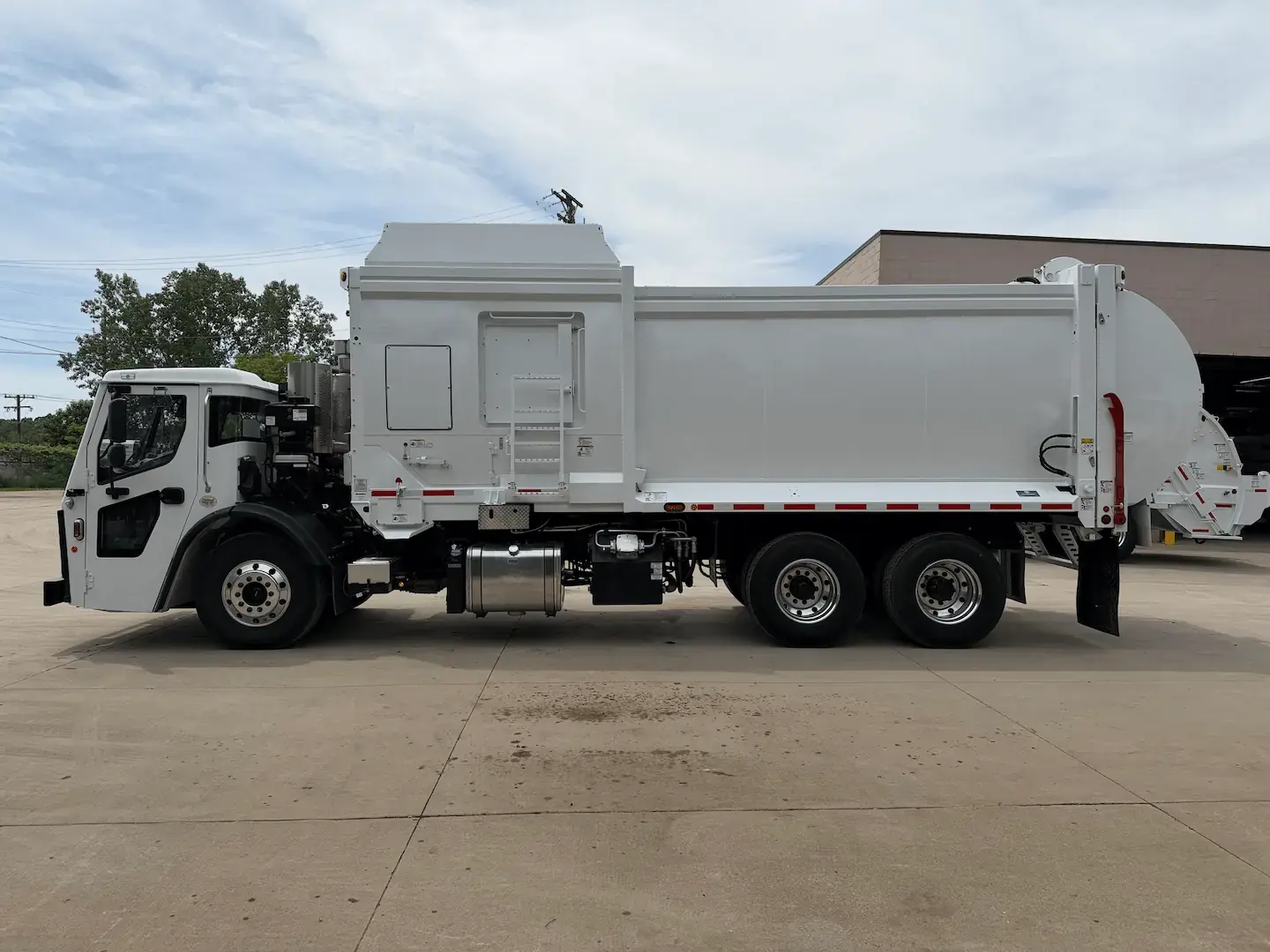

Chassis

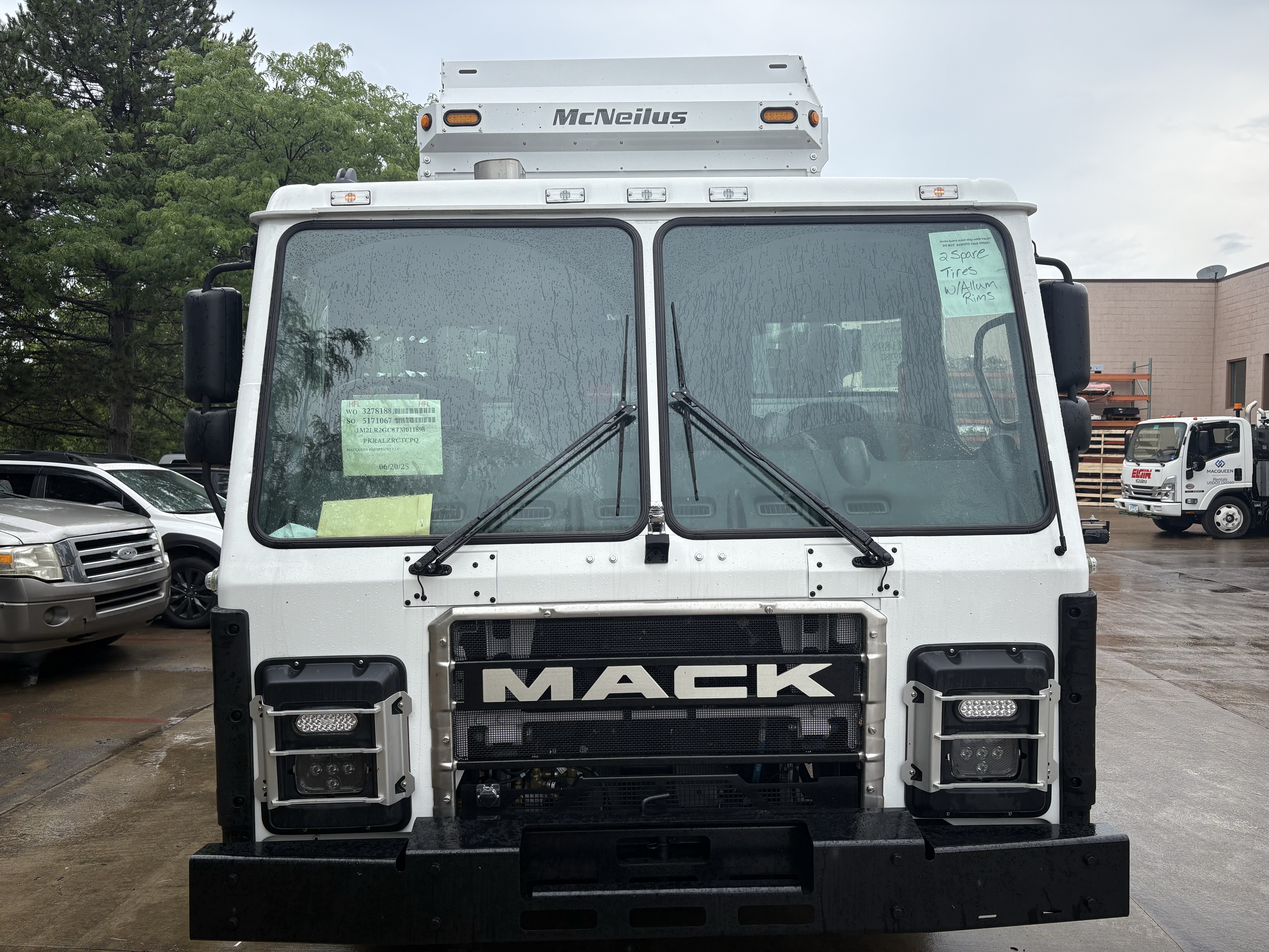

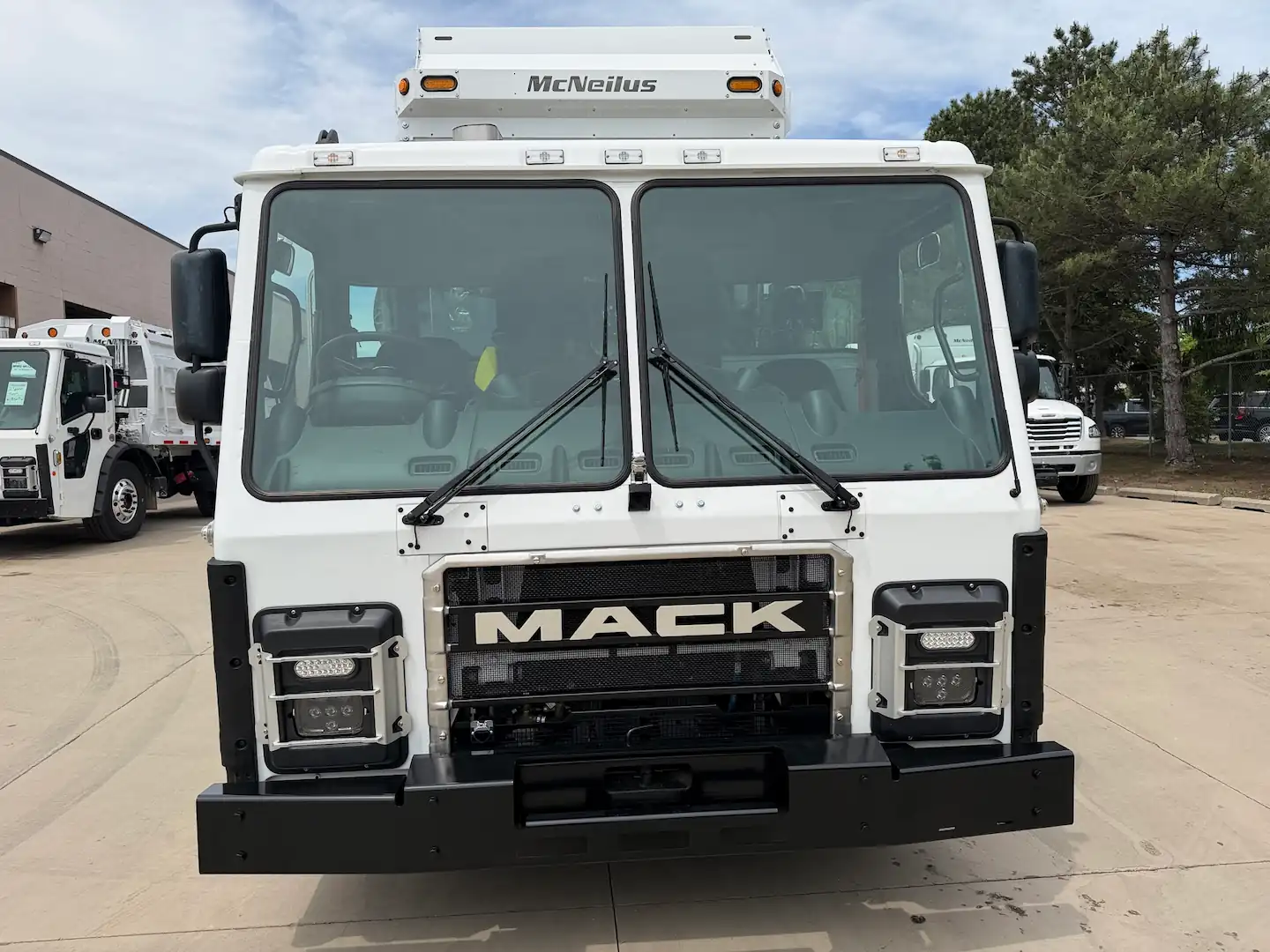

Chassis: 2026 Mack LR64R (Dual Axle)
Engine: Mack MP7-355HP
Transmission: Allison 4500 RDS
Suspension:

• Front: Mack Taperleaf 20k

• Rear: SS46 Mack Camelback Multi-leaf 46K

Steering: RH ONLY

Pump Drive: SS CV DS remote mount constant mesh PTO

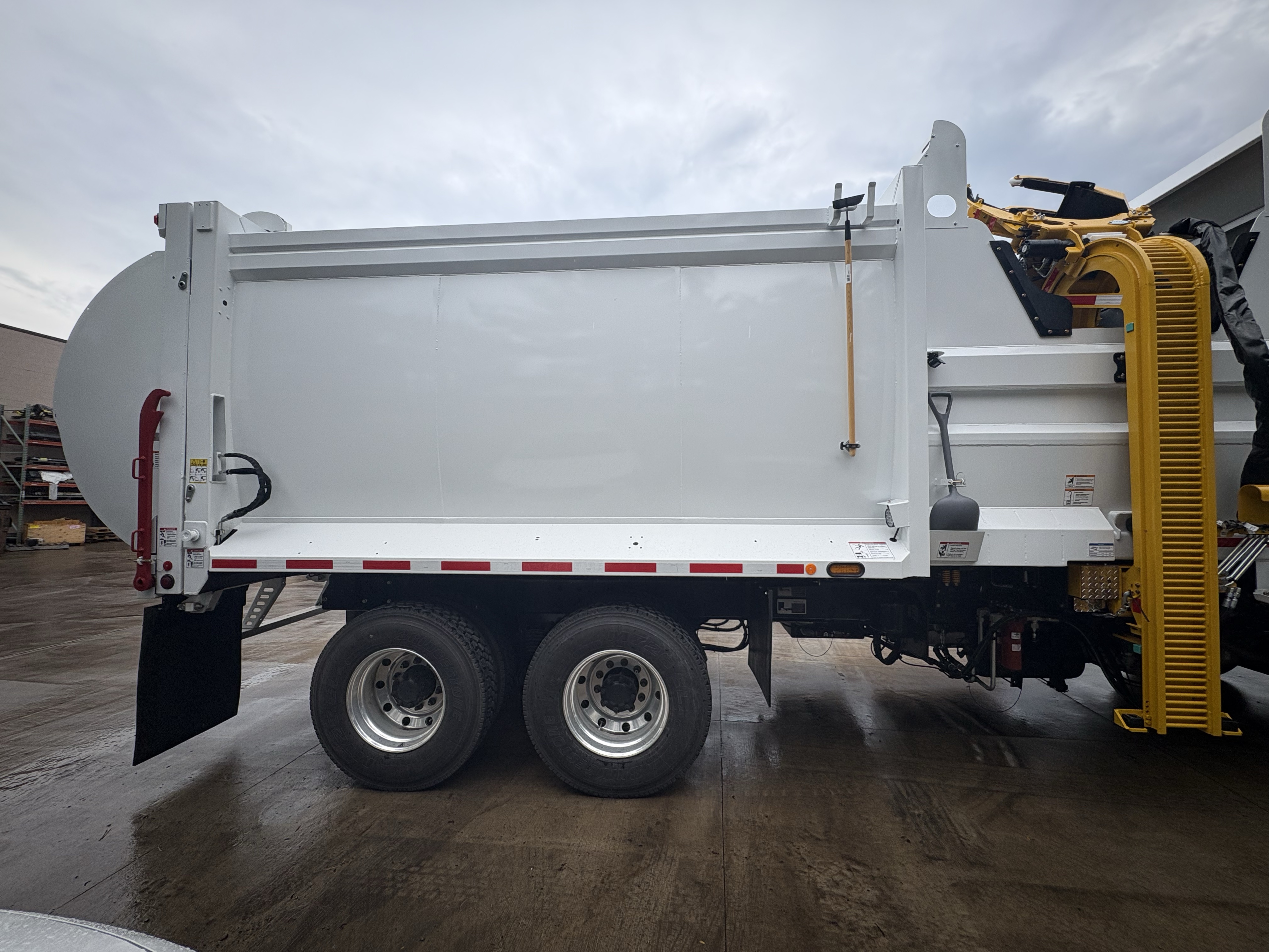

Body

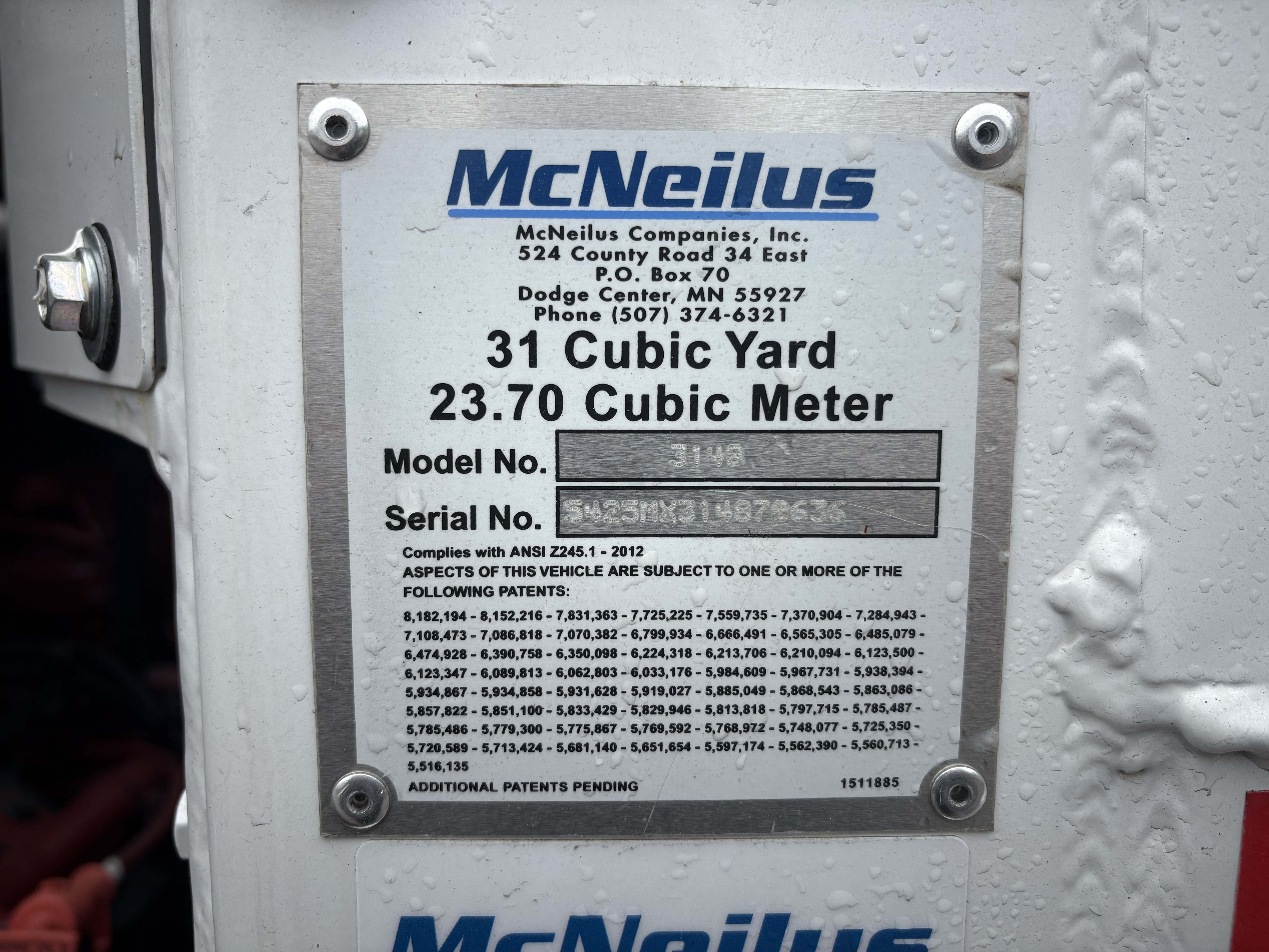

Model: ZR Zero Radius ASL (Model 3148)
Rated Capacity: 31-yard
Body Configuration: Long floor, large tailgate, low profile
Body Floor: 10 GA AR200 (standard)

Hopper:

• Wall liner: 3/16" AR400, 3 ft high

• Floor: 3/16" AR400 with liner

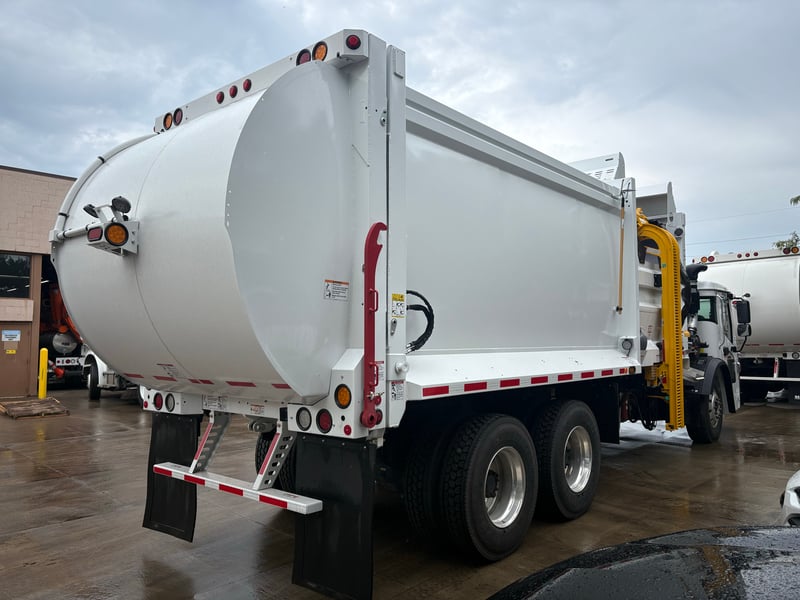

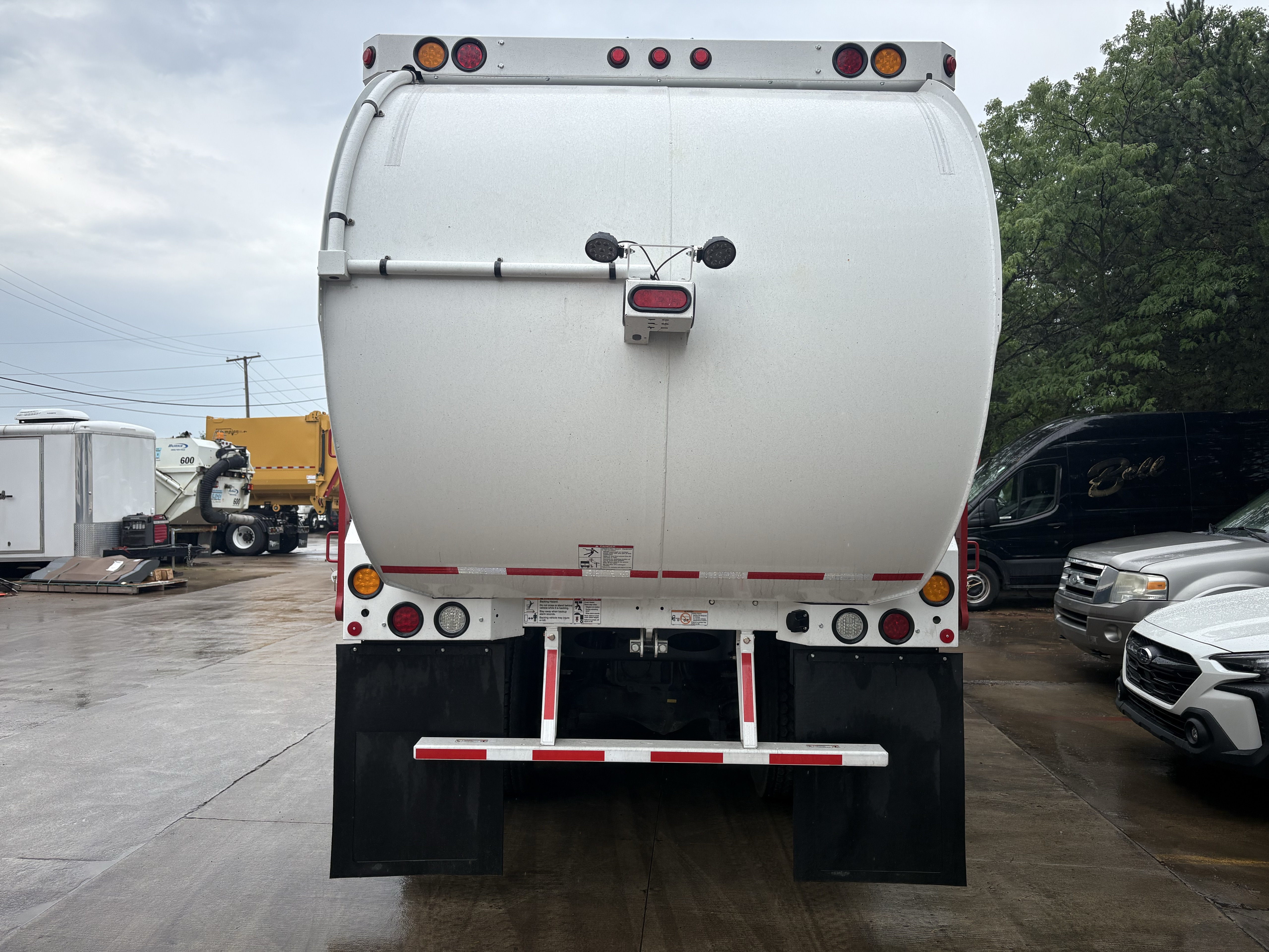

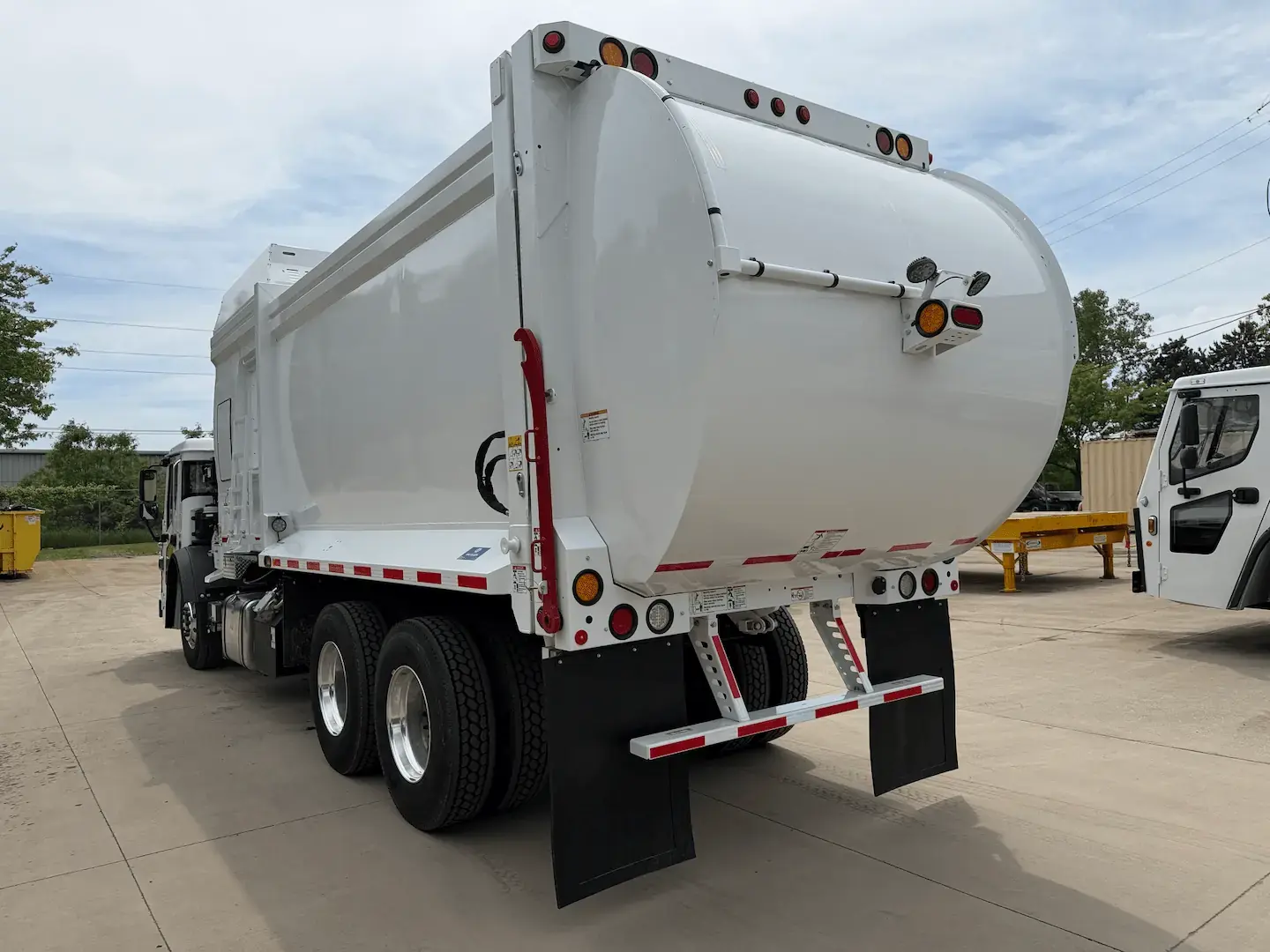

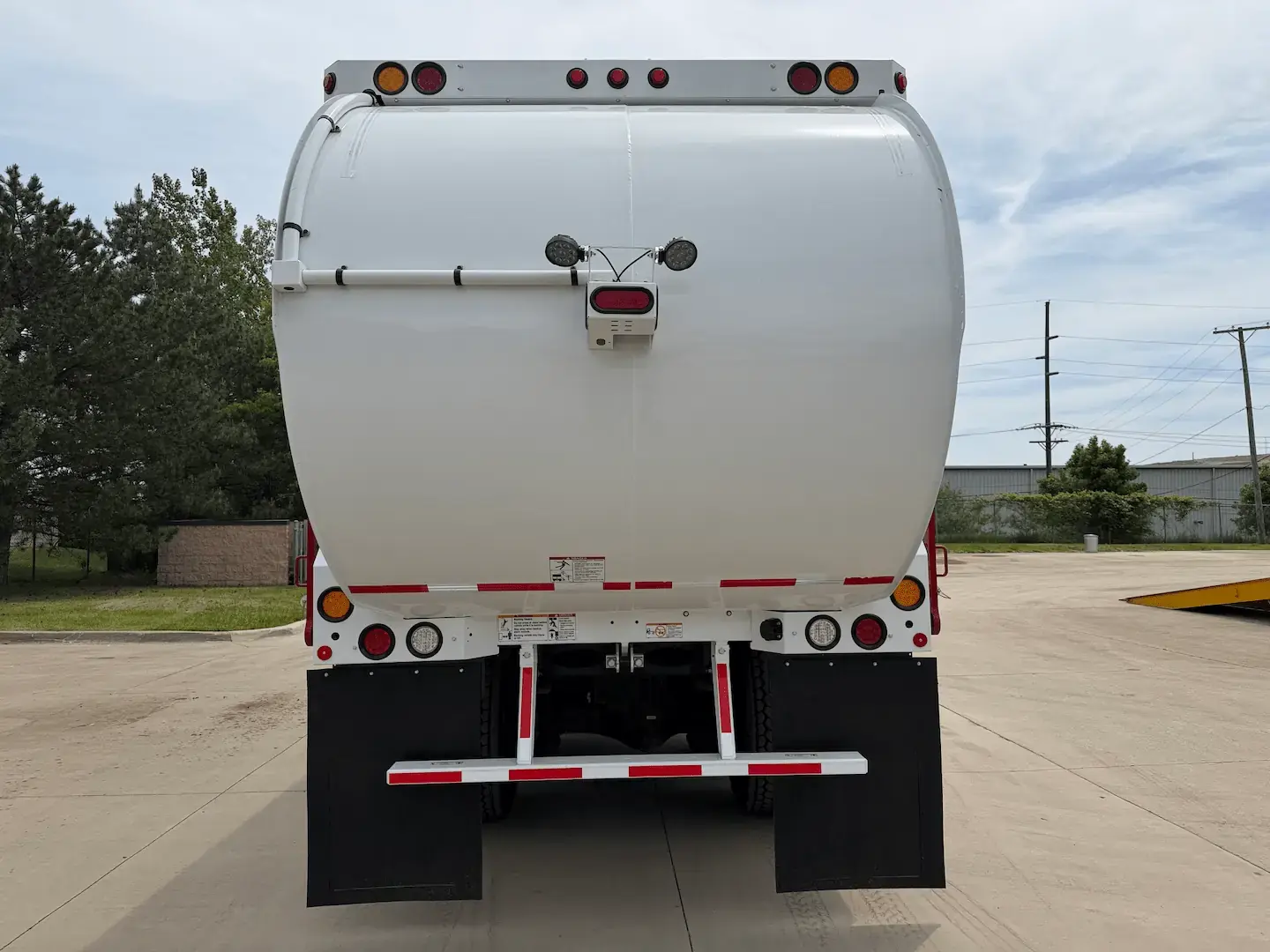

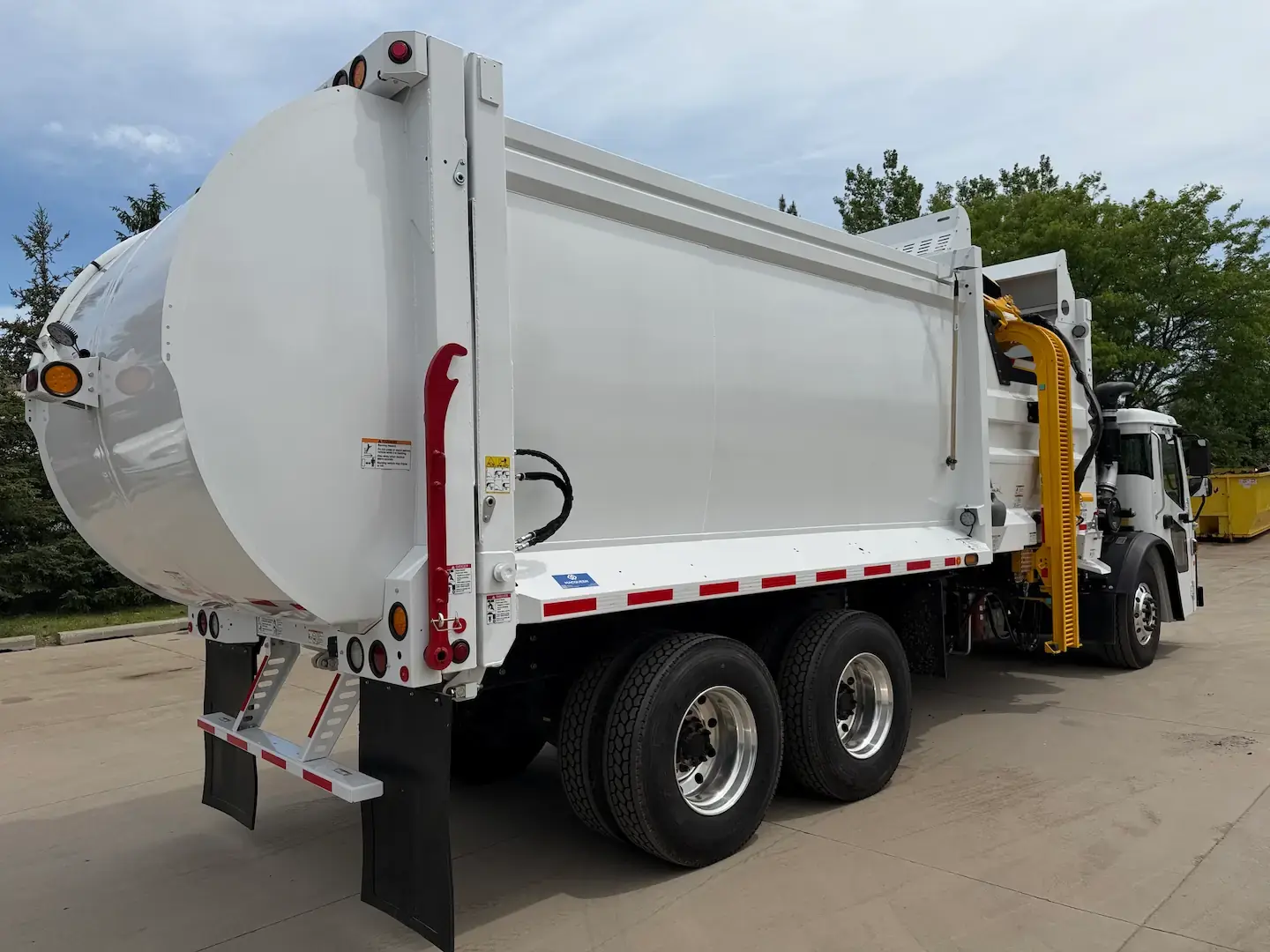

Tailgate:

• 72" bumper width

• 10 GA AR200 side panels

• Hard rubber seal

Front Light Bar: Standard 14 GA

Body Options

Tailgate Type: Non-TG-mounted CNG

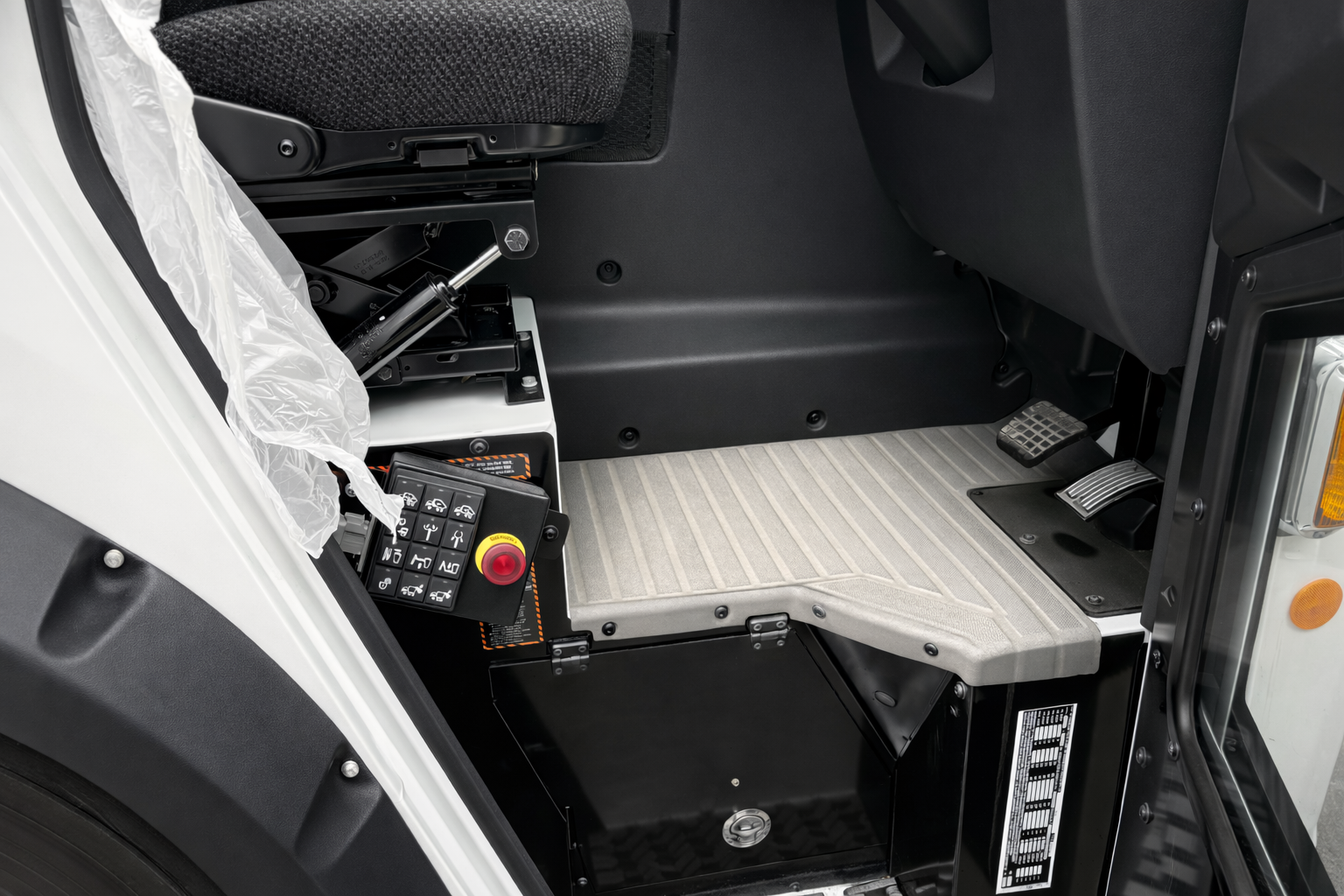

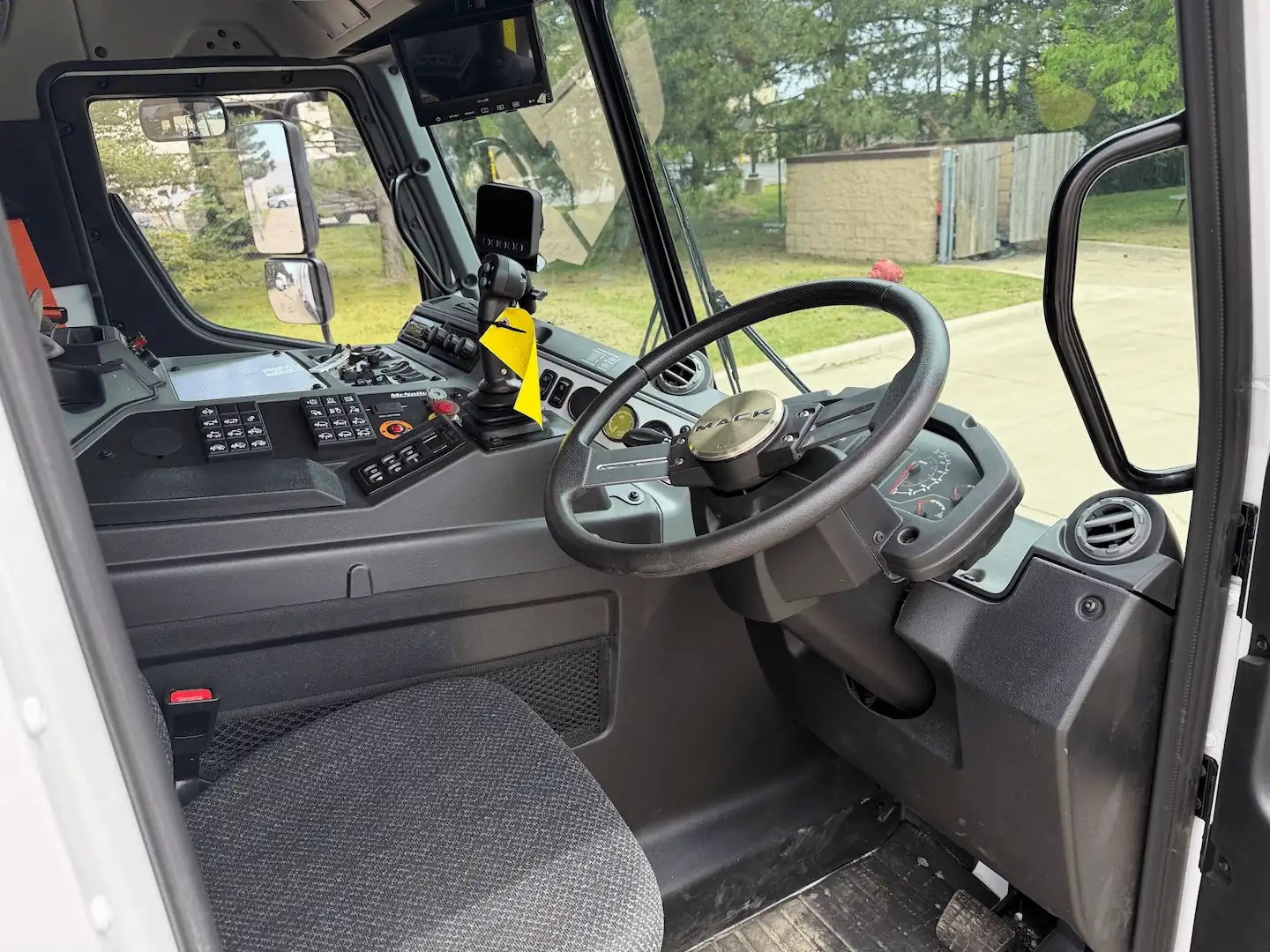

Controls:

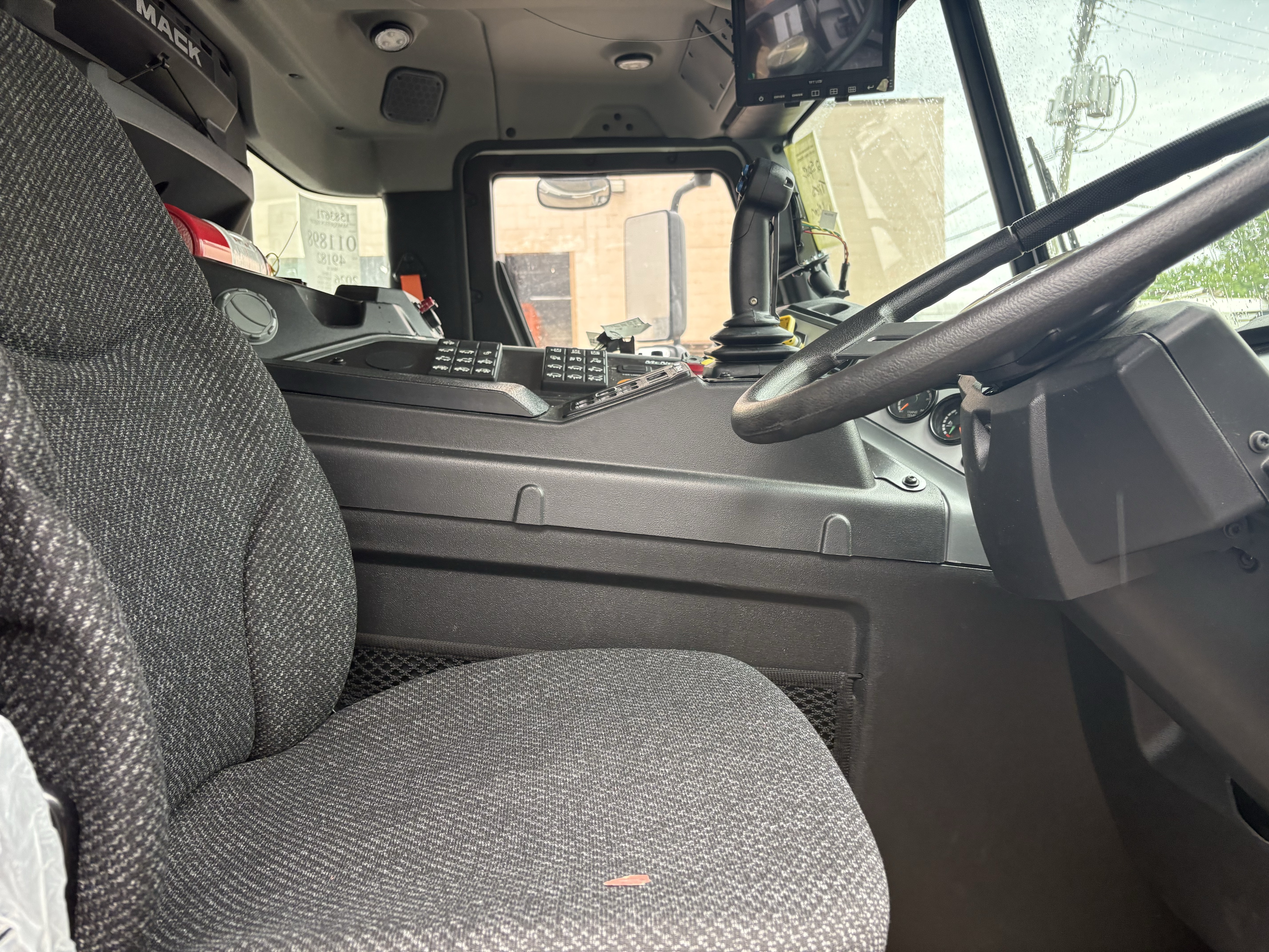

• Cab: Switches in dash

• Curbside outside: Underseat

Cameras / Guards: Hopper light camera guard; arm valve cover not applicable
Packer Follower: Standard 10 GA 50KSI panel with hinge cover
Wear Protection: X-Wear standard
Cleanout Tray: Curbside and street side
Joystick Style: Roller style, traditional
Hopper Wind Deflector: Yes – low height
Telematics: Enabled

Hydraulics

Pump: Piston pump
Reservoir: Standard steel, frame-mounted (street side)

Filters:

• Return: Schroeder (in-reservoir)

• Pressure: HYDAC CF 60

• Sample Port: KP14NV 90° check

Cylinders: Mailhot packer/ejector

Cooling & Monitoring:

• Hydraulic cooler

• Built-in temperature gauge (display)

• Temperature sensor in reservoir

Shutoff Valve: Red handle ball valve
Breather / Filler: Filler/breather on reservoir, standard filler cap
Hose Protection: Cordura wrap (required hoses)

Lighting

DOT Lights: Economy LED
Smart Lights: 4" programmable strobes (tailgate, TG side, oval FOB)
Center Stop Light: Economy LED (tailgate center)
Mid-Body DOT Light: Oval amber turn signal/marker

Work Lights:

• Hopper: One 5" economy LED

• Arm: One 5" economy LED

• Mid-body: Box-mounted 5" economy LED

Camera System

System: SSV 9" Monitor/DVR (6-port)
Monitor Mount: Center overhead (RAM mounted)

Cameras: Qty 4

• Cab: Street side mirror-mounted

• Hopper: Street side rear hopper

• Arm: Down-looking (body wall mount)

• Tailgate assist: Dual 5" economy round LEDs

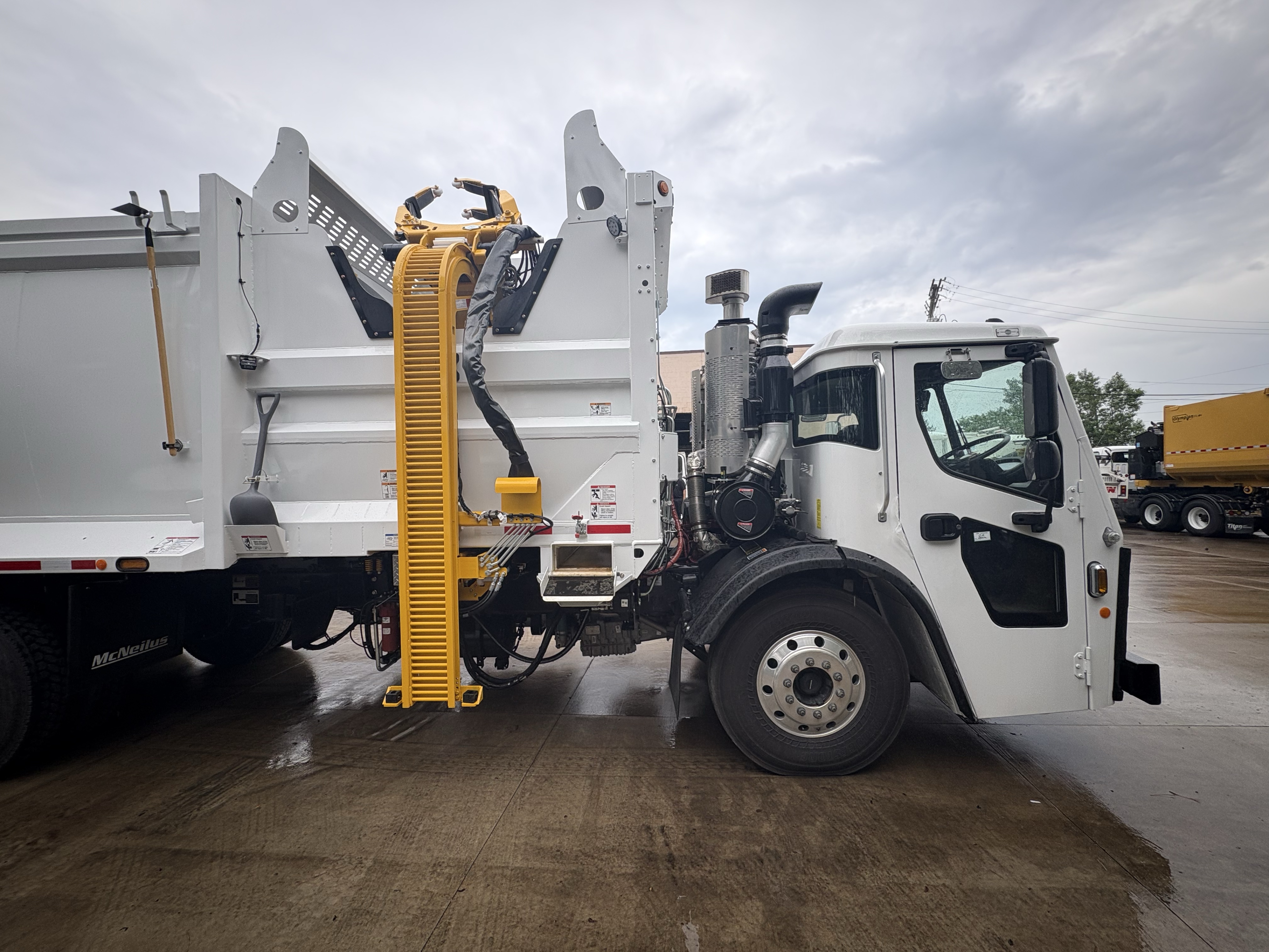

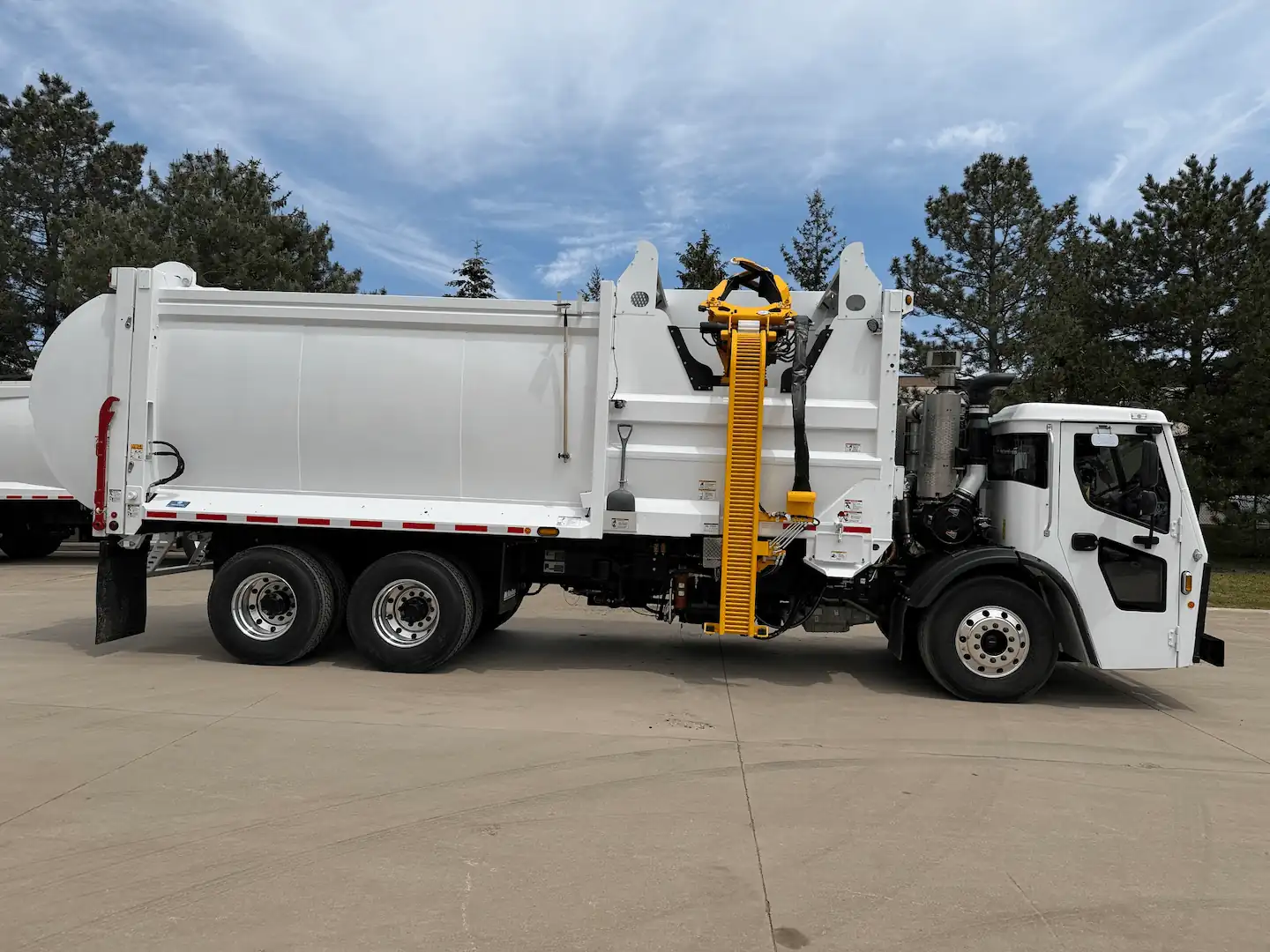

Arms & Forks

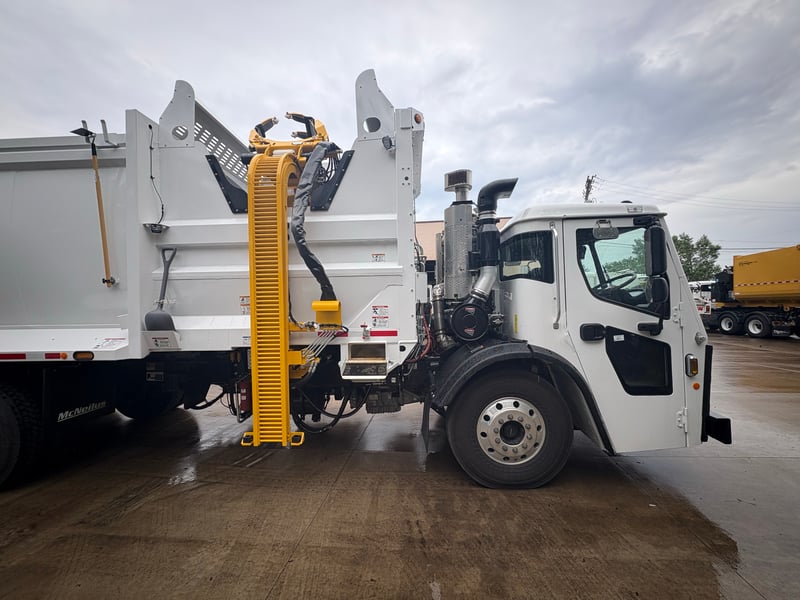

Model: ZR 12' Extended Reach Arm – 96 gal
Fingers: Standard finger grabber
Controls: Curbside joystick
