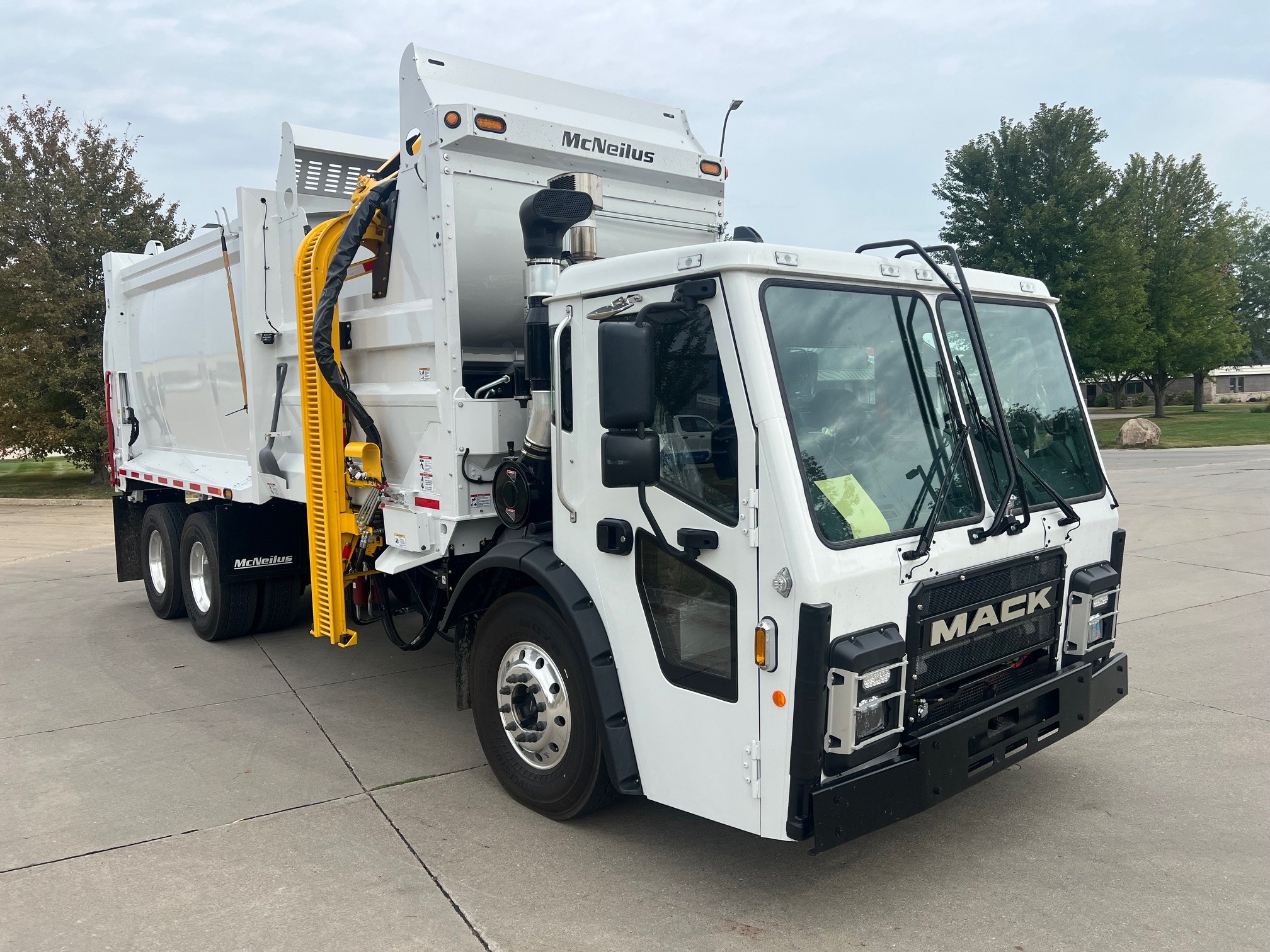

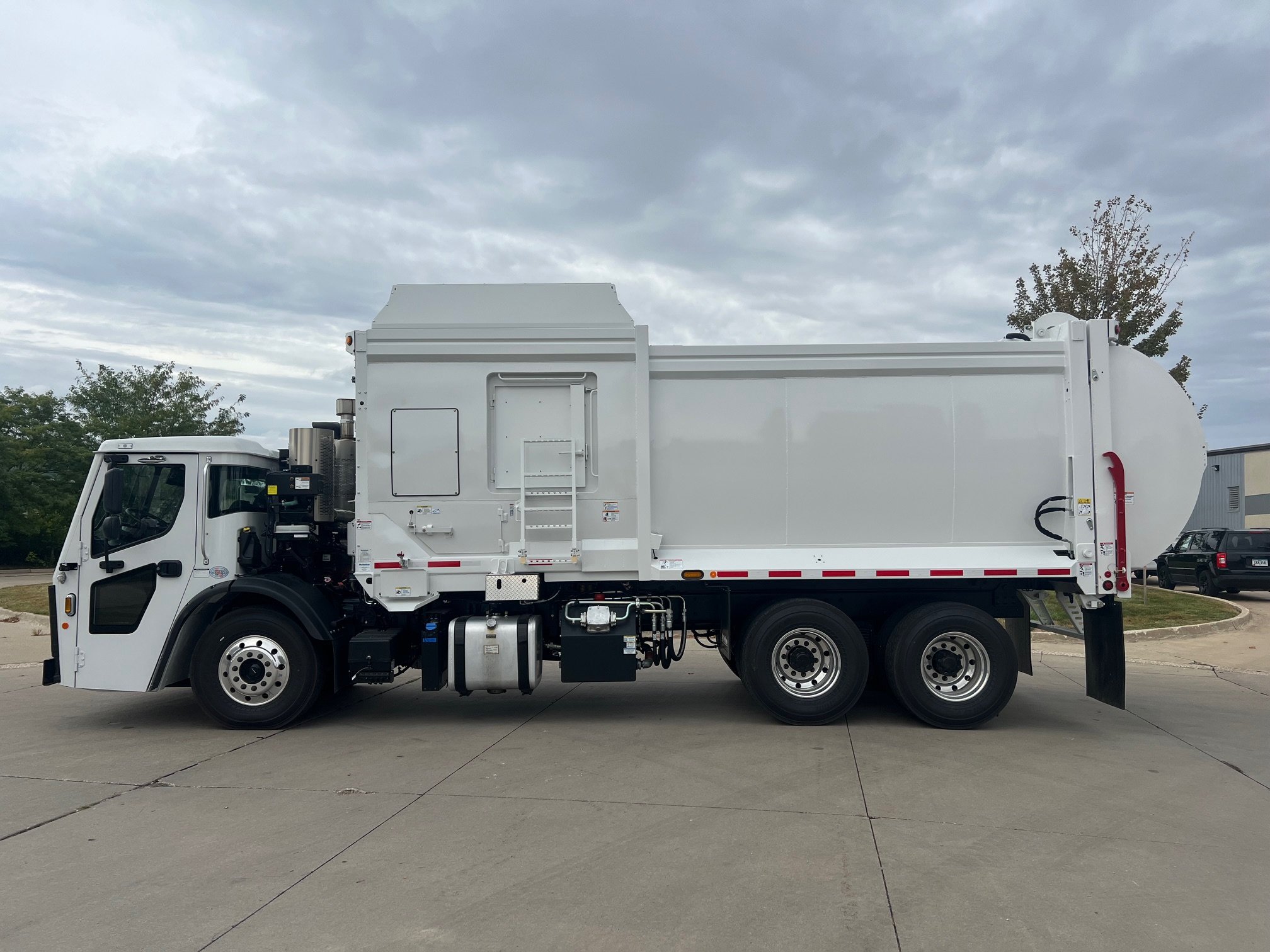

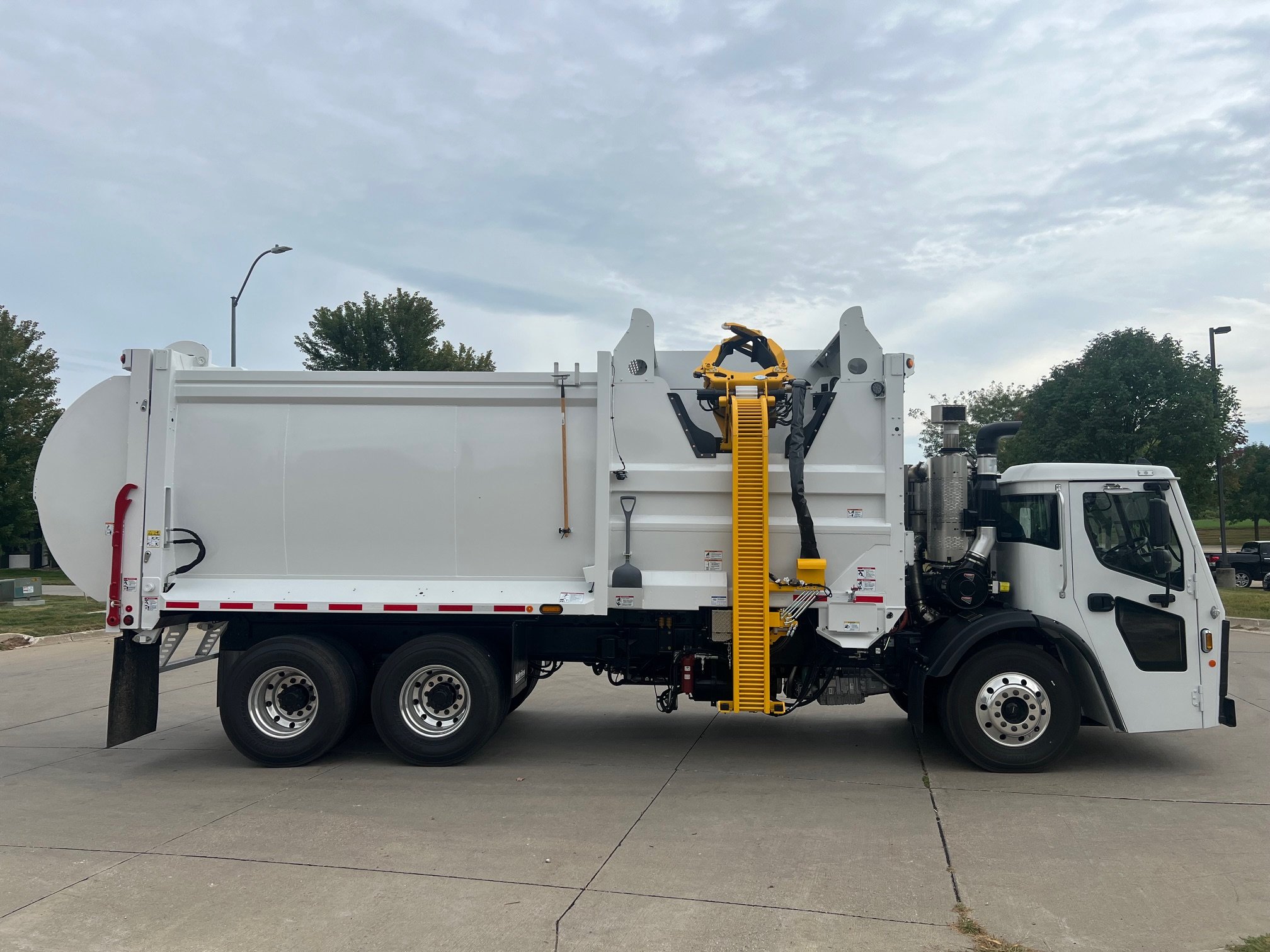

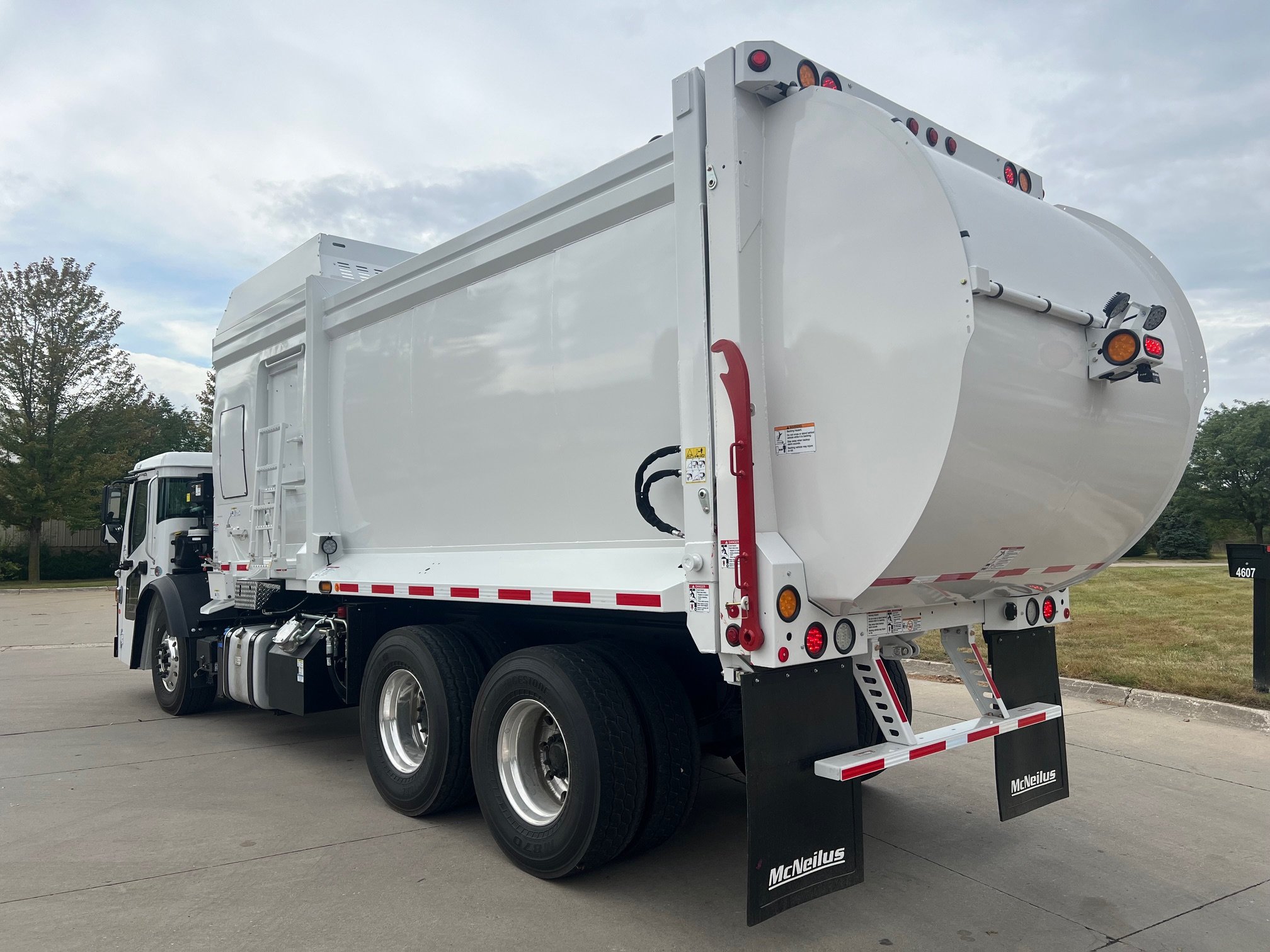

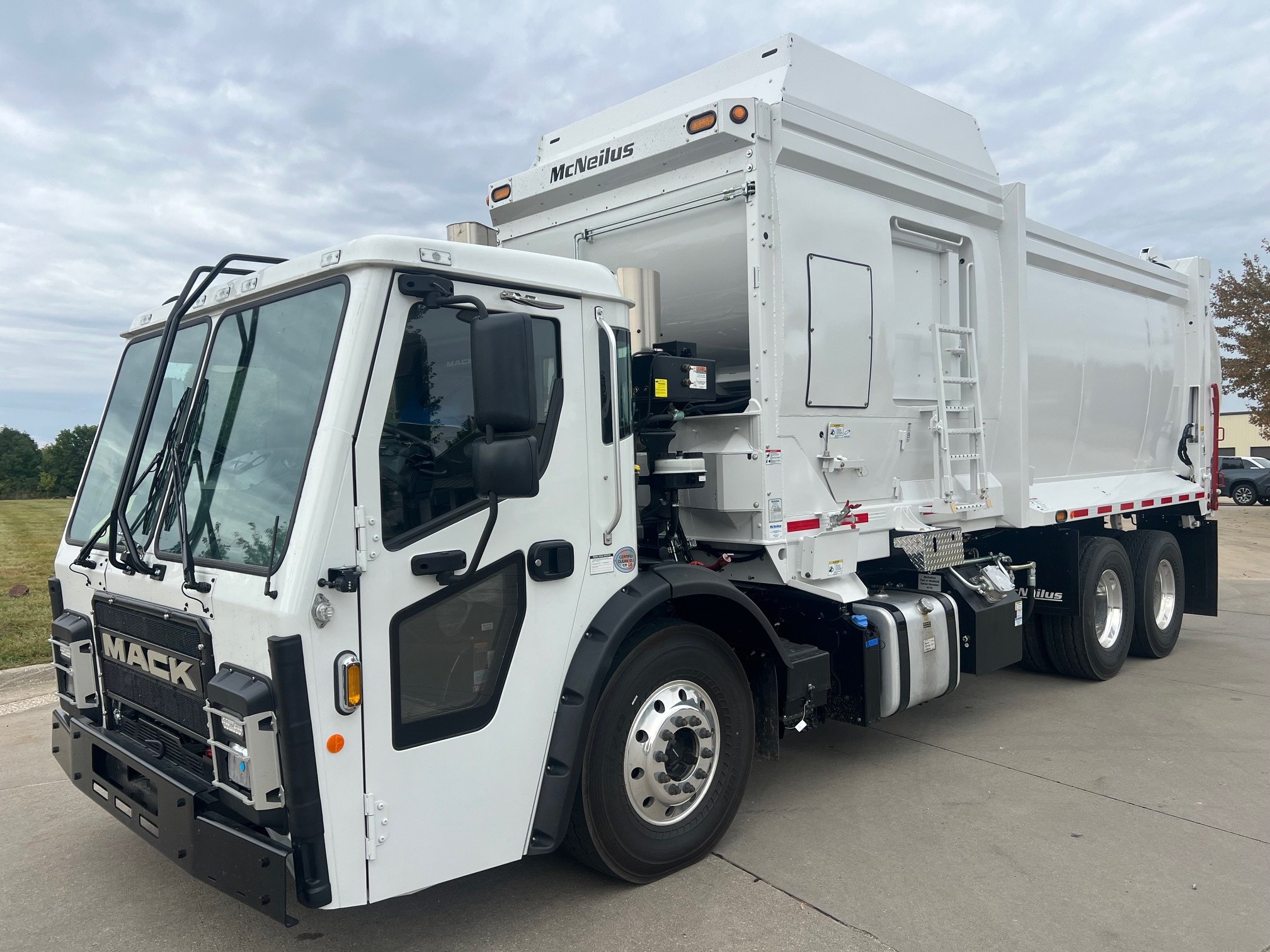

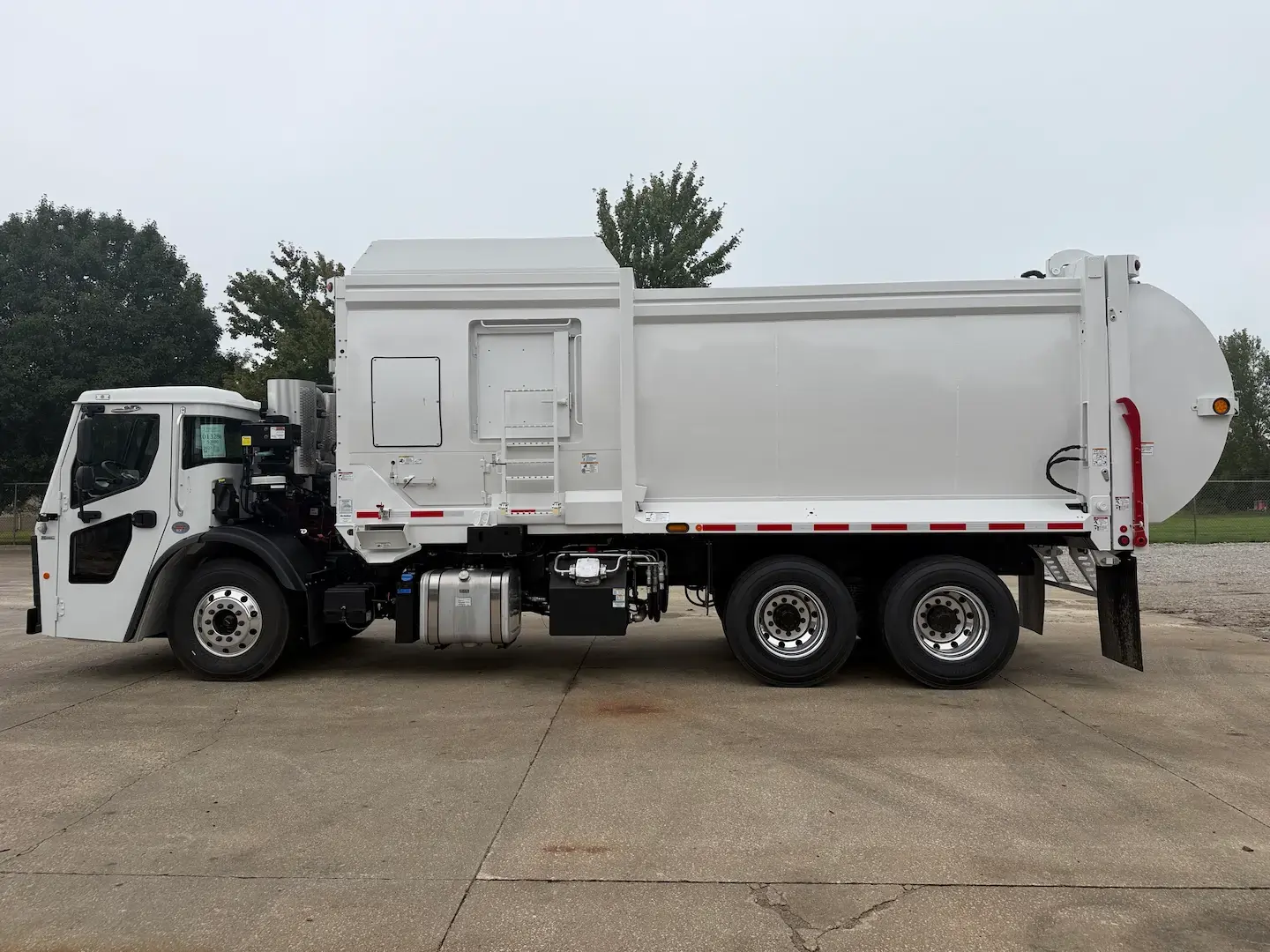

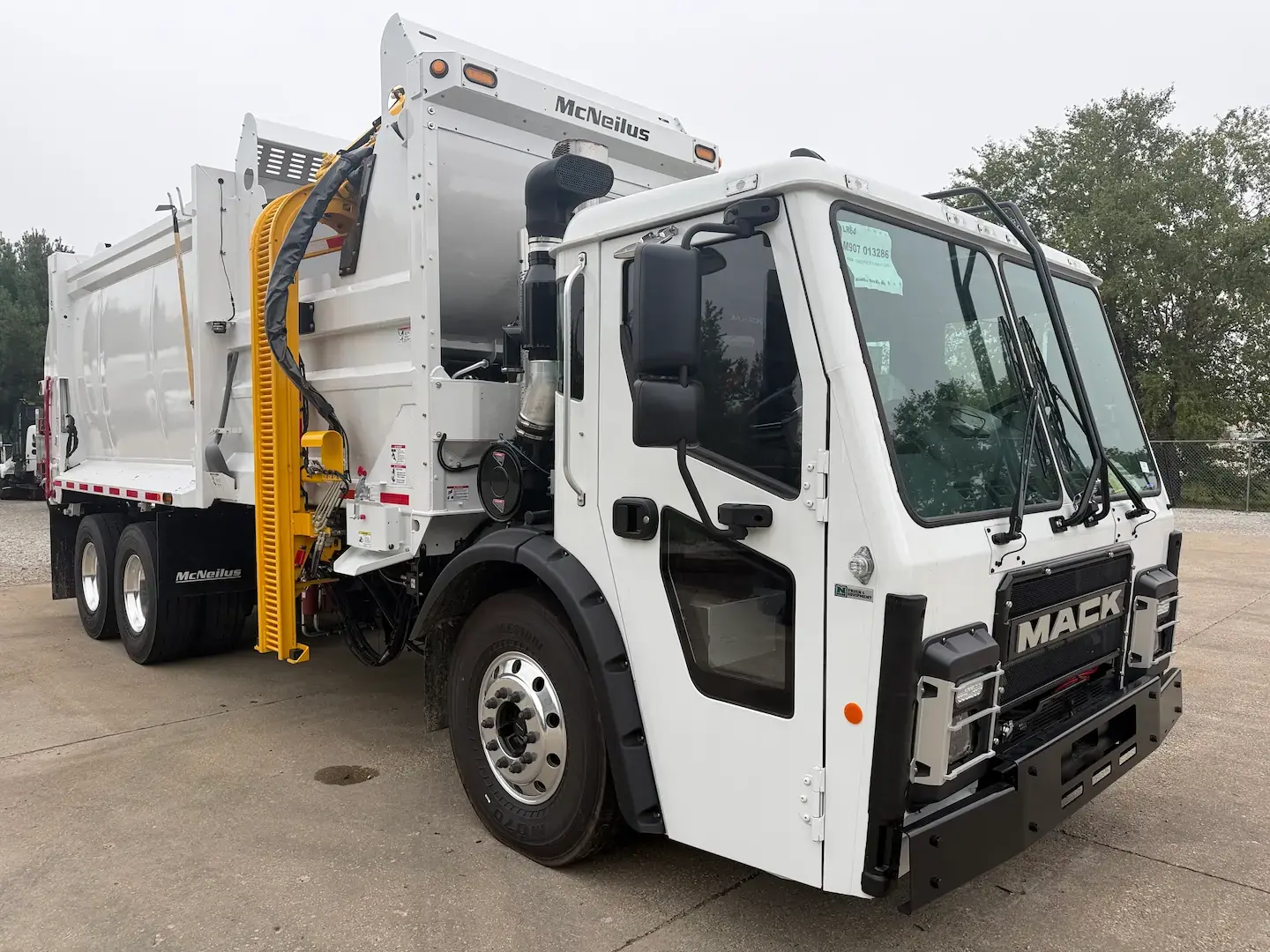

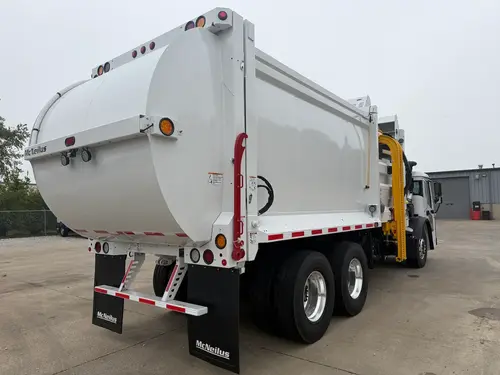

2026 McNeilus ZR

Chassis

Packer Type: ZR Model 48 (Sauer Hydraulics)
GVW Category: 33,001 lbs or greater

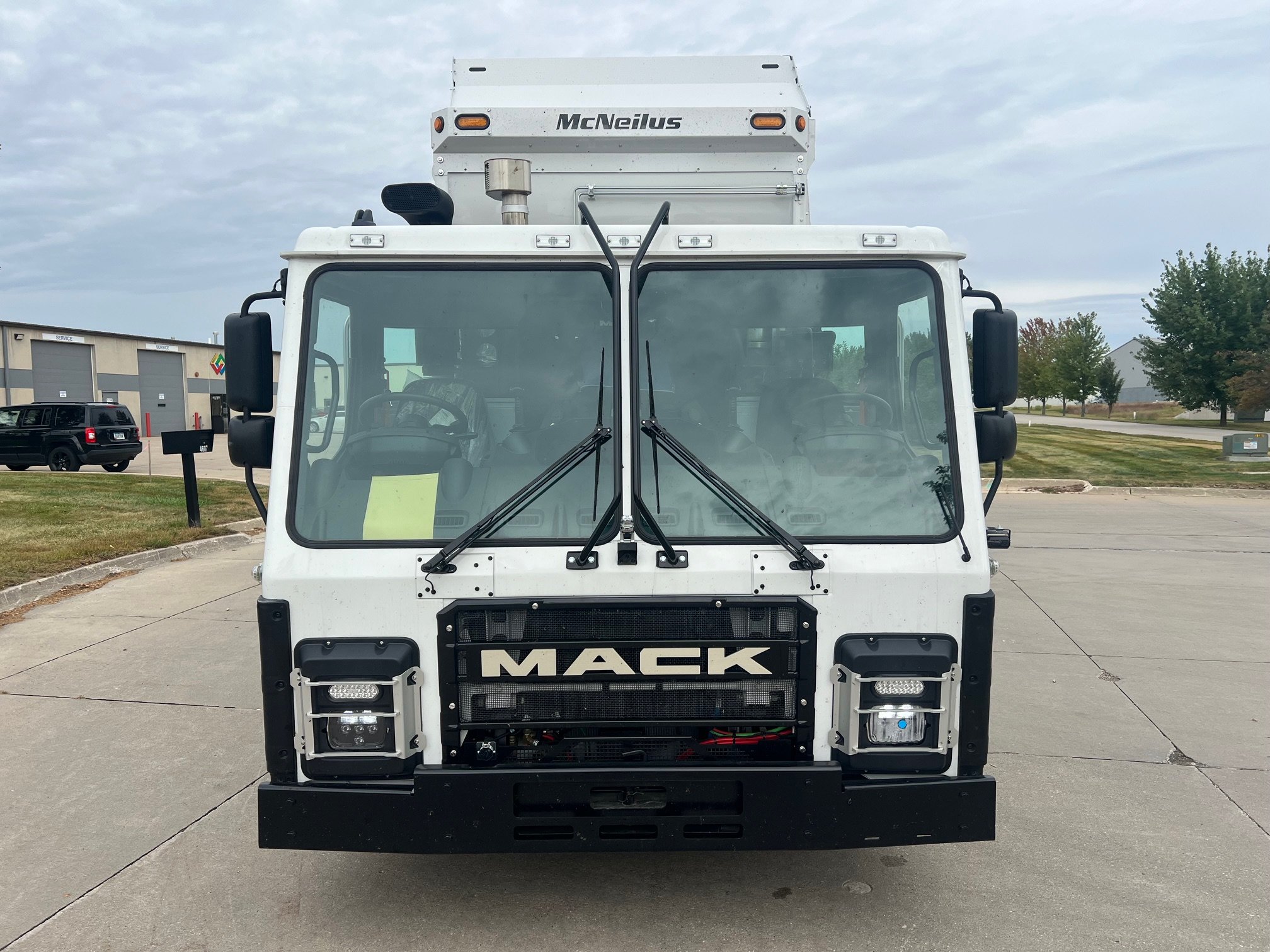

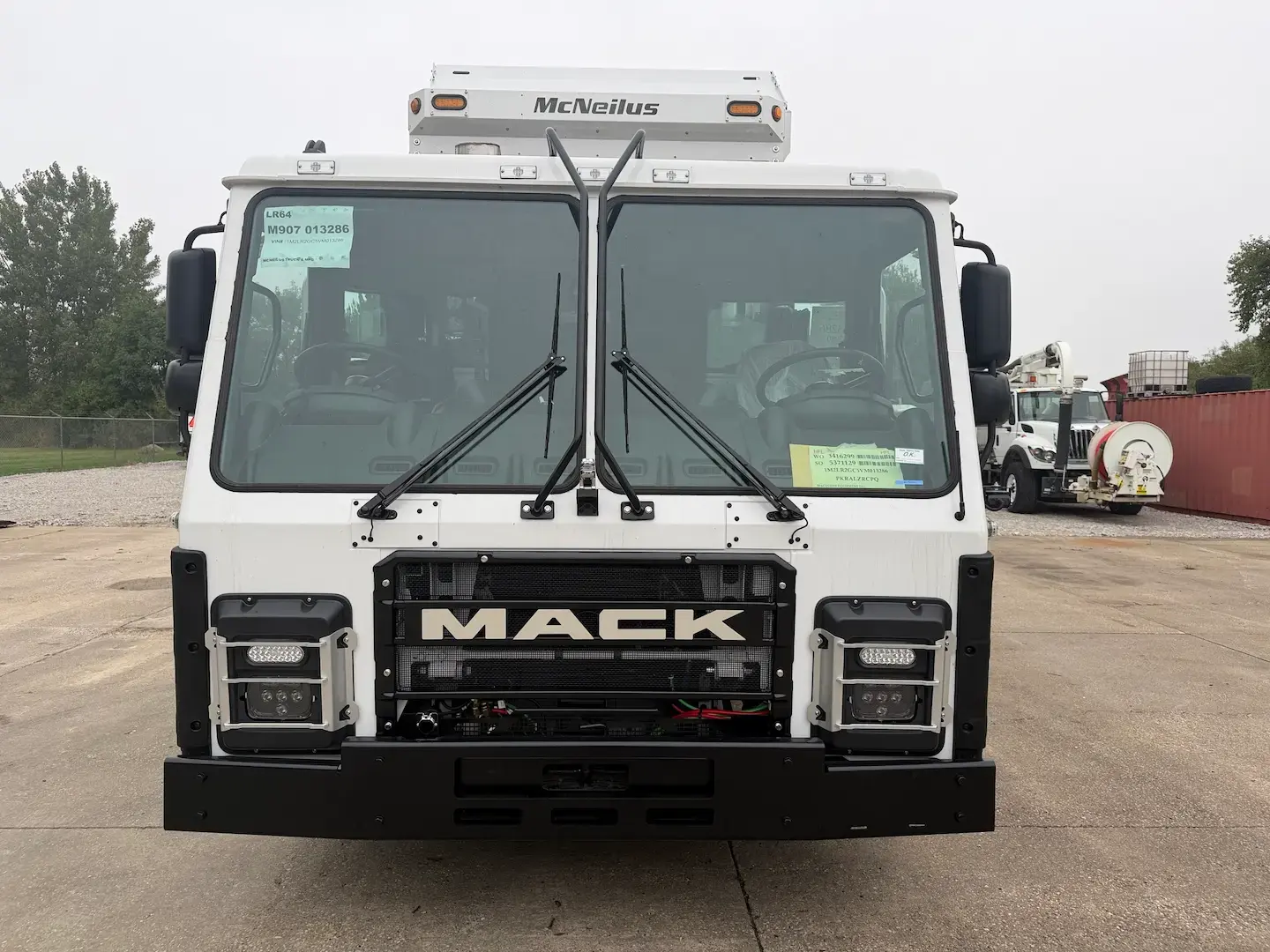

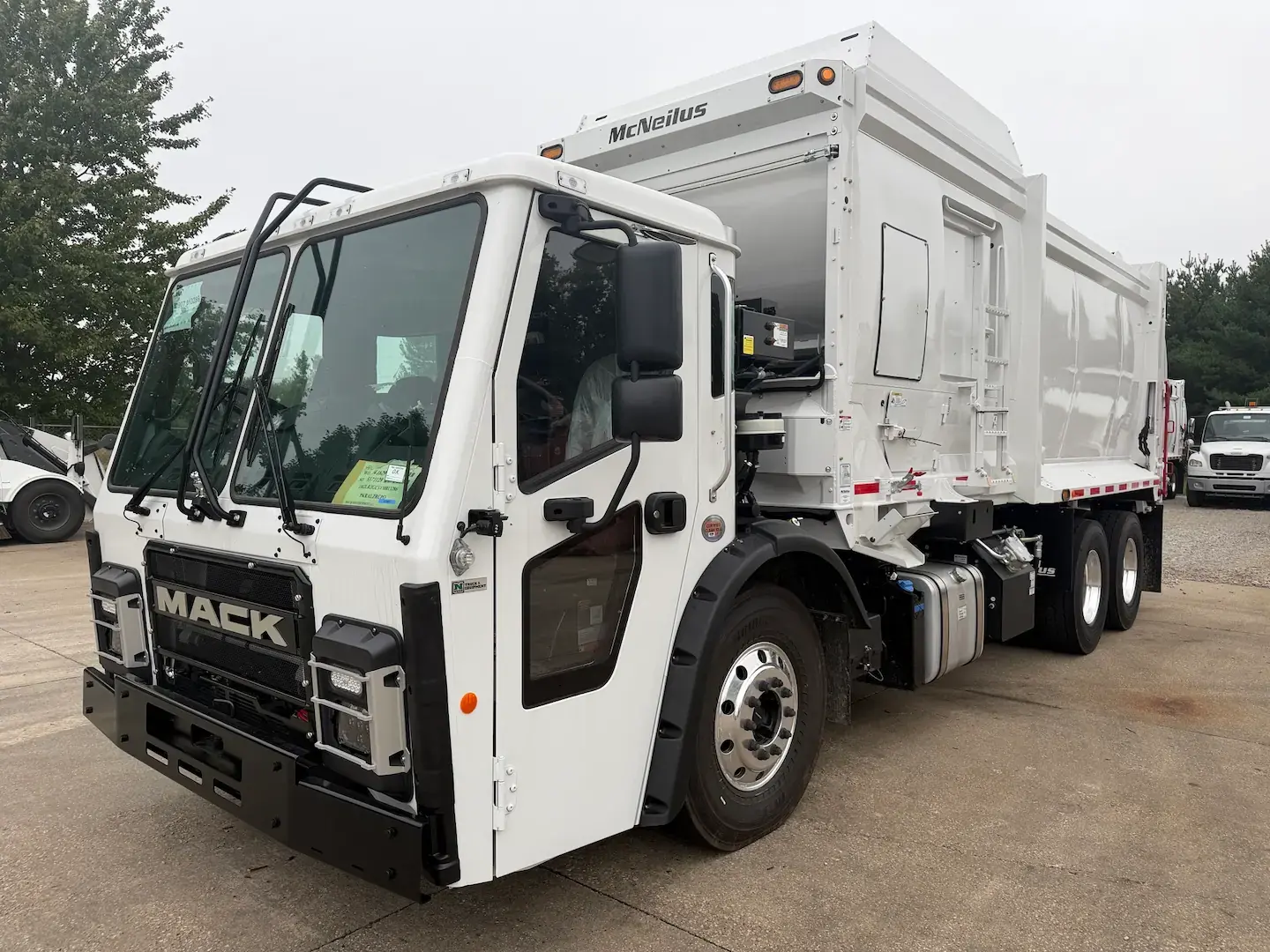

Chassis: Mack LR 64R (Dual Axle) – Special Package (2026)
Steering: Dual seated steering
Fuel: Diesel (Stainless Steel tank)
Engine: Mack (Post-1/1/2017 emissions) – >300 HP
Transmission: Allison 4500 RDS with guard
Transmission Oil Cooler: Included
Exhaust: Left-hand vertical
Suspension:

• Front: Spring shackle wide

• Rear: Hendrickson Haulmaax spring
  Rear Tire Arrangement: Dual tire tandem axle
  Pump Drive: SS CV DS remote mount constant mesh PTO
  Battery Box: Street side frame mounted
  Cab Mirrors: Aero style

Body

Model: ZR Zero Radius ASL (Model 2848), 28-yard

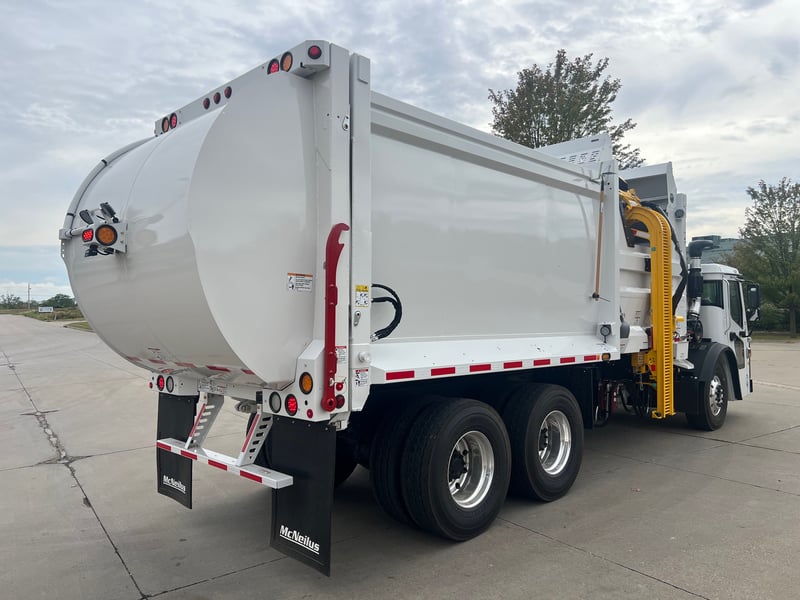

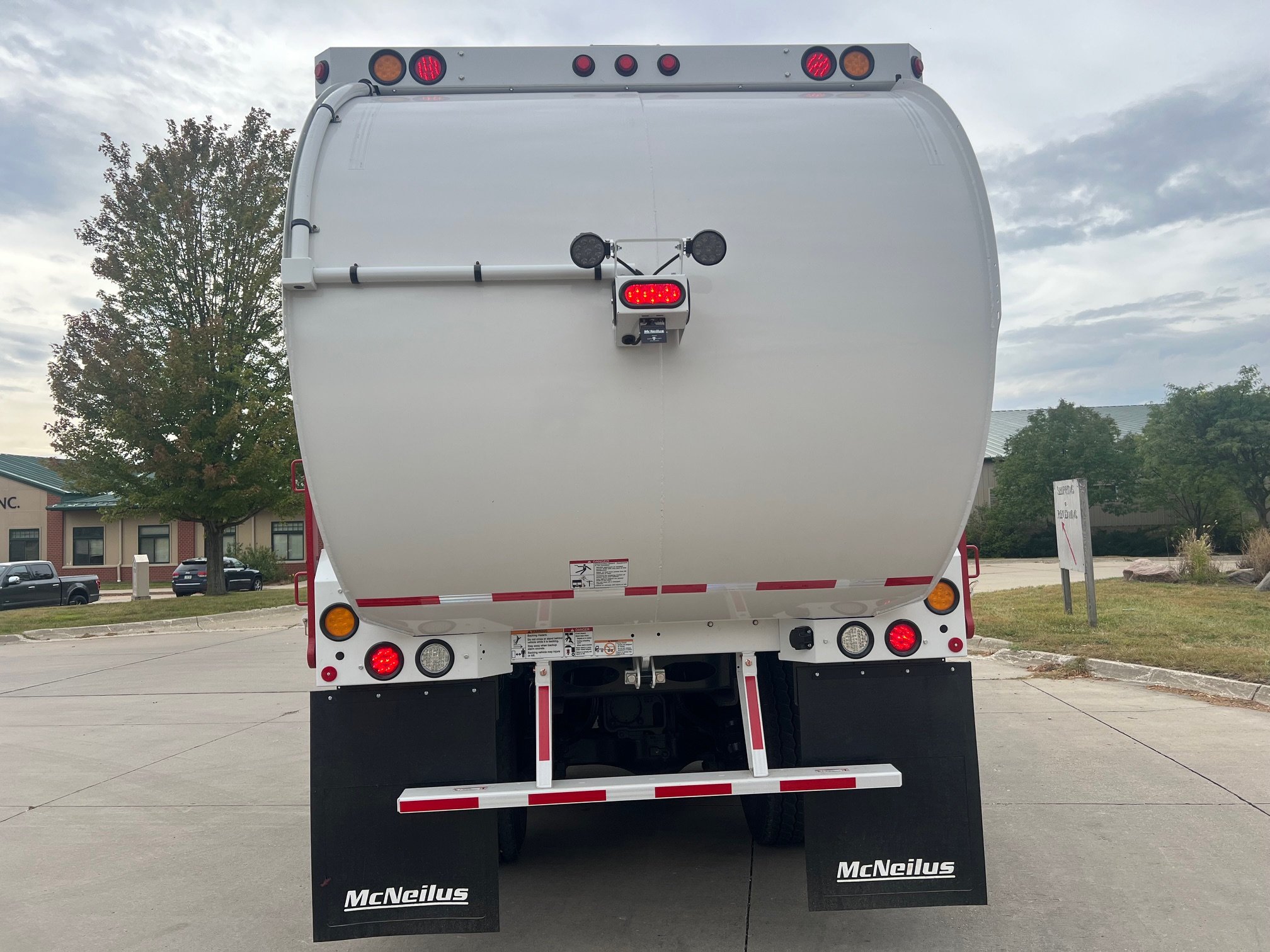

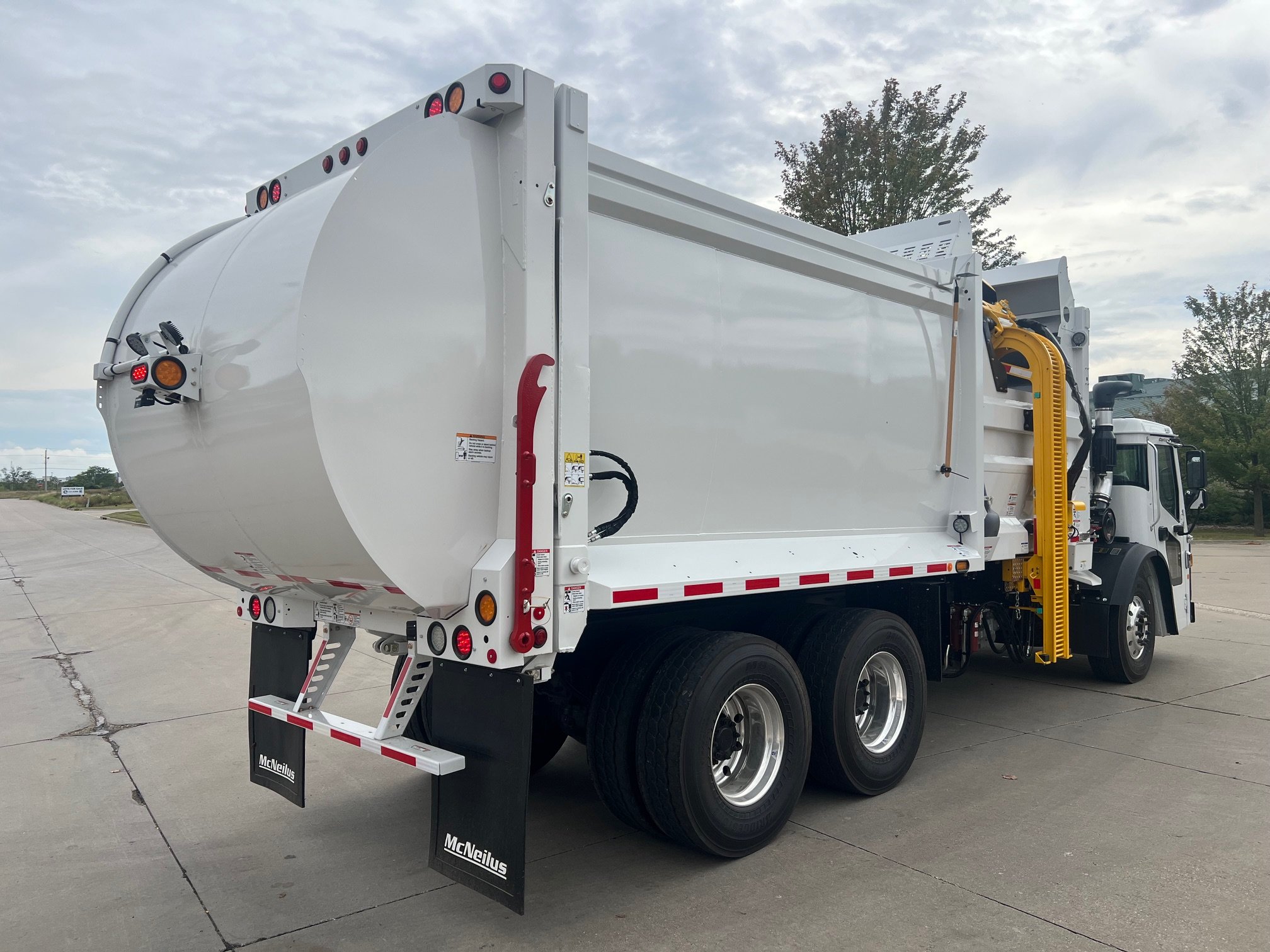

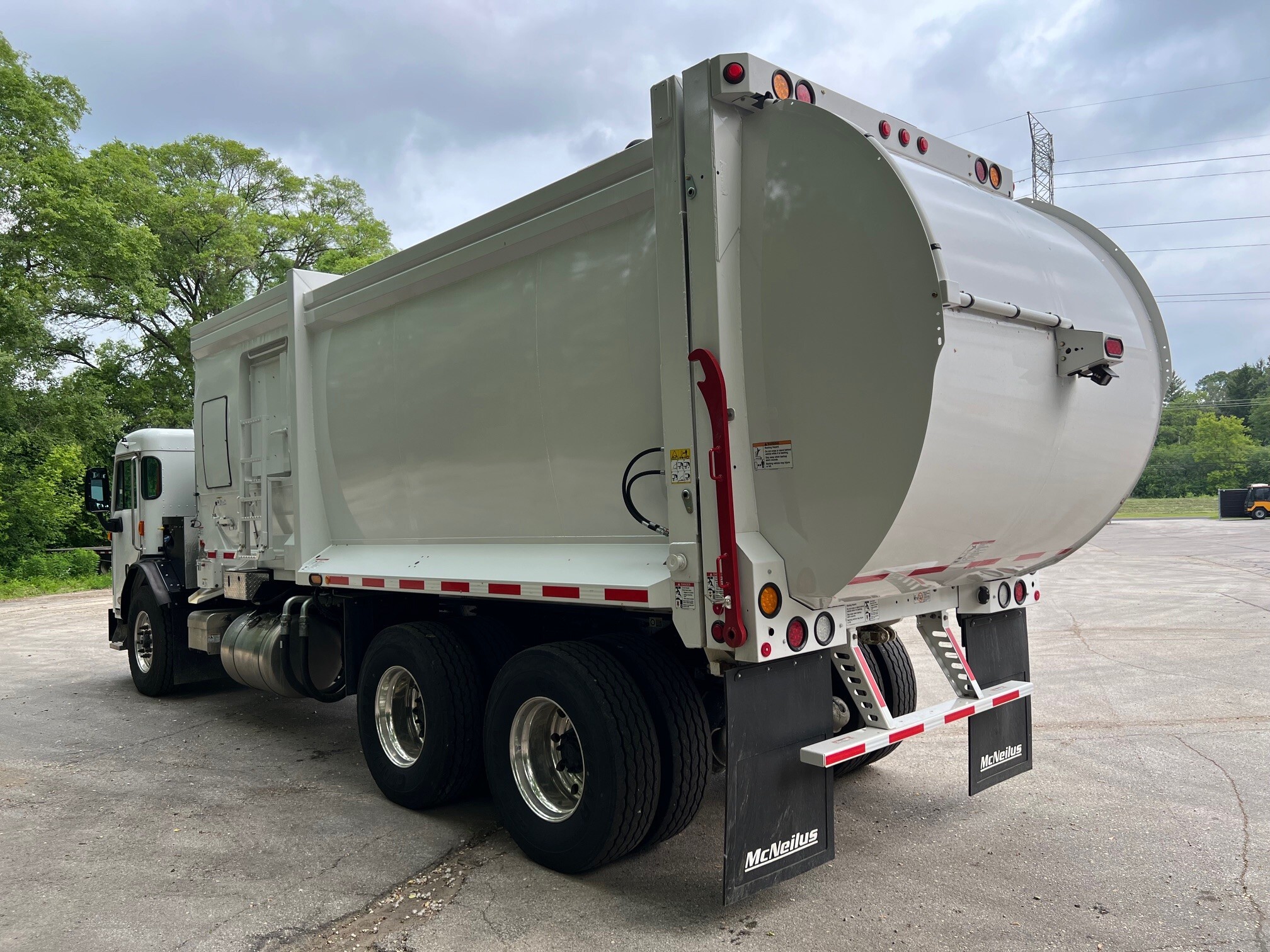

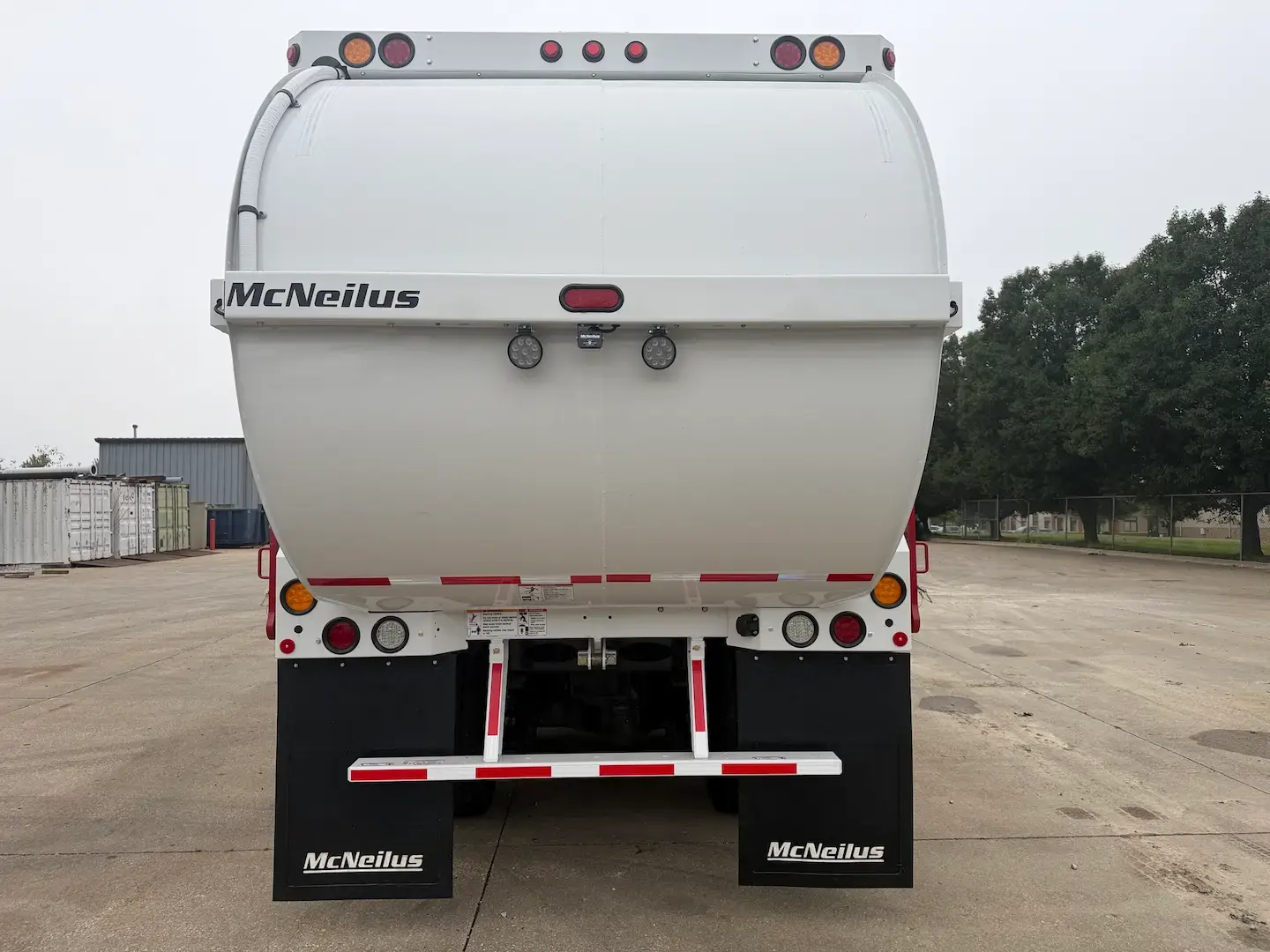

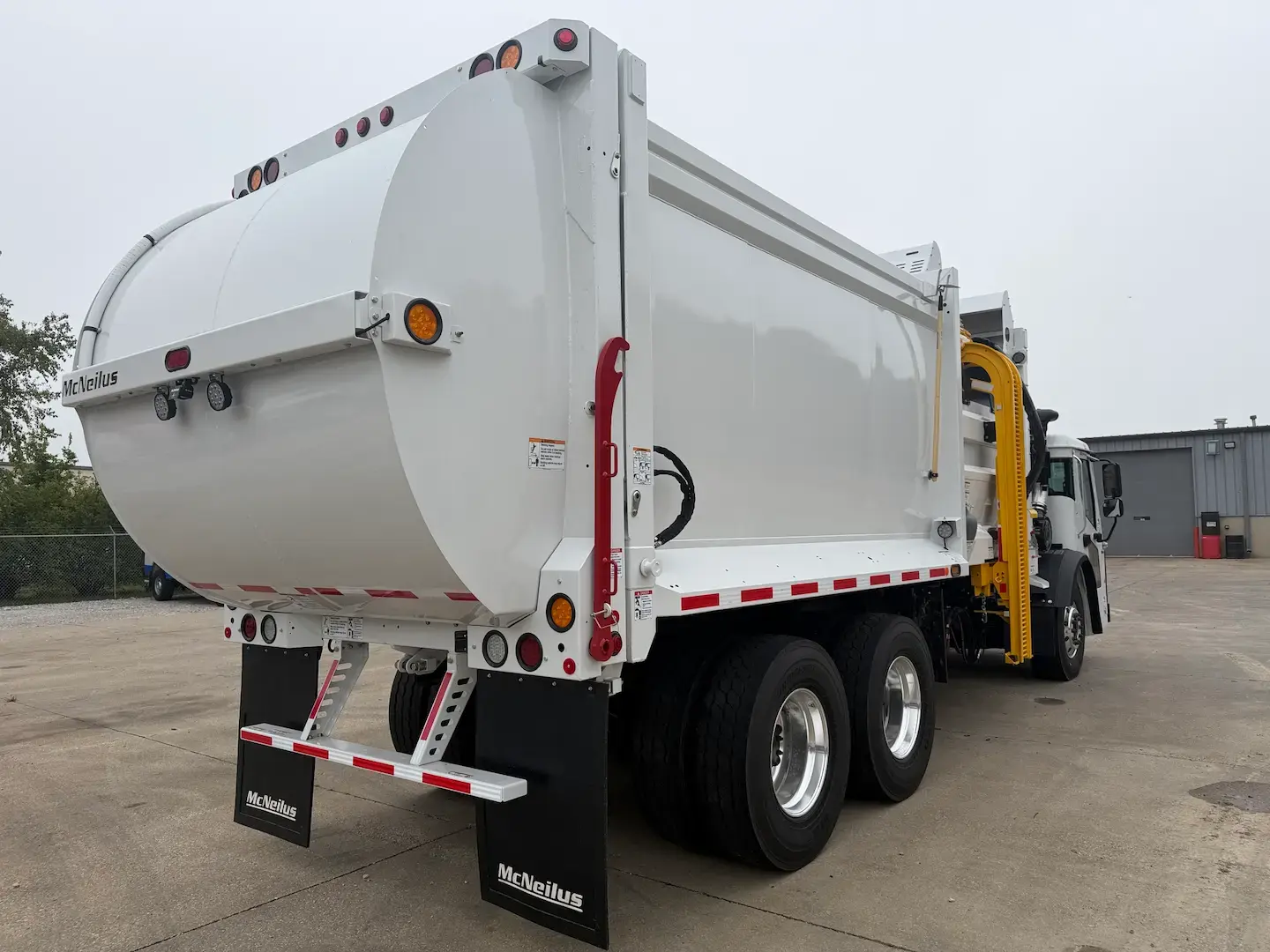

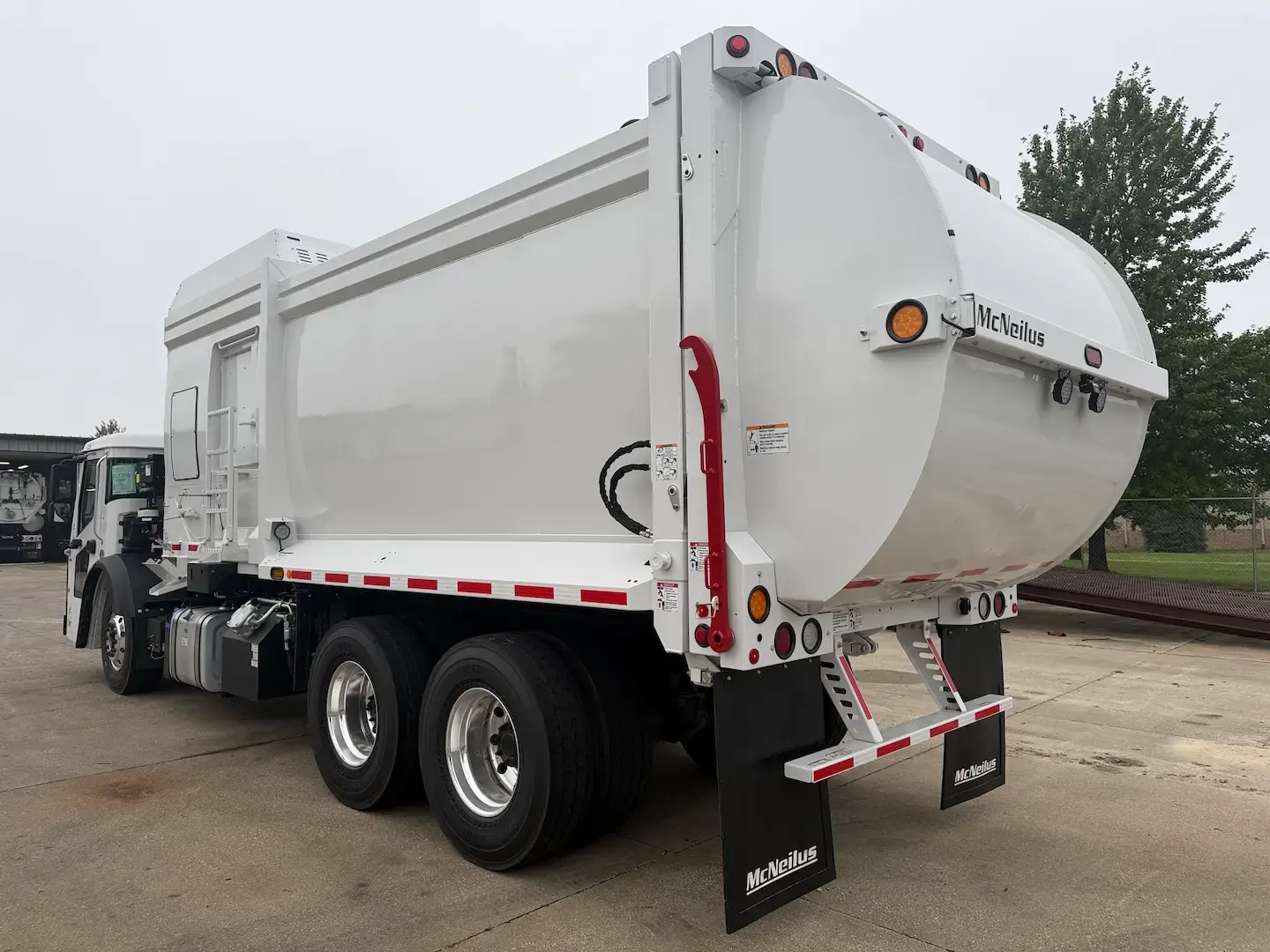

Tailgate: 72" wide, 10 GA AR200 side panels, hard rubber seal
Hopper:

• Cover Panel: ZR only

• Wall Liner: 3/16" AR400, 3 ft high

• Floor: 3/16" AR400 with 3/16" liner
  Body Floor: 10 GA AR200 (Standard)
  Front Light Bar: Standard 14 GA

Body Options

Tailgate Type: Non-TG-mounted CNG

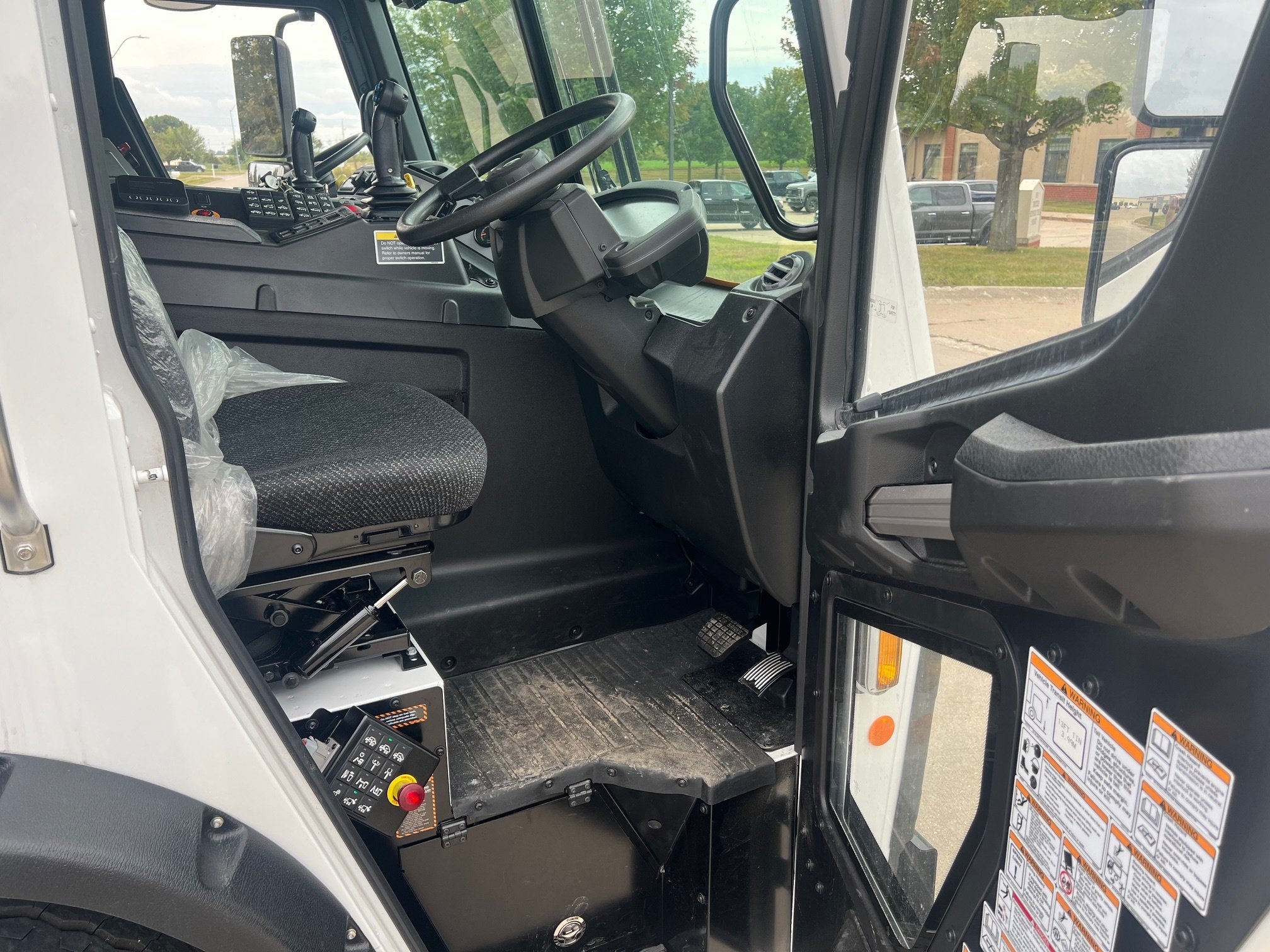

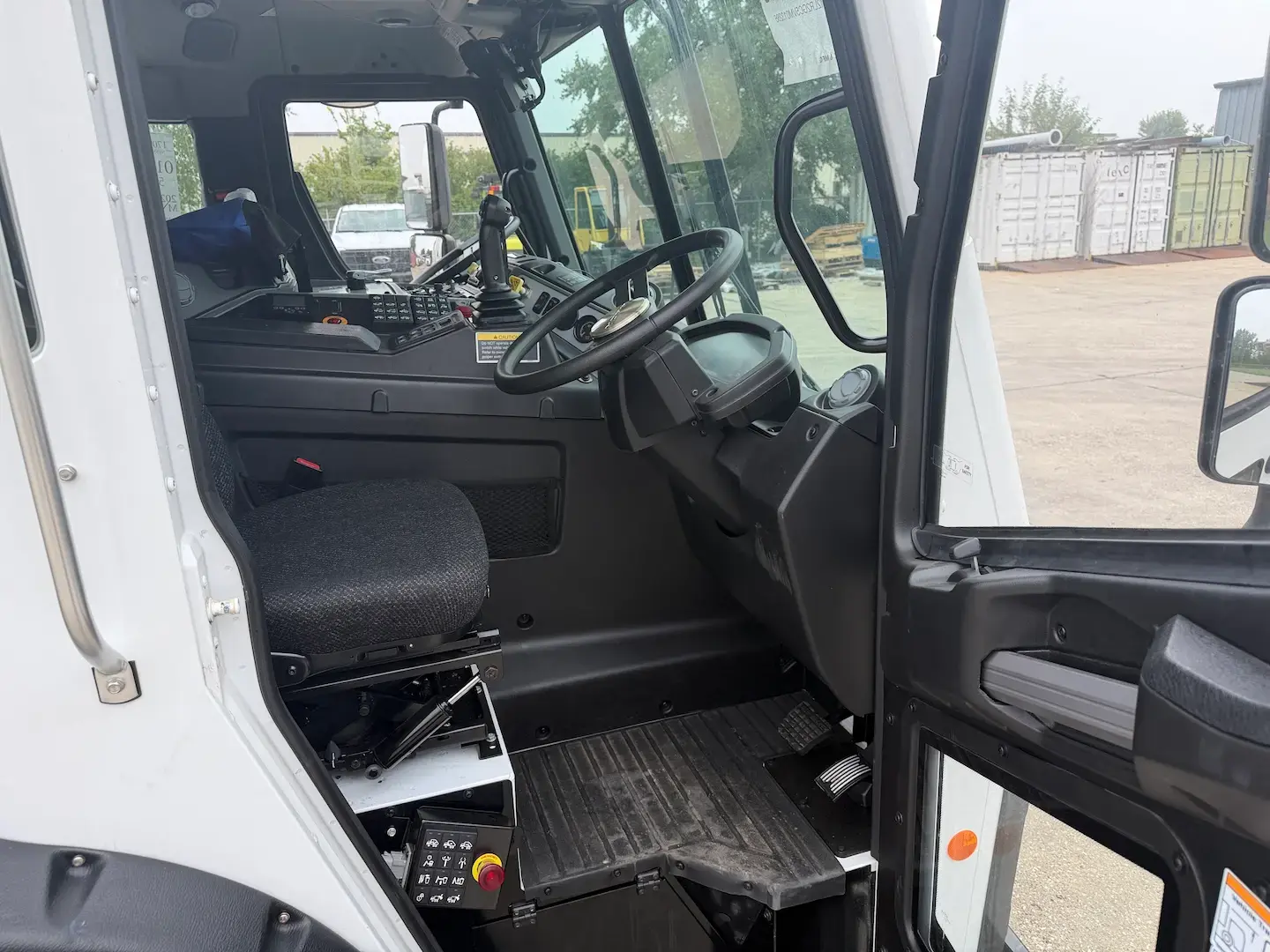

Controls:

• Cab: Switches in dash

• Curbside Outside: Underseat joystick
  Joystick Style: Roller style, traditional
  Packer Follower: Standard 10 GA 50KSI panel with hinge cover
  Wear Protection: X-Wear standard
  Cleanout Tray: Curbside and street side
  Hopper Wind Deflector: True (Low height)
  Telematics: Enabled

Hydraulics

Pump: Piston
Reservoir: Standard steel, frame-mounted (street side)
Filters:

• Return: Schroeder in-reservoir

• Pressure: HYDAC CF 60

• Sample Port: Check fluid KP14NV 90°
  Cylinders: Mailhot packer/ejector
  Cooler & Monitoring:

• Hydraulic cooler

• Built-in display temp gauge

• Temp sensor in reservoir
  Shutoff Valve: Red handle ball valve
  Filler Cap: Standard
  Breather Cap: Filler/breather on reservoir
  Hose Wrap: Cordura wrap (required hoses)
  Pressure Test Port: Included
  Low Oil Warning: Warning light
  Service Lift: Liftable body without service lift

Lighting

DOT Lights: Economy LED
Smart Lights: 4" programmable strobes (tailgate, TG side, oval FOB)
Center Stop Light: Economy LED (center of tailgate)
Mid-Body DOT Light: Oval amber turn signal/marker
Work Lights:

• Hopper: One 5" Economy LED

• Arm: One 5" Economy LED

• Mid-Body: Box-mounted 5" Economy LED
  Tailgate Corner Lights: None
  Smart Light Activation: Cab switch
  Display Location: Dash (RAM mount)

Camera System

System: SSV 9" Monitor/DVR (6-port)
Monitor Mount: Center overhead RAM mounted
Monitor Display (Reverse): Tailgate camera
Cameras: Qty 4

• Cab: Street side cab wall mounted

• Hopper: Street side rear hopper

• Arm: Down-looking (body wall mount)

• Tailgate: Reverse camera
  Assist Lights: Dual 5" Economy round LEDs
  DVR in Cab: None

Arms & Forks

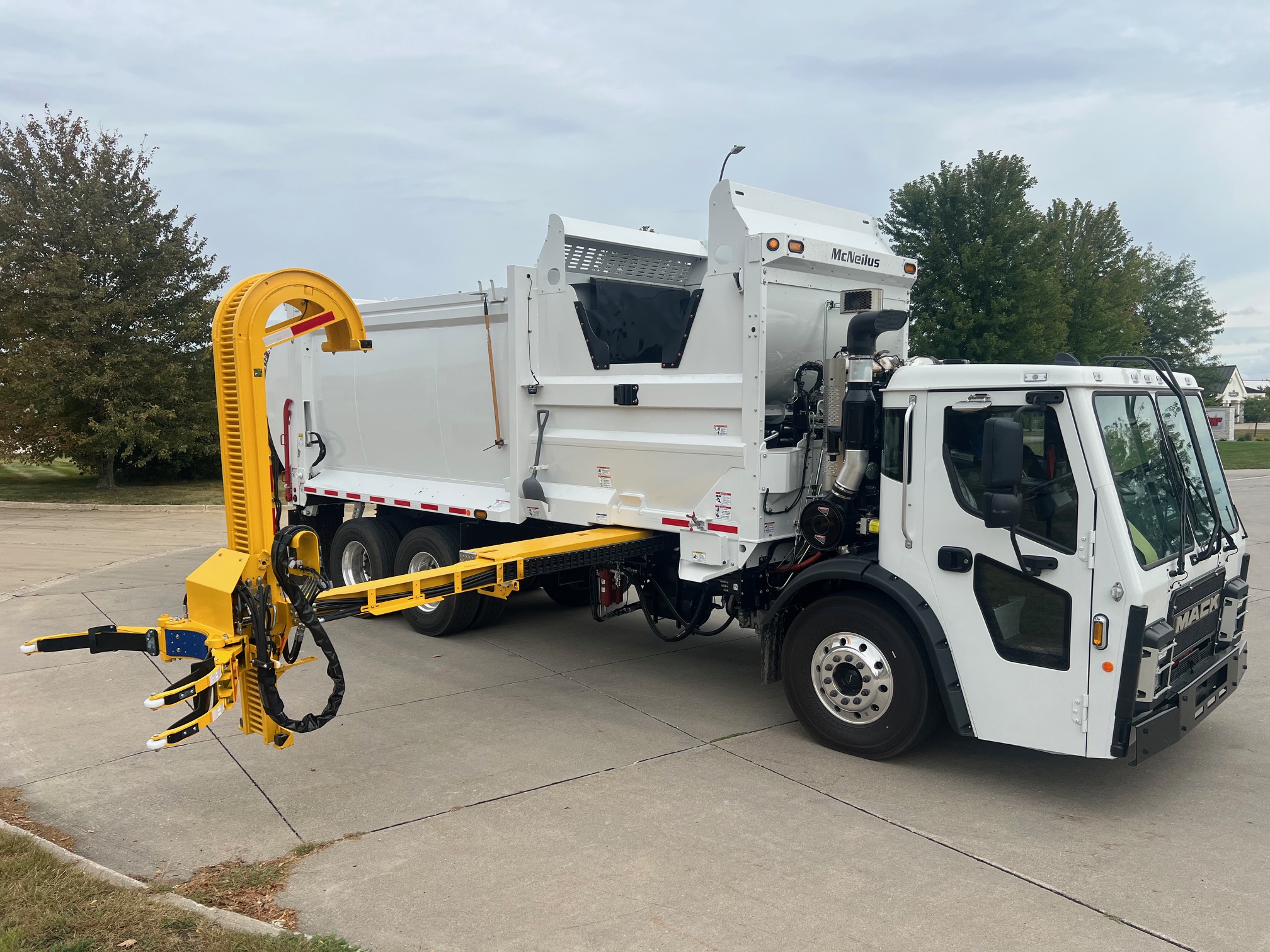

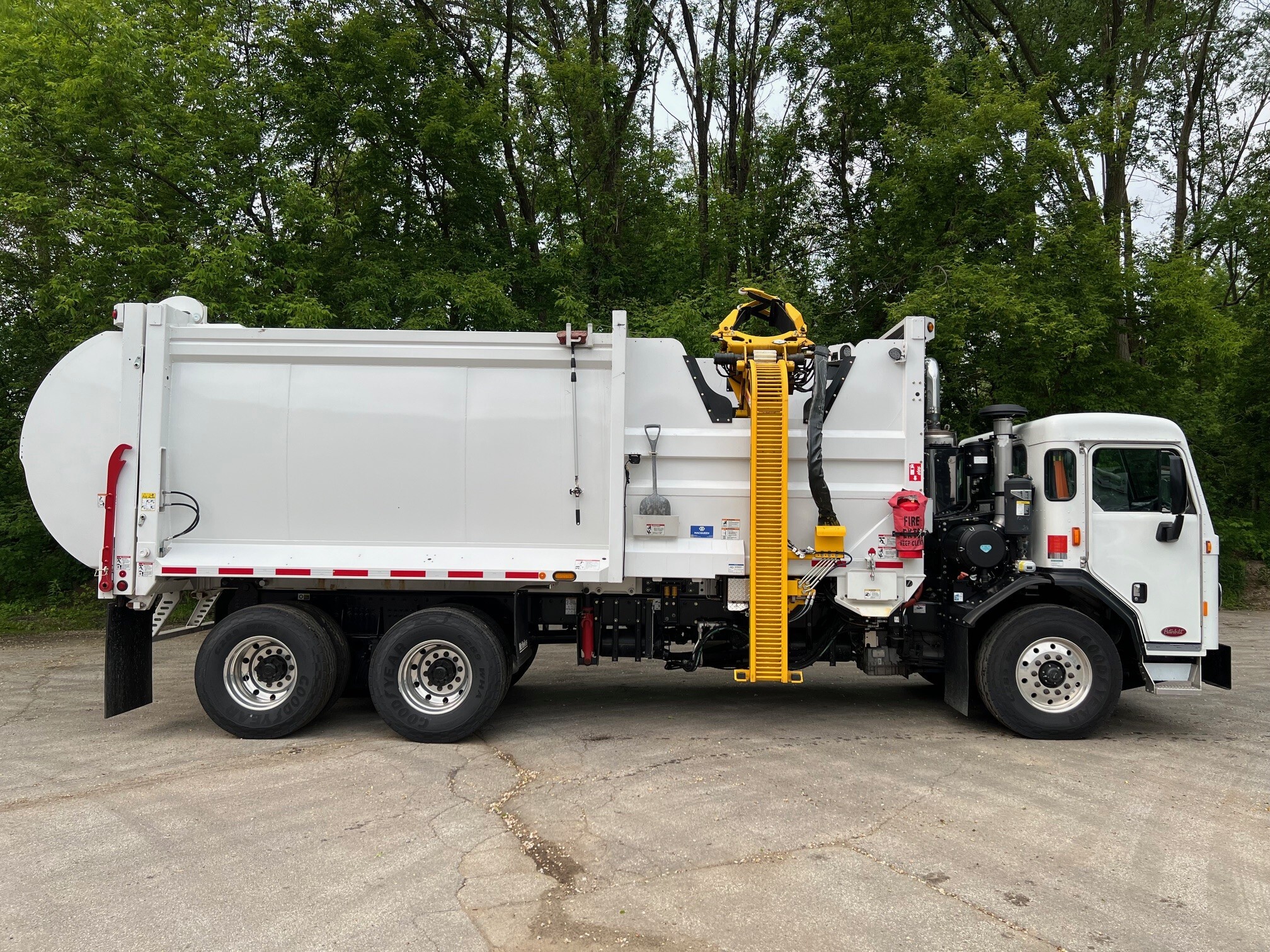

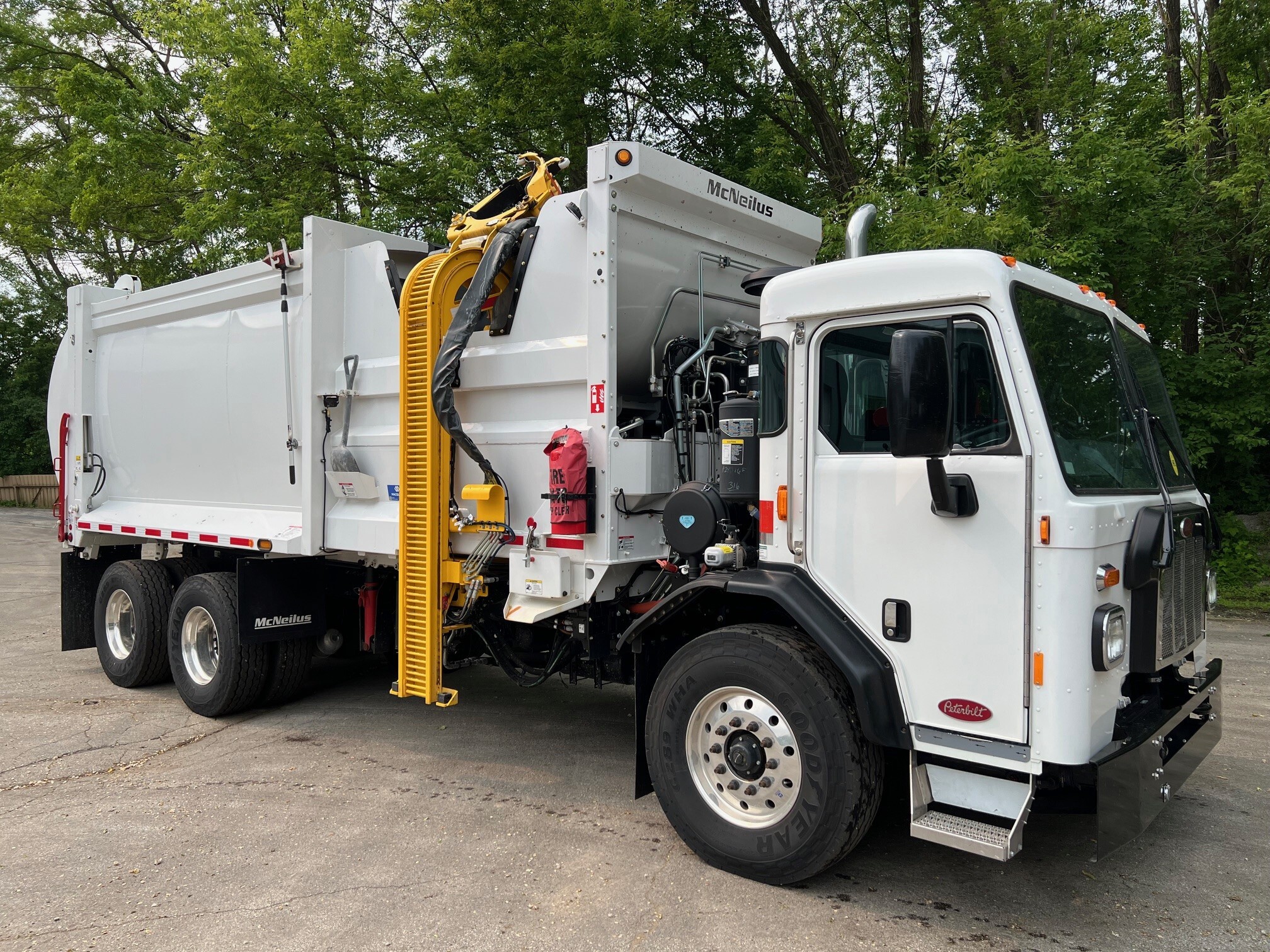

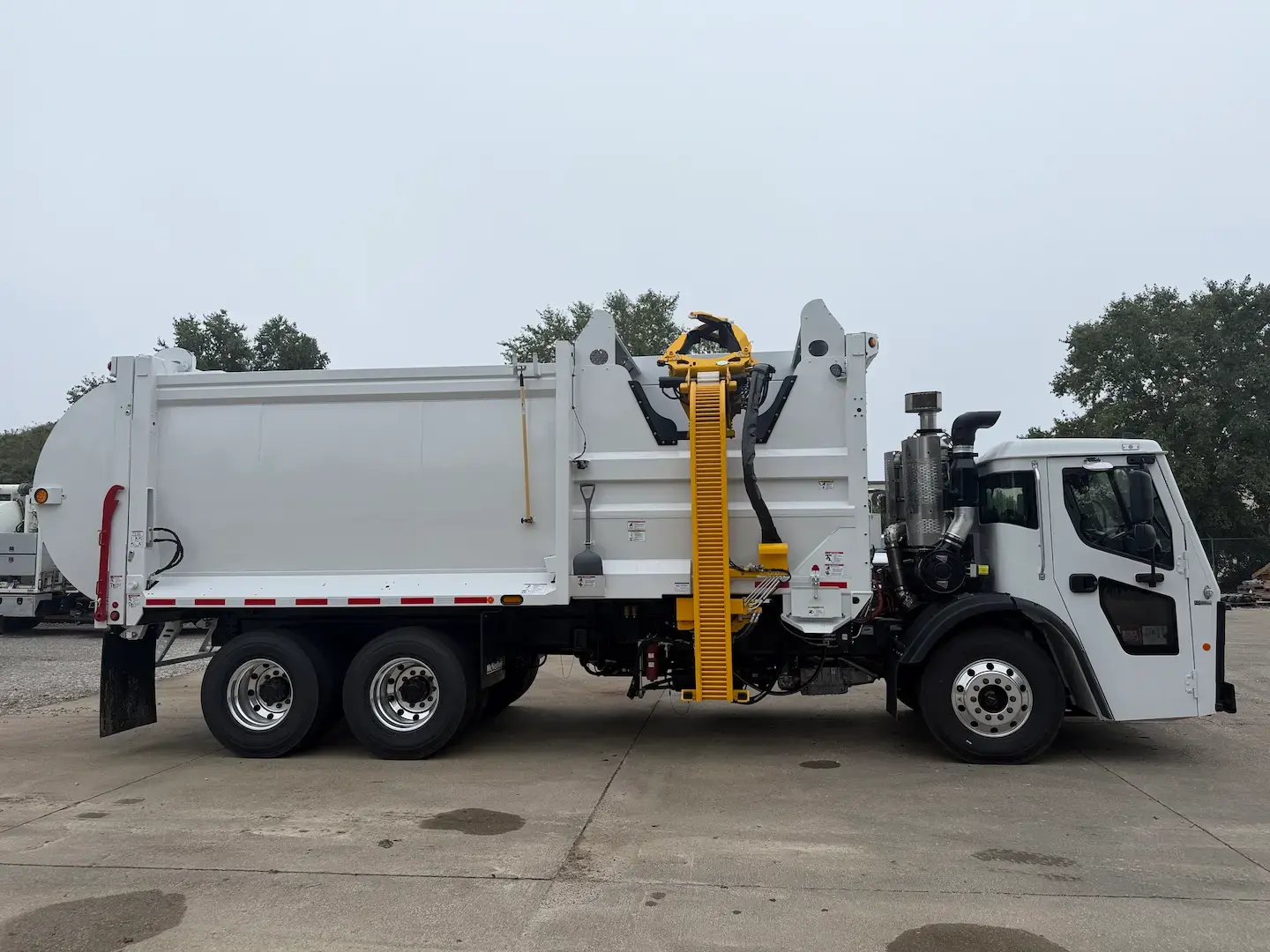

Model: ZR 12' Extended Reach Arm – 96 gal
Fingers: Standard finger grabber
Controls: Dual joystick
Digital Features:

• Can counter: Standard in digital display

• Grabber Interlock: Standard in ZR software

• AutoLoad: Not equipped

• CartSeeker: Not equipped
