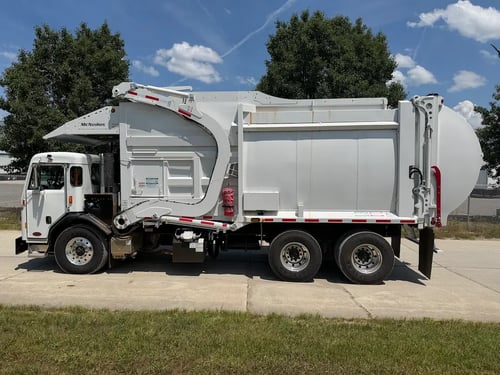

2026 McNeilus Atlantic

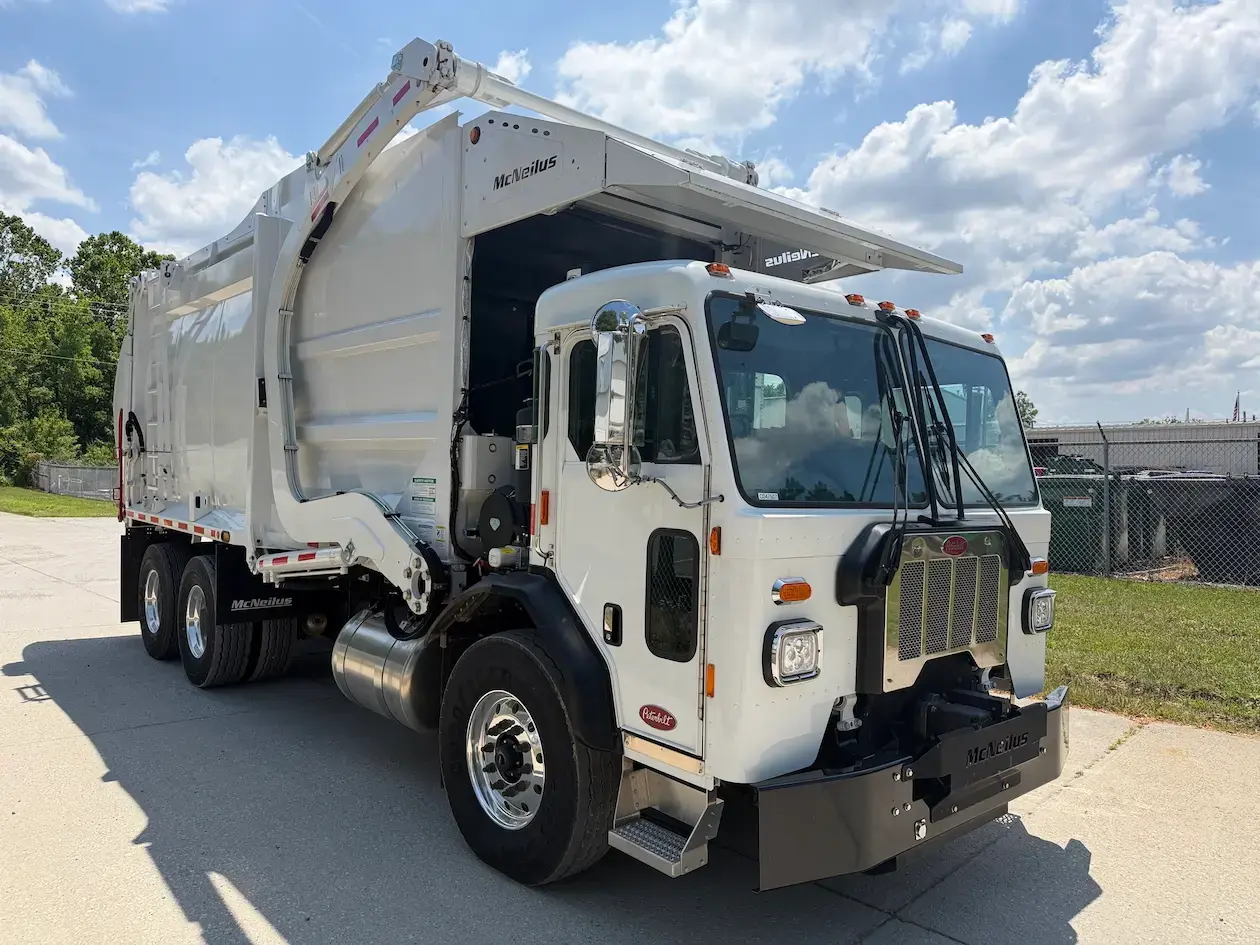

Chassis

Packer Type: Model 29 – Atlantic Front Loader
Chassis: Peterbilt 520
Engine: PACCAR MX-11 (Post-1/1/2017 emissions)
Double Frame: Yes
Transmission: Allison 4500 RDS

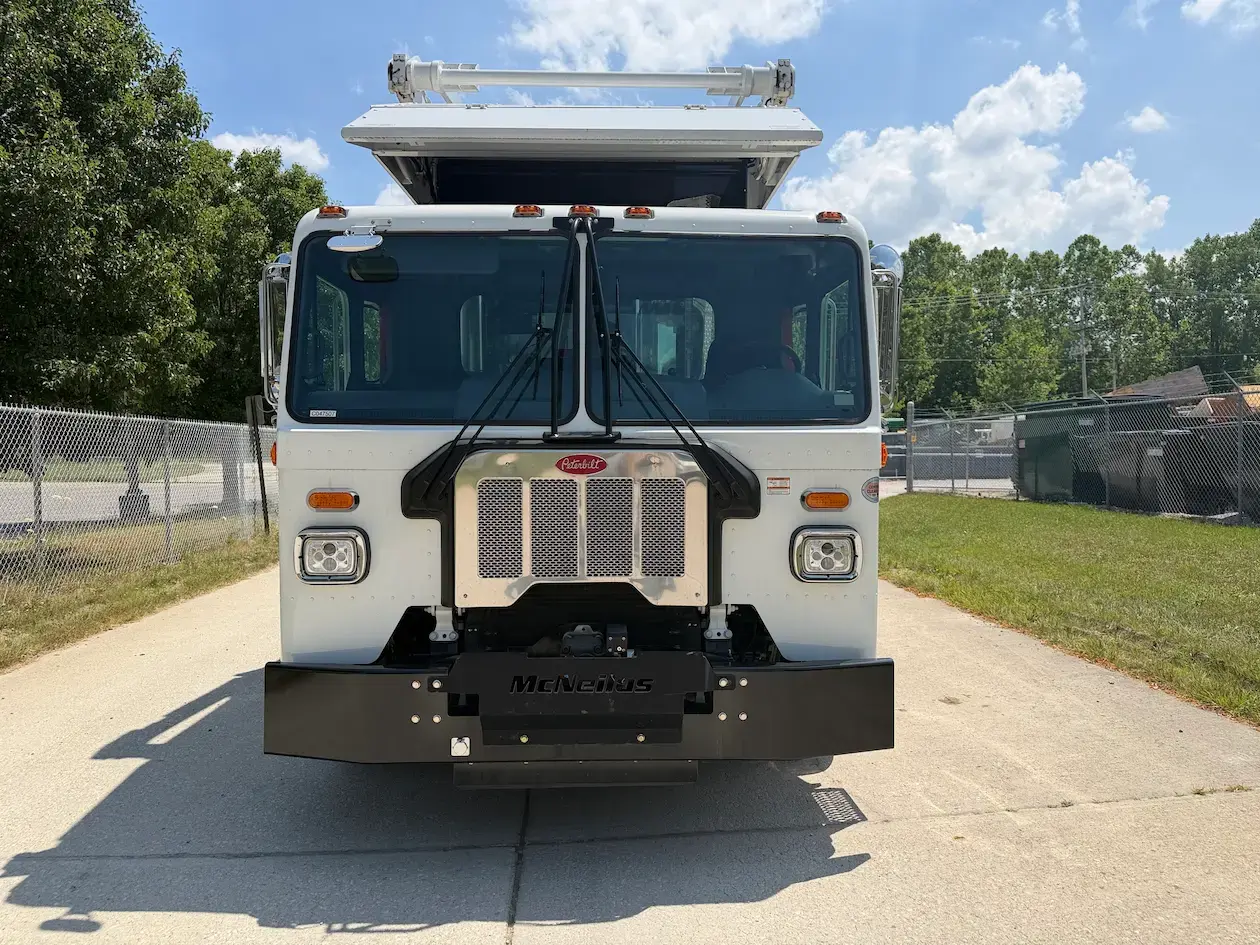

Windshield Guard: Single bar guard
Cab Mirrors: Aero style
Pump Drive: Front engine mount (FEPTO)

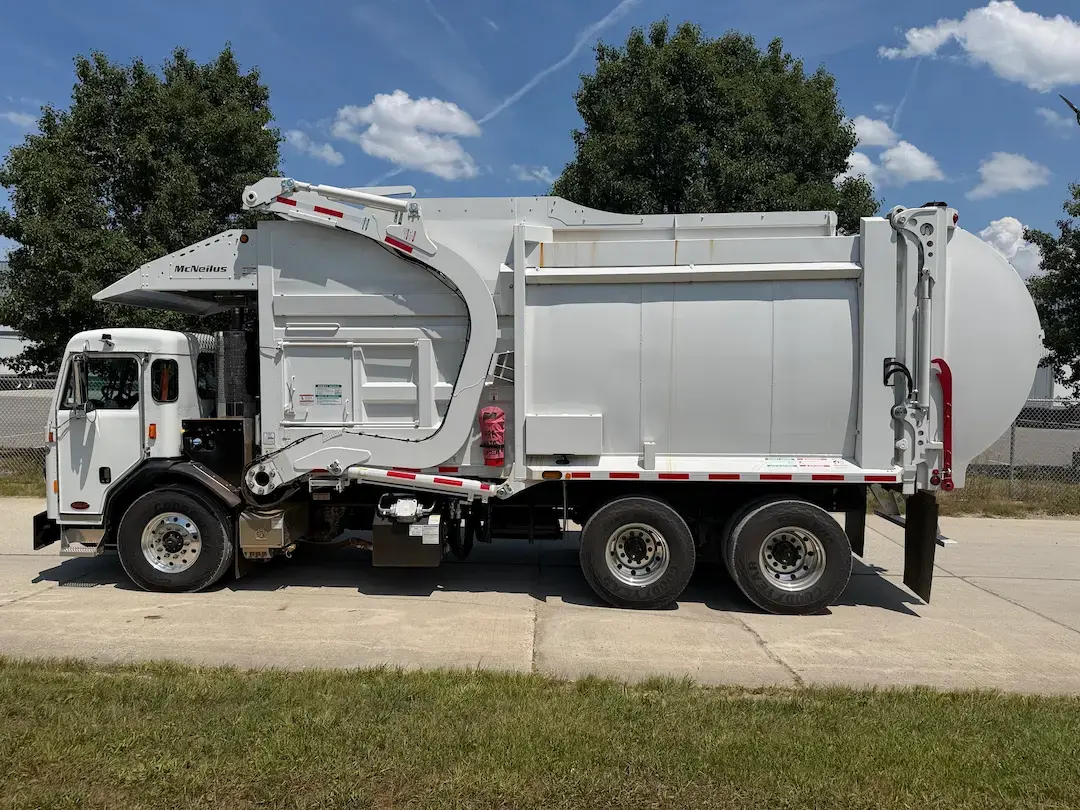

Body

Model: 4029 Atlantic – Medium Body
Body Type: Model 29 Atlantic Front Loader
Rated Capacity: 40-yard commercial body

Body Construction:

• Standard wall
• AR400 floor

Hopper:

• Standard hopper floor
• No hopper cleanouts
• Universal square steel canopy

Canopy Lift Control: Curbside push-pull air switch

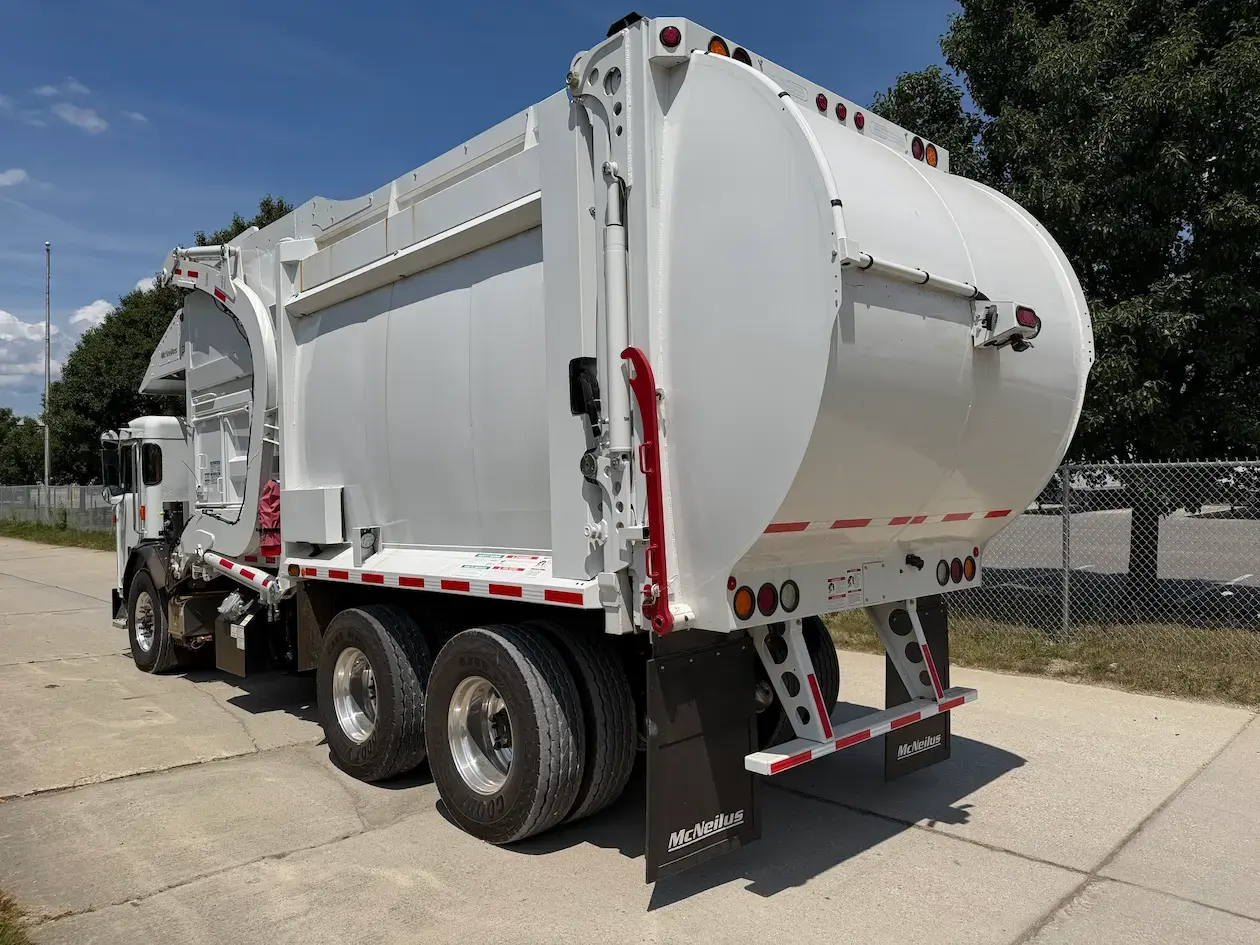

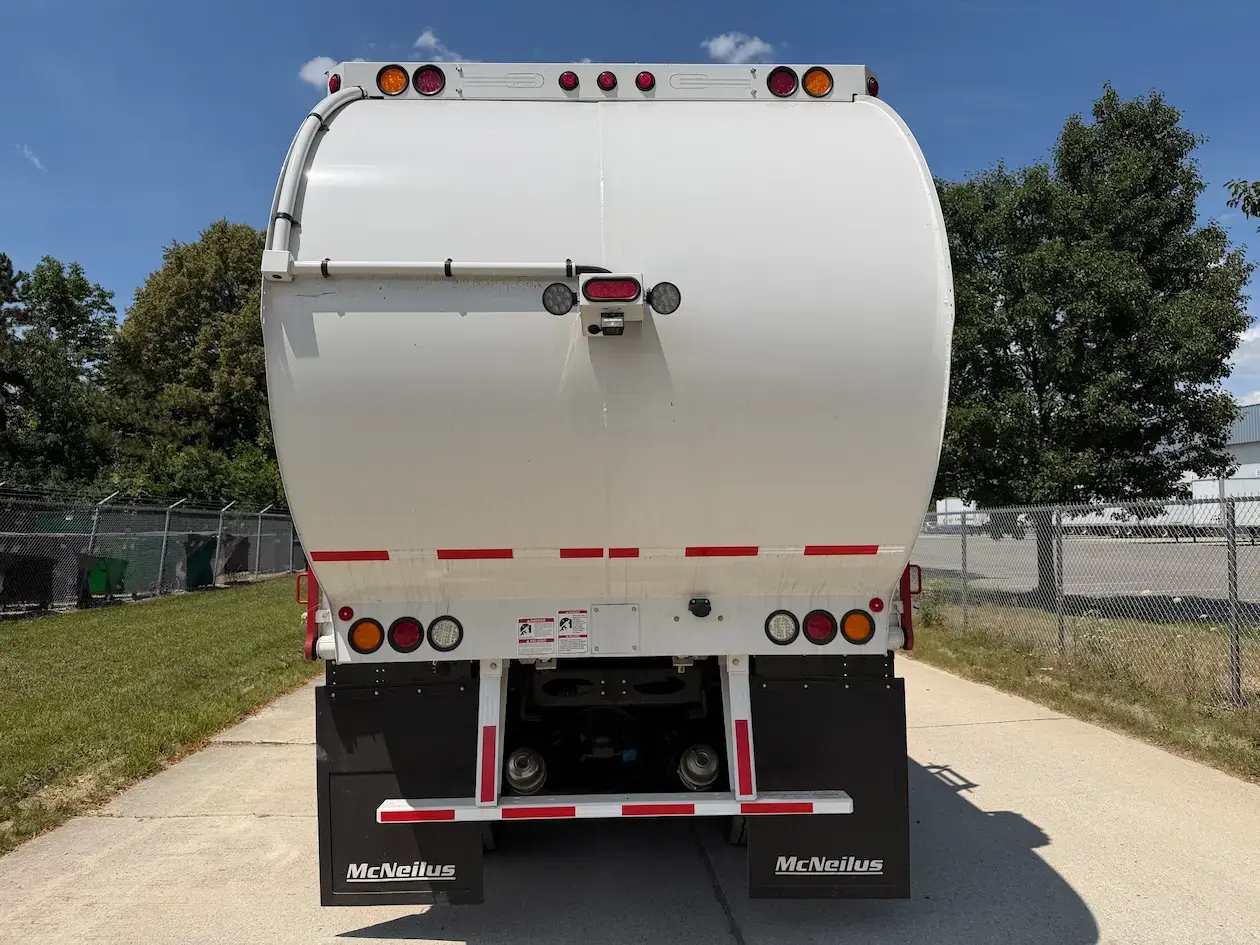

Tailgate:

• 72" steel bumper
• 10 GA AR200 side panels
• Hard rubber seal

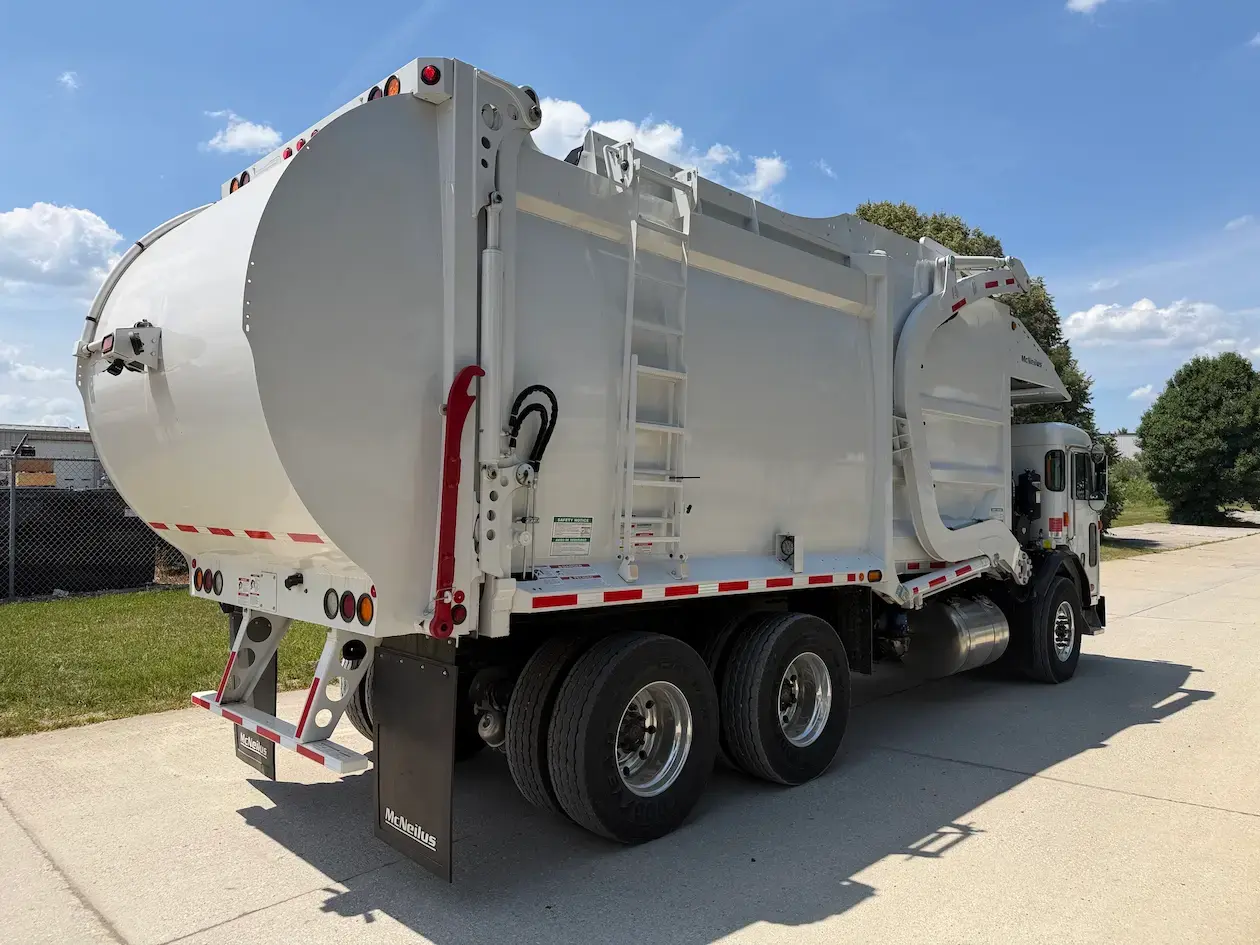

Access Ladder: Center rung slide-out

Body Options

Paper Screen: Heavy-duty solid
Roof Ladder: ANSI roof ladder, rearward (curbside)
Top Door: Heavy-duty Atlantic top door

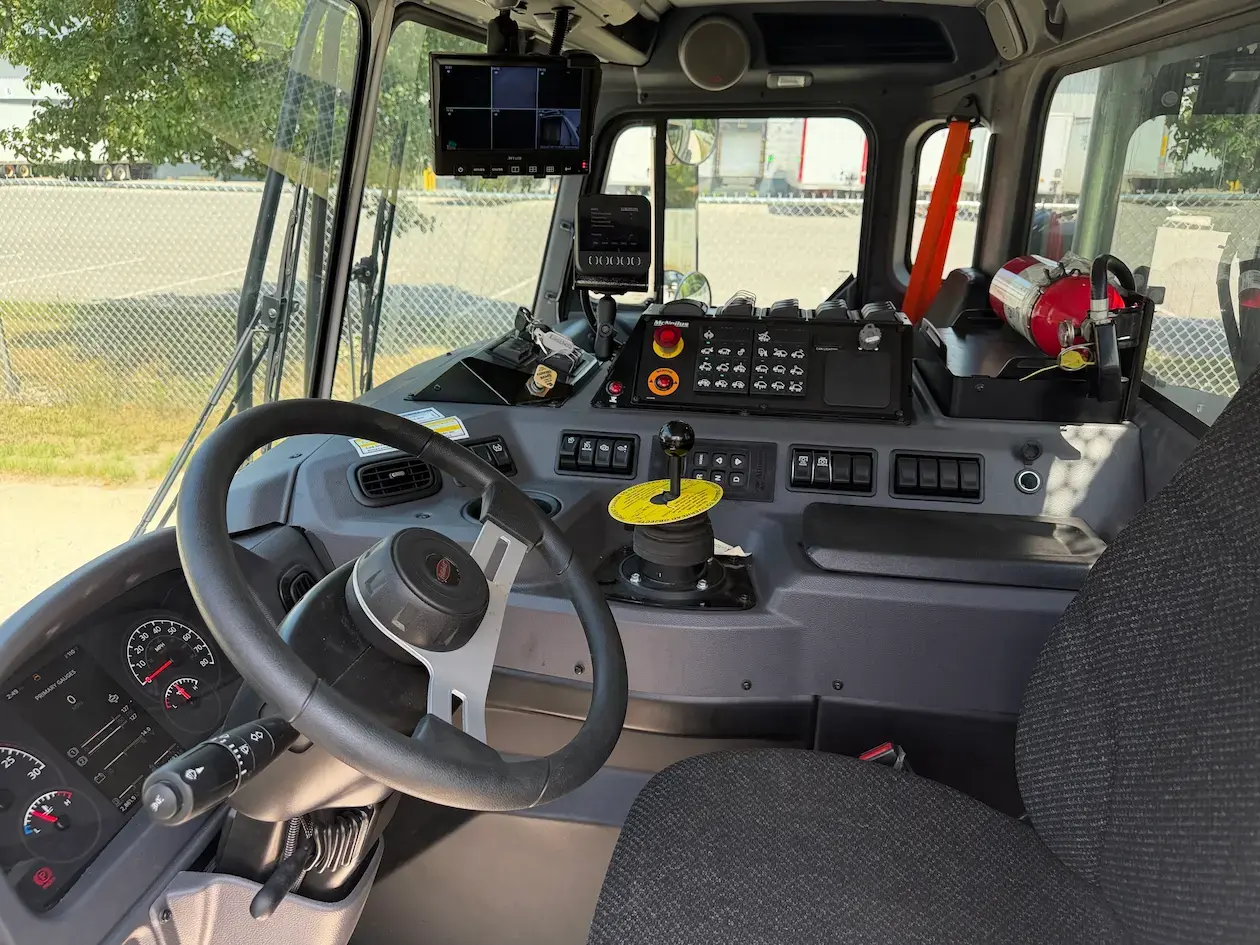

Controls:

• Cab: Low-profile control station
• Streetside: Pneumatic joystick

AutoPack: Disabled on arm down
Display Location: Doghouse

Hydraulics

Pump: Long-life vane pump
Main Valve: Air/hydraulic mounted on headframe
Reservoir: Standard steel rectangular tank, frame-mounted (street side)
Hydraulic Fluid: ISO46 – US Oil

Filters & Ports:

• Return filter: Schroeder (in reservoir)
• Sample port: Preinstalled in filter (LF-7611)

Shutoff Valve: Red handle ball valve

Monitoring:

• Low hydraulic oil warning light and buzzer

Body Lift: Liftable body without service lift
Pump Cover: Peterbilt steel cover

Lighting

DOT Lights: Economy LED

Smart Lights: 4" Peterson smart lights (tailgate)
Center Stop Light: Economy LED (tailgate center)
Mid-Body Marker Lights: Oval amber turn signal/marker

Work Lights:

• Container dump light: Canopy-mounted 5" LED
• Mid-body work lights: Box-mounted 5" LED

Tailgate Corner Lights: None (smart strobes selected)

Camera System

System: SSV 9" Monitor/DVR (6-port)
Monitor Mount: Center overhead with swivel
Monitor Display (Reverse): Tailgate camera

Cameras: Qty. 2

• Curbside rear hopper camera
• Tailgate reverse camera

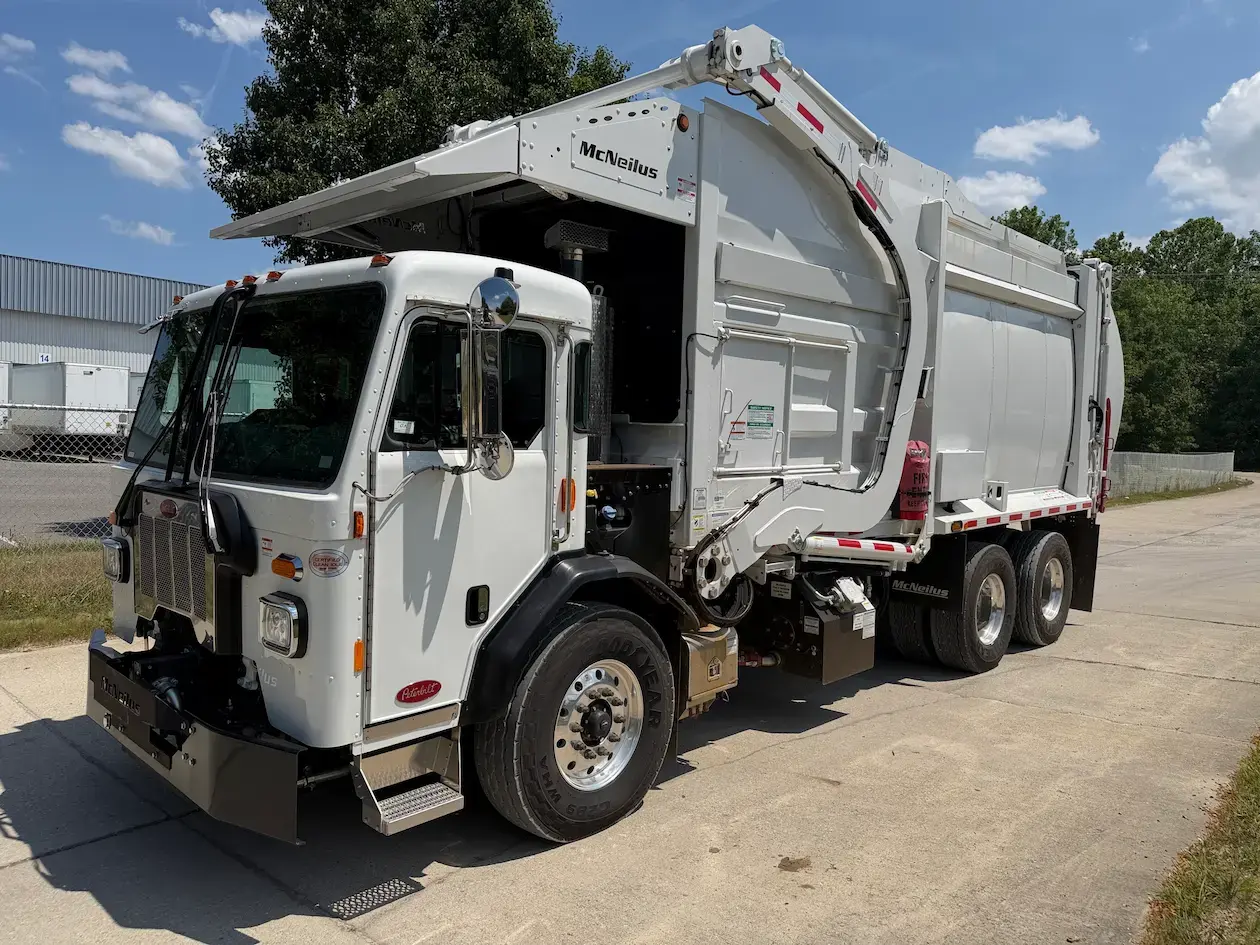

Arms & Forks

Arm Type: Atlantic front loader arm
Fork Cylinder: Standard cylinder
