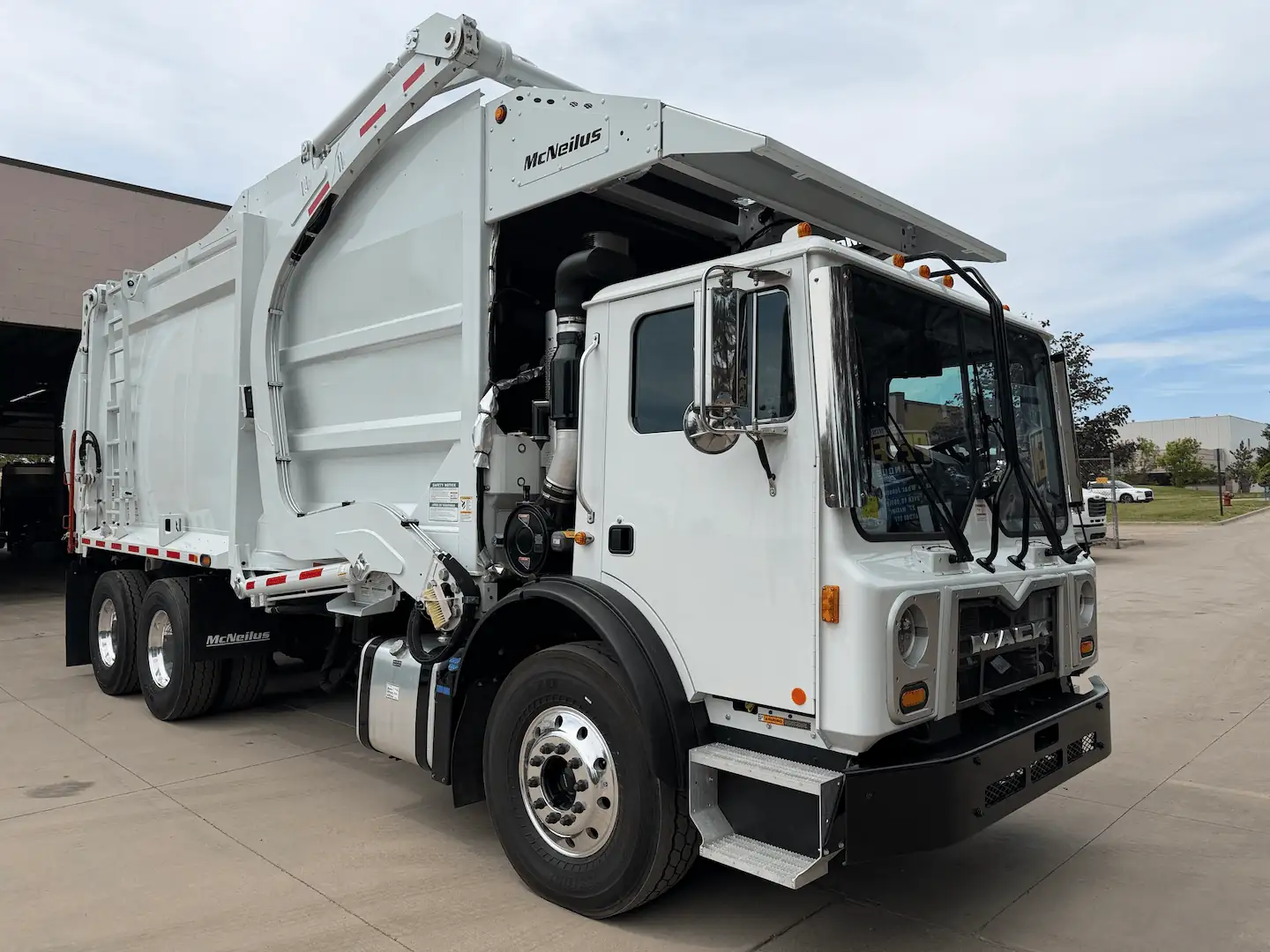

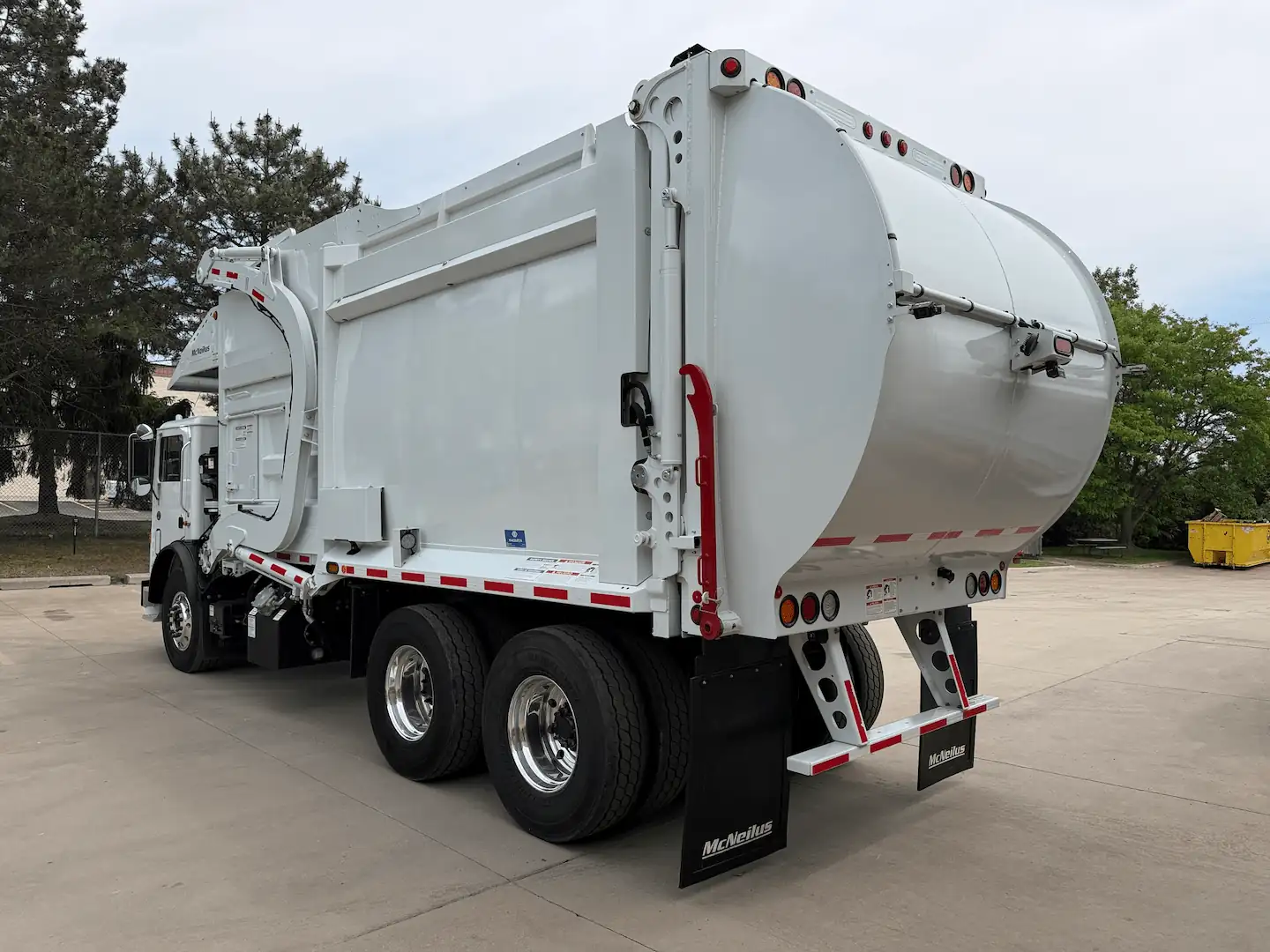

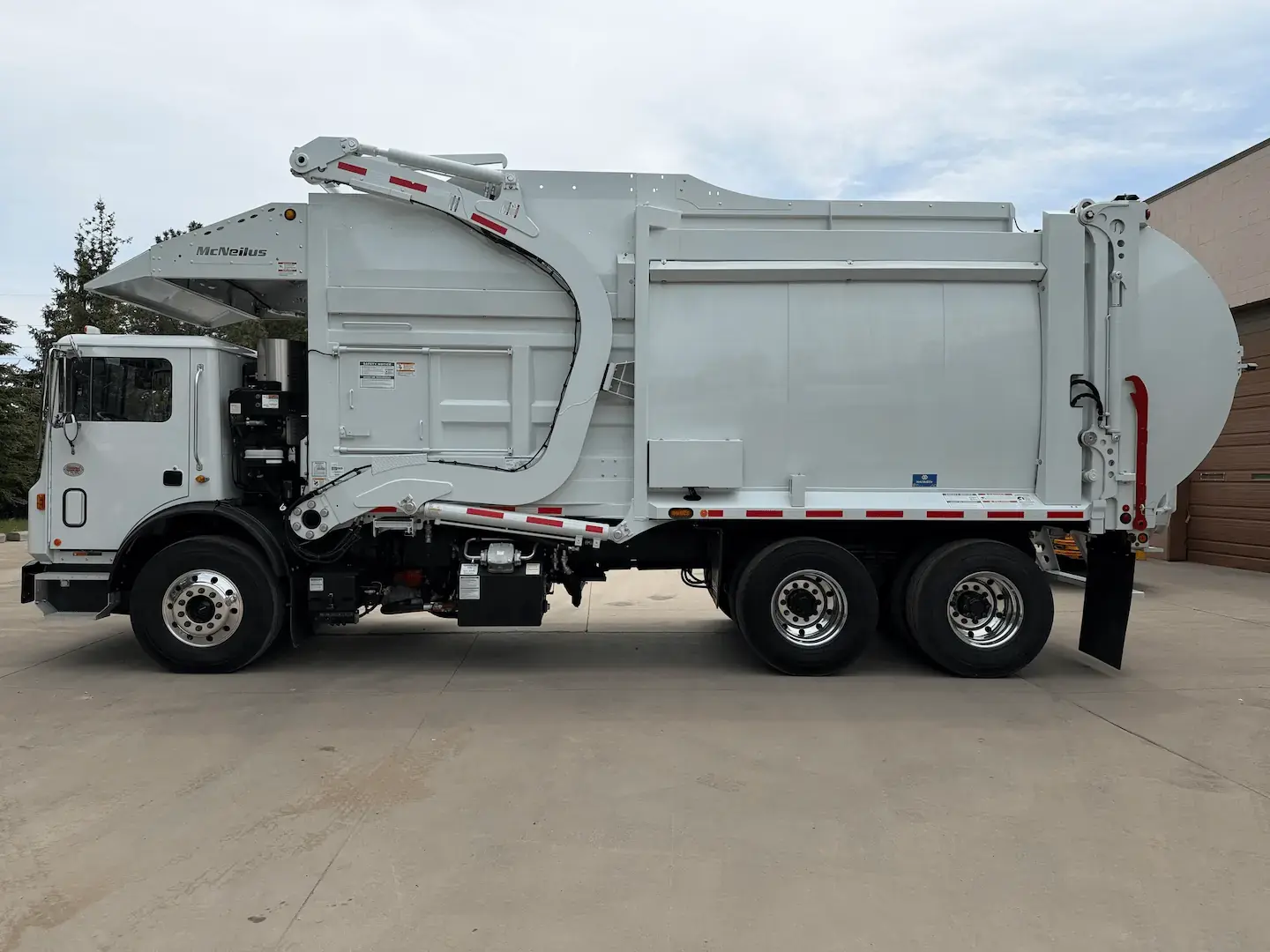

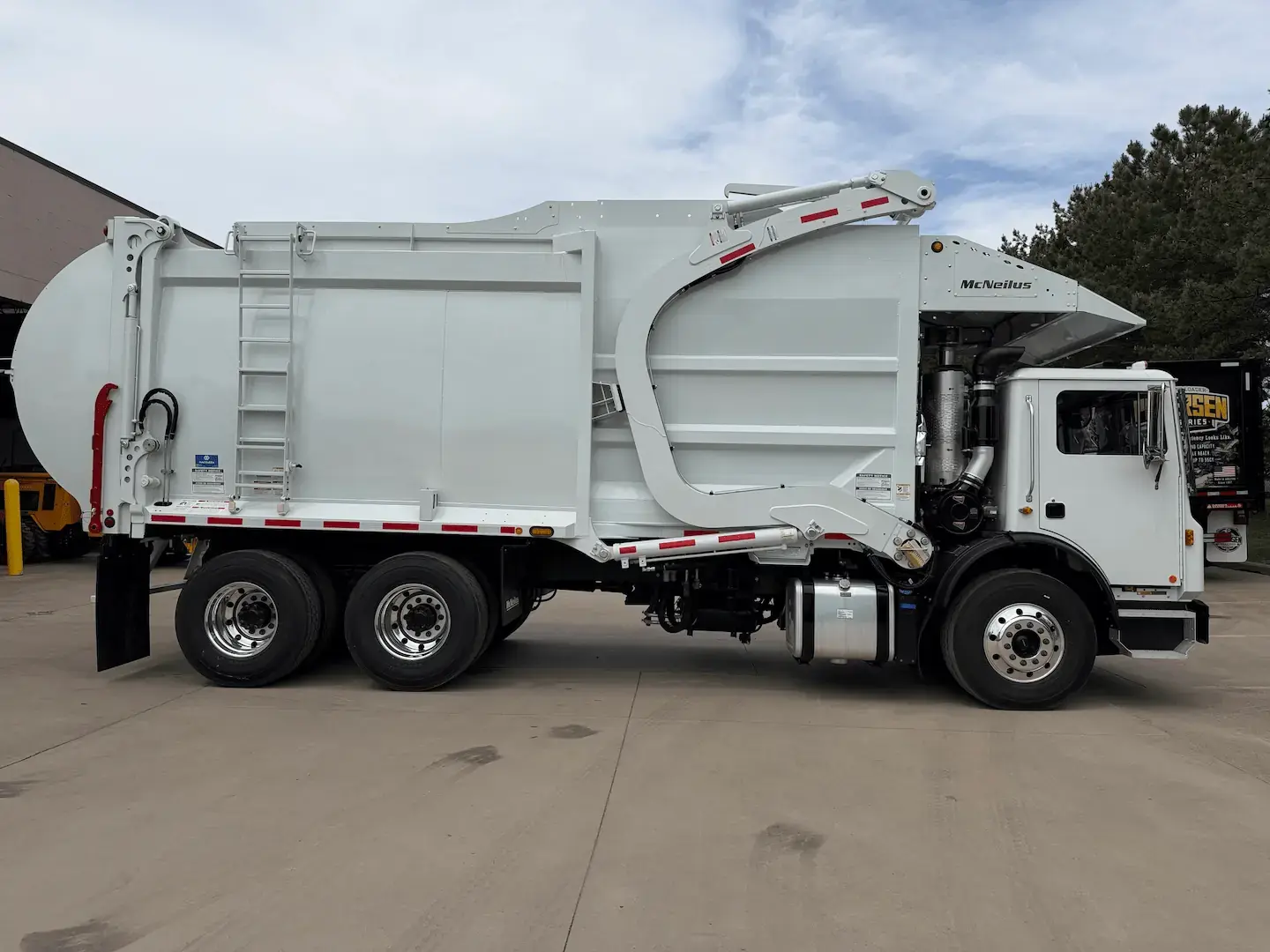

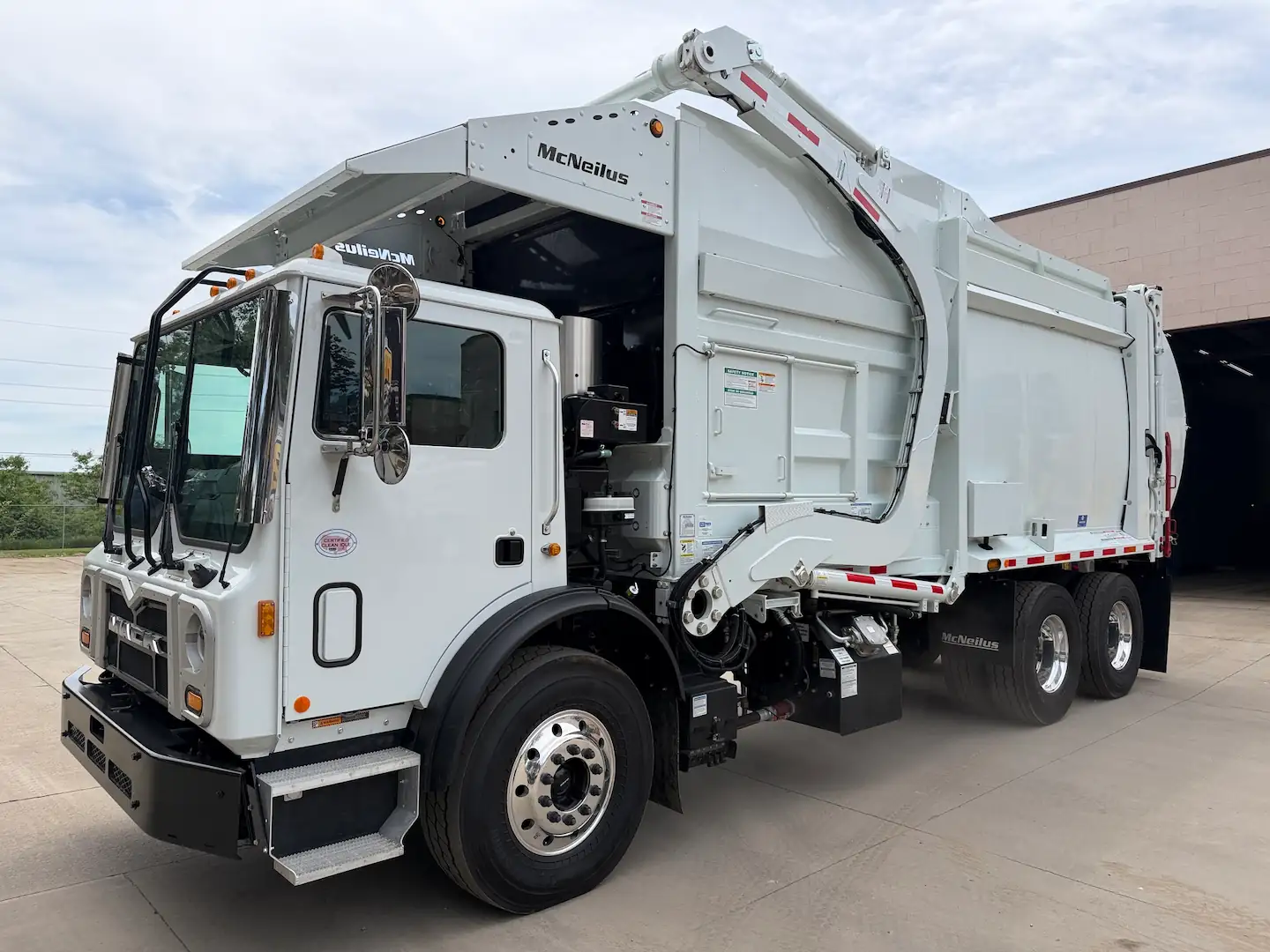

2026 McNeilus Atlantic

Chassis

Packer Type: Model 29 – Atlantic Front Loader
GVW Category: 33,001 lbs or greater

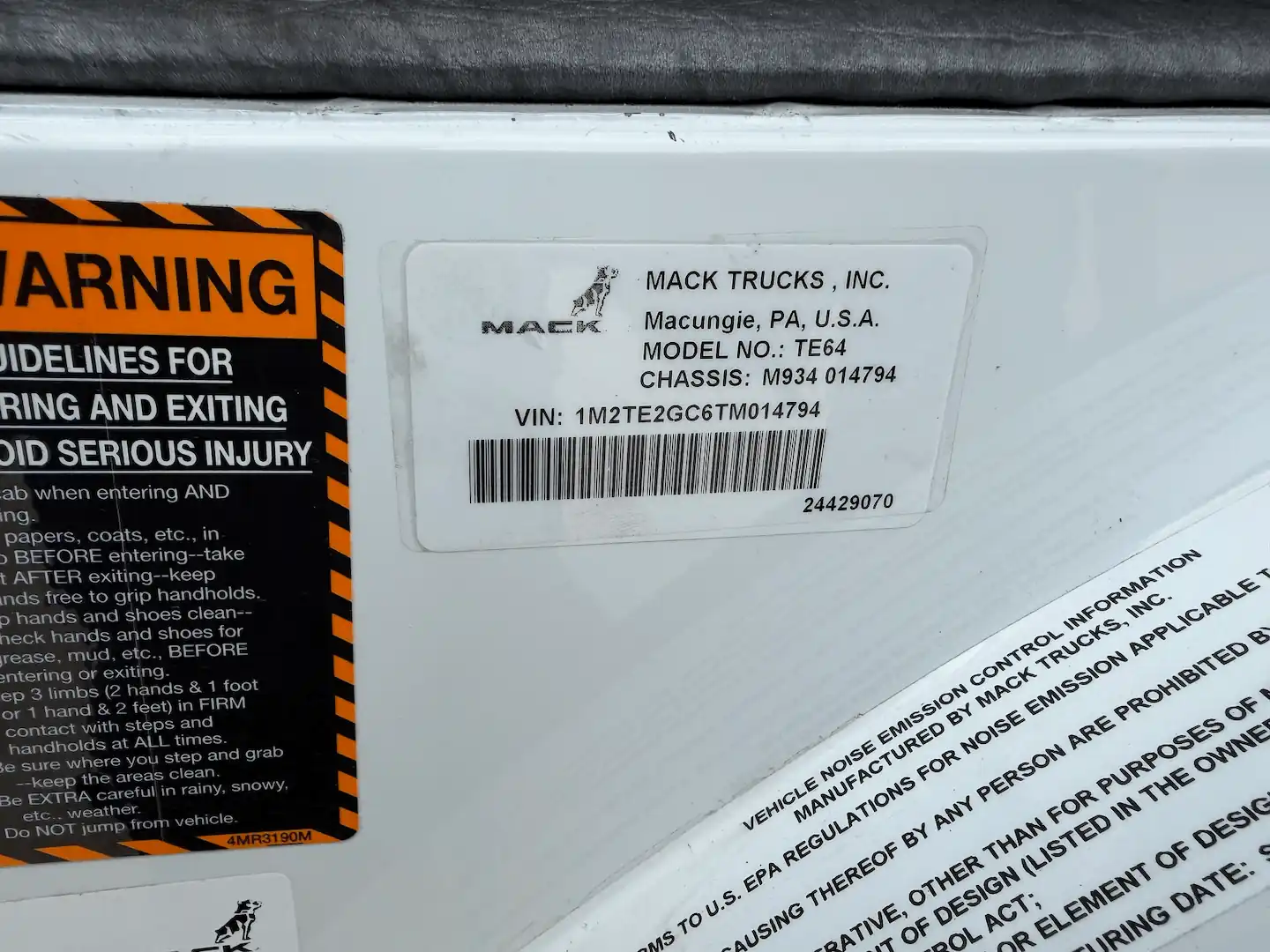

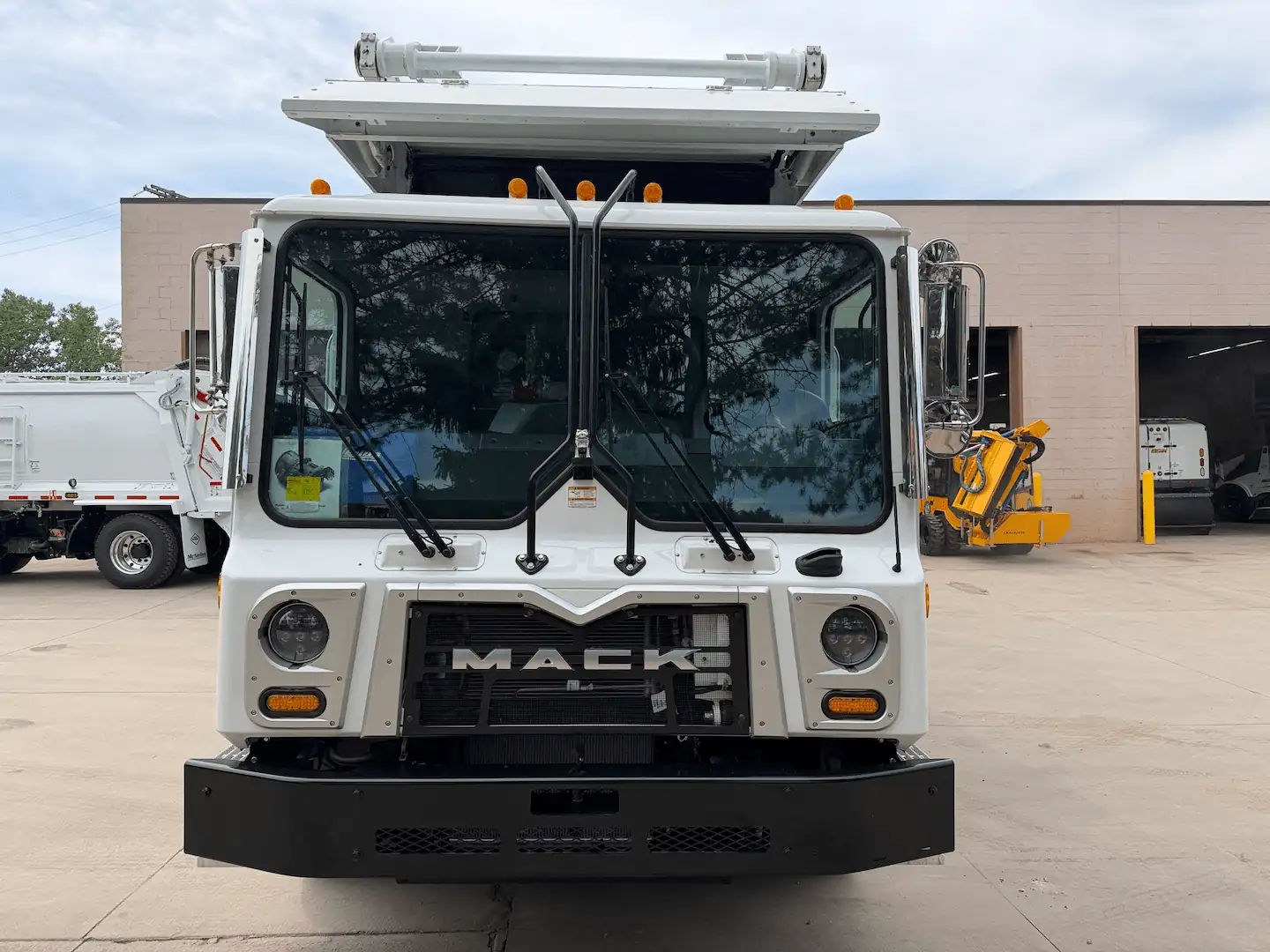

Chassis: Mack TerraPro 64R (Dual Axle)
Engine: Mack (Post-1/1/2017 emissions)
Transmission: Allison 4500 RDS
Battery Box: Street side frame mounted
Cab Mirrors: Aero style
Top Spot: Streetside
Pump Drive: MTM Install SS 897 constant mesh
Front Tire Size: Other than 425/65R22.5

Body

Model: 4029 Atlantic – Medium Body
Rated Capacity: 4029 Commercial
Body Configuration: Medium body with large tailgate

Body Construction:

• Standard wall
• AR400 floor

Hopper:

• Standard hopper floor
• Curbside cleanouts
• 3/16" AR400 hopper floor liner
• Curbside spill tray

Canopy: Universal square steel
Canopy Lift Control: Curbside push-pull air switch
Windguard: Standard

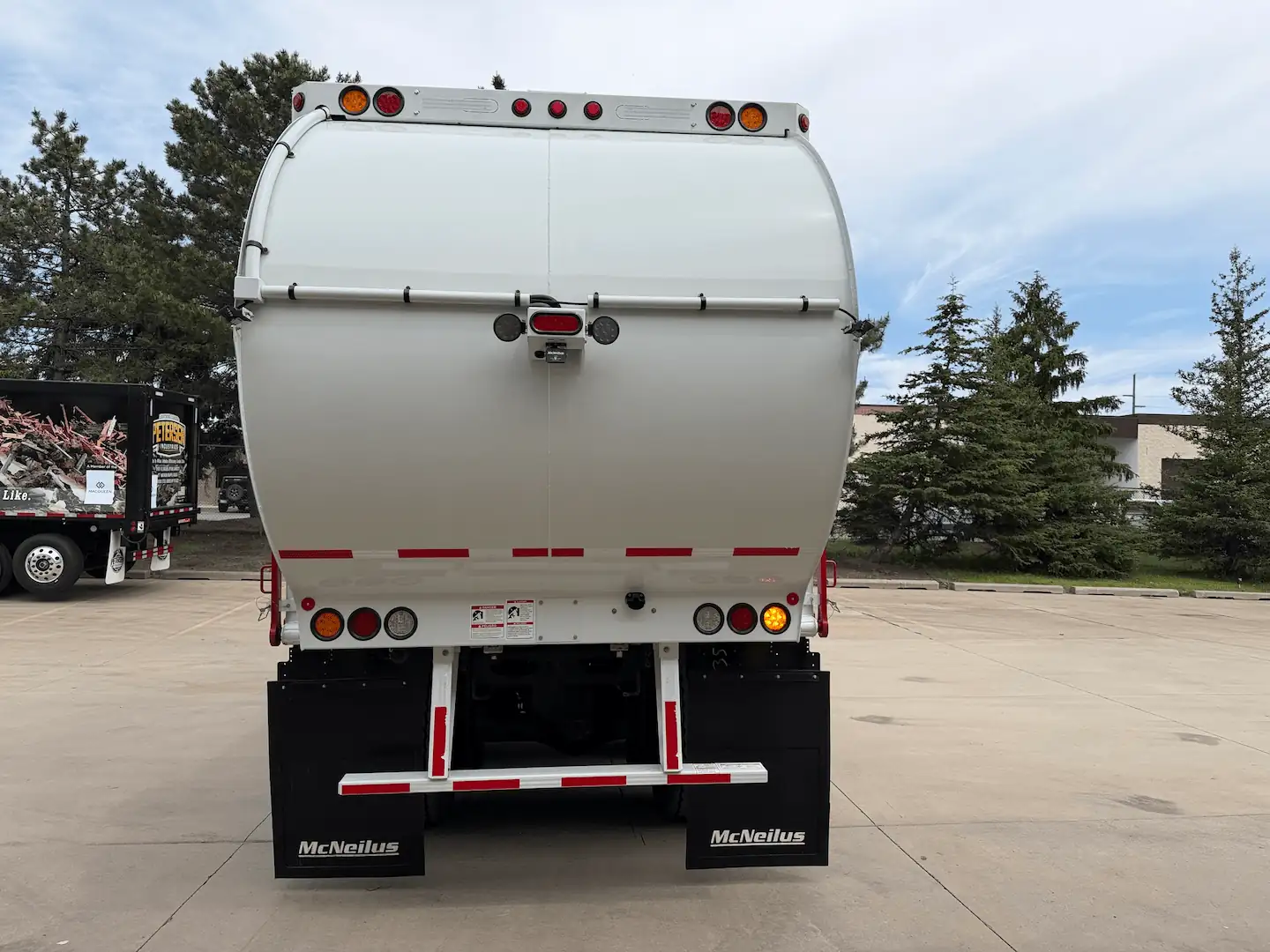

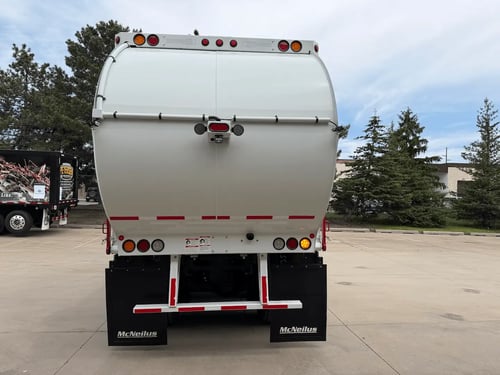

Tailgate:

• 72" steel bumper
• 10 GA AR200 side panels
• Hard rubber seal

Access Ladder: Center rung slide-out

Body Options

Paper Screen: Heavy-duty solid

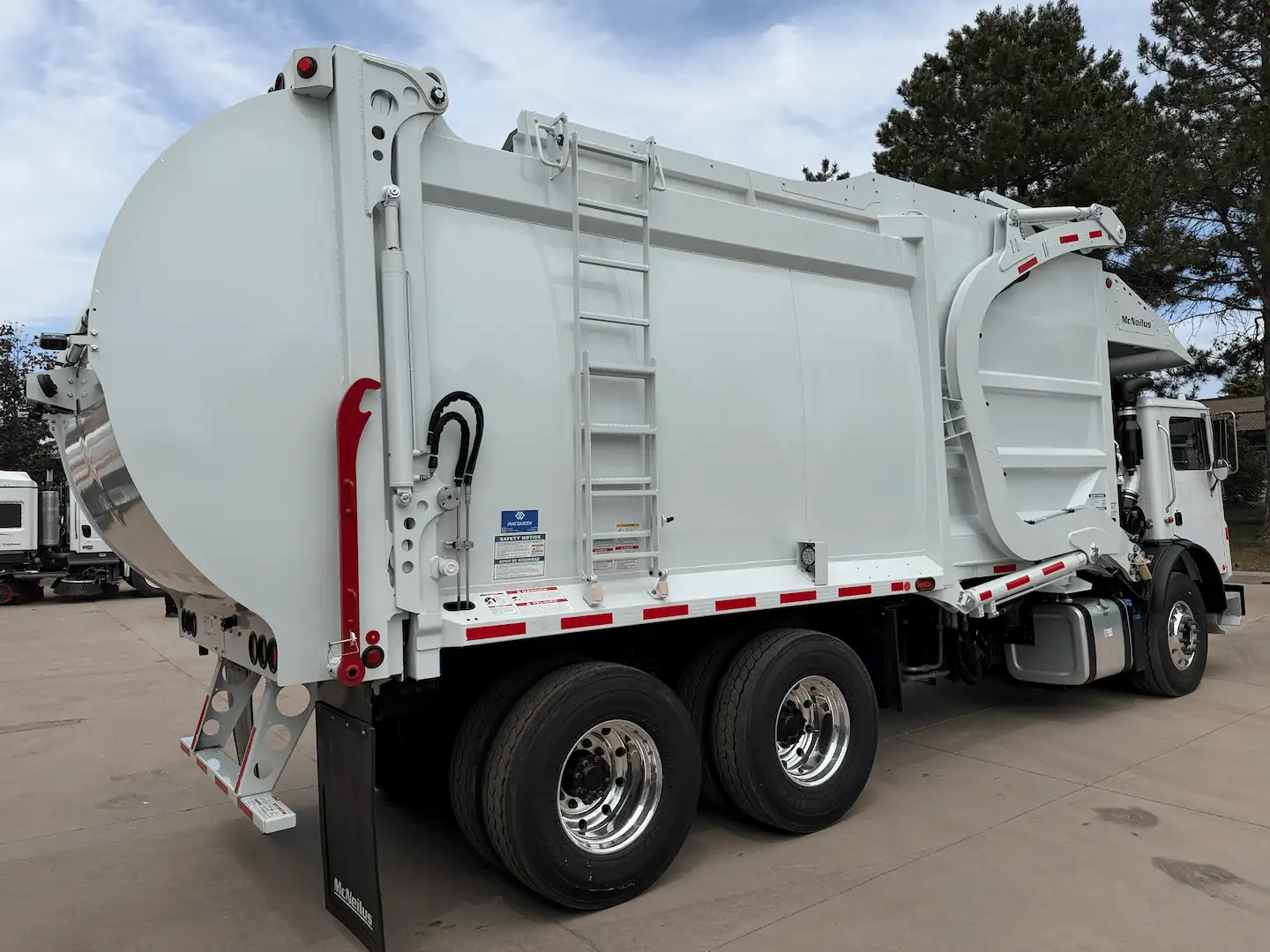

Roof Ladder: ANSI roof ladder, rearward (curbside)
Top Door: Heavy-duty Atlantic top door

Controls:

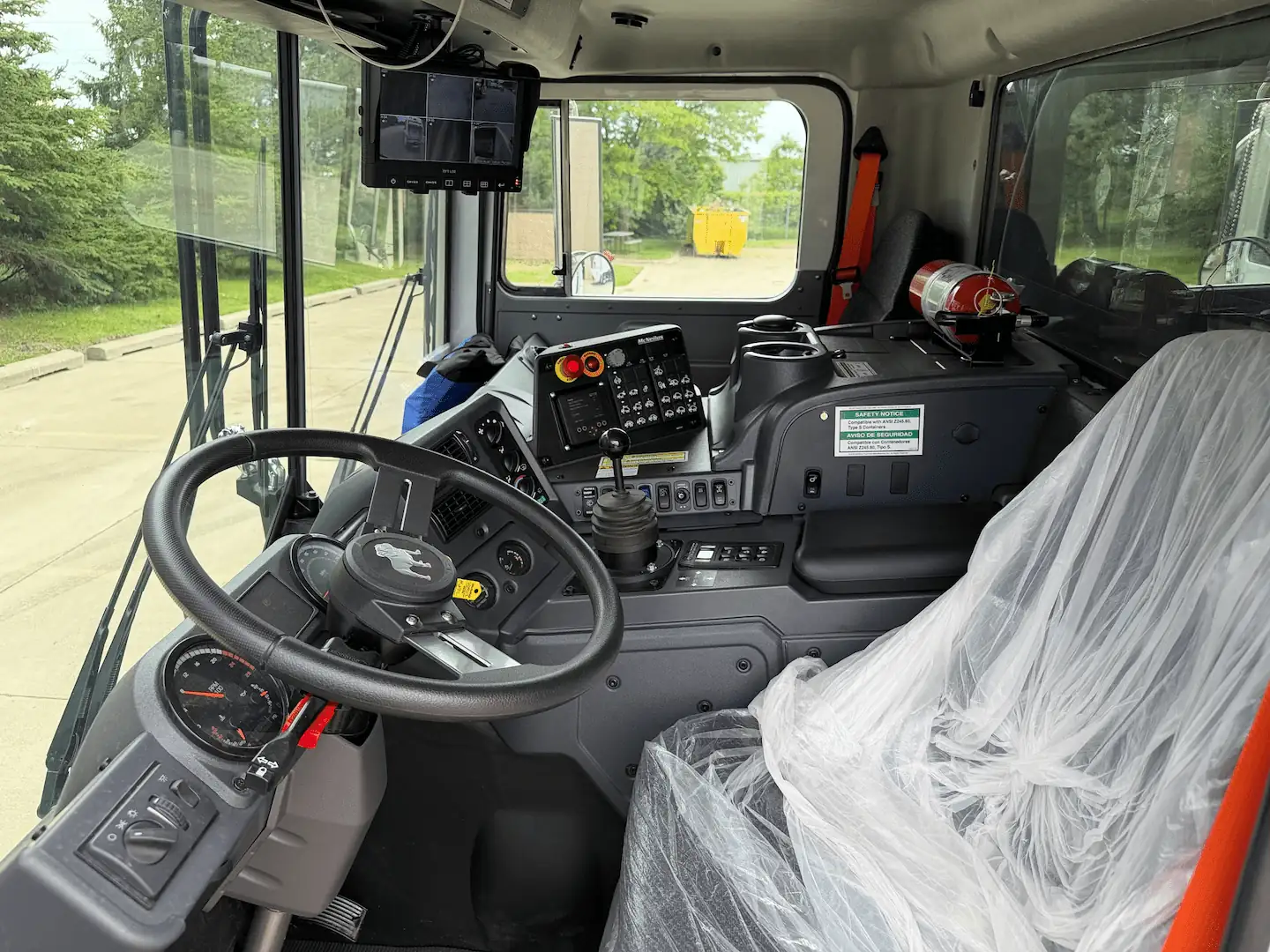

• Cab: Low-profile control station
• Streetside: Pneumatic joystick

AutoPack: Disabled on arm down
Display Location: Doghouse

Hydraulics

Pump: Long-life vane pump
Main Valve: Air/Hydraulic mounted on headframe
Reservoir: Standard steel rectangular tank, frame-mounted (street side)
Hydraulic Fluid: ISO46 – US Oil

Filters & Ports:

• Return filter: Schroeder (in reservoir)
• Pressure test port: #4 Aeroquip FD45 QDC
• Sample port: Preinstalled in filter (LF-7611)

Shutoff Valve: Red handle ball valve
Breather/Filler: Standard filler cap with reservoir breather

Monitoring:

• Low hydraulic oil warning light and buzzer

Hose Protection: Cordura hose wrap
Body Lift: Liftable body without service lift

Lighting

DOT Lights: Economy LED
Light & Harness Package: Standard 12V

Smart Lights: 4" Peterson smart lights (tailgate)
Center Stop Light: Economy LED (tailgate center)
Mid-Body Marker Lights: Oval amber turn signal/marker

Work Lights:

• Container dump light: Canopy-mounted 5" LED
• Mid-body work lights: Box-mounted 5" LED

Tailgate Corner Lights: None (smart strobes selected)

Camera System

System: SSV 9" Monitor/DVR (6-port)
Monitor Mount: Center overhead swivel mount
Monitor Display (Reverse): Tailgate camera

Cameras: Qty 4

• Curbside alley camera
• Streetside alley camera
• Curbside rear hopper camera
• Tailgate reverse camera

Assist Lights: Dual 5" economy round LEDs

Residential Options

Residential Container: None
Residential Package: None
Fork Model: 62" fixed forks

Arms & Forks

Arm Type: Atlantic front loader arm
Fork Cylinder: Standard cylinder
Fork Tips Removed: No
Bumper Pads: Two
