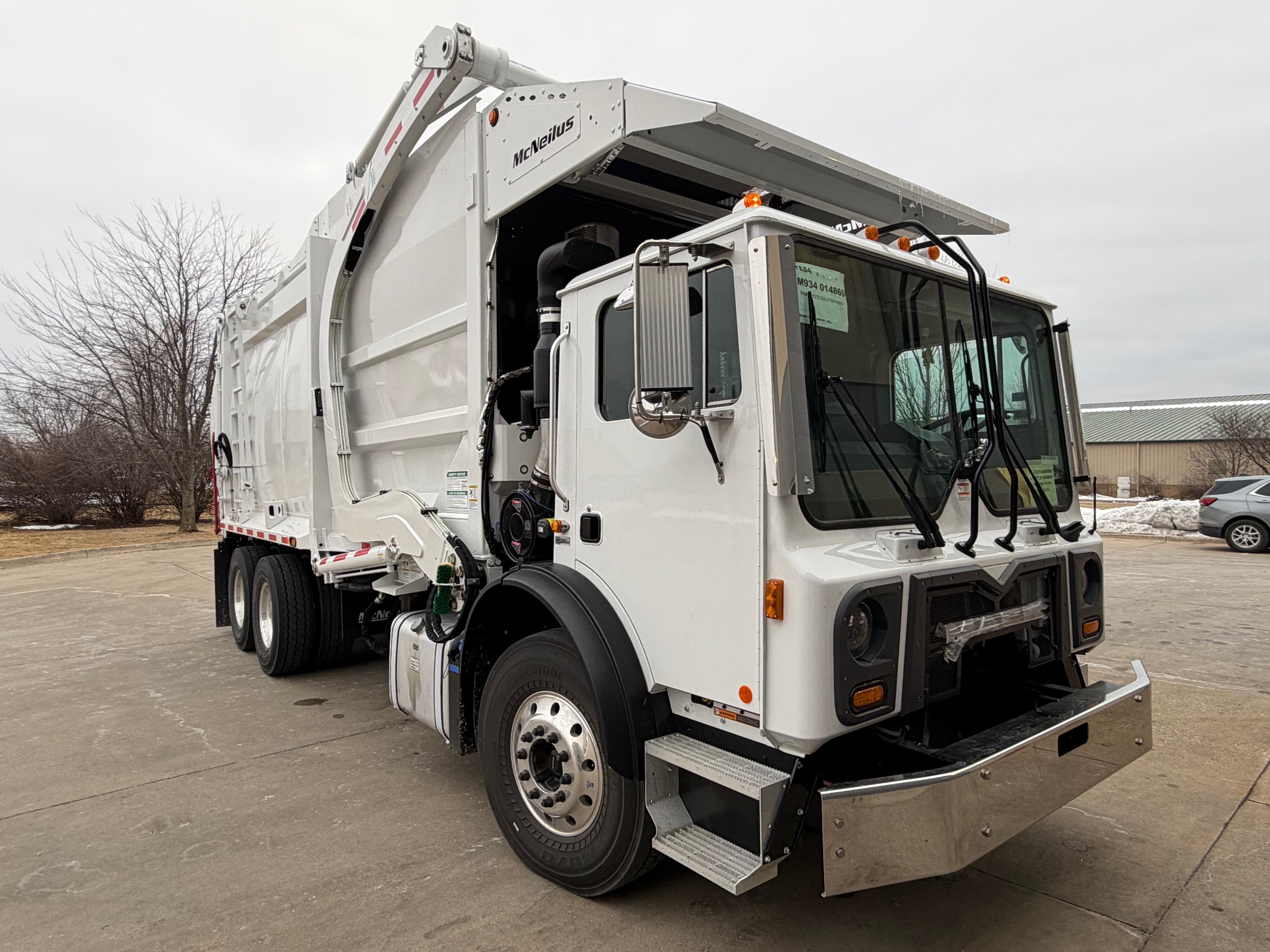

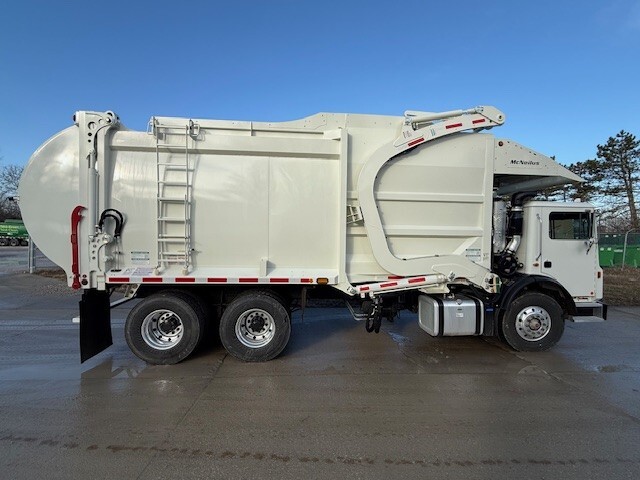

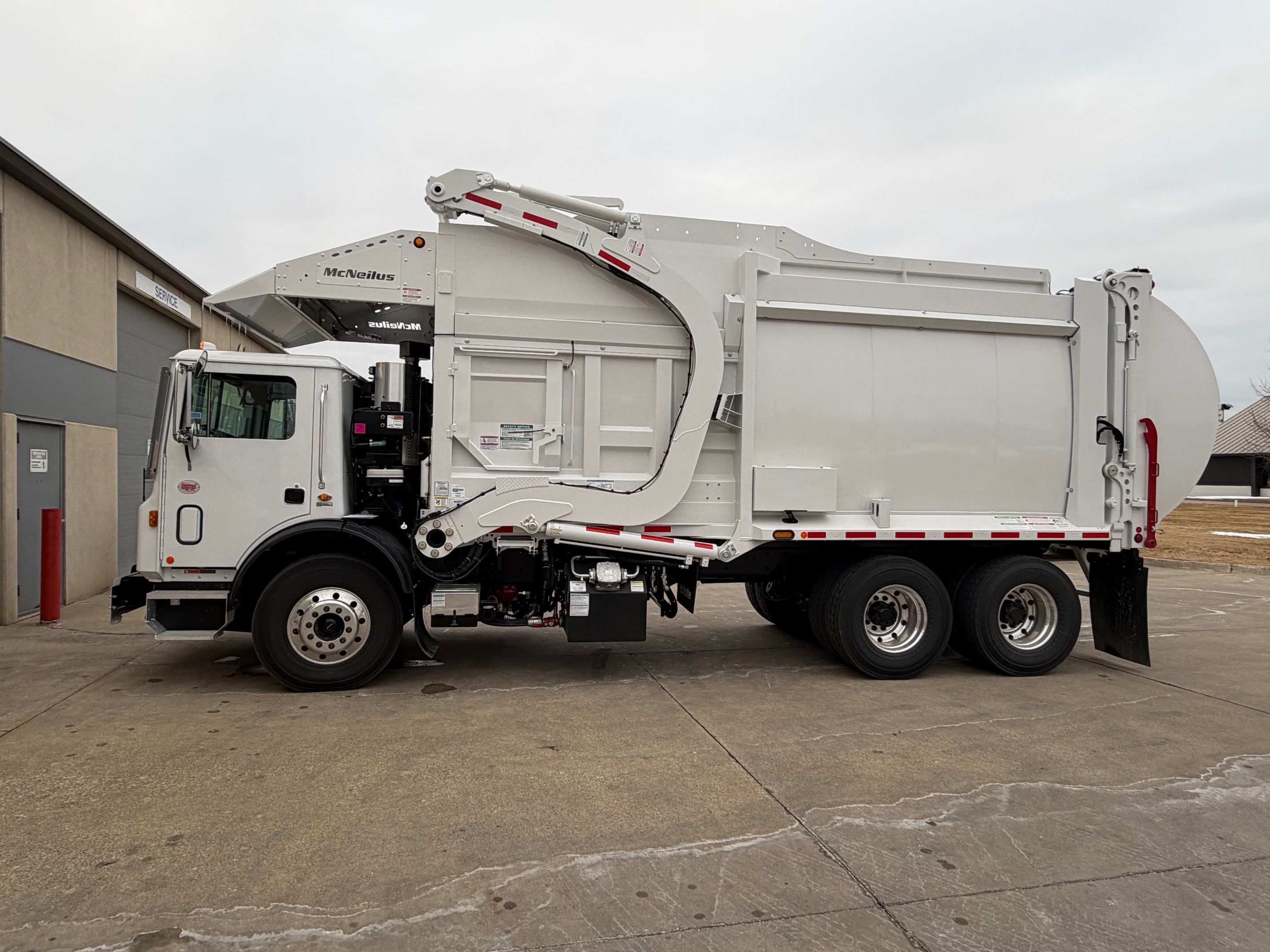

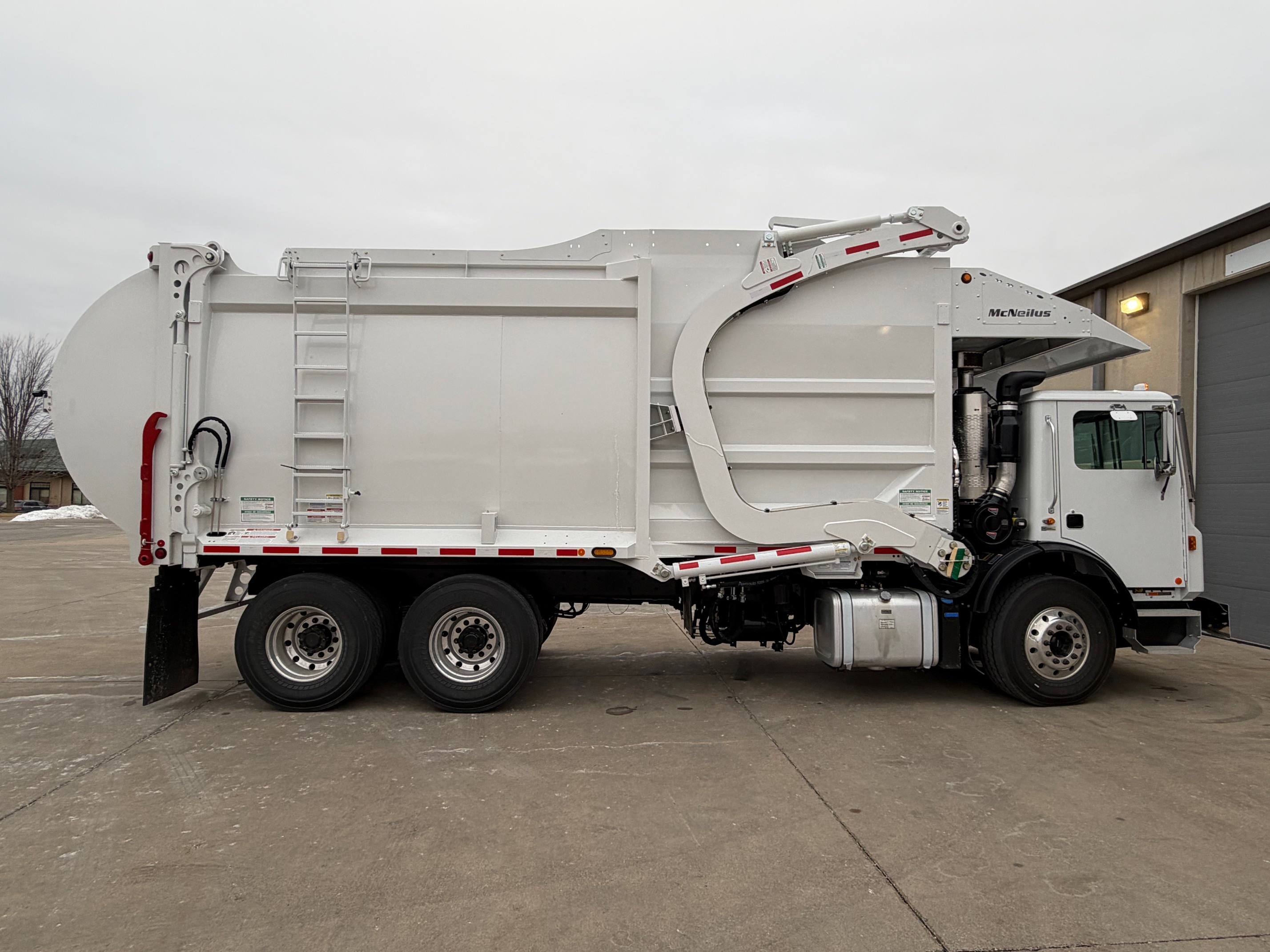

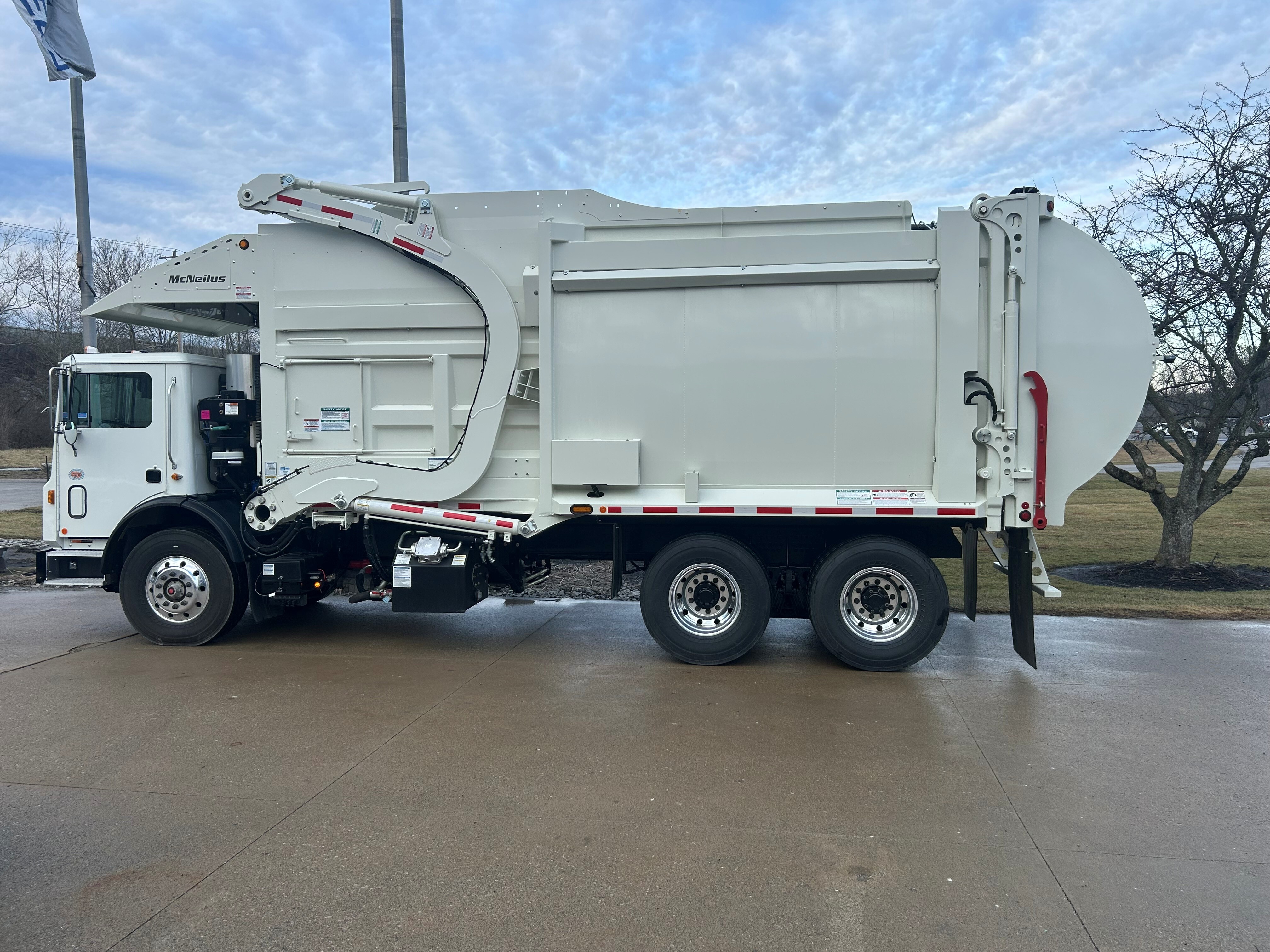

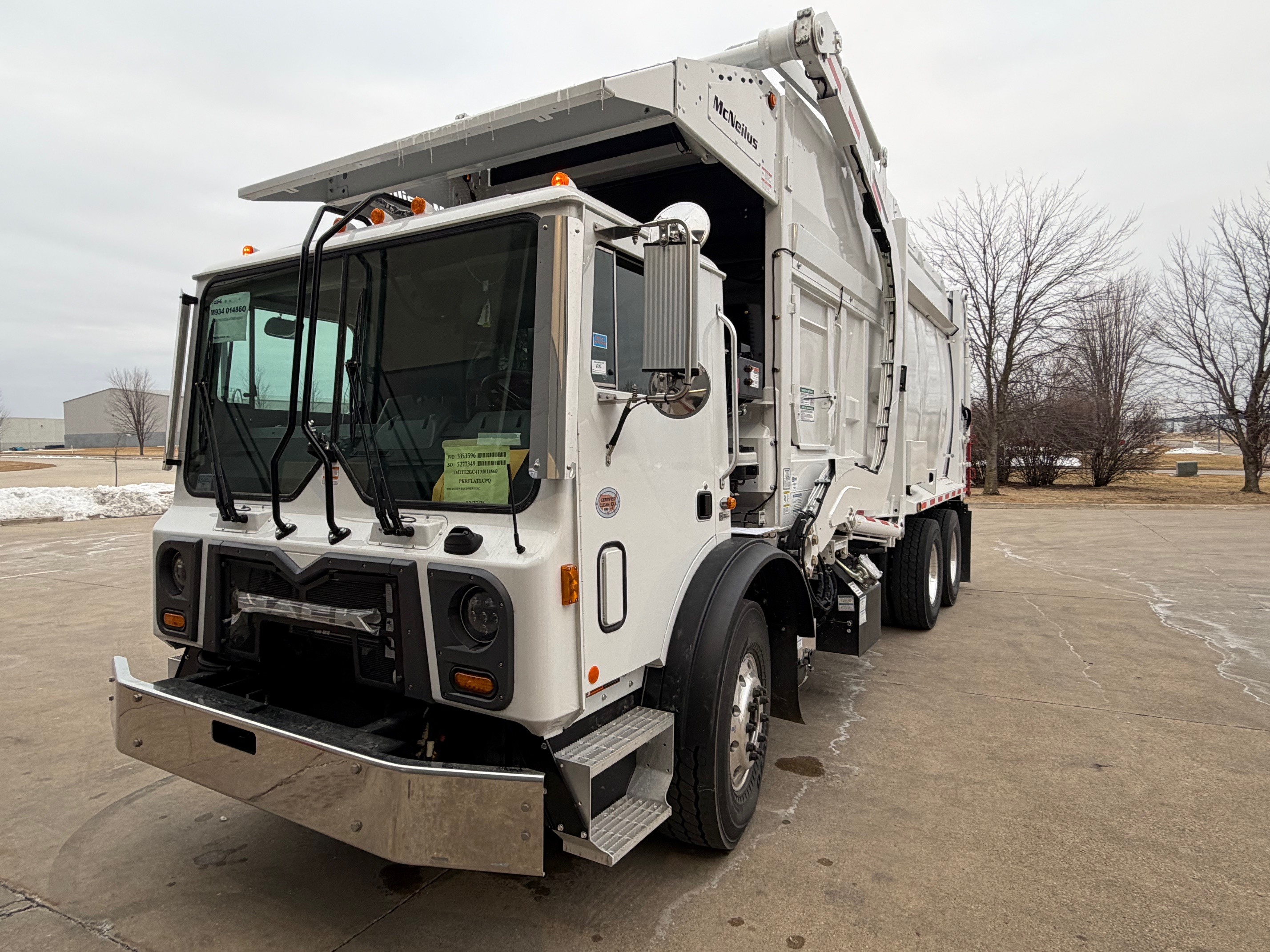

2026 McNeilus Atlantic

Chassis

Packer Type: Model 29 – Atlantic Front Loader
GVW Category: 33,001 lbs or greater

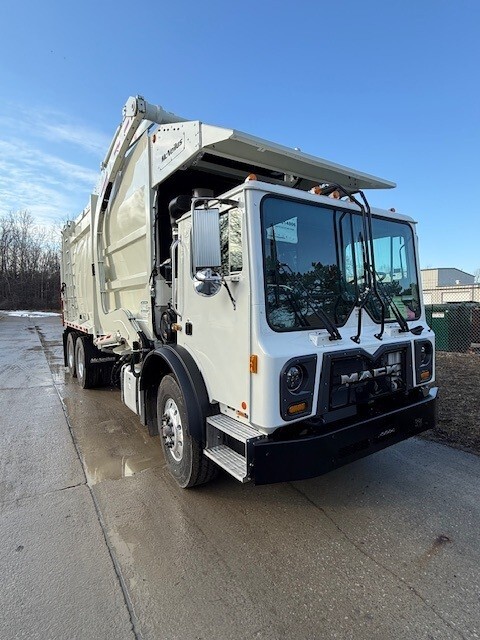

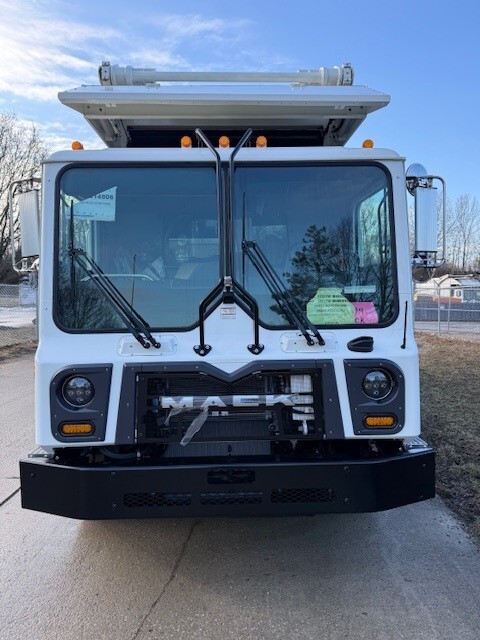

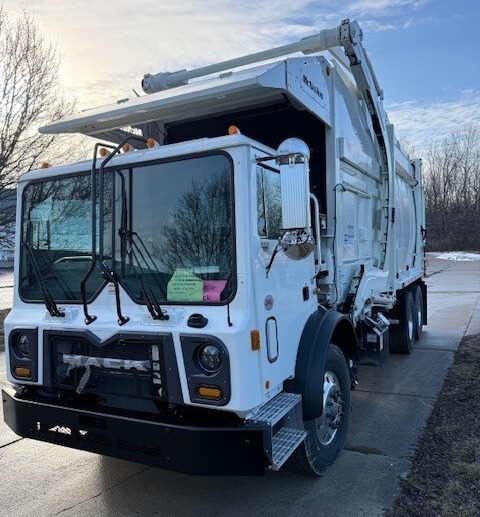

Chassis: Mack TerraPro 64R (Dual Axle)

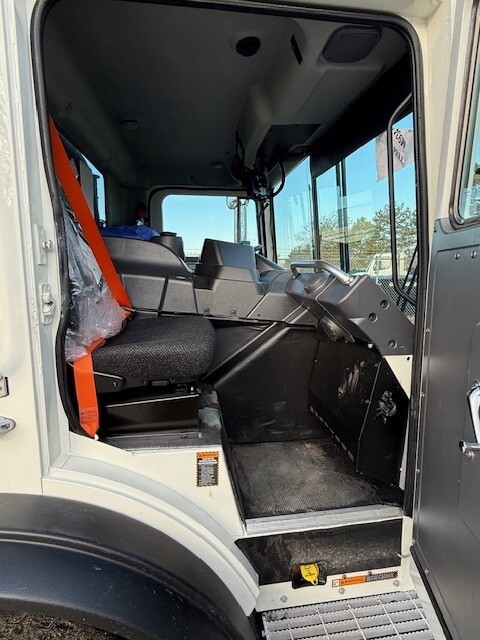

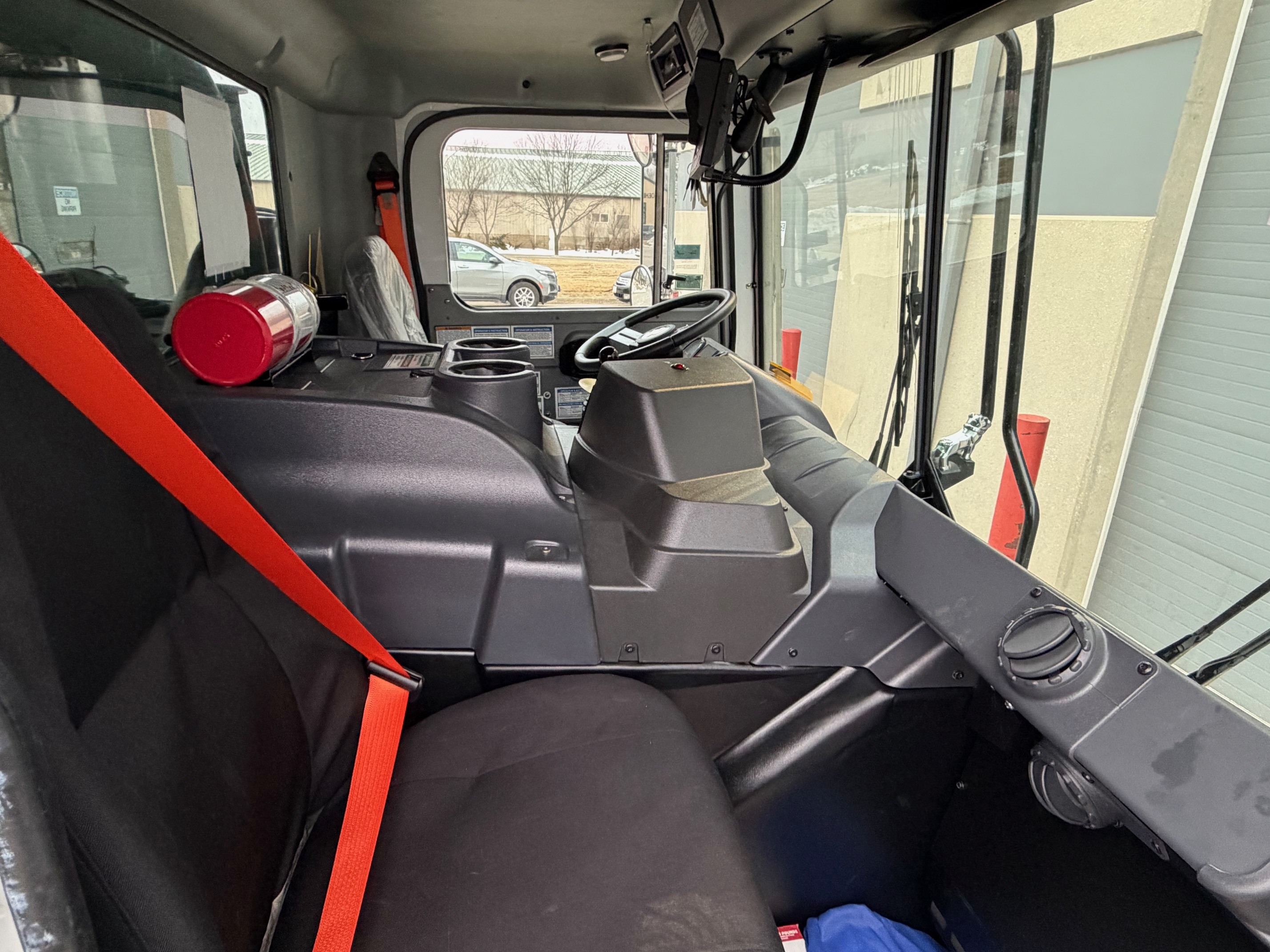

Steering: Streetside seated
Engine: Mack (Post-1/1/2017 emissions)
Transmission: Allison 4500 RDS
Battery Box: Street side frame mounted
Cab Mirrors: Aero style
Top Spot: Streetside
Pump Drive: MTM install SS 897 constant mesh

Body

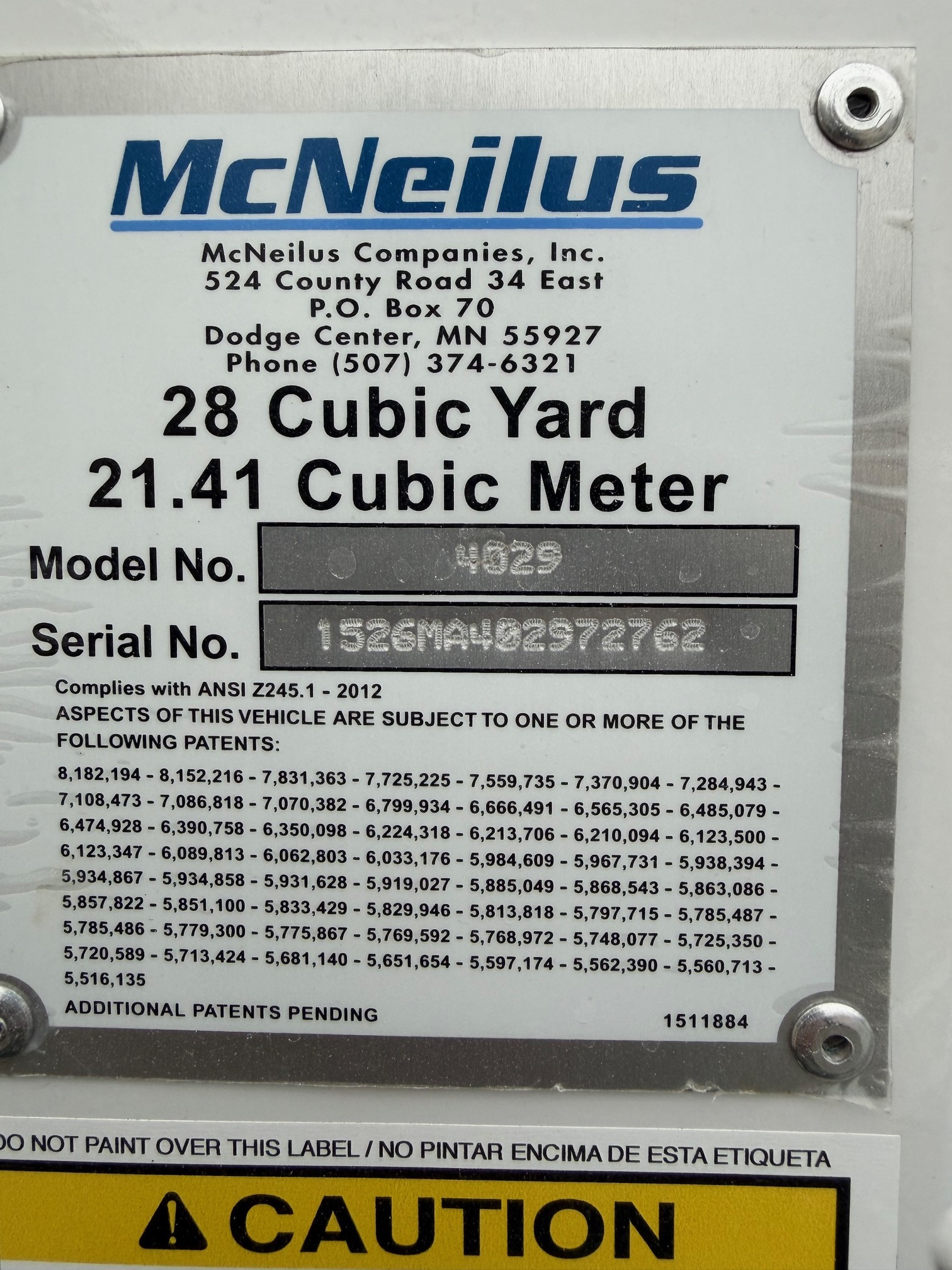

Model: 4029 Atlantic – Medium Body
Rated Capacity: 4029 Commercial
Body Configuration: Medium body, large tailgate

Wall/Floor: Standard wall, AR400 floor
Hopper Floor: Standard with curbside cleanouts
Cleanout Door Spill Tray: Curbside
Canopy: Universal square steel
Canopy Lip Control: Curbside push-pull air switch
Windguard: Standard

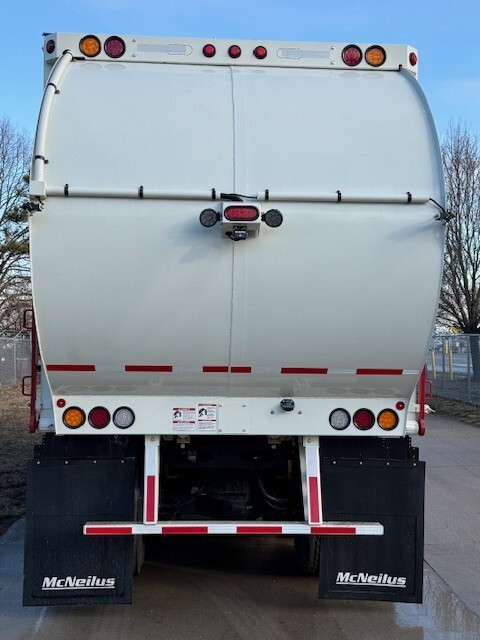

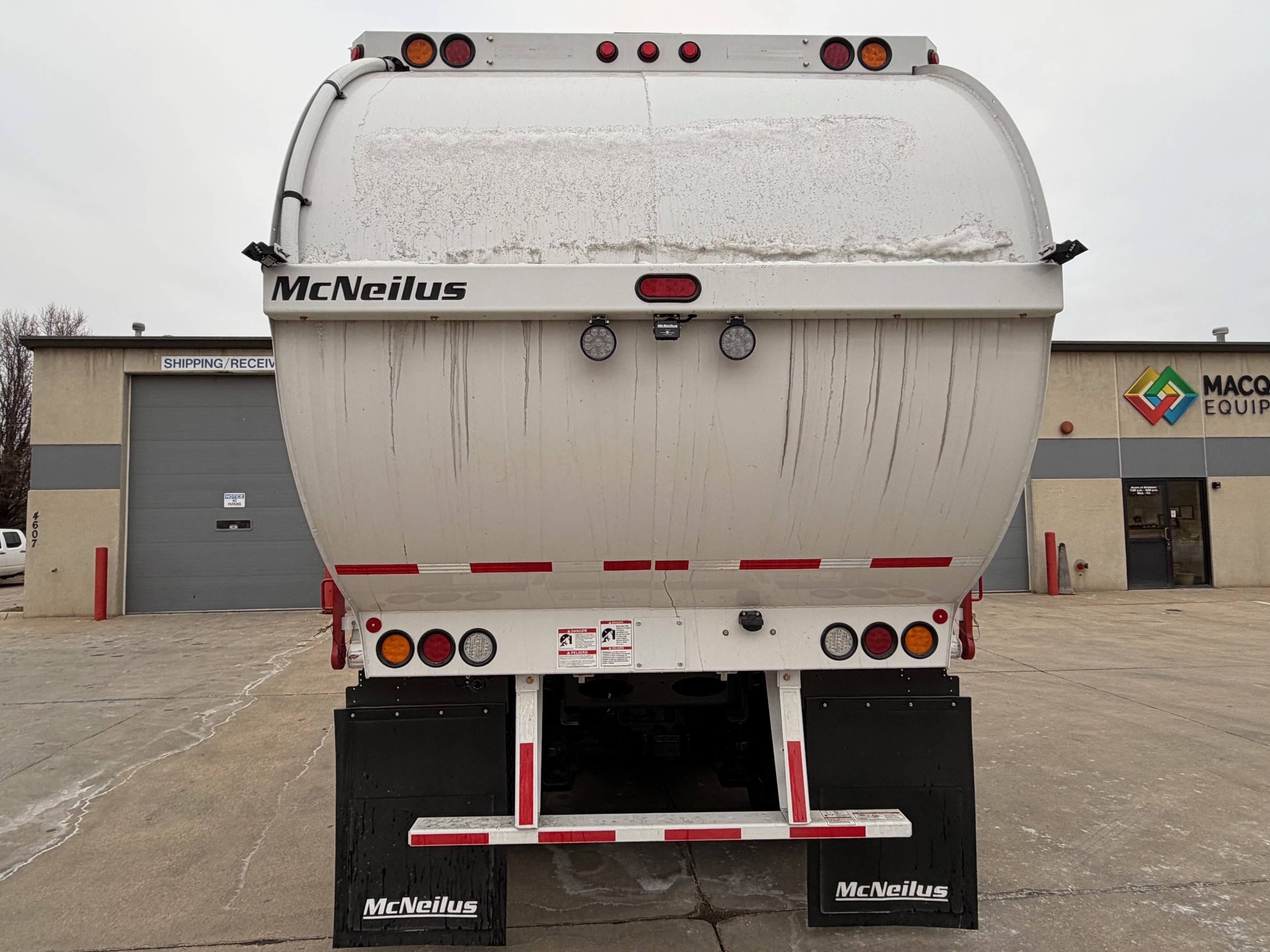

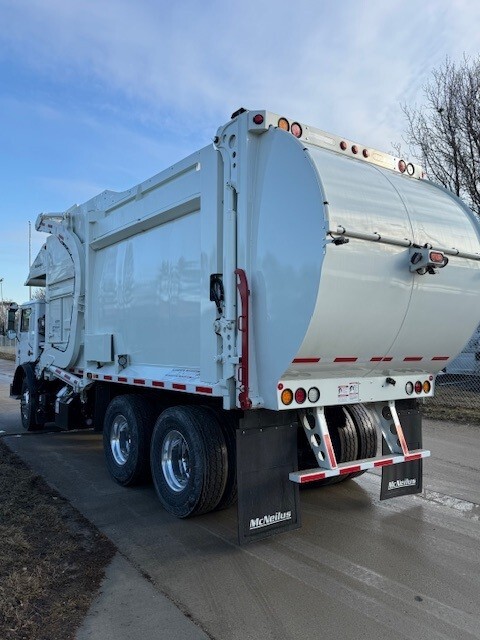

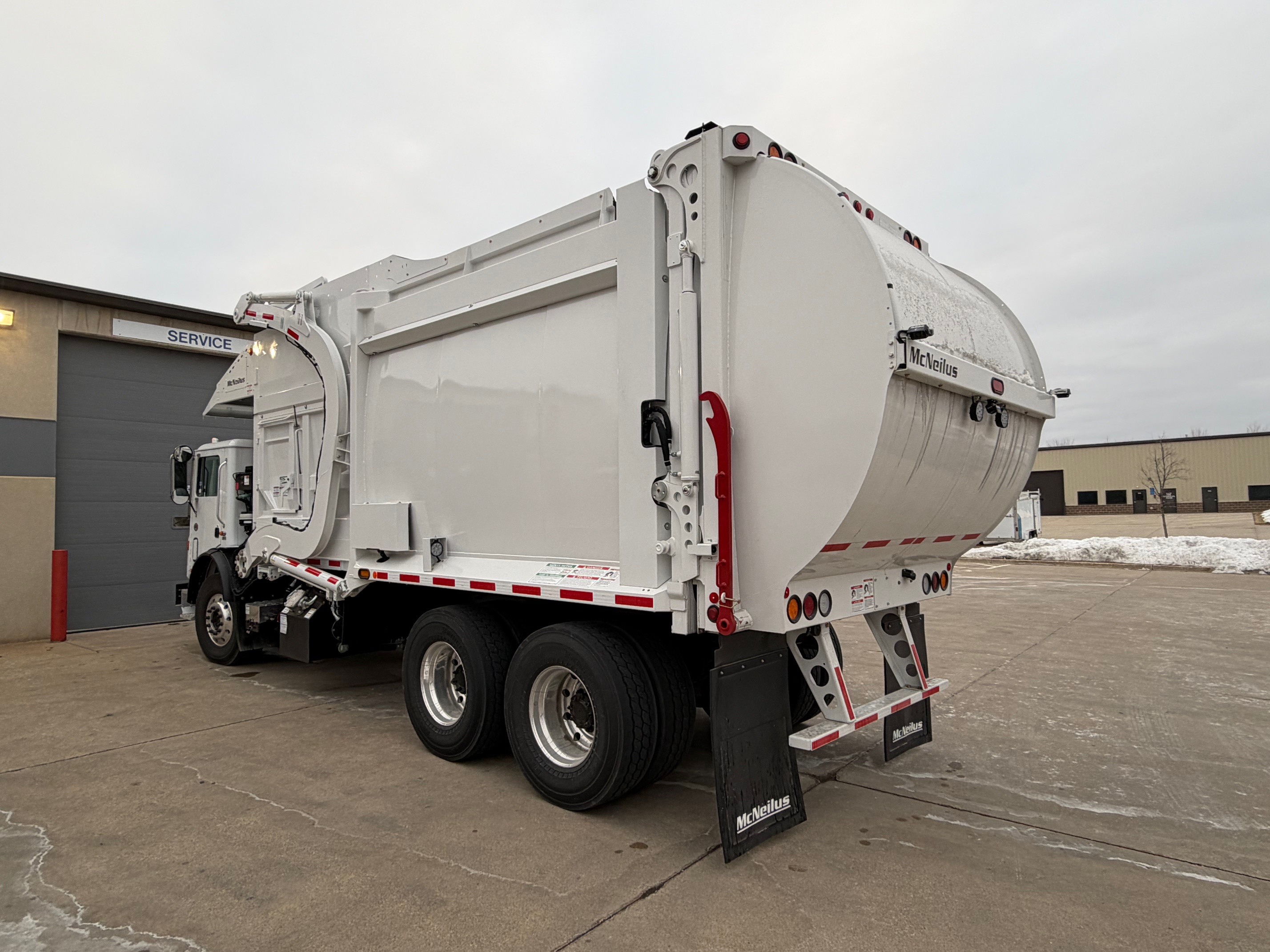

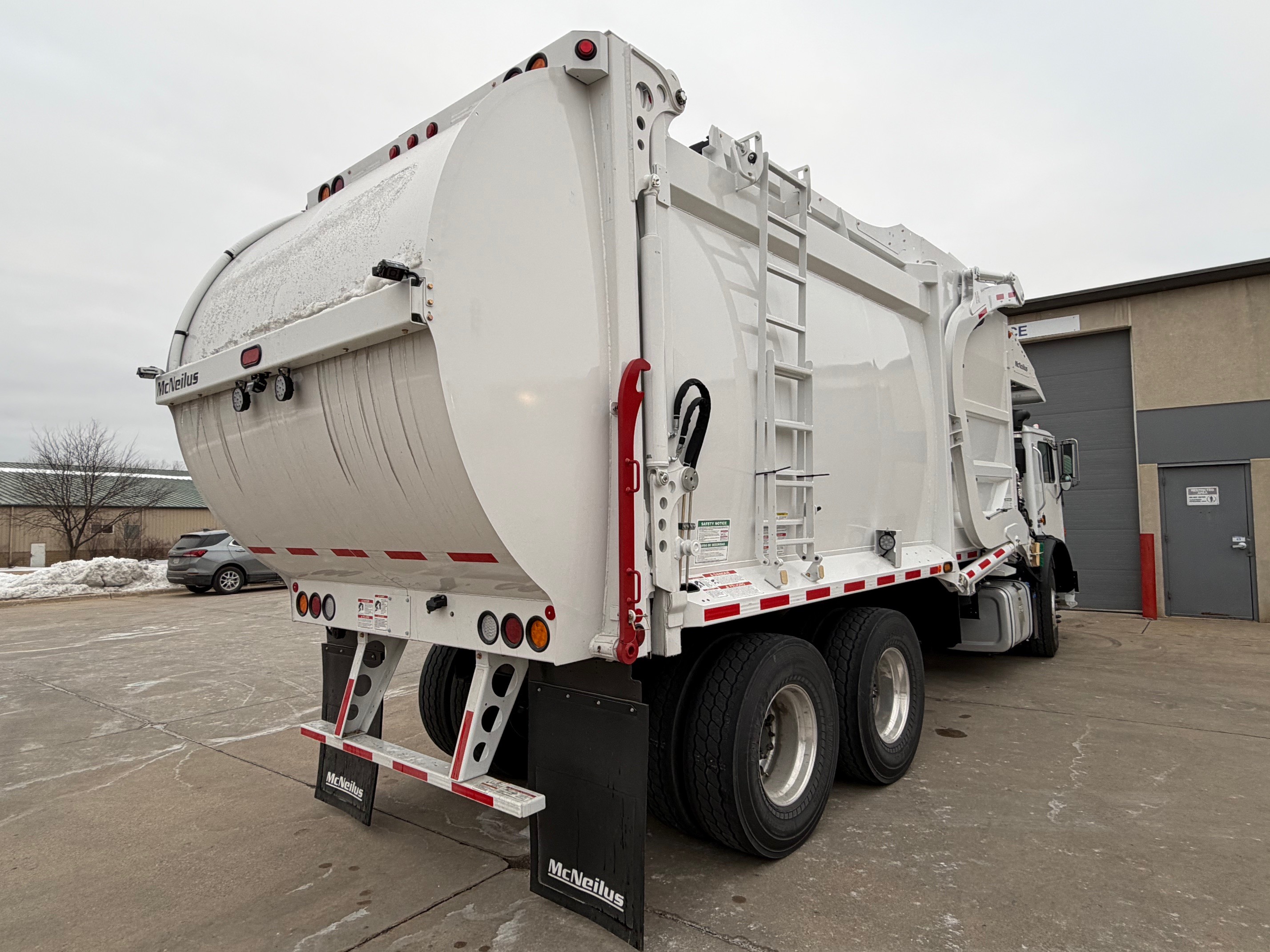

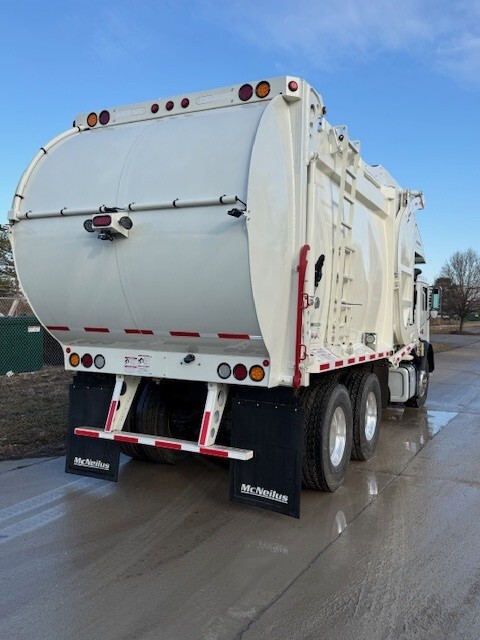

Tailgate:

• 72" steel bumper
• 10 GA AR200 side panels
• Hard rubber seal

Access Ladder: Center rung slide-out

Body Options

Hopper Floor Liner: 3/16" AR400
Paper Screen: Heavy-duty solid
Roof Ladder: ANSI, rearward (curbside)
Top Door: Heavy-duty top door (Atlantic)

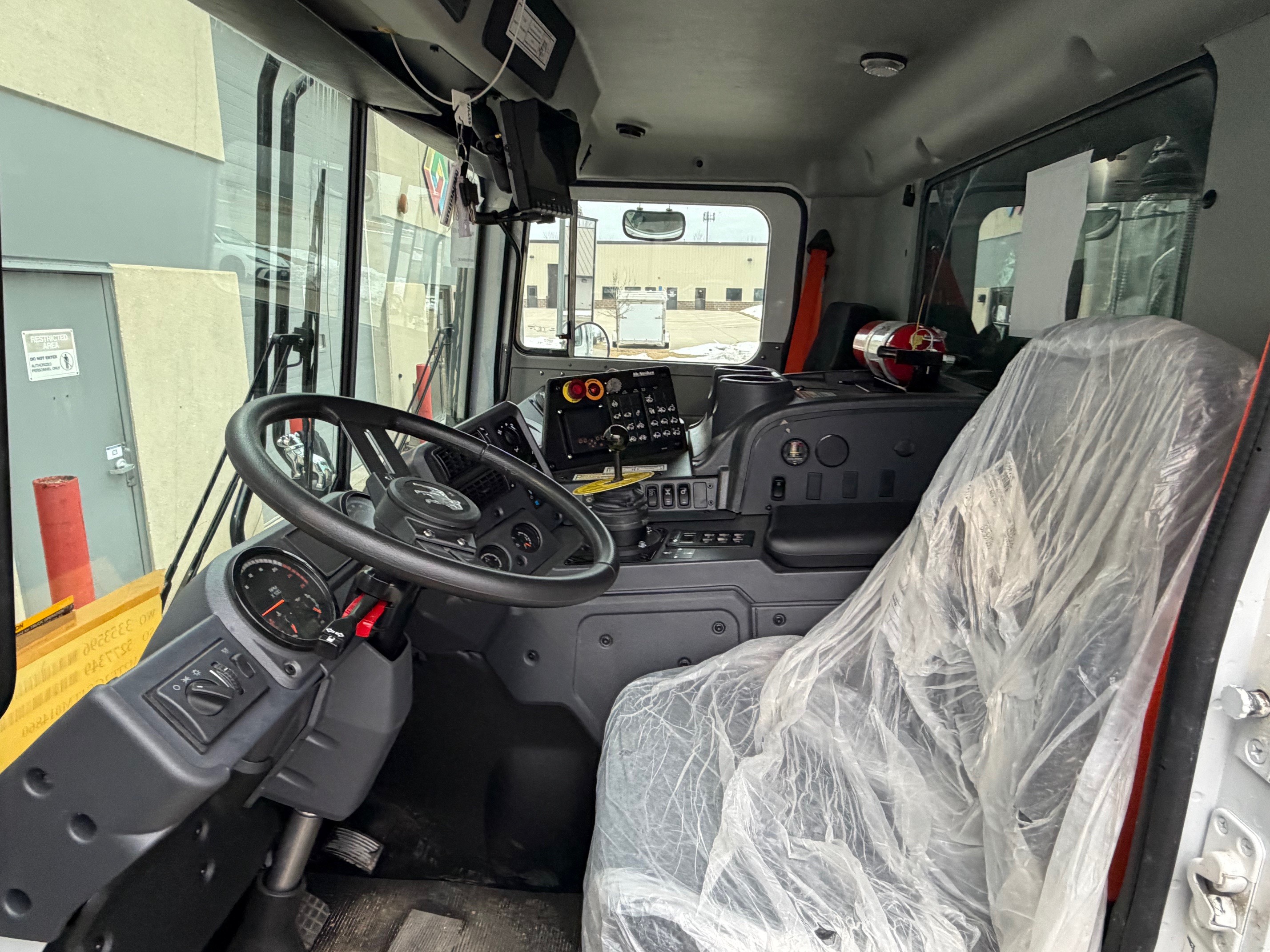

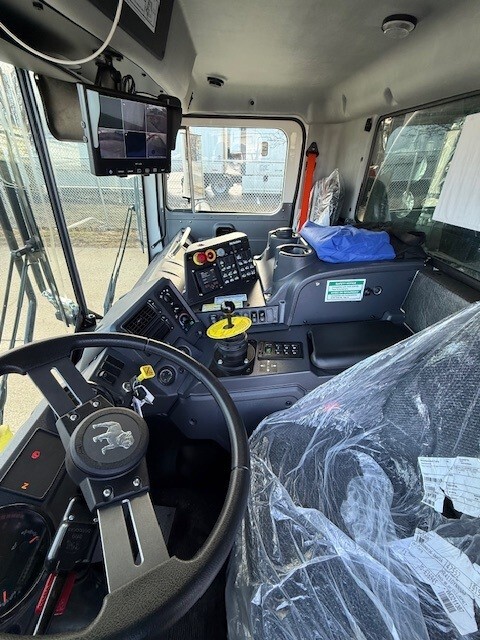

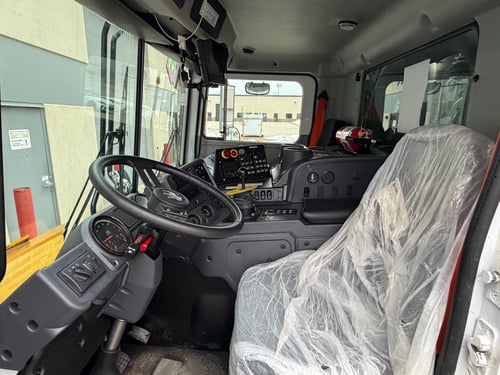

Controls:

• Cab: Low-profile control
• Streetside: Pneumatic joystick

AutoPack: Disabled on arm down
Display Location: Doghouse

Hydraulics

Pump: Long-life vane pump
Main Valve: Air/Hydraulic mounted on headframe
Reservoir: Standard steel, frame-mounted (street side)
Shutoff Valve: Red handle ball valve
Hydraulic Fluid: ISO46 – US Oil

Filters:

• Return: Schroeder (in-reservoir)
• Sample Port: Preinstalled in filter (LF-7611)
• Pressure Test Port: SS FOB #4 Aeroquip FD45 QDC

Breather / Filler: Filler/breather on reservoir; standard filler cap
Low Oil Warning: Warning light and buzzer
Hose Protection: Cordura wrap (required hoses)
Body Lift: Liftable body without service lift
Reservoir Temp Compensation Marking: Not included

Lighting

DOT Lights: Economy LED
Light & Harness Package: Standard 12V
Smart Lights: 4" Peterson (tailgate)
Center Stop Light: Economy LED (tailgate center)
Mid-Body DOT Light: Oval amber turn signal/marker

Work Lights:

• Container dump: Canopy-mounted 5" economy LED
• Mid-body: Box-mounted 5" economy LED

Tailgate Corner Lights: None (smart strobes selected)

Camera System

System: SSV 9" Monitor/DVR (6-port)
Monitor Mount: Center overhead with swivel
Monitor Display (Reverse): Tailgate camera

Cameras: Qty 4

• Alley: Curbside and streetside
• Hopper: Curbside rear hopper
• Tailgate: Reverse camera

Assist Lights: Dual 5" economy round LEDs

Residential Options

Residential Container: Not included
Residential Arm Tubes: None
Fork Model: 62" fixed forks

Arms & Forks

Arm Type: Atlantic
Fork Cylinder: Standard
Fork Tips Removed: No
Bumper Pads: Two
