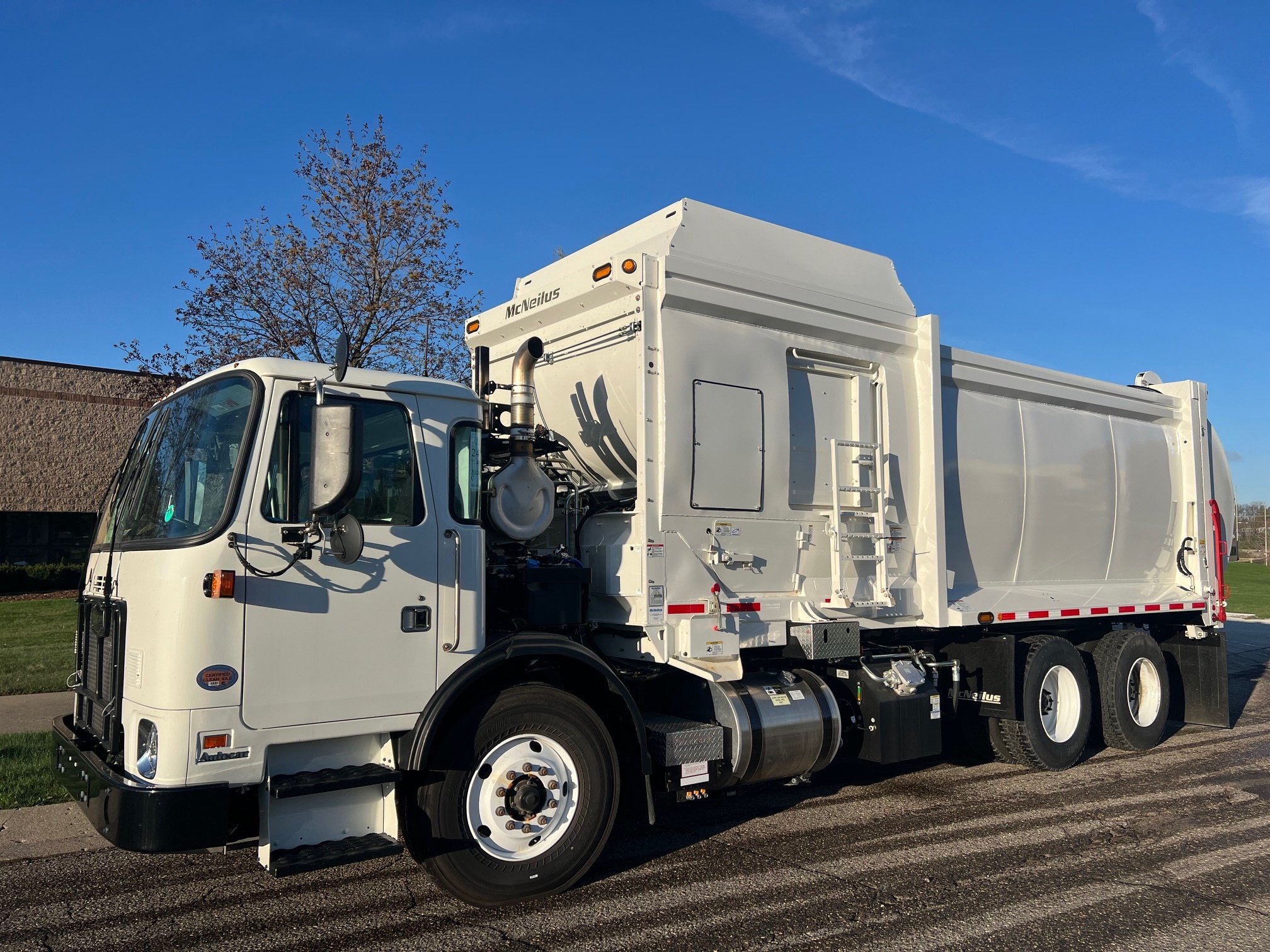

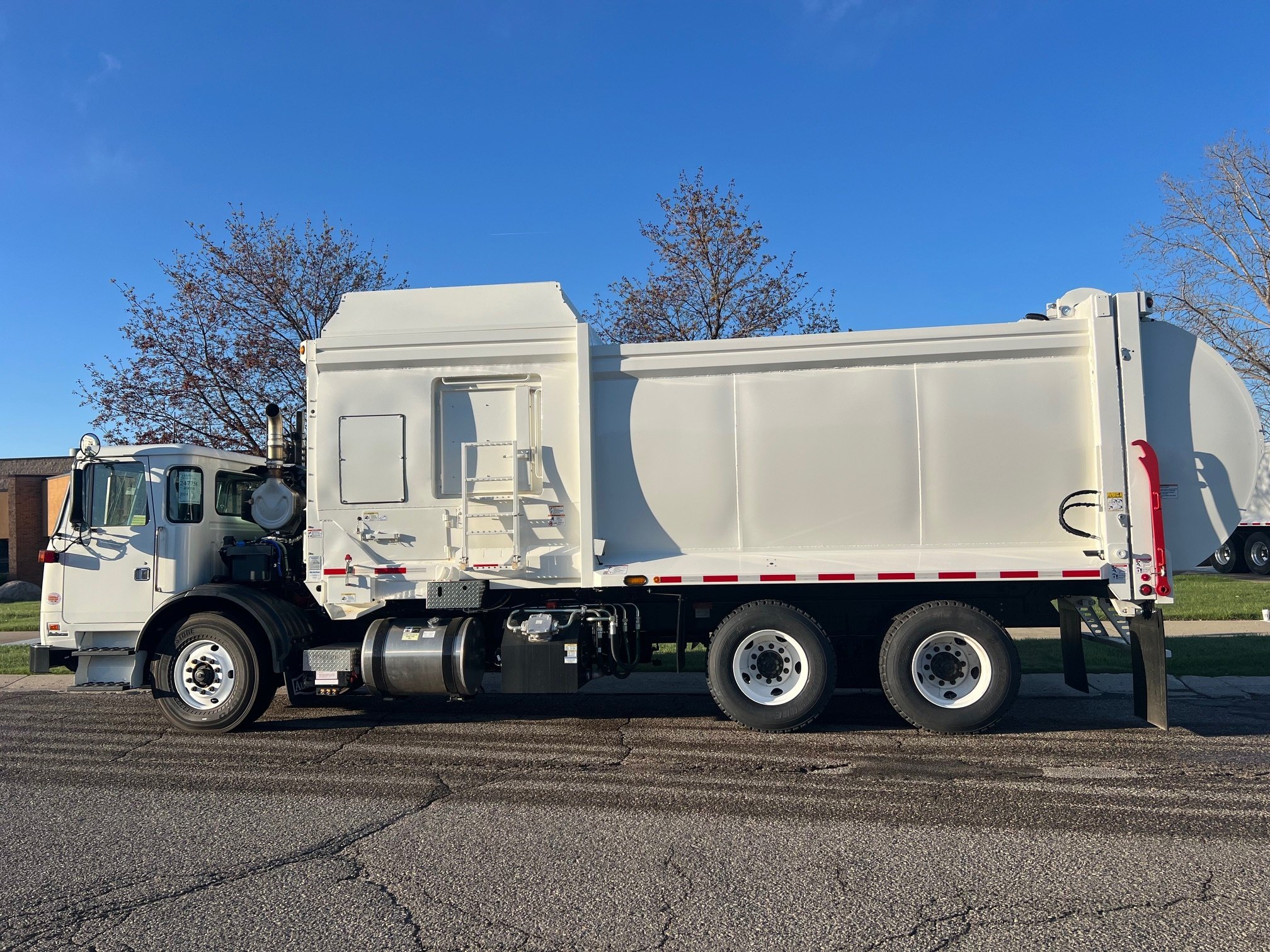

2025 McNeilus ZR

Chassis

• Packer Type: ZR Model 48 (Sauer Hydraulics)

• GVW Category: 33,001 lbs or greater

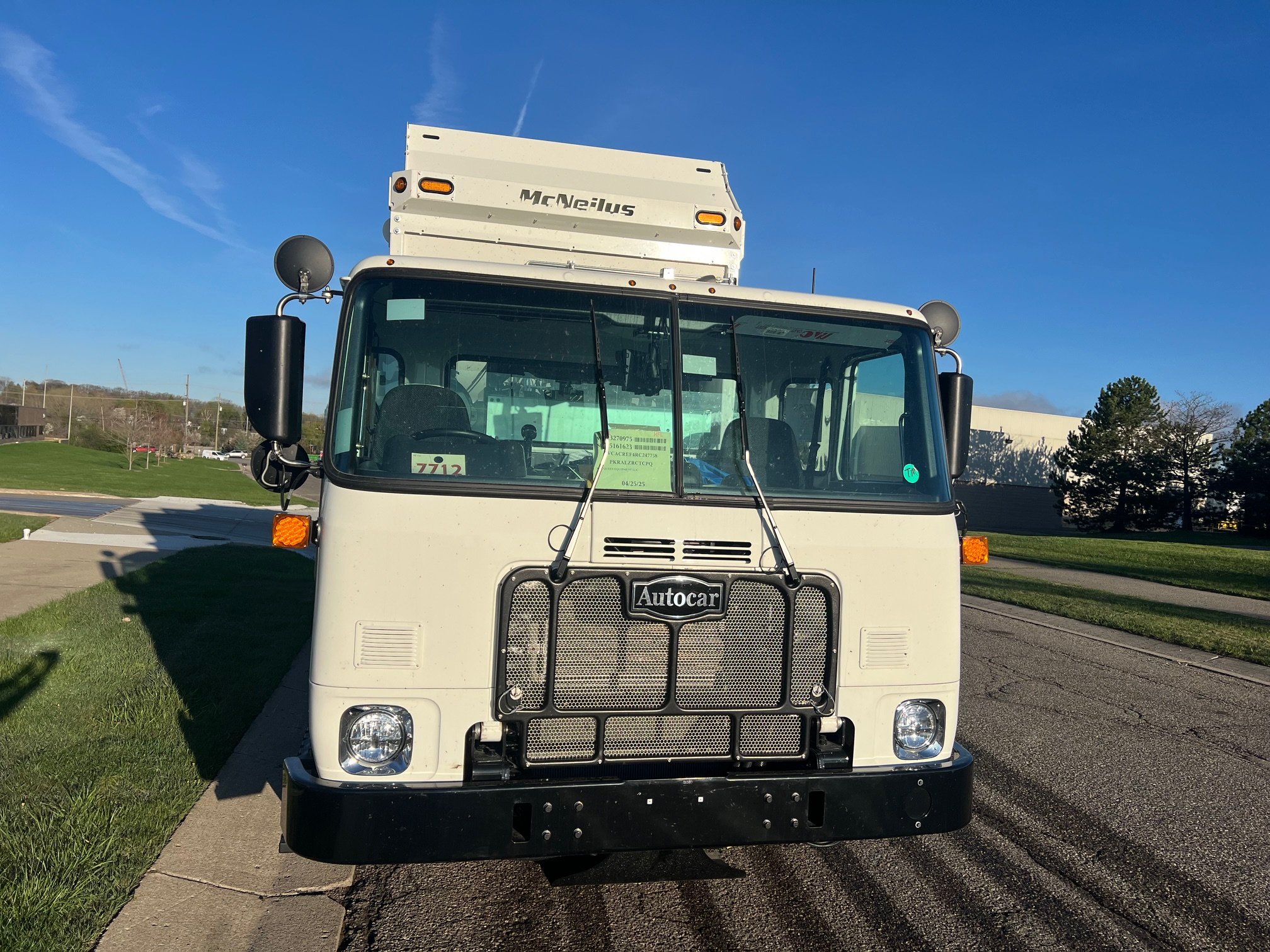

• Chassis: Autocar ACX (2025)

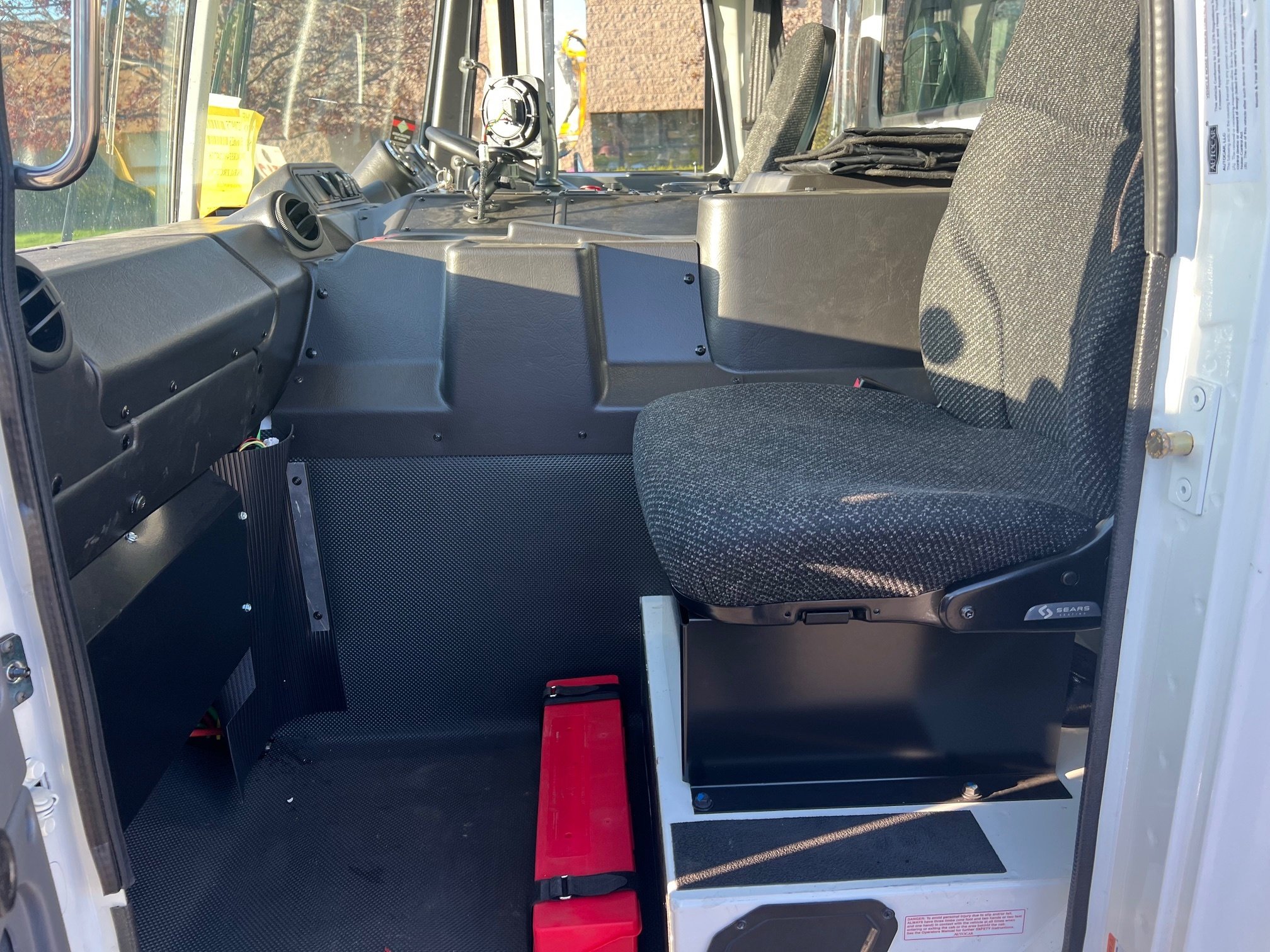

• Steering: Curbside seated

• Fuel: Diesel (SS tank)

• Engine: Cummins ISL/ISC (Post-1/1/2017 emissions)

• Transmission: Allison 4500 RDS with guard

• Exhaust: Left-hand vertical

• Suspension: Front – Spring shackle wide; Rear – Hendrickson Haulmaax spring

• Pump Drive: SS CV DS remote mount constant mesh PTO

Body

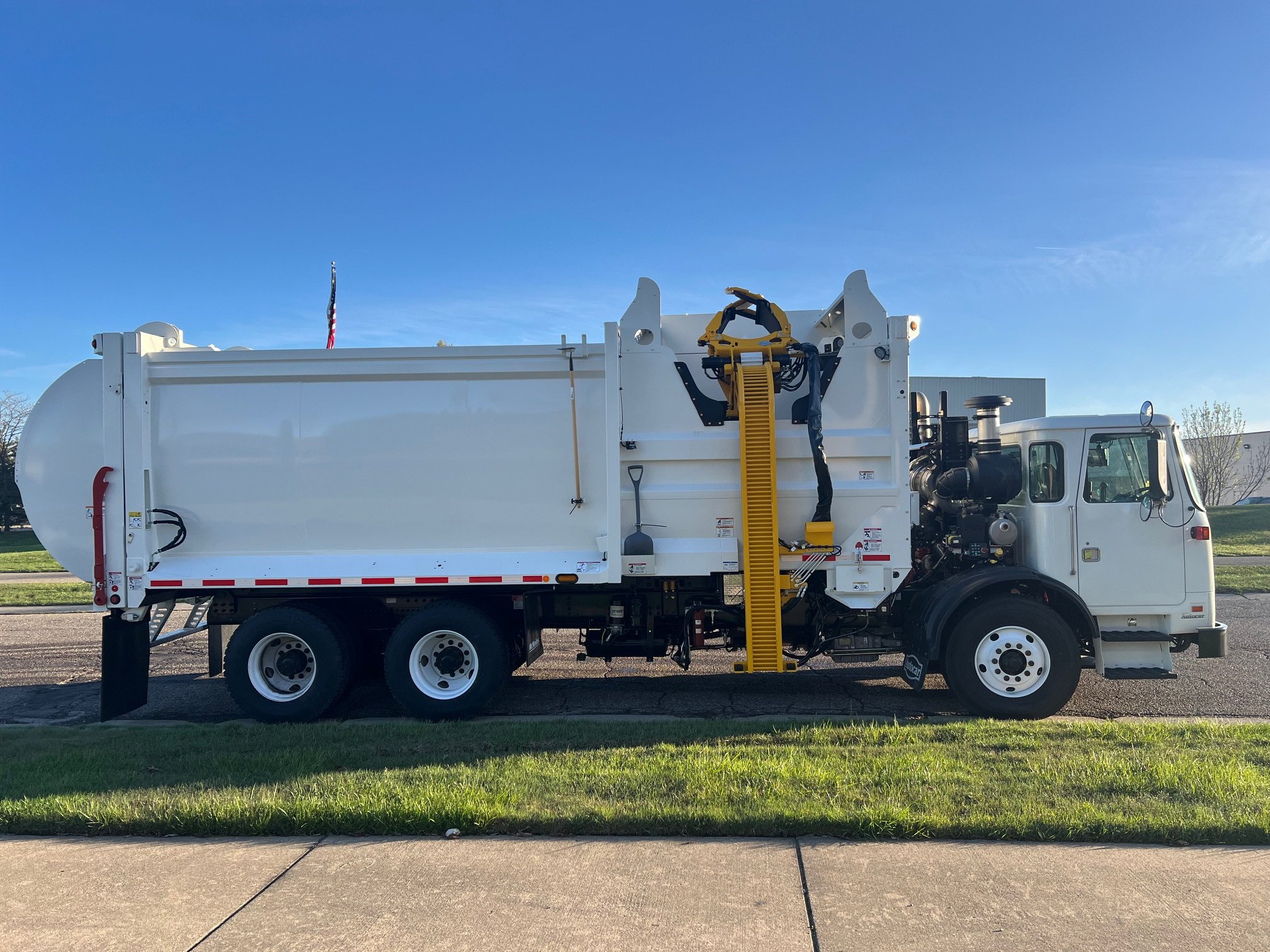

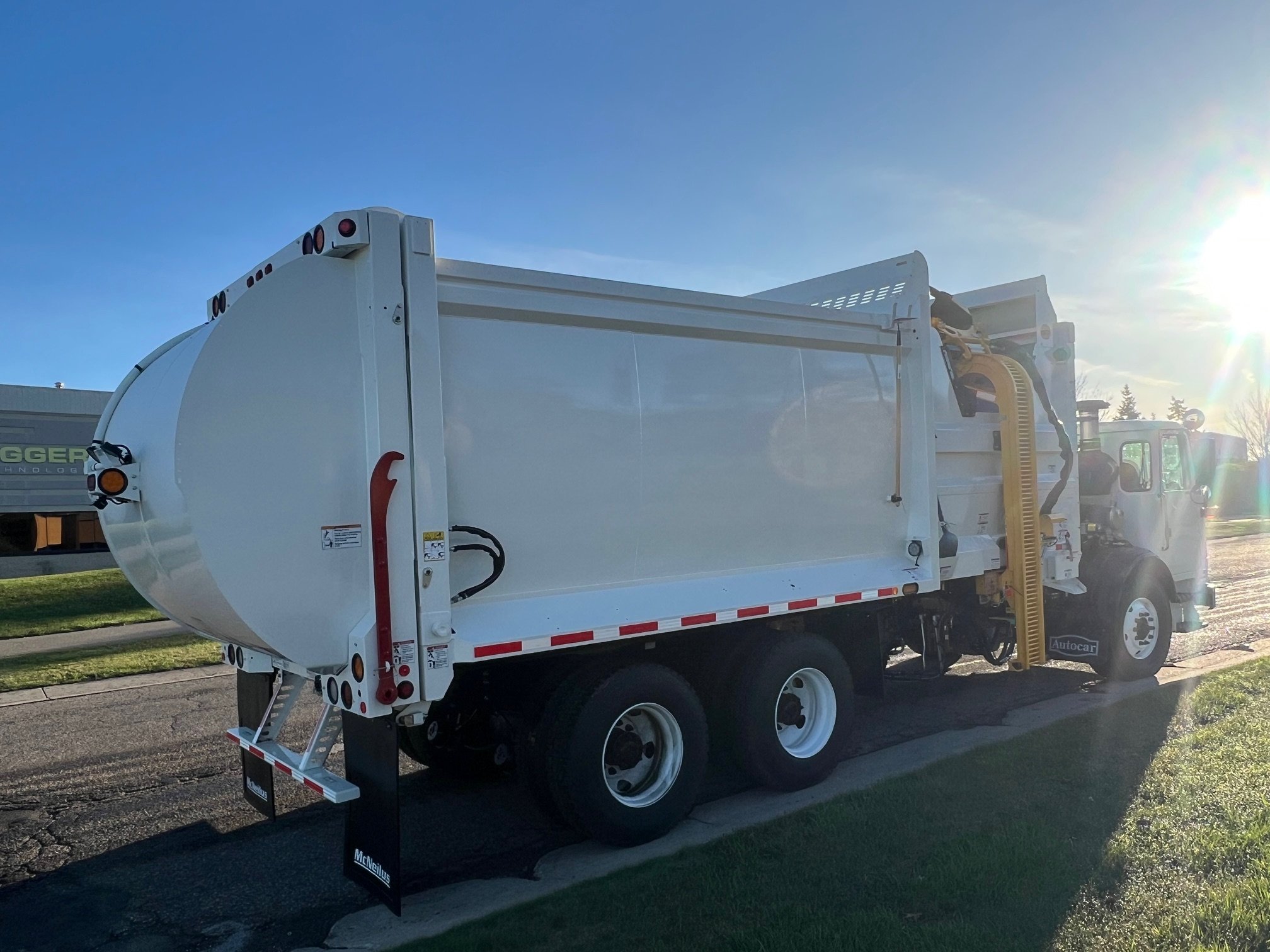

• Model: ZR Zero Radius ASL (Model 3148), 31-yard

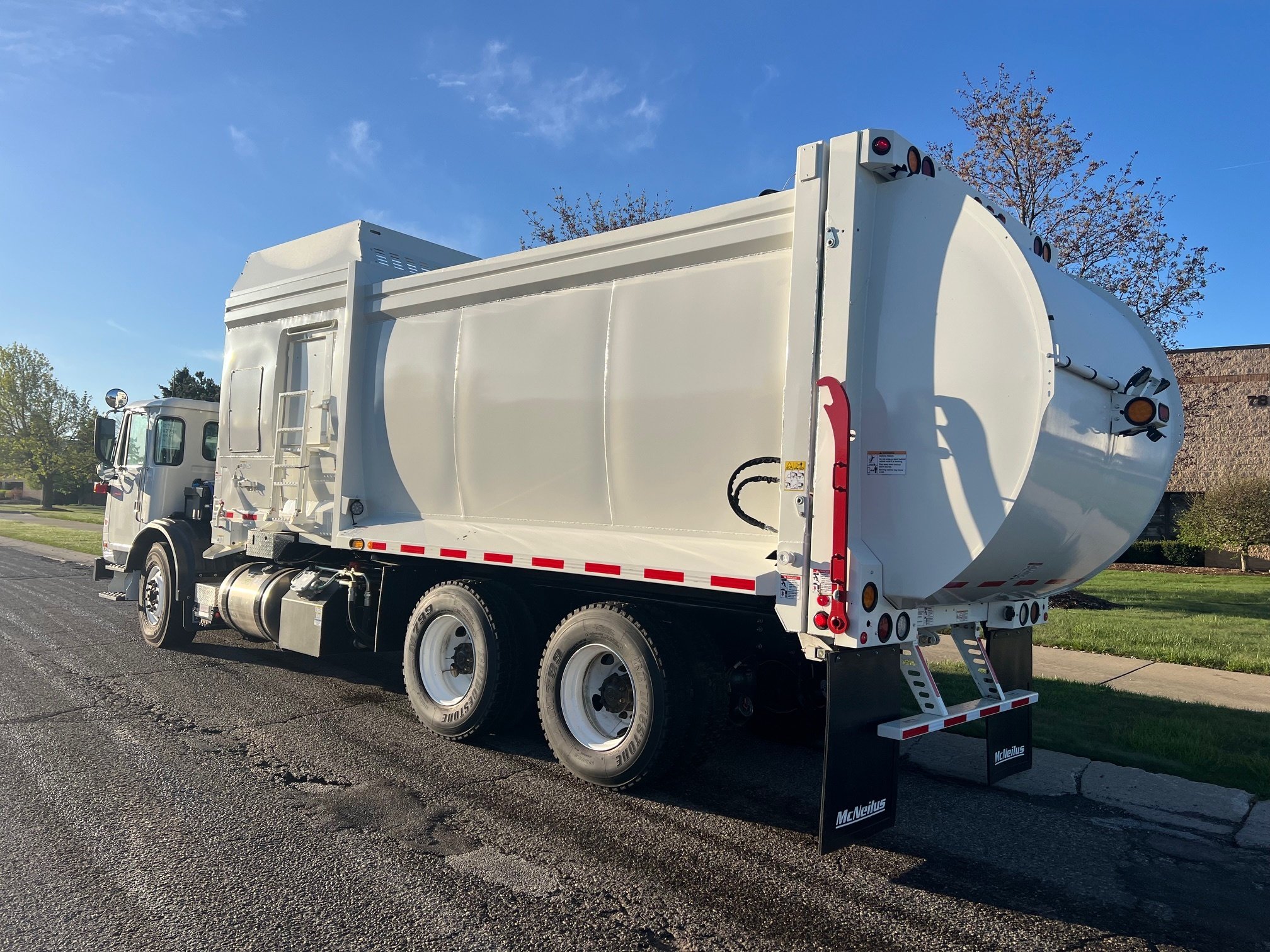

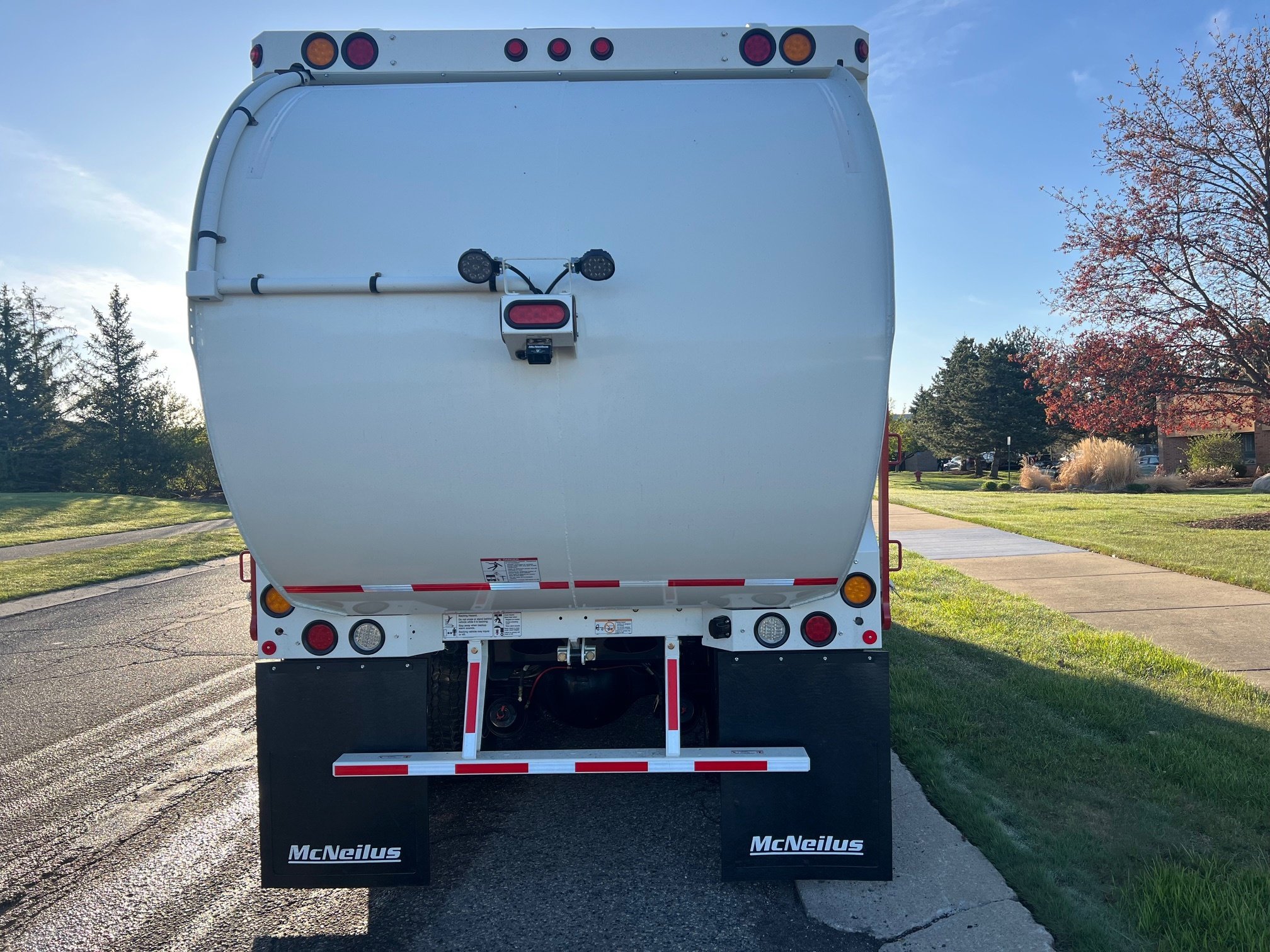

• Tailgate: 72" wide, 10 GA AR200 side panels, hard rubber seal

• Hopper: Cover panel (ZR only), 3/16" AR400 liner 3 ft high

Body Options

• Tailgate Type: Non-TG-mounted CNG

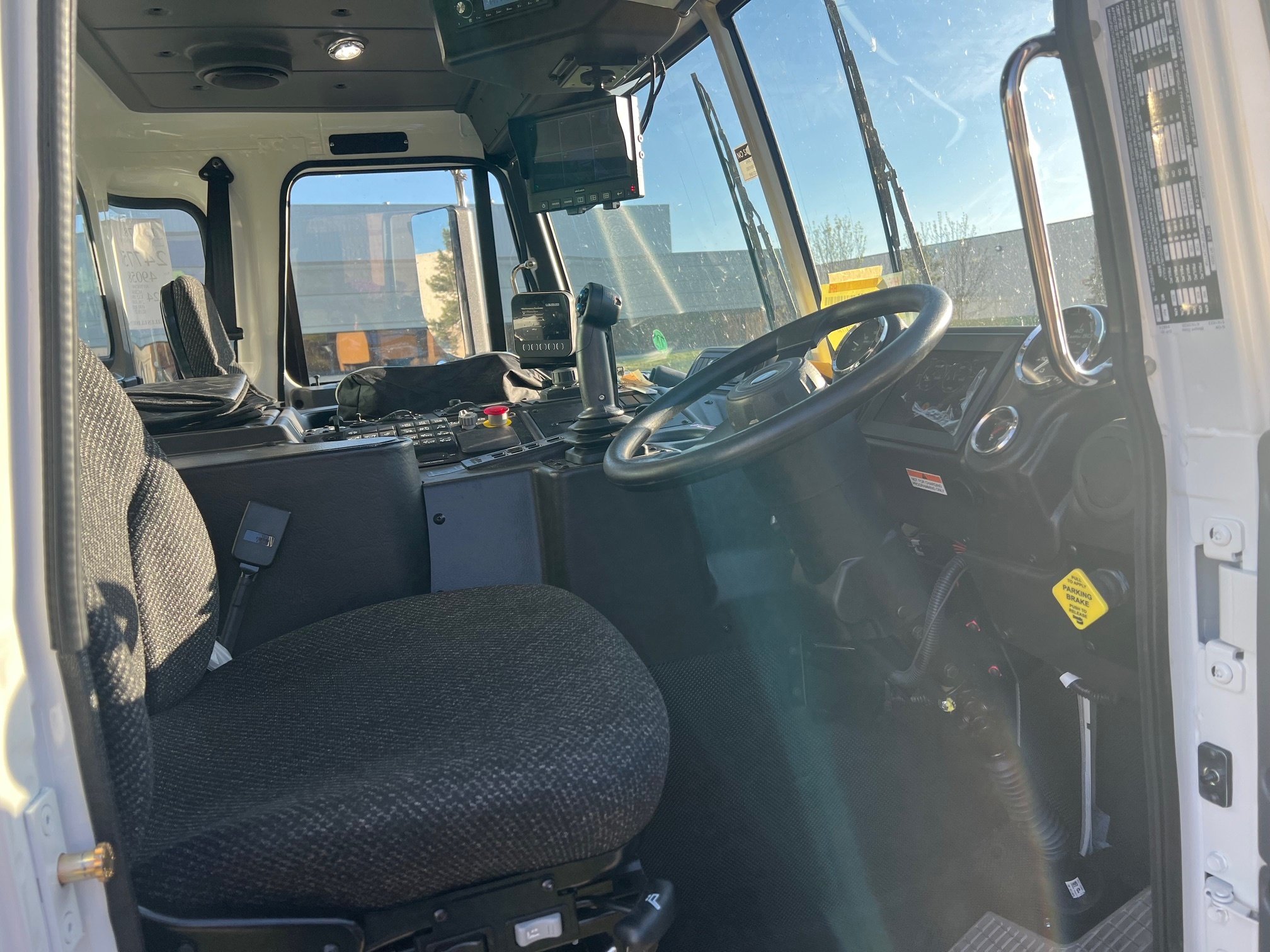

• Controls: Underseat (curbside), dash switches

• Cameras/Guards: Hopper light cam guard, arm valve cover not applicable

• Packer Follower: Standard 10 GA 50KSI panel with hinge cover

• Floor: 3/16" AR400 with liner

• Wear Protection: X-Wear standard

• Cleanout Tray: Both sides

• Deflector: Hopper wind deflector (low height)

• Telematics: Enabled

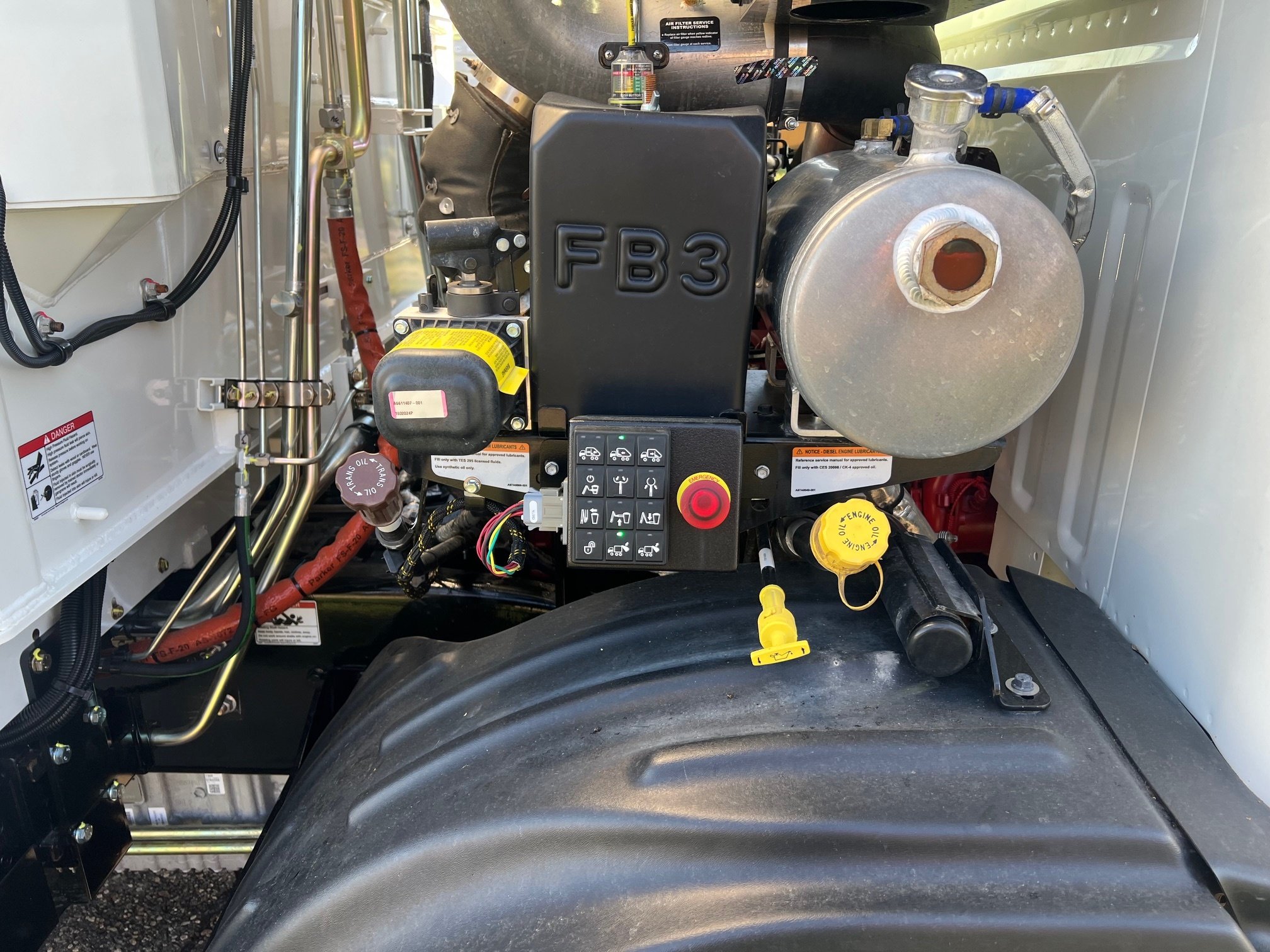

Hydraulics

• Pump: Piston

• Reservoir: Street side, standard frame-mounted

• Filters: Schroeder return, HYDAC CF 60 pressure

• Cylinders: Mailhot packer/ejector

• Cooler & Temp Monitoring: Hydraulic cooler, built-in display gauge, temp sensor in reservoir

• Shutoff Valve: Red handle ball valve

• Sample Port: KP14NV 90-degree check

• Service Lift: Liftable body without service lift

Lighting

• DOT Lights: Economy LED

• Smart Lights: 4" programmable (tailgate, side, oval FOB)

• Center Stop Light: LED

• Work Lights: 5" LED (mid-body, hopper, arm)

• Display Location: Dash (RAM mount)

Camera System

• System: SSV 9" Monitor/DVR (6-port)

• Mount: Overhead RAM mounted

• Cameras: Qty 4

  • Street side mirror-mounted

  • Rear hopper (SS)

  • Down-looking arm cam

  • Tailgate assist (dual 5" LEDs)

Arms & Forks

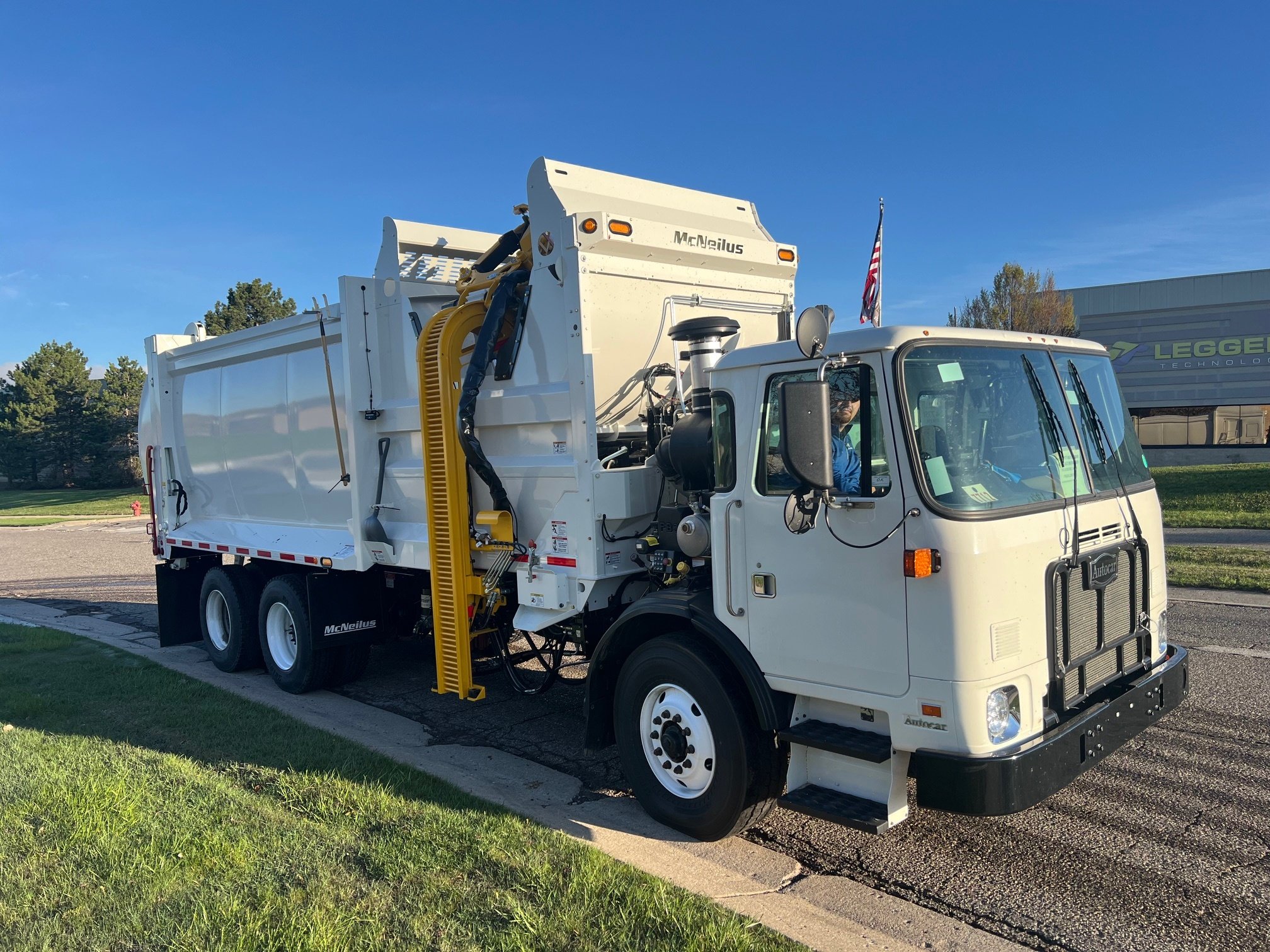

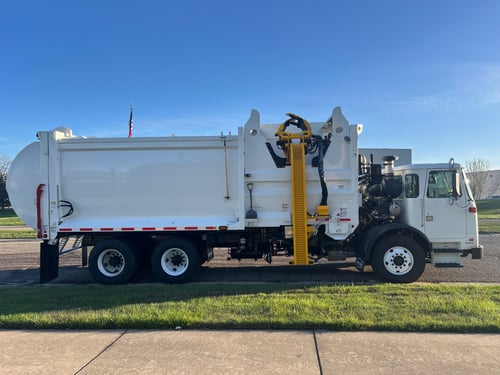

• Model: ZR 12' Extended Reach Arm – 96 gal

• Fingers: Standard finger grabber

• Controls: Curbside joystick

• Digital Features: Can counter, grabber interlock

Misc. Body Equipment

• Mudflaps: Black McNeilus logo (front/rear)

• Backup Alarm: ECCO dual-tone

• Shovel: One 11" plastic

• Shovel Holder: Curbside hopper wall

• Clean-Out Tools: Hoe and holder body-mounted

Paint

• Body Color: White  – Matches cab

• Undercoating: VG104 on body

• Arm Color: Goldenrod yellow
