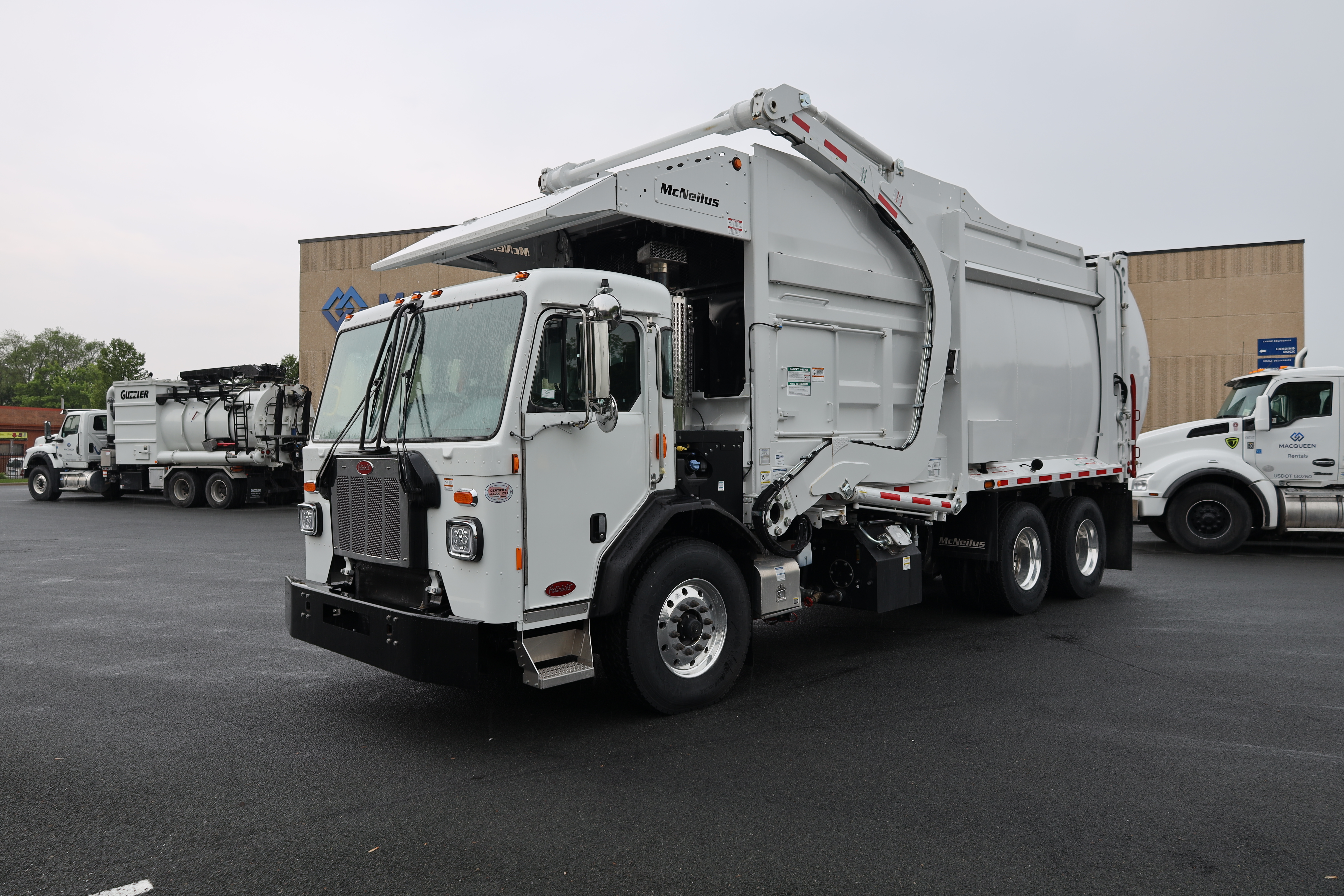

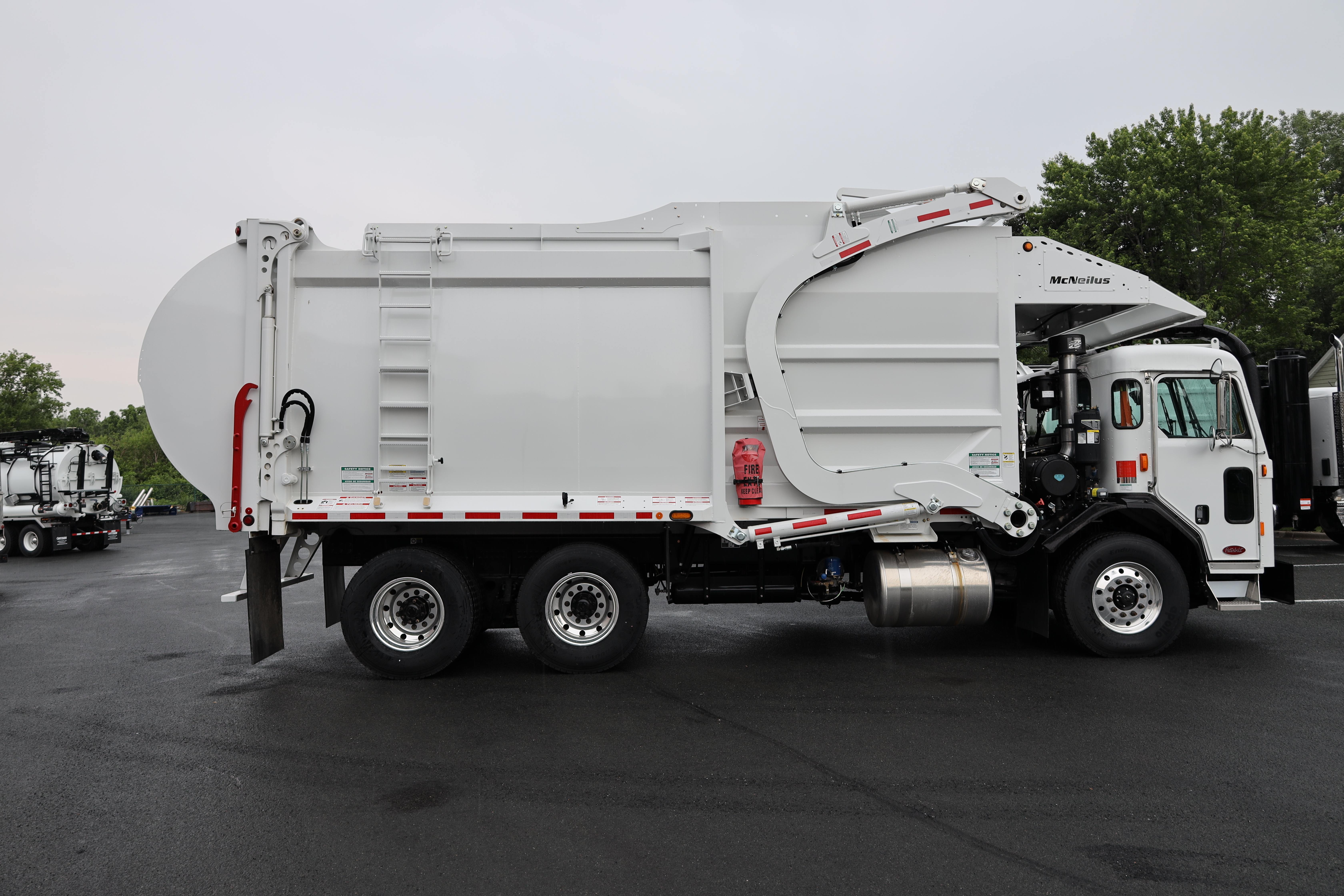

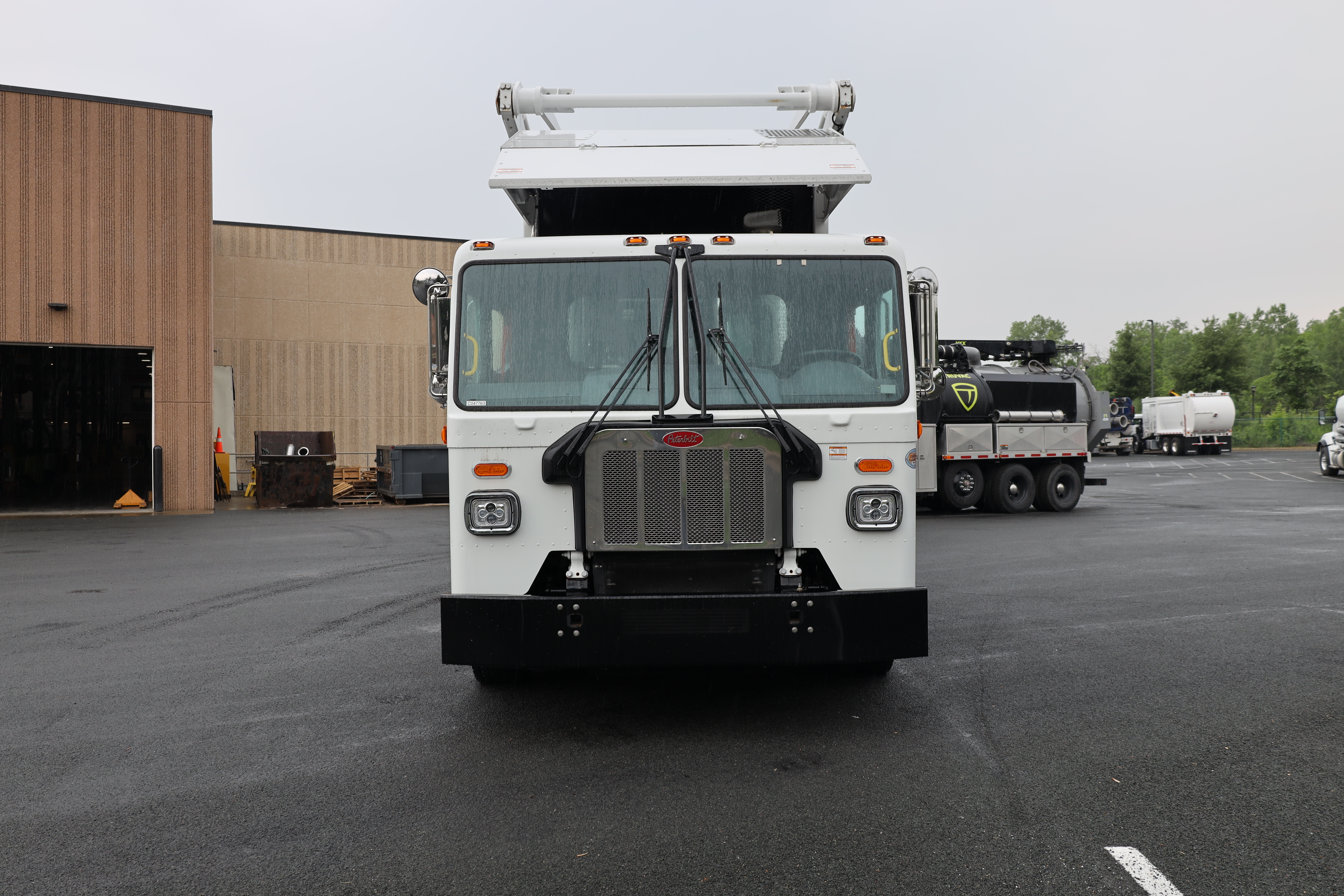

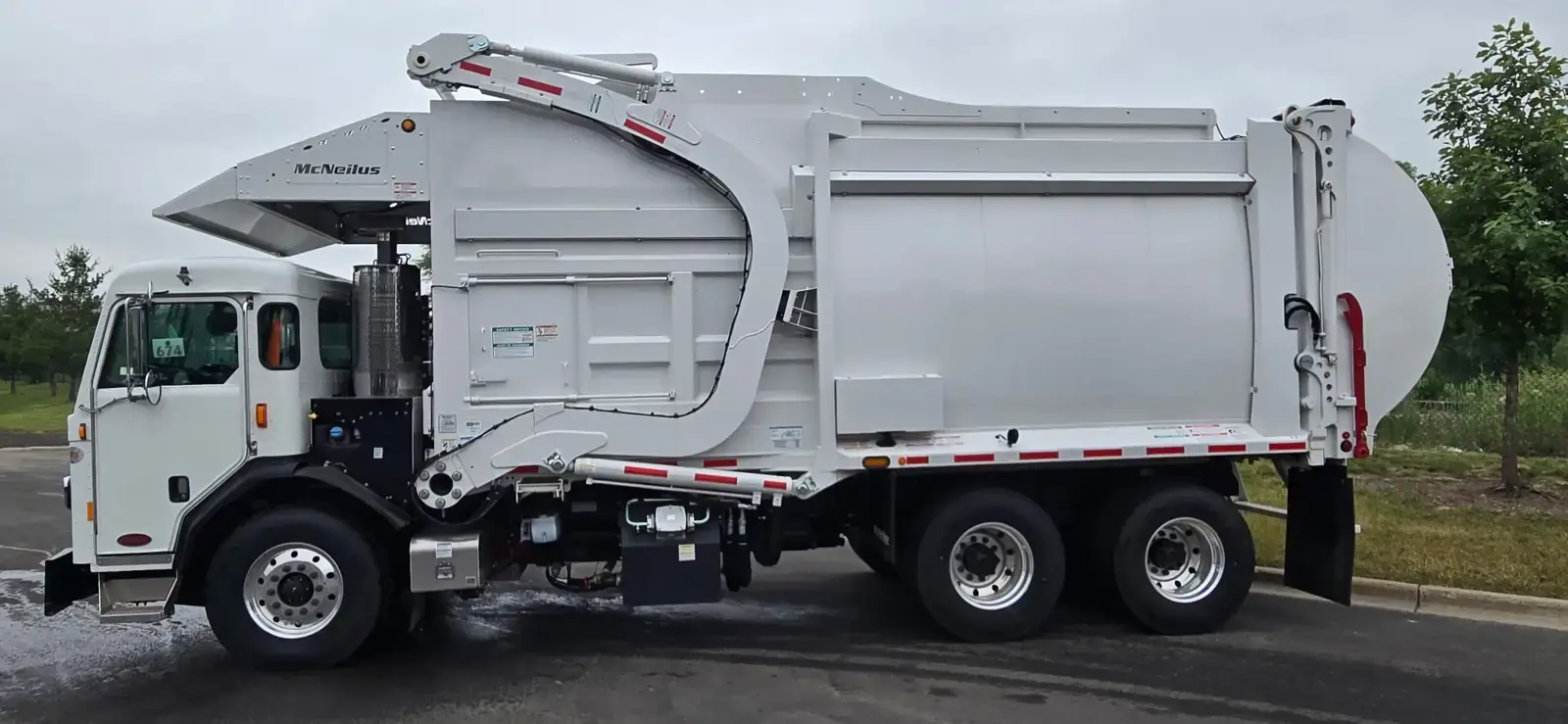

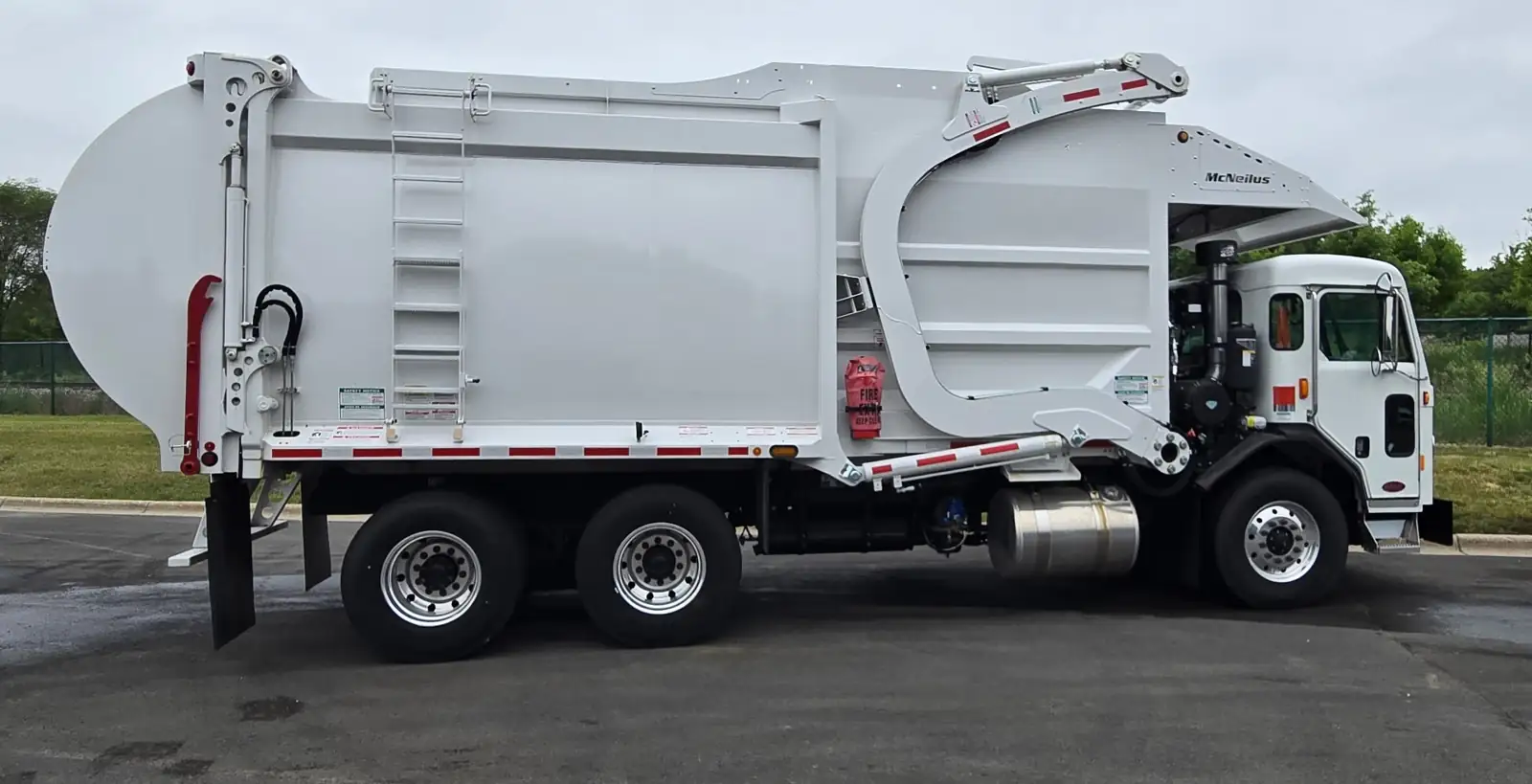

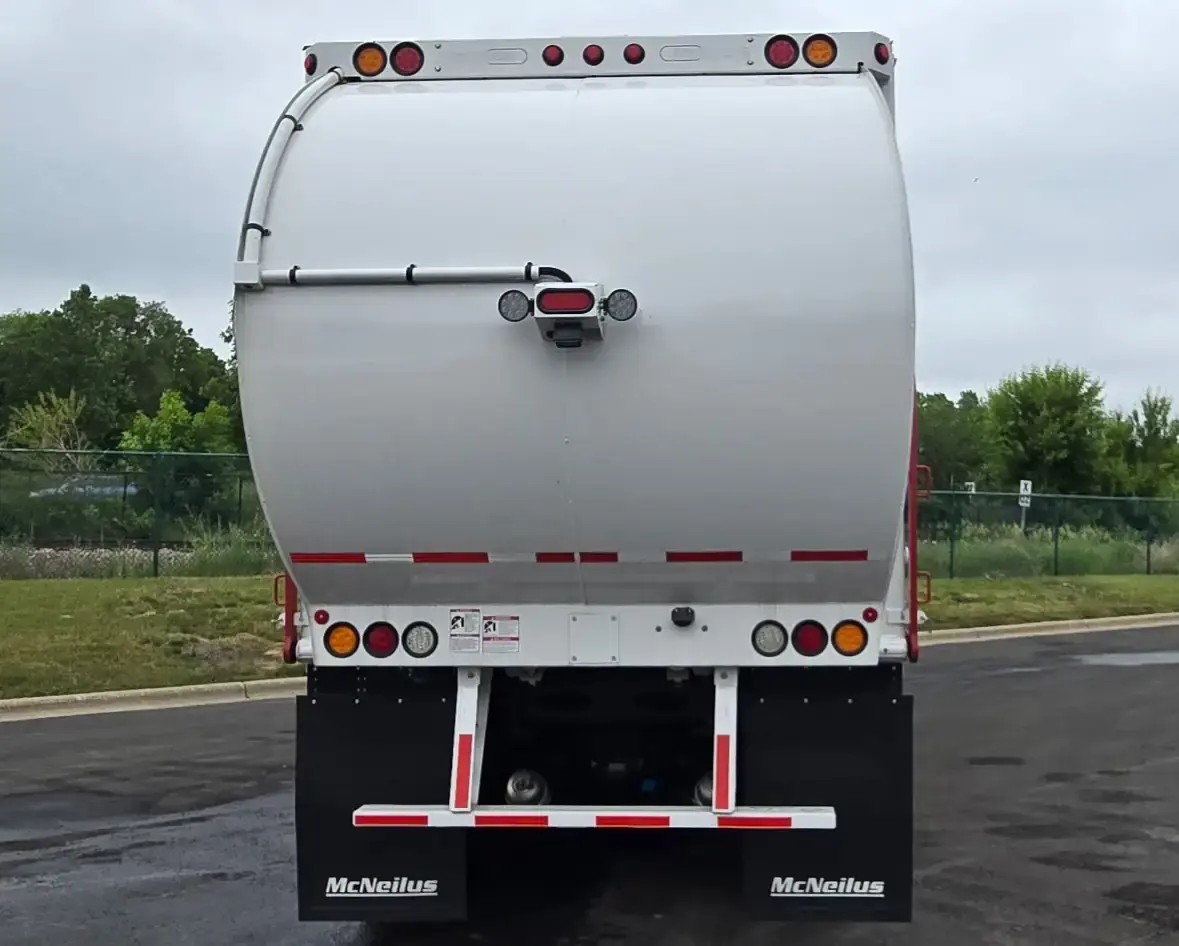

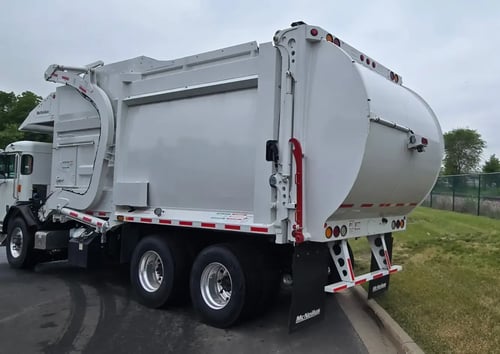

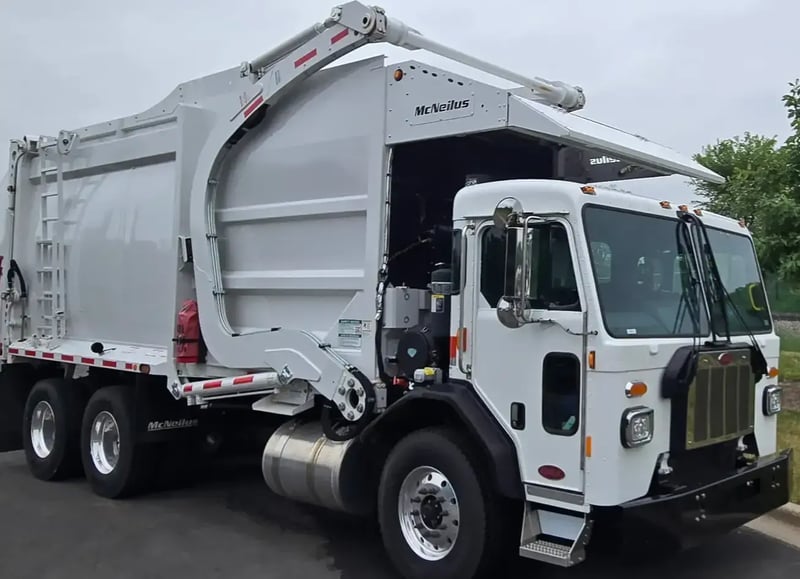

2025 McNeilus Atlantic

SKU: C047763

Location:

Chassis

Packer Type: Model 29 – Atlantic Front Loader
GVW Category: 33,001 lbs or greater
Chassis: Peterbilt 520
Engine: PACCAR MX-11 (Post-1/1/2017 emissions)
Transmission: Allison 4500 RDS
Battery Box: Street side frame mounted
Windshield Guard: Single bar guard
Cab Mirrors: Aero style
Top Spot: Streetside
Pump Drive: SS 897 constant mesh
Front Tire Size: 425/65R22.5

Body

Model: 4029 Atlantic – Medium Body
Capacity: 4029 Commercial
Wall/Floor: Standard wall, AR400 floor
Hopper Floor: Standard with cleanouts (Atlantic CS)
Cleanout Door Spill Tray: Curbside
Canopy: Universal square steel
Canopy Lip Control: Curbside push-pull air switch
Windguard: Standard

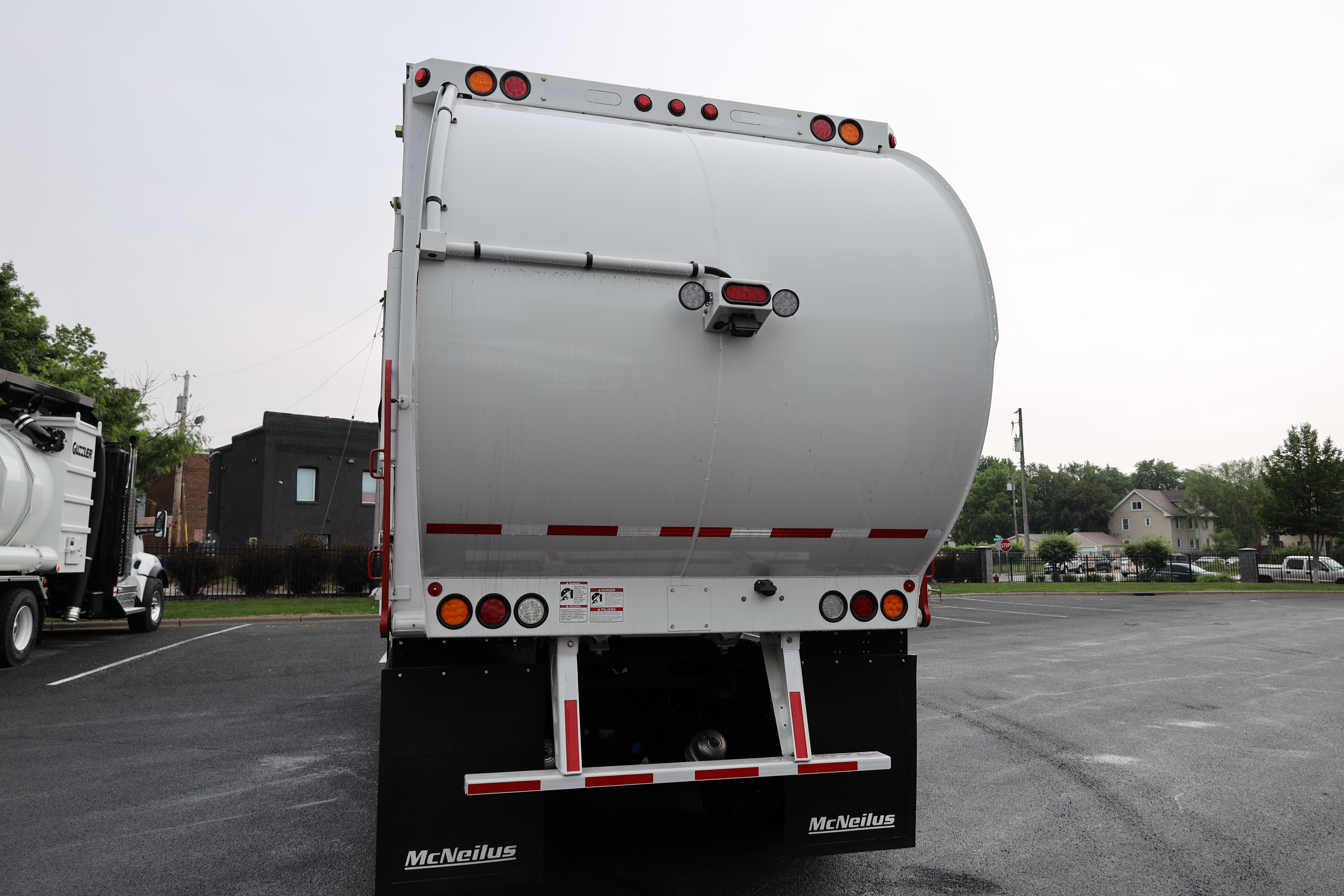

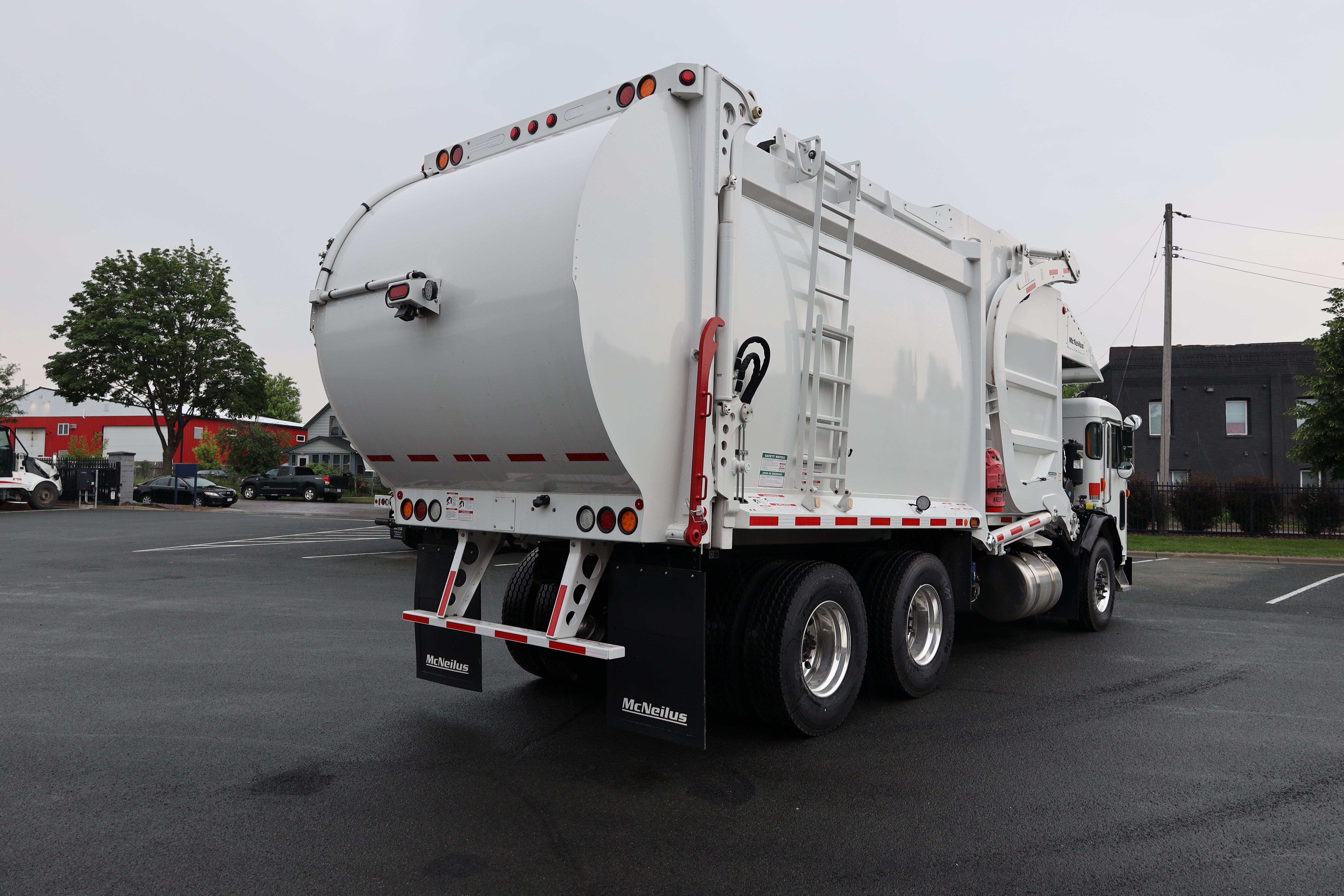

Tailgate: 72" steel bumper, 10 GA AR200 side panels
Access Ladder: Center rung slide-out

Body Options

Hopper Floor Liner: 3/16" AR400
Paper Screen: Standard
Tailgate Seal: Hard rubber
Roof Ladder: ANSI, rearward (curbside)
Top Door: Heavy-duty top door (Atlantic)

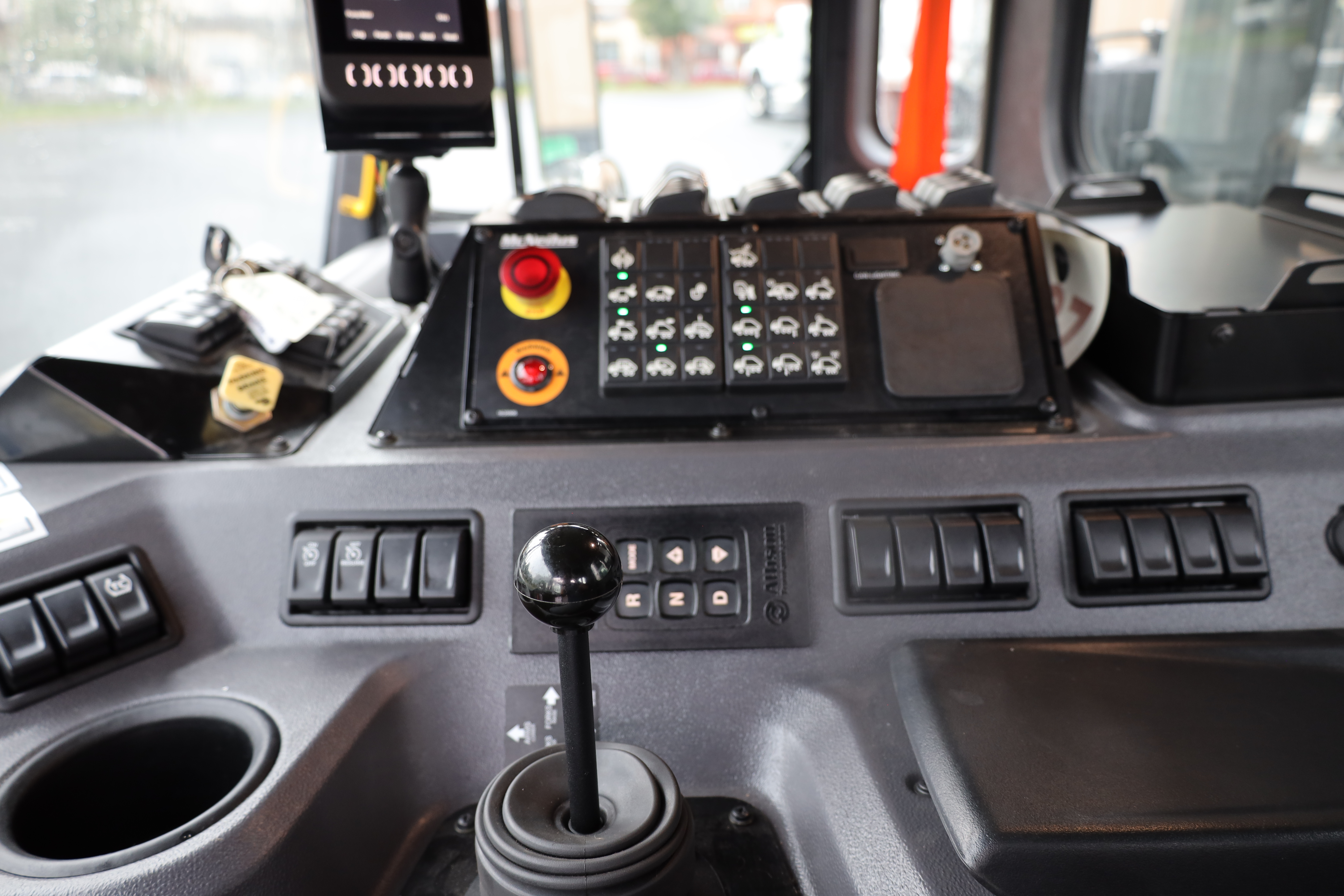

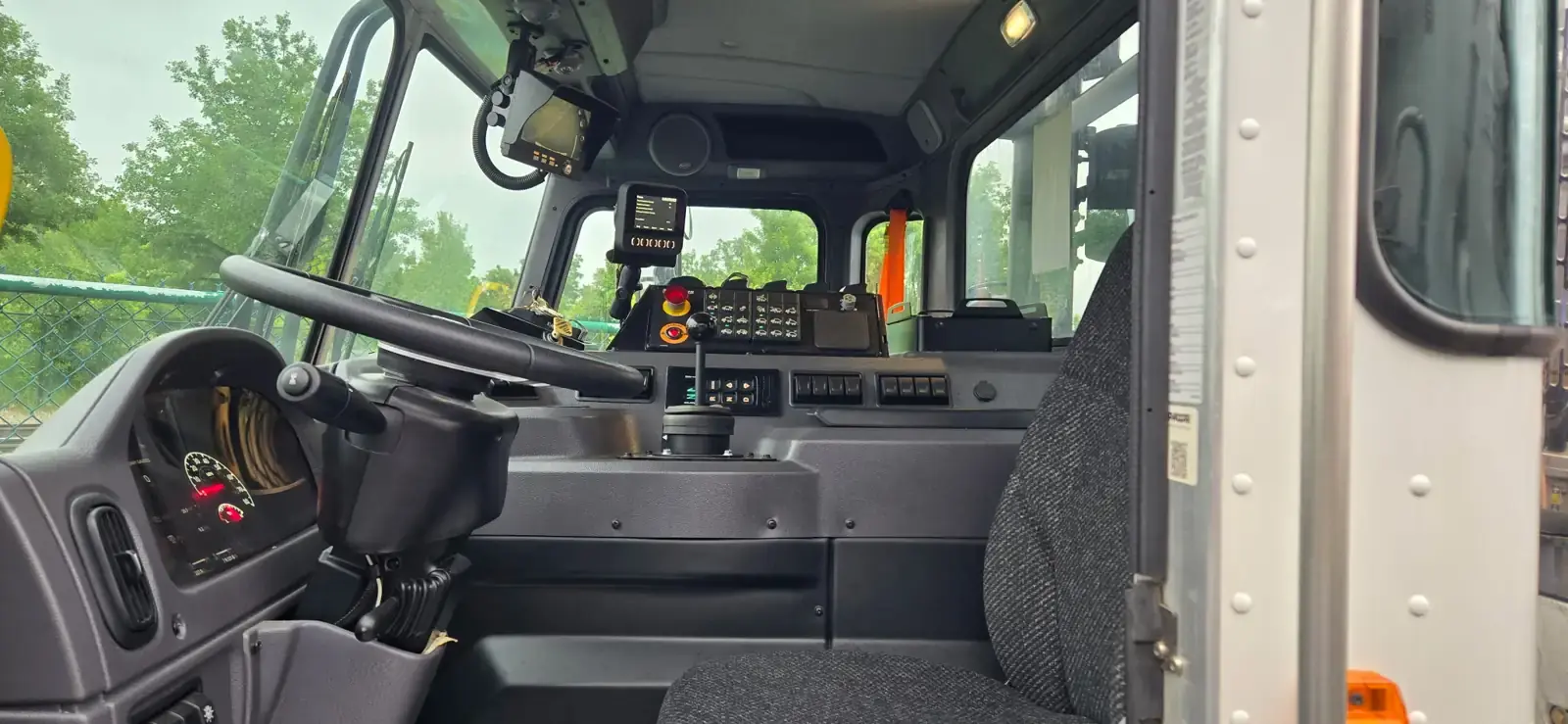

Cab Controls: Low-profile control
Driver-Side Control: Pneumatic joystick
Display Location: Doghouse

Hydraulics

Pump: Standard gear pump
Main Valve: Air/Hydraulic mounted on headframe
Reservoir: Standard steel rectangle, frame-mounted (street side)
Fill Through Filter: #6 Male QD Eaton 3K21
Shutoff Valve: Gate valve with red handle
Fluid: ISO46 – US Oil
Filters:

Return: Schroeder (in-reservoir)
Pressure Test Port: SS FOB #4 Aeroquip FD45 QDC
Sample Port: Preinstalled in filter (LF-7611)

Breather Cap: Filler/breather on reservoir
Filler Cap: Standard
Hose Wrap: Cordura wrap (required hoses)
Body Lift: Hydraulic service lift
Reservoir Temp Compensation Marking: Not included

Lighting

DOT Lights: Economy LED
Light & Harness Package: Standard 12V lighting and harness
Hopper Lights: Canopy-mounted, single 5" round LED (Economy)
Dump Light: Canopy-mounted 5" LED (Economy)
Smart Lights: 4" Peterson (tailgate)
Mid-Body DOT Light: Oval amber turn signal/marker
Mid-Body Work Lights: Fender-mounted, round 5" LED (Economy)
Center Stop Light: Economy LED (center of tailgate)
Tailgate Corner Lights: None (smart strobes selected)

Camera System

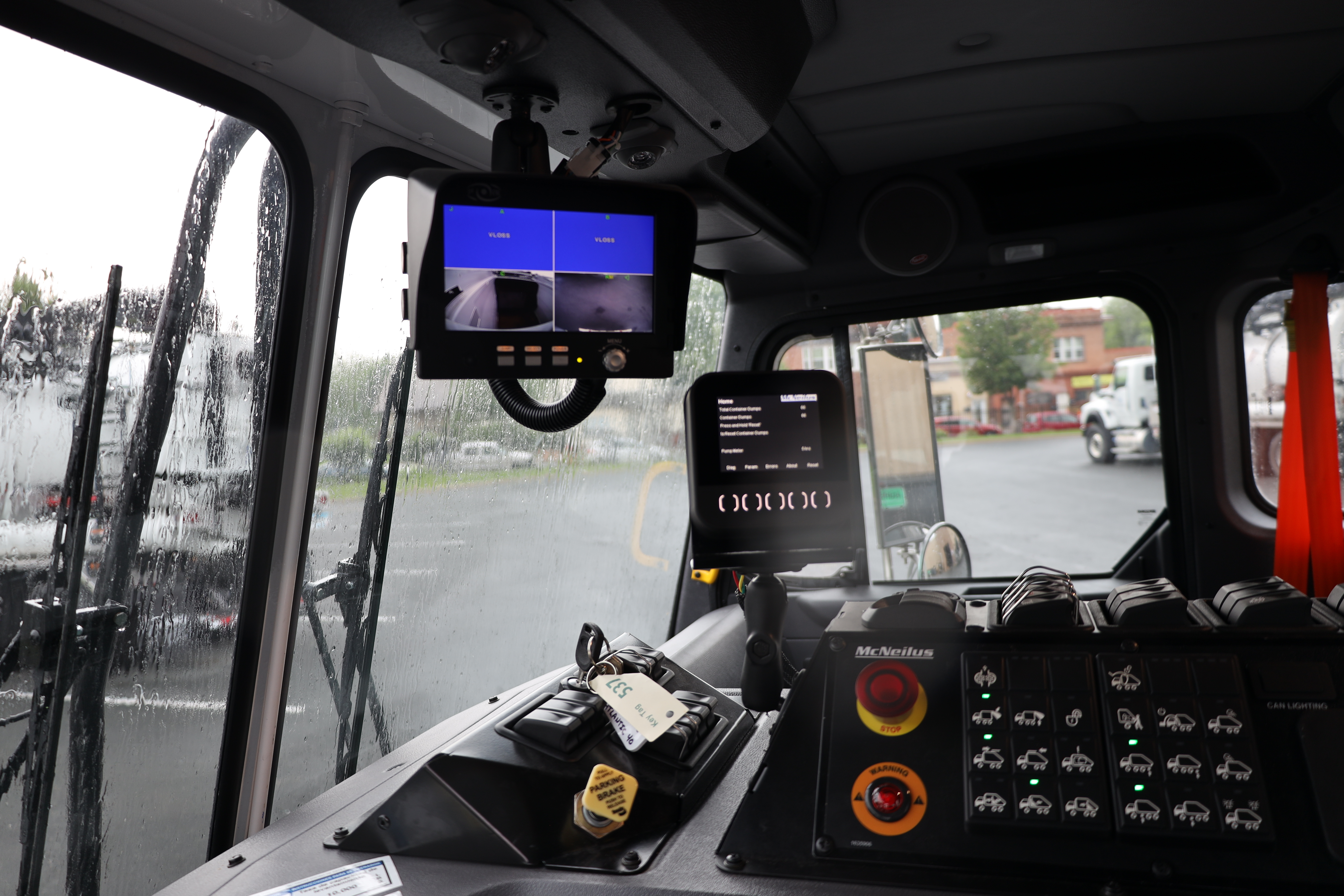

System: 3rd Eye 7" Monitor (Color, 4-port)
Mount: Center overhead with swivel
Monitor Display (Reverse): Tailgate camera
Cameras: Qty 2

Hopper: Street side rear hopper
Tailgate: Reverse camera
Assist Lights: Dual economy 5" round LEDs

Residential Options

Container/Kit: No residential container
Arm Tubes: None – no residential package
Fork Model: 62" Fixed forks

Arms & Forks

Fork Cylinder: Standard
Arm: Atlantic
Bumper Pads: Two
