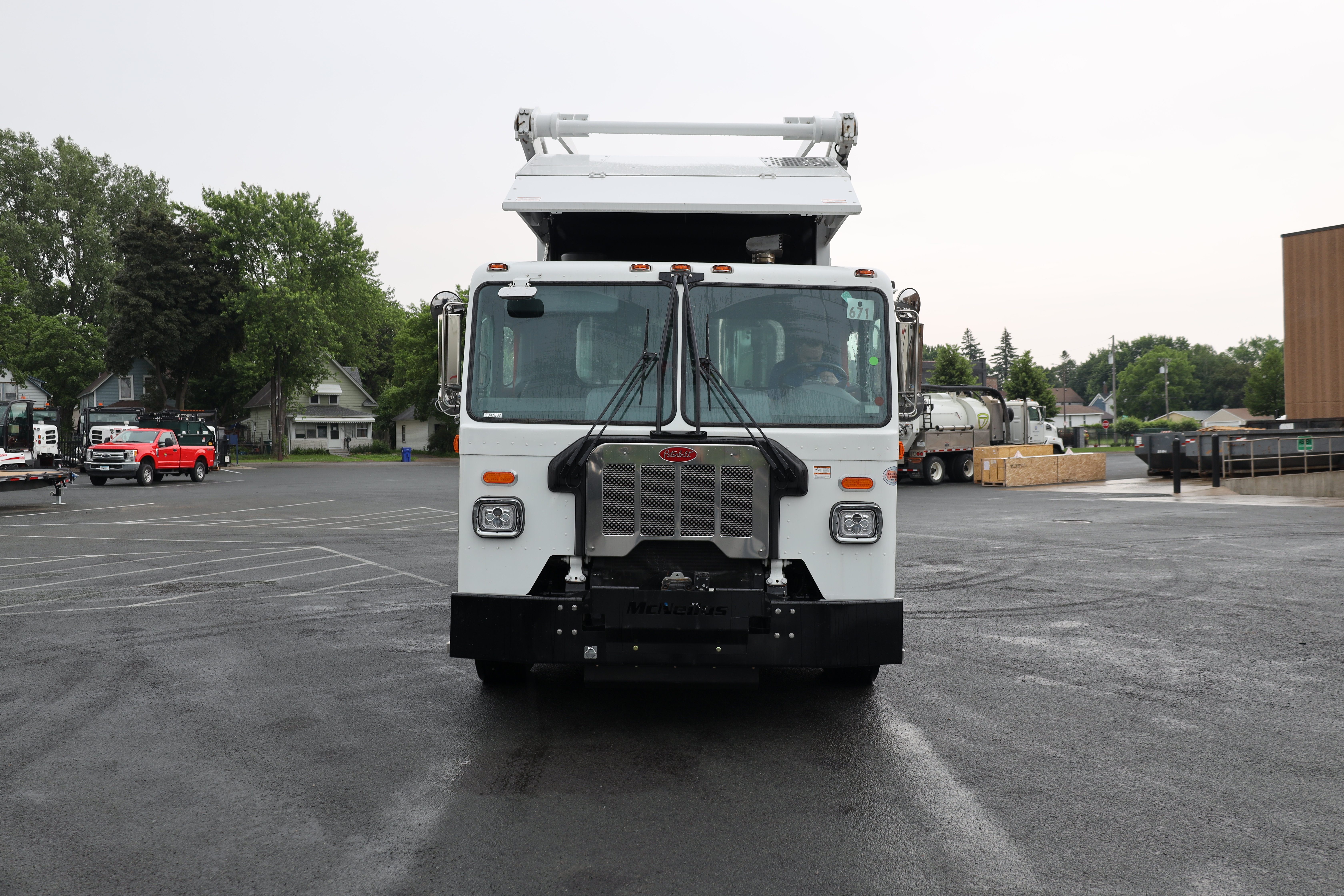

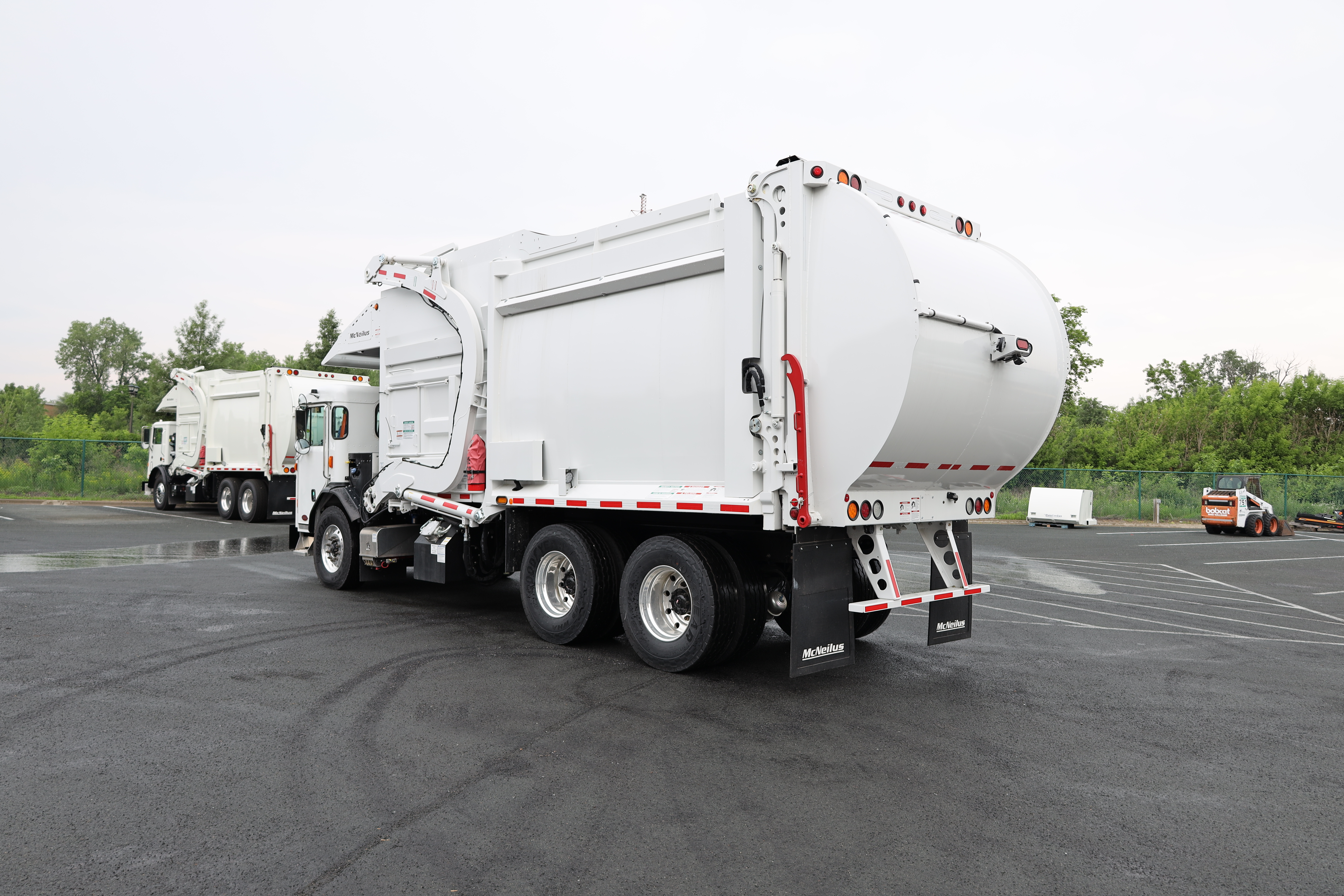

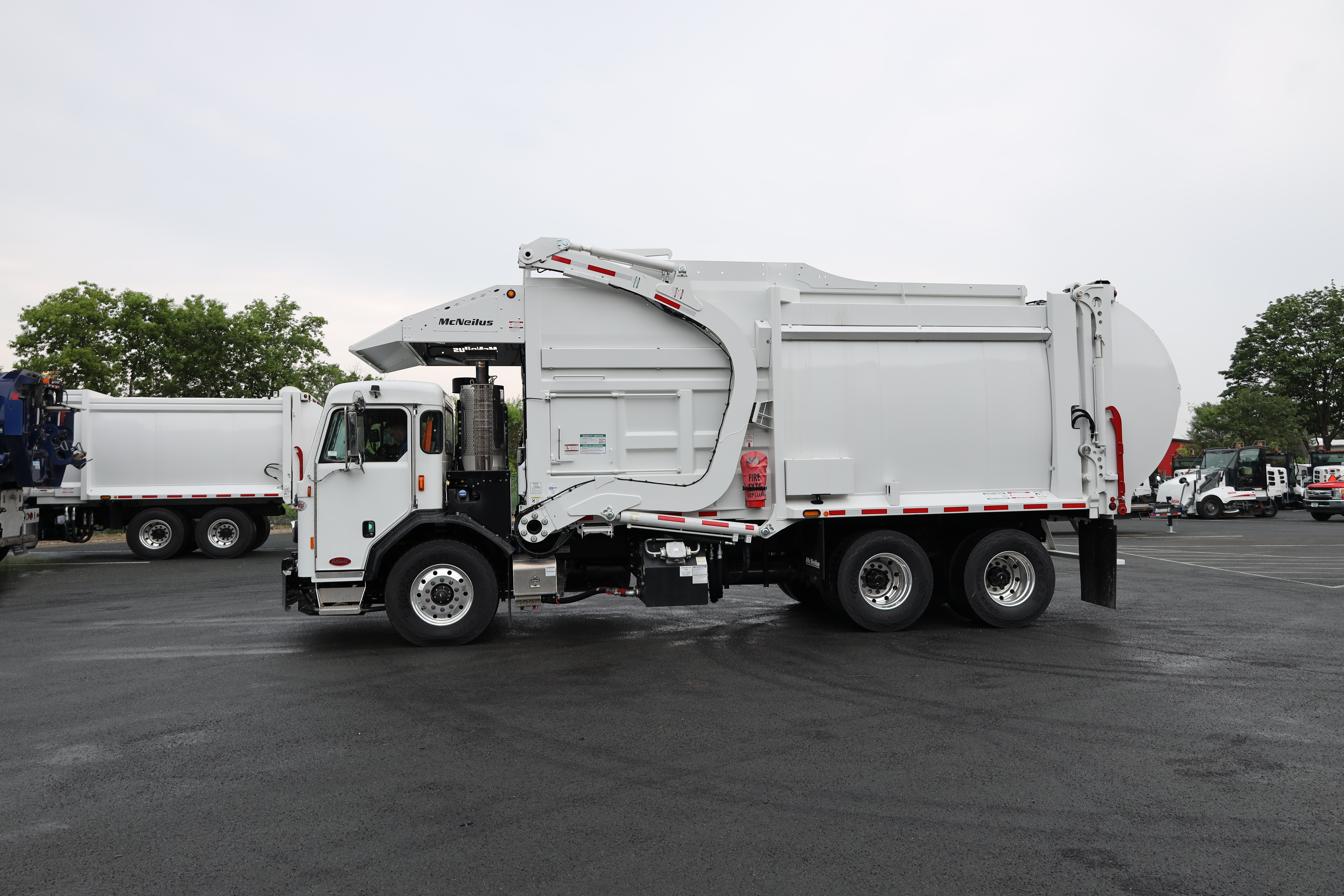

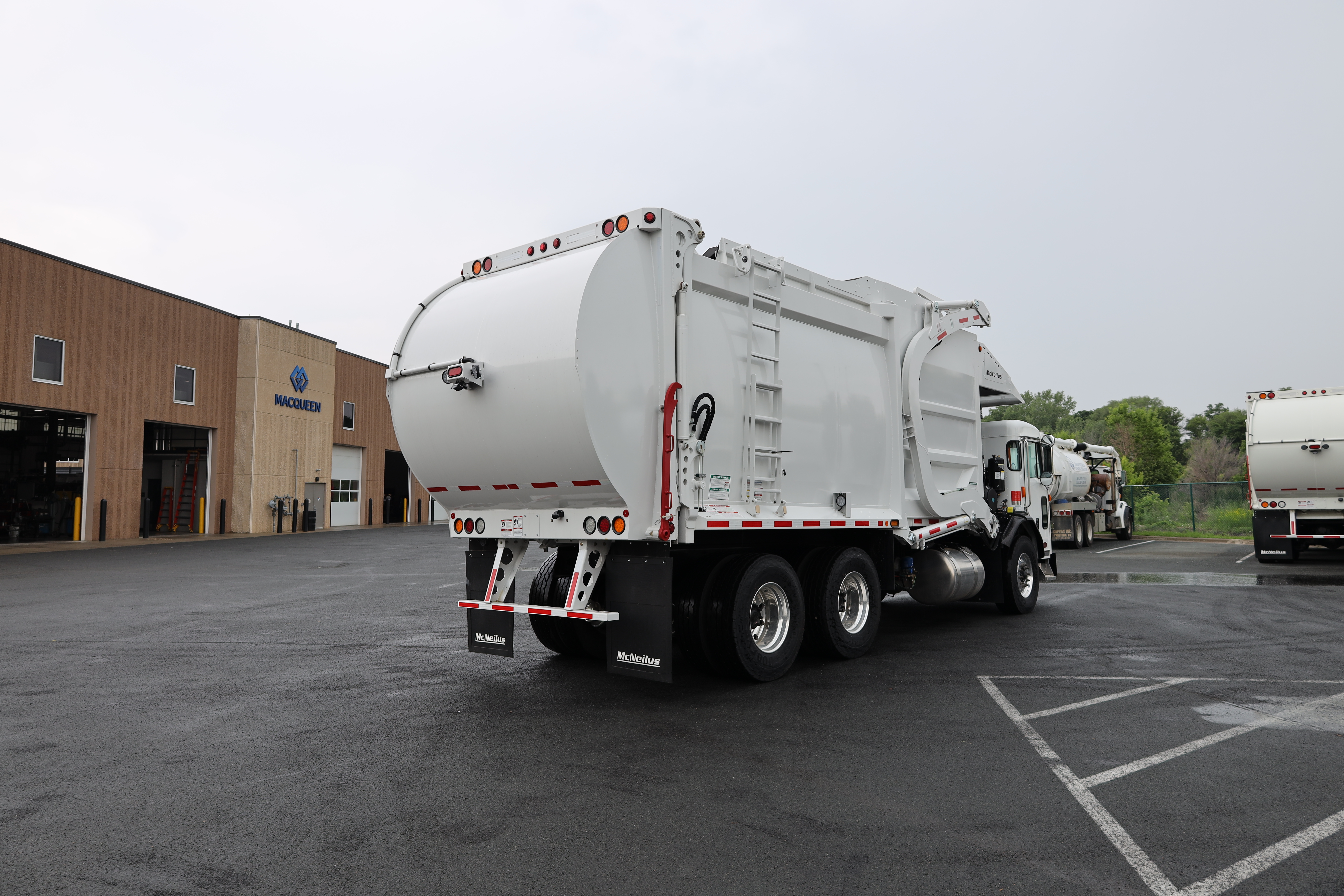

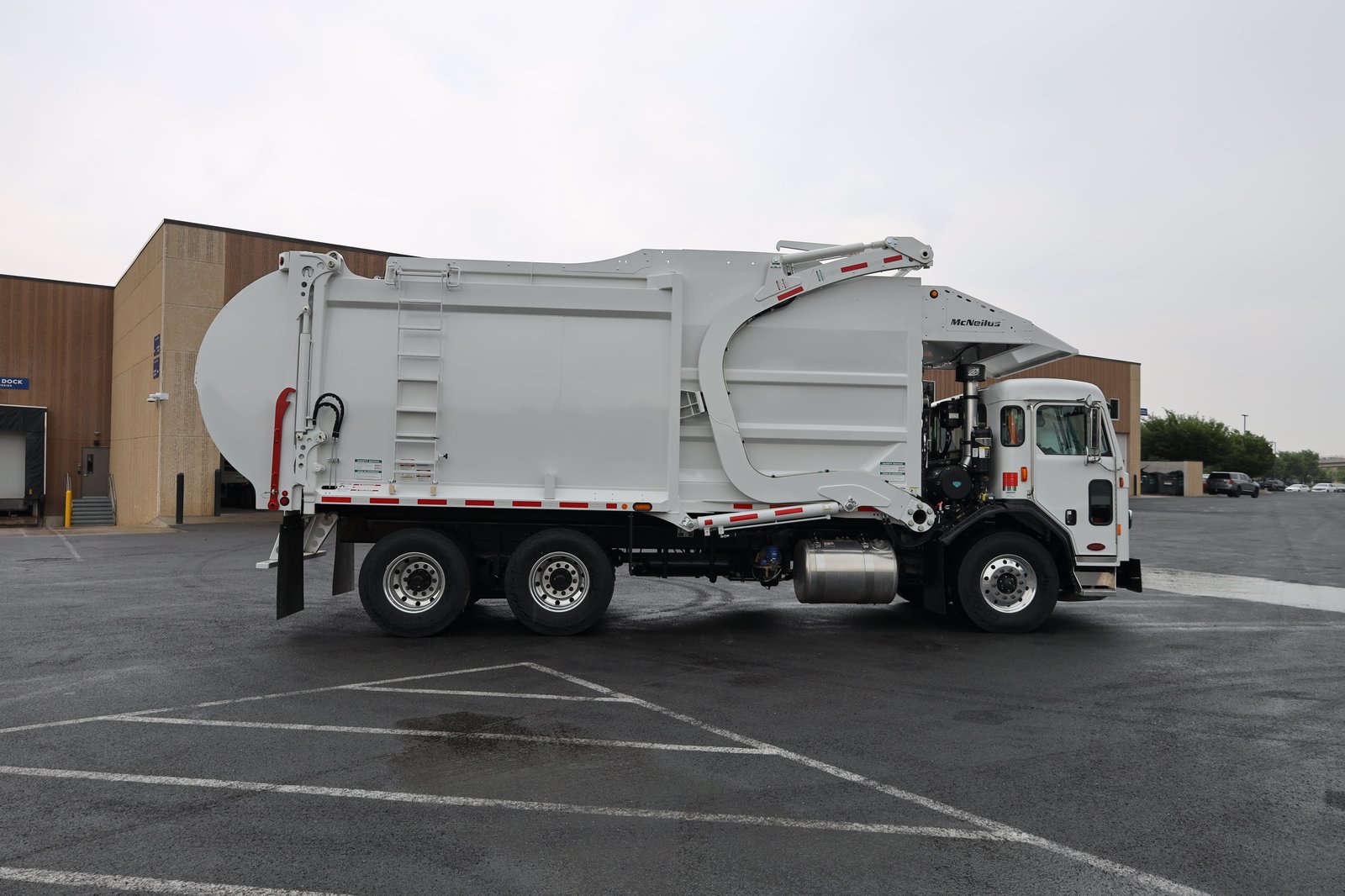

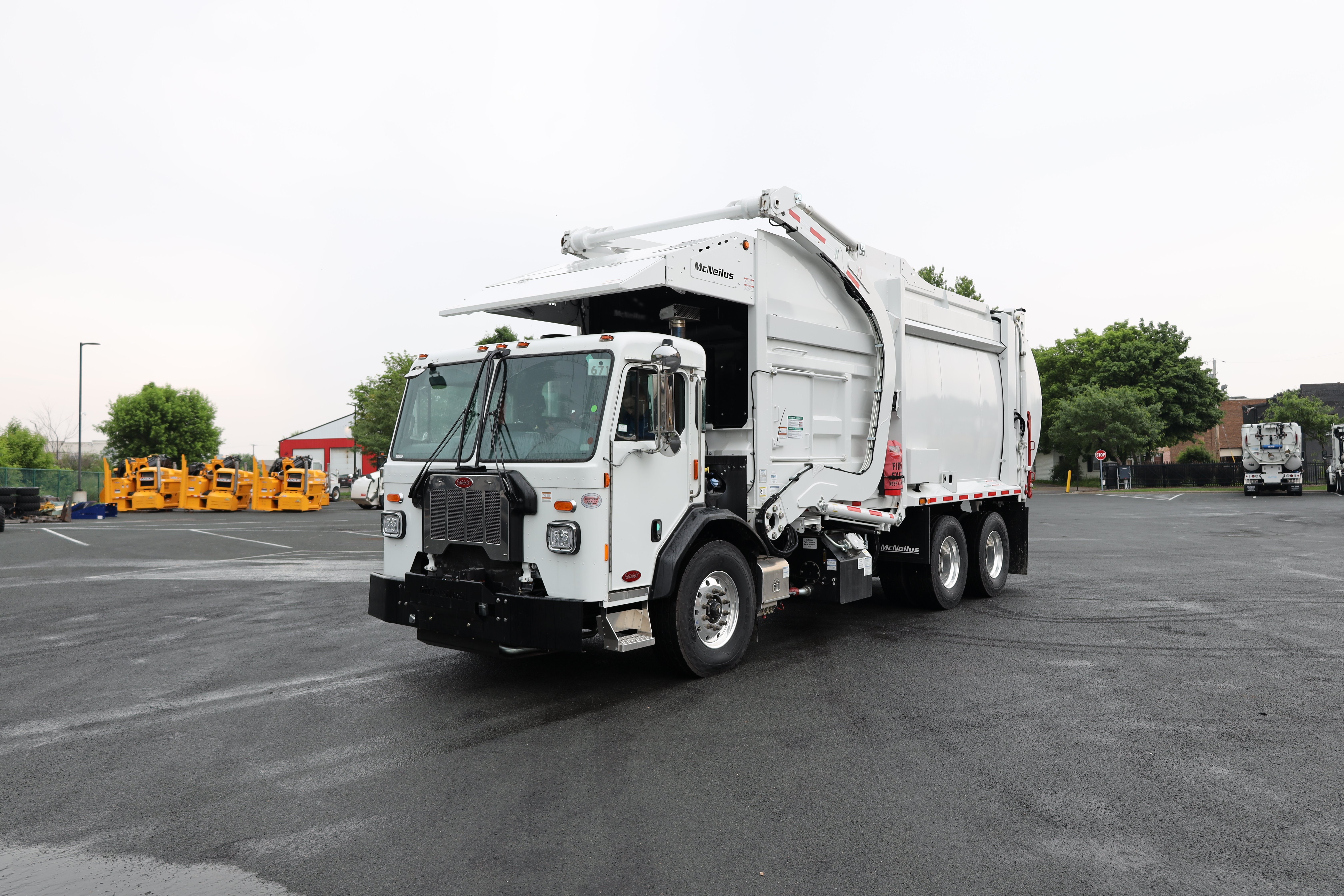

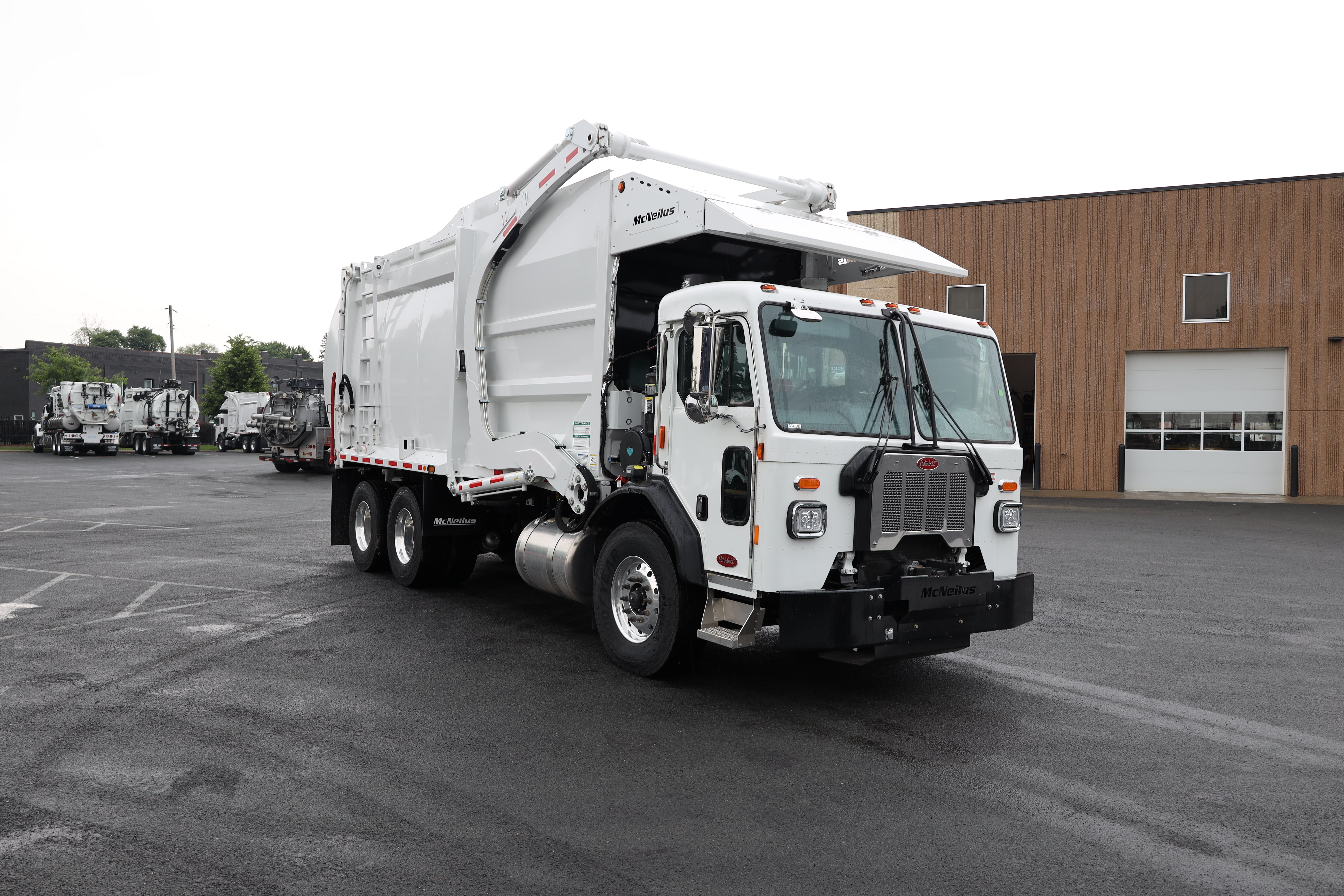

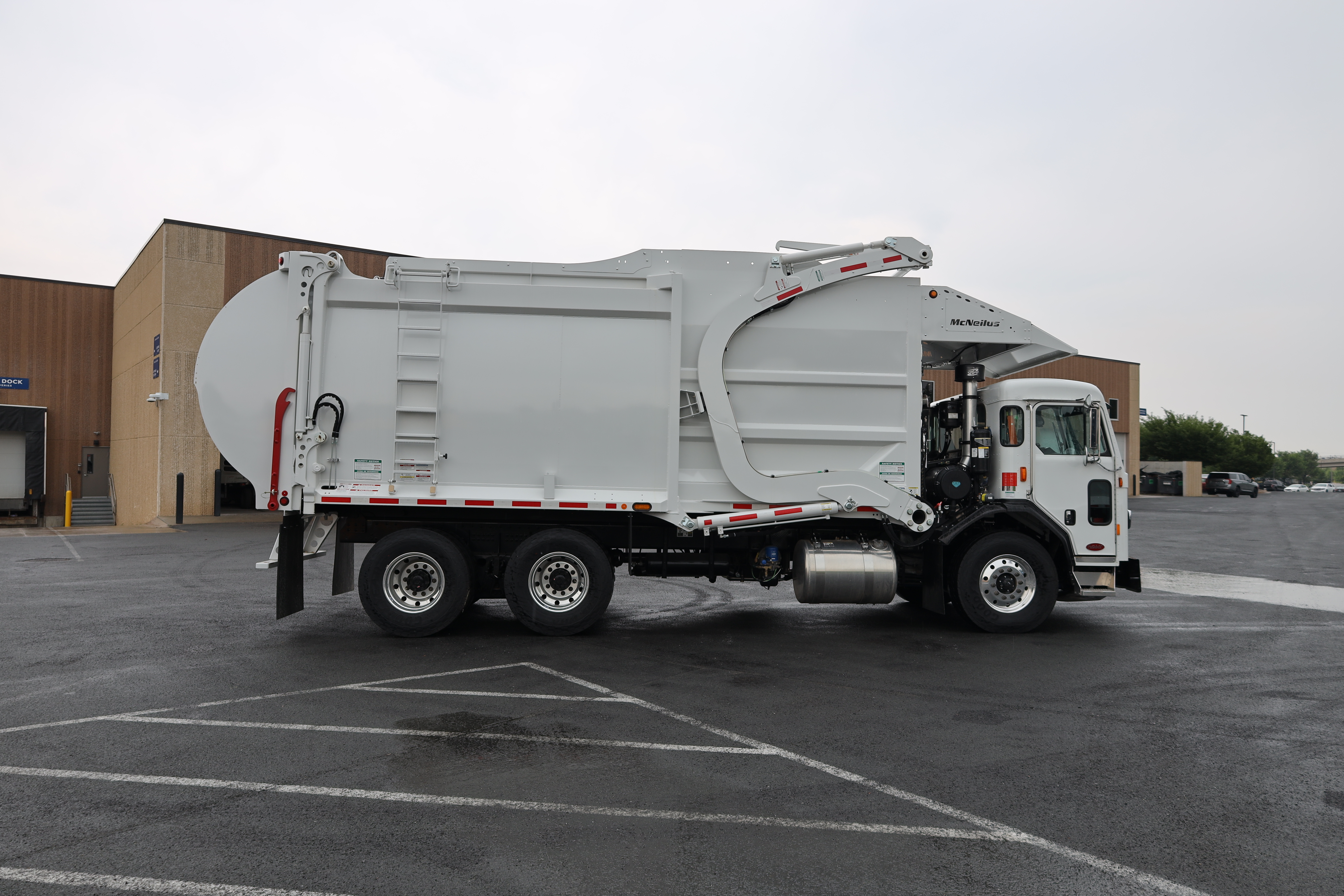

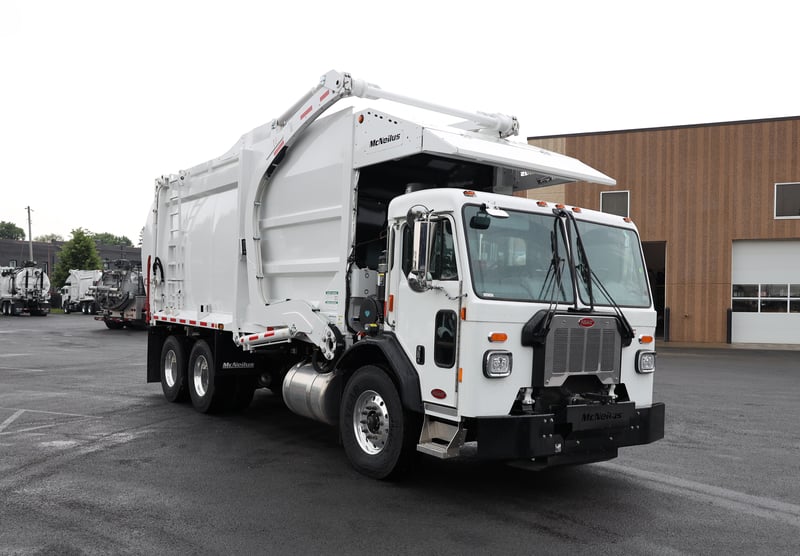

2025 McNeilus Atlantic

Chassis

• Packer Type: Atlantic Front Loader
• GVW Category: 33,001 lbs or greater
• Chassis: Peterbilt 520
• Engine: PACCAR MX-11 (Post-1/1/2017 emissions)
• Transmission: Allison 4500 RDS
• Double Frame: Yes
• Battery Box: Street side frame mounted
• Pump Drive: Front engine mounted (FEPTO)
• Cab Mirrors: Aero style
• Windshield Guard: Single bar guard
• Front Tire Size: Other than 425/65R22.5

Body

• Model: 4029 Atlantic – Medium Body
• Capacity: 4029 Commercial 40yd
• Wall/Floor: Standard wall, AR400 floor
• Hopper Floor: Standard, Atlantic (without cleanouts)
• Canopy Lip Control: Curbside push-pull air switch

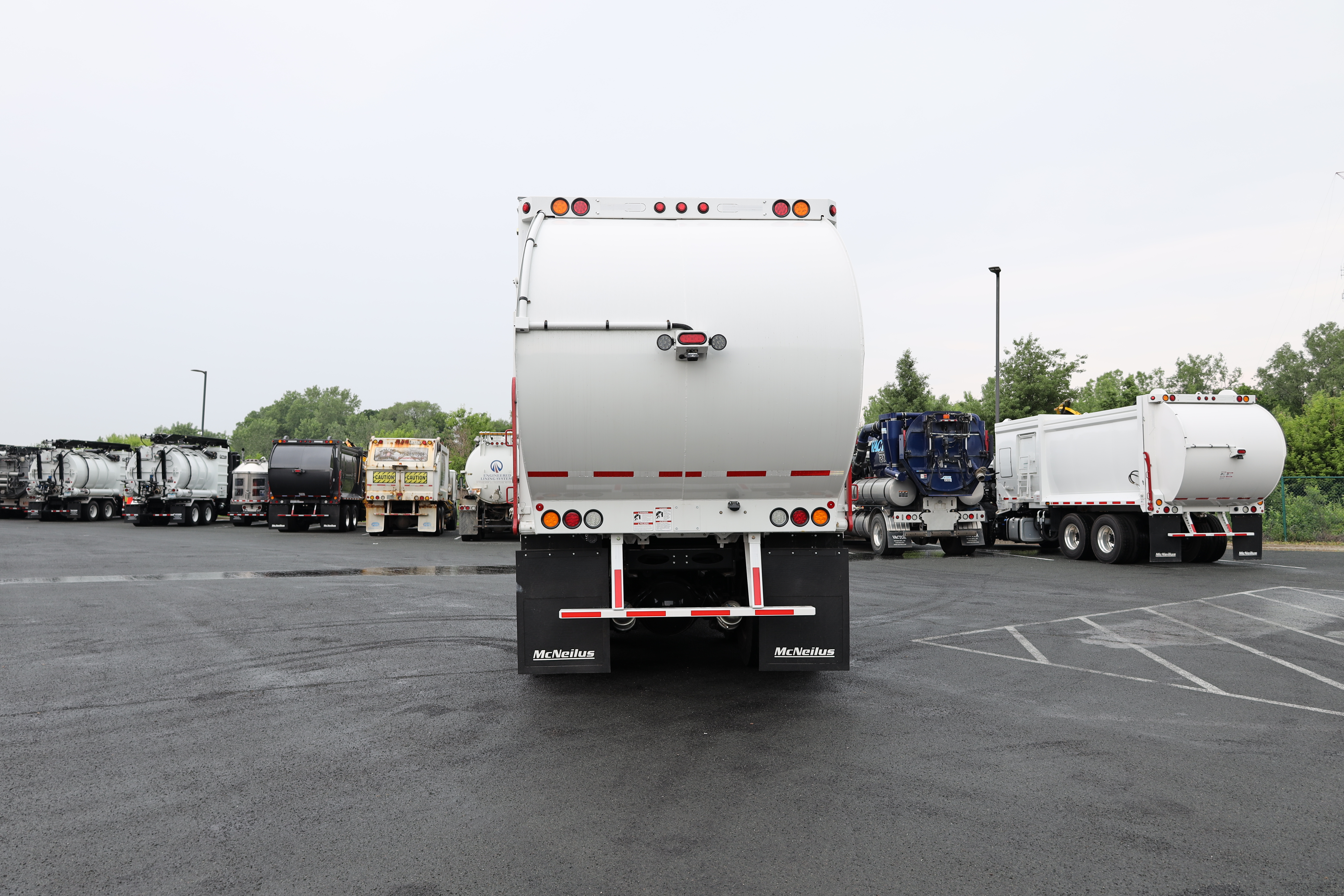

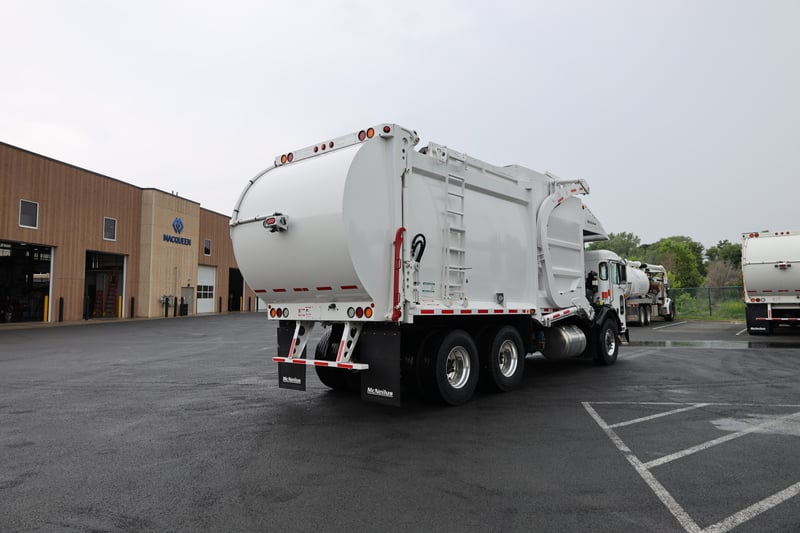

• Tailgate: 72" steel bumper, 10 GA AR200 side panels
• Access Ladder: Center rung slide-out

Body Options

• Paper Screen: Heavy duty, solid
• Tailgate Seal: Hard rubber
• Roof Ladder: ANSI, rearward (curbside)
• Top Door: Heavy duty top door (Atlantic)

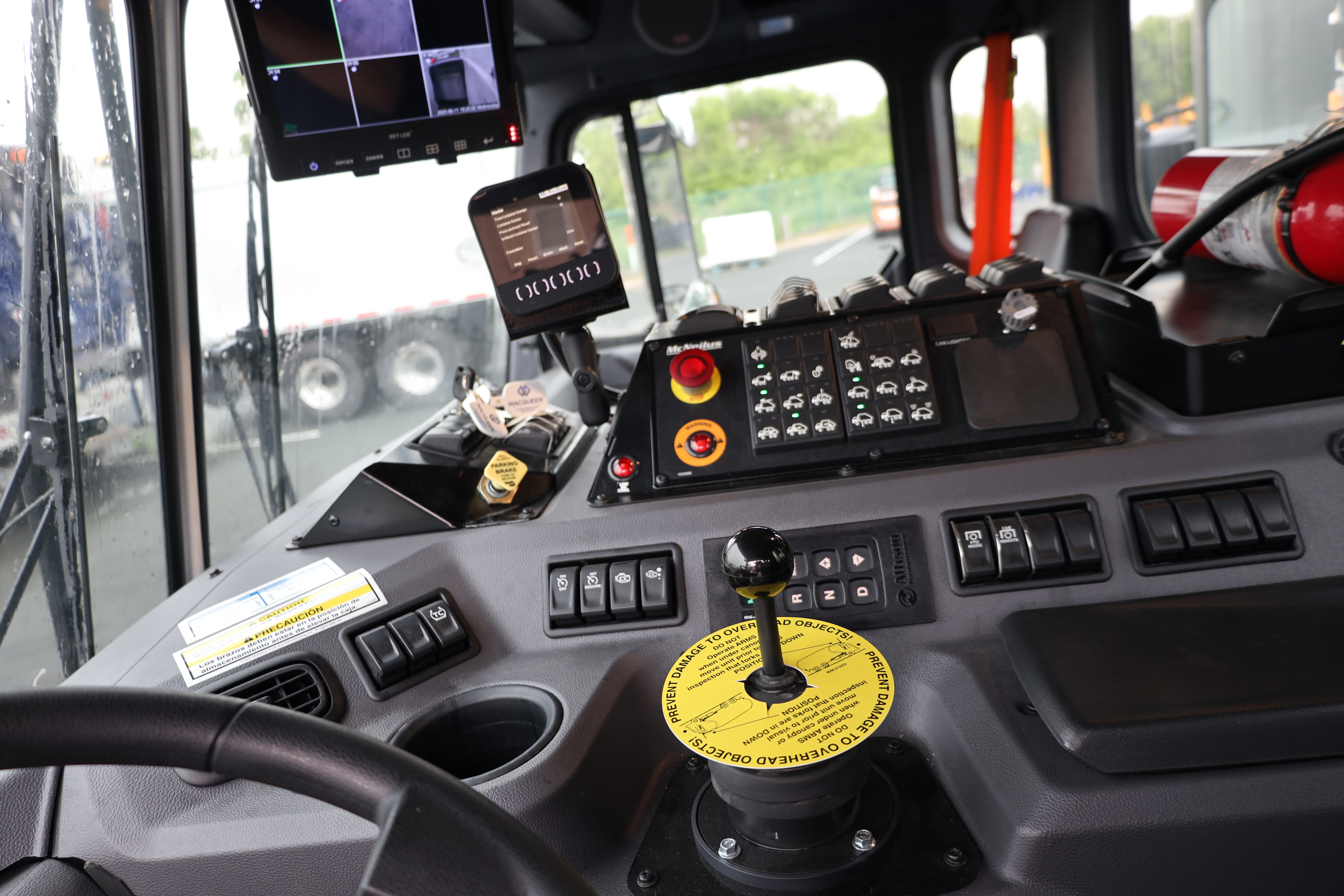

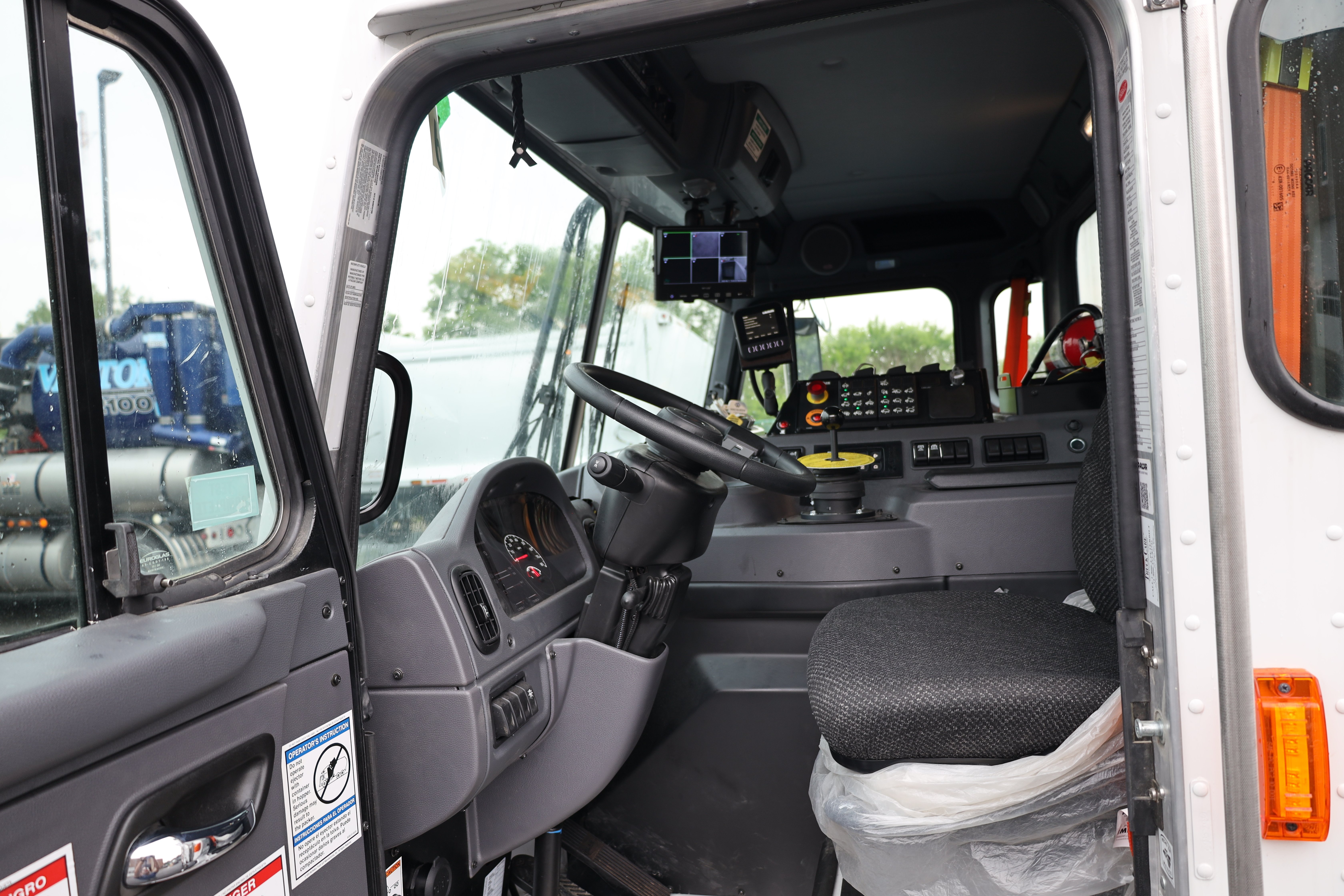

• Cab Controls: Low-profile control

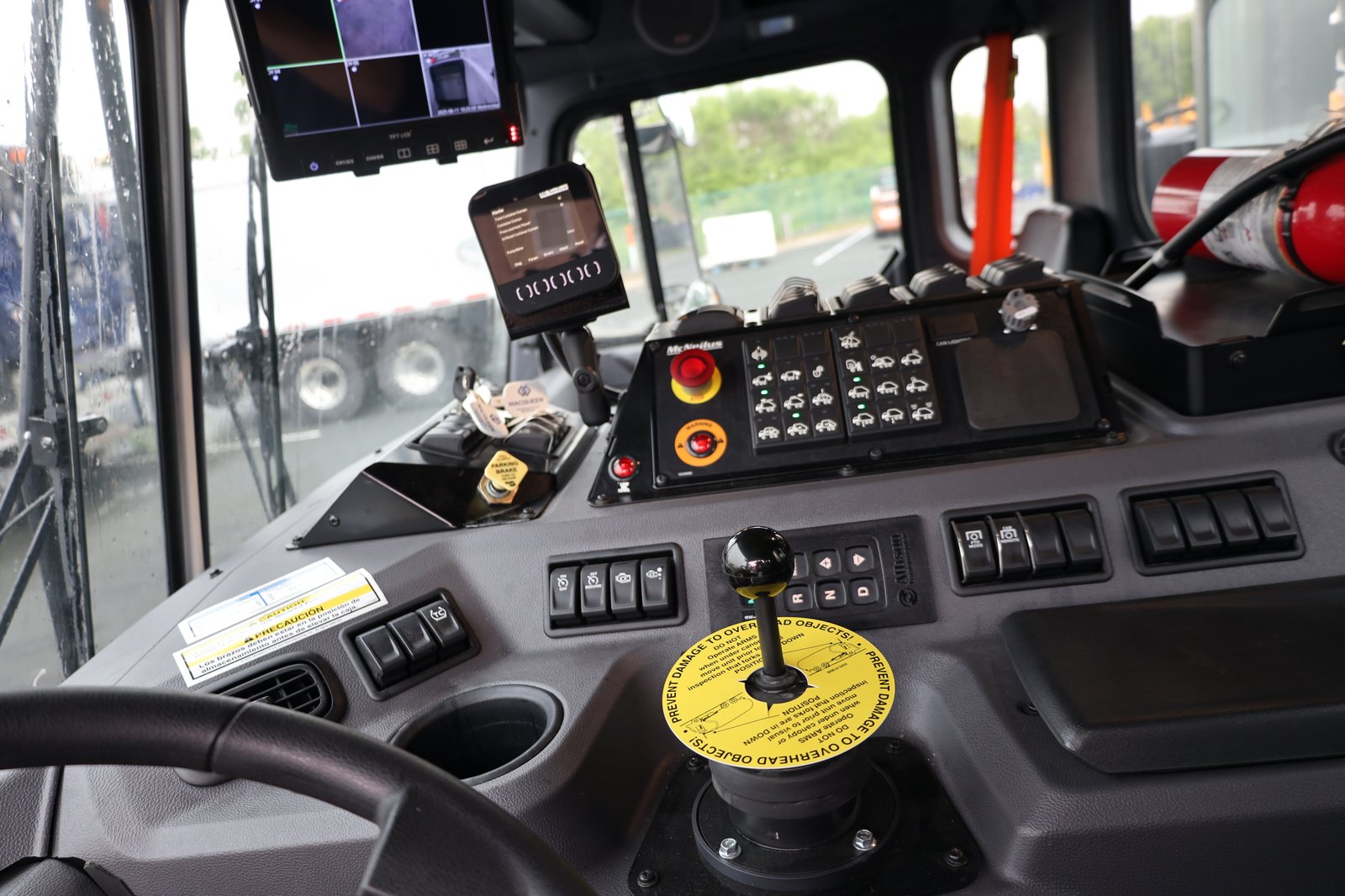

• Driver-Side Control: Pneumatic joystick
• Display Location: Doghouse

Hydraulics

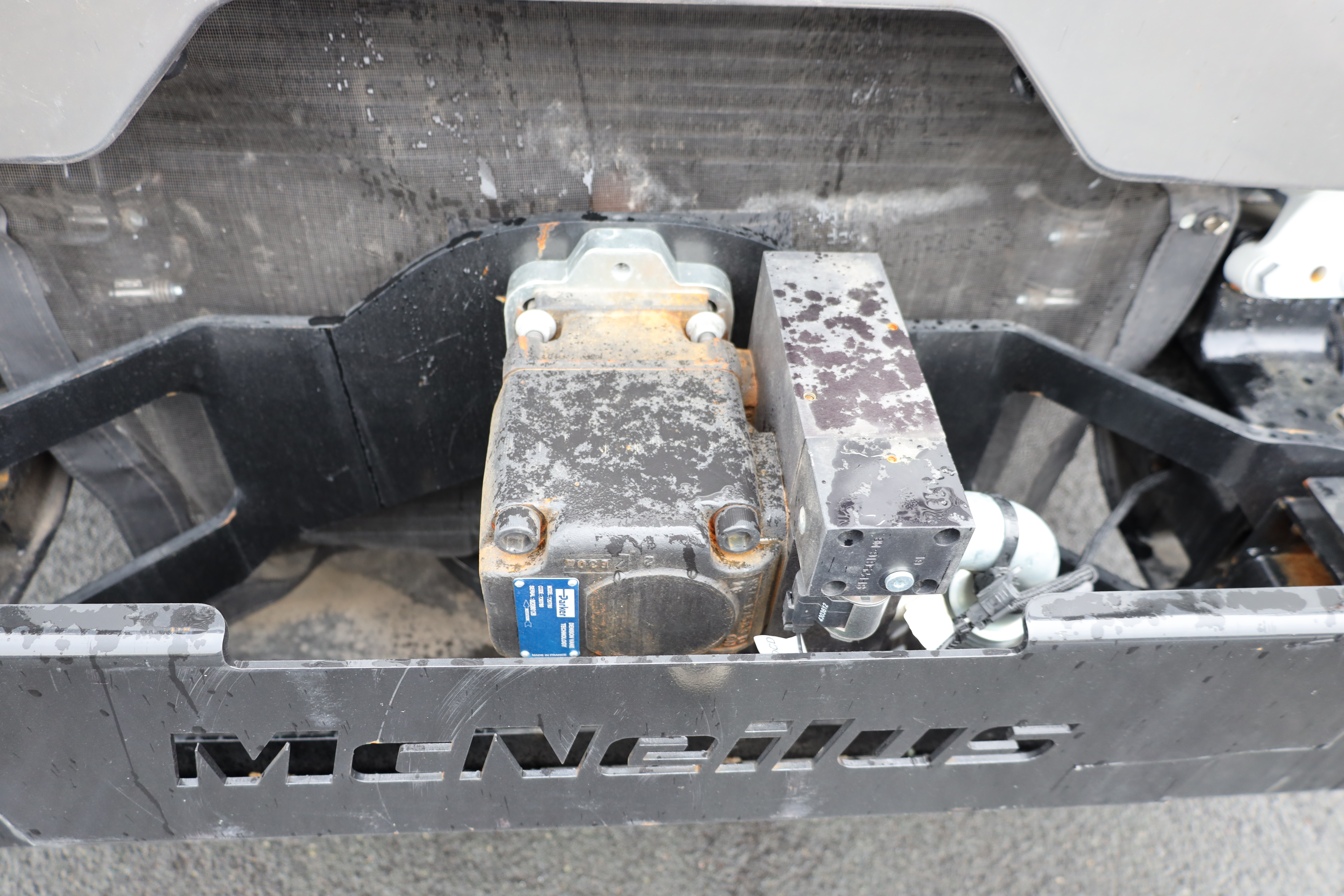

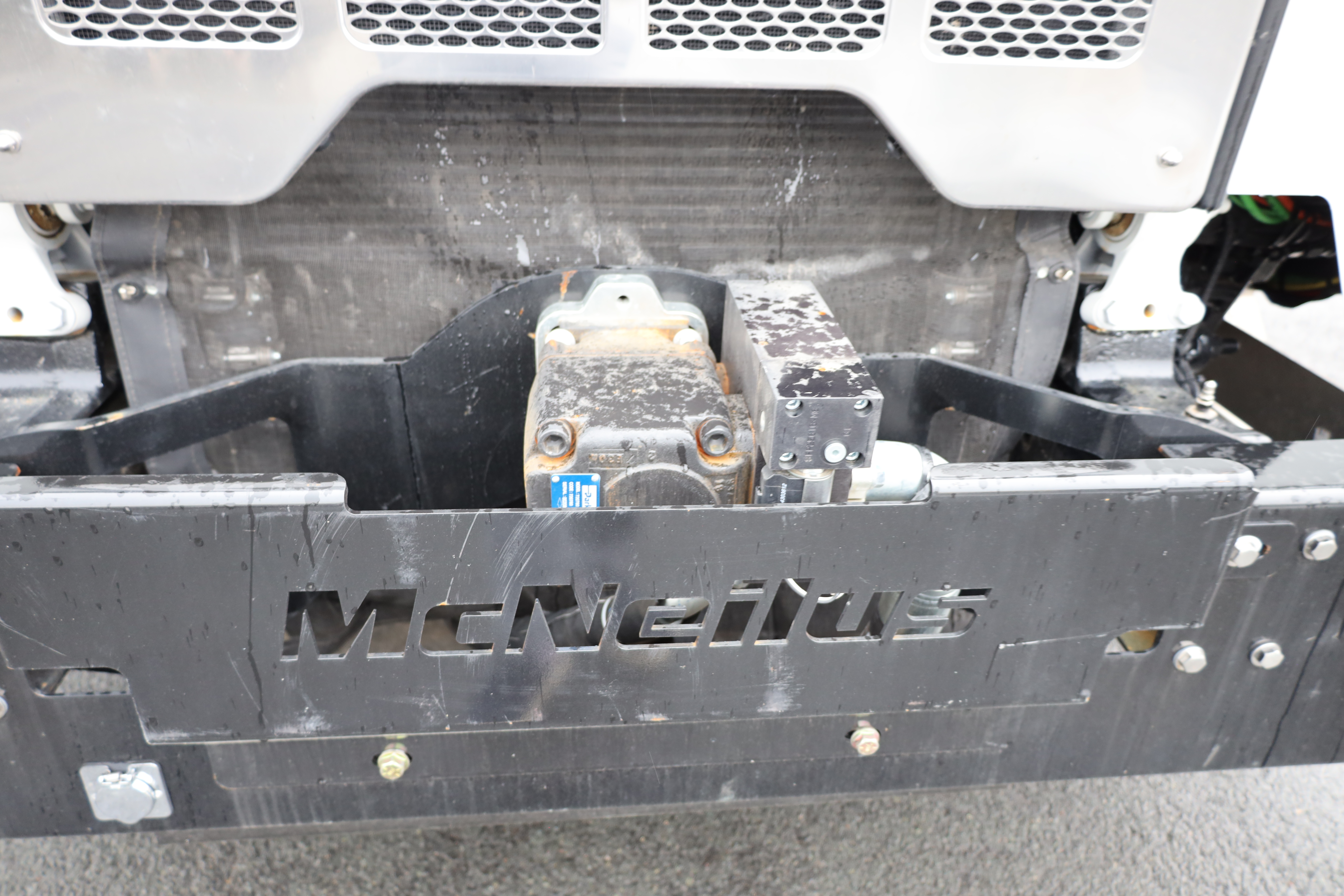

• Pump: Long-life vane pump
• Main Valve: Air/Hyd mounted on headframe
• Reservoir: Standard steel rectangle, frame-mounted (street side)
• Shutoff Valve: Red handle ball valve
• Fluid: ISO46 – US Oil
• Filters:

• Return: Schroeder (in-reservoir)

• Sample Port: Preinstalled in filter (LF-7611)
  Reservoir Fittings:

• Filler Cap: Standard

• Breather: Filler/breather on reservoir
  Low Oil Warning: Warning light and buzzer
  Cooler/Temp Compensation: No reservoir temp marking
  Hose Wrap: Cordura wrap (required hoses)
  Body Lift: Liftable body without service lift
  Hyd Pump Cover: Peterbilt 320 steel cover

Lighting

• DOT Lights: Economy LED
• Light & Harness Package: Standard 12V
• Dump Light: Canopy-mounted, 5" LED (Economy)
• Smart Lights: 4" Peterson (tailgate)
• Mid-Body DOT Light: Amber oval turn signal/marker
• Mid-Body Work Lights: Box-mounted, 5" LED (Economy)
• Center Stop Light: Economy LED (tailgate center)
• Tailgate Corner Lights: None (Smart strobes selected)

Camera System

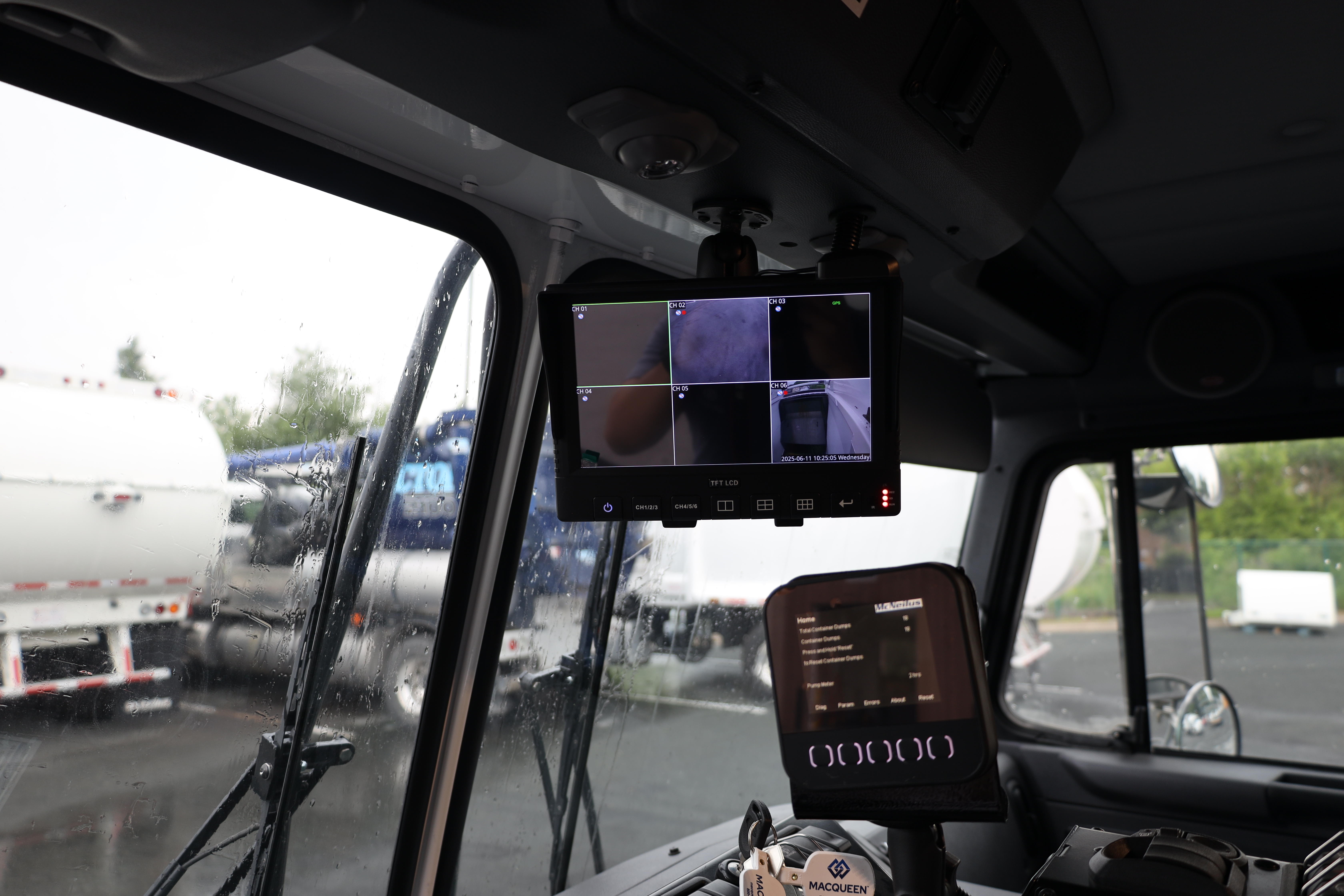

• System: SSV 9" Monitor/DVR (6-port)
• Mount: Center overhead with swivel
• Monitor Display (Reverse): Tailgate camera
• Cameras: Qty 2 (SSV9)

  • Hopper: Curbside rear hopper

  • Tailgate: Reverse camera
    Assist Light: Dual economy 5" round LEDs

Arms & Forks

• Fork Model: 62" Fixed Forks
• Fork Cylinder: Standard
• Arm: Atlantic
• Bumper Pads: Two
• Rotation Stop: True
