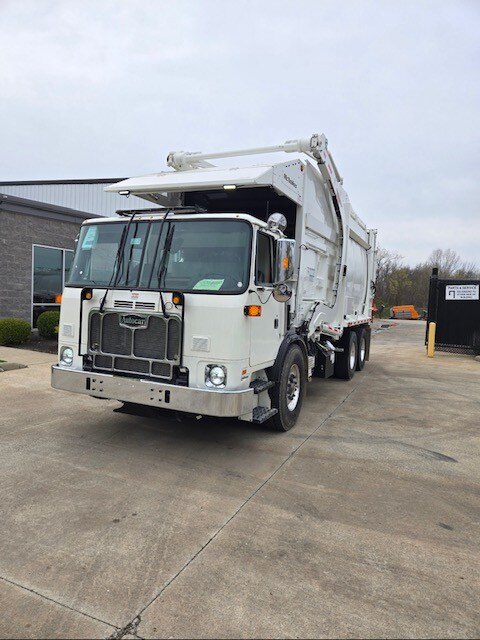

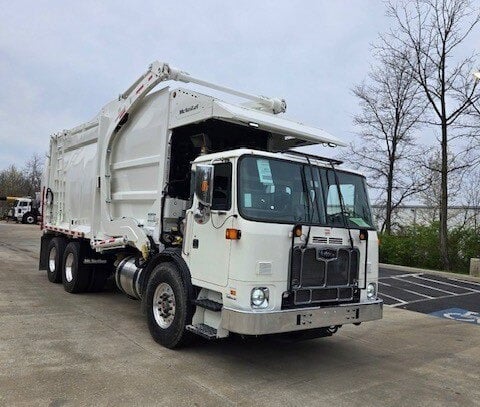

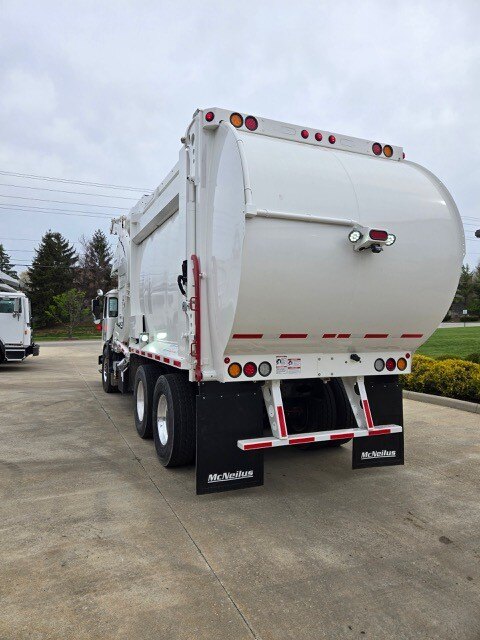

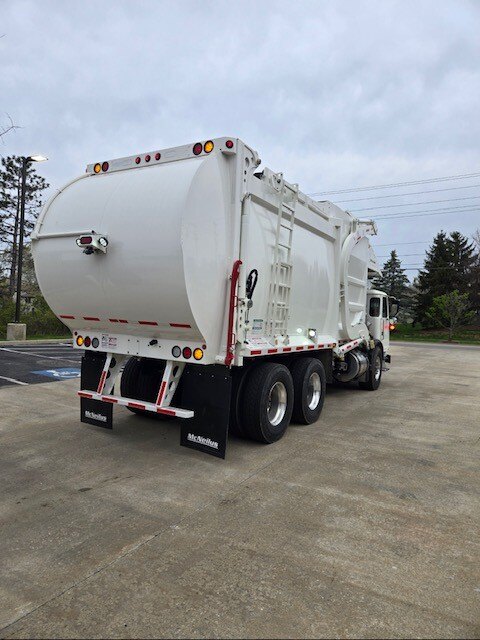

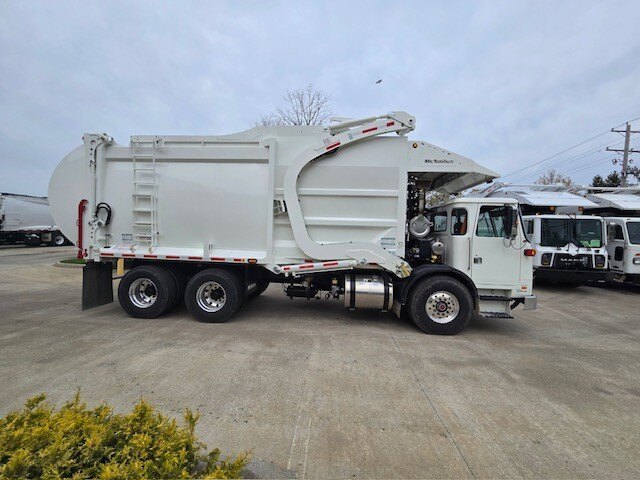

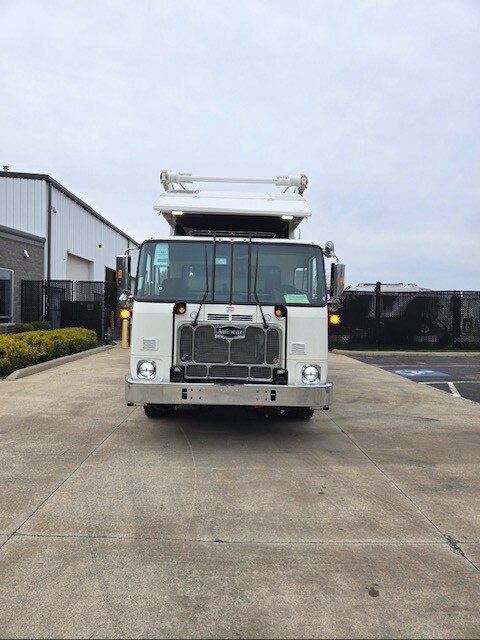

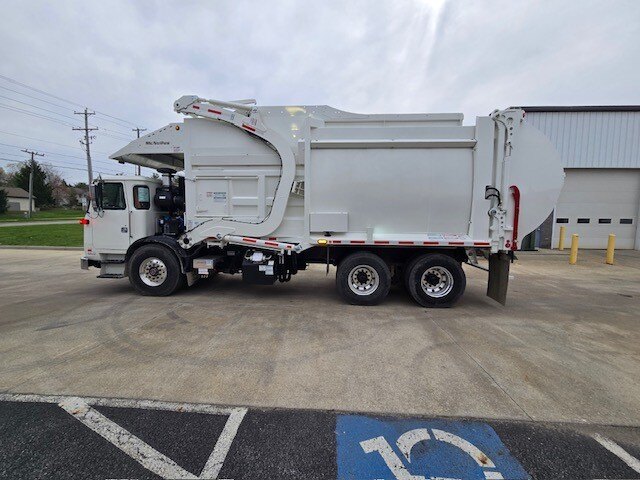

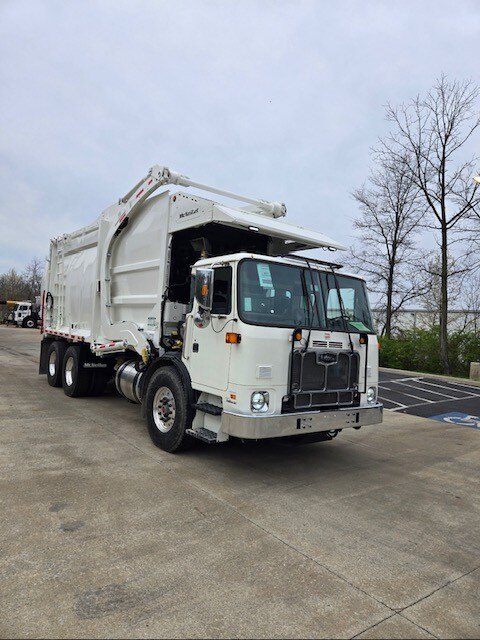

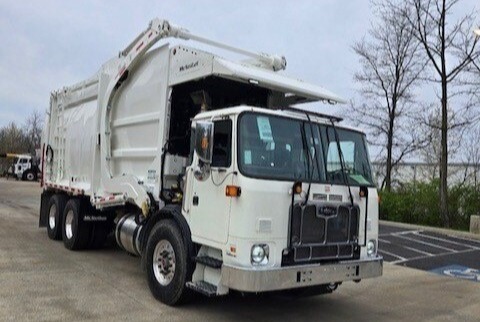

2025 Atlantic FEL Commercial

Chassis

• Packer Type: Model 29 - Atlantic Front Loader

• Chassis: Autocar ACX

• GVW Category: 33,001 lbs or greater

• Engine: Cummins ISX (Post-1/1/2017 emissions)

• Battery Box: Street side frame mounted

• Transmission: Allison 4500 RDS

• Cab Mirrors: Aero style

• Top Spot: Street side

• Pump Drive: MTM install SS 897 con mesh

Body

• Model: 4029 Atlantic - Medium Body

• Wall/Floor: Standard wall, AR400 floor

• Canopy: Universal square steel

• Canopy Lip Control: Curbside push-pull air switch

• Windguard: Standard

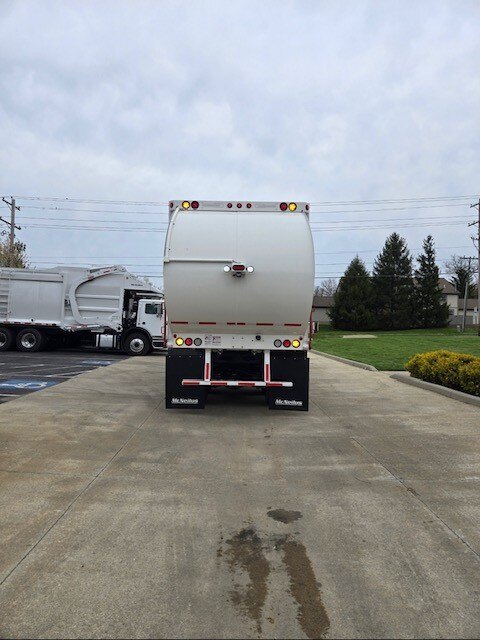

• Tailgate: 72" steel bumper, 10 ga AR200 side panels

• Access Ladder: Center rung slide-out

• Body Capacity: 4029 Commercial

Body Options

• Hopper Floor Liner: 3/16" AR400

• Paper Screen: Heavy duty, solid

• Tailgate Seal: Hard rubber

• Roof Ladder: ANSI, rearward (curbside)

• Top Door: Heavy duty Atlantic

• Drain Pipe: 4" capped

• Cab Controls: Low-profile with pneumatic joystick

• AutoPack: One-cycle on arm down

• Display Location: Doghouse

Hydraulics

• Pump: Standard gear pump

• Main Valve: Air/Hyd mounted on headframe

• Reservoir: Standard steel, frame-mounted (street side)

• Fluid: ISO46

• Filters: Schroeder return, HYDAC pressure

• Warnings/Ports: Low oil buzzer, sample port preinstalled

• Body Lift: Liftable body without service lift

• Hose Wrap: Cordura

• Breather/Filler: On-reservoir

Lighting

• DOT Lights: Economy LED

• Work Lights: 2 lip-mounted LED, 5" mid-body LED

• Smart Lights: 4" Peterson in tailgate

• Turn Signal: Amber oval

• Center Stop: LED

Camera System

• System: SSV 9" Monitor/DVR (6-port)

• Mount: Center overhead swivel

• Displays: Tailgate cam in reverse, CS rear hopper cam

• Cameras: Qty 2 + tailgate reverse cam

• Assist Light: Dual 5" LED

Residential Options

• Forks: 62" fixed

Arms & Forks

• Fork Tips: Not removable

• Fork Cylinder: Standard

• Arm: Atlantic

Misc. Body Equipment

• Mudflaps: Black with McNeilus logo (front/rear)

• Backup Alarm: ECCO dual-tone

• Pole Brush: Extendable 6–12', CS torque tube mounted

• Shovel Holder: Ejector mount

• Speed Limit with Tailgate Open: None
