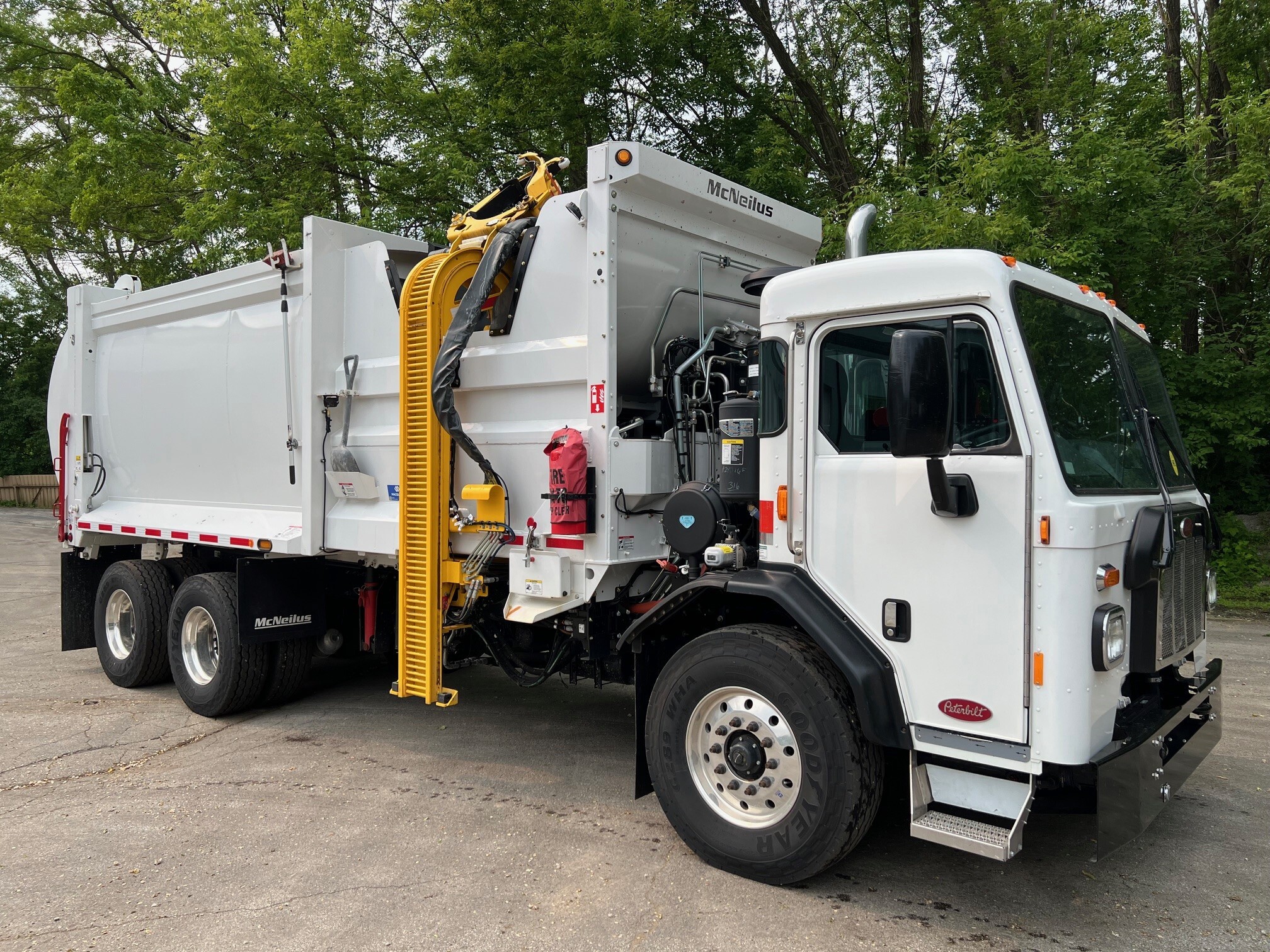

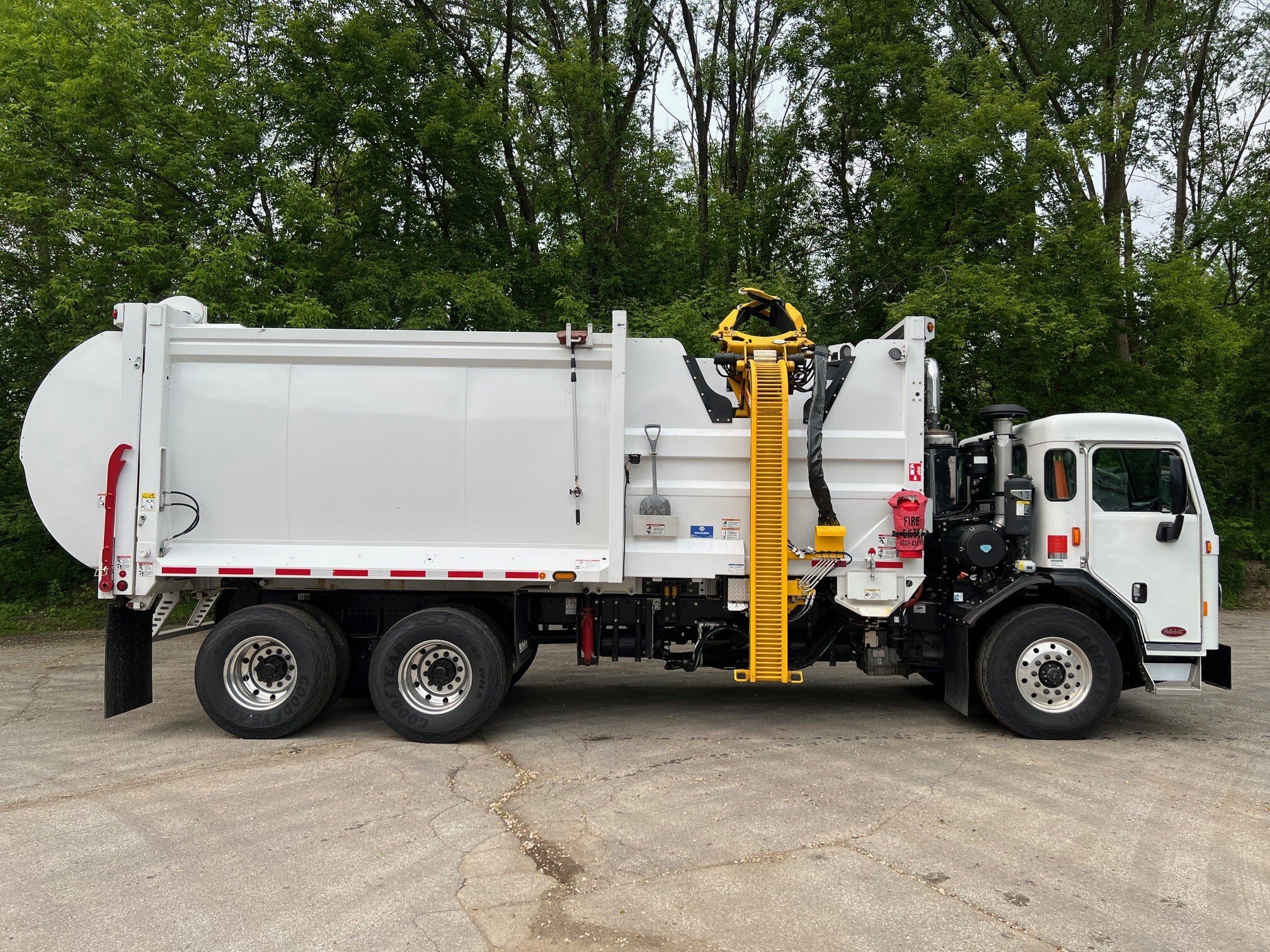

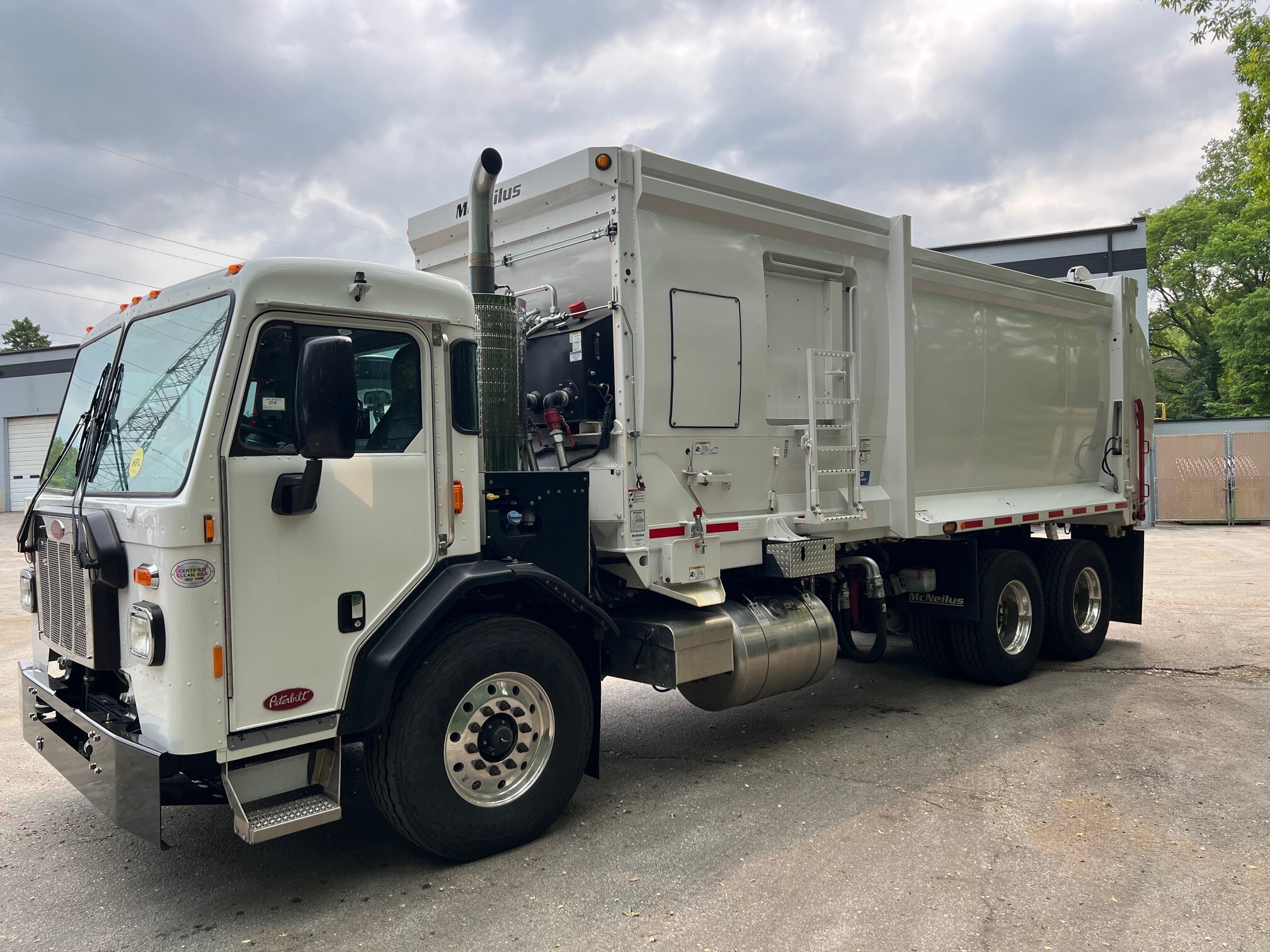

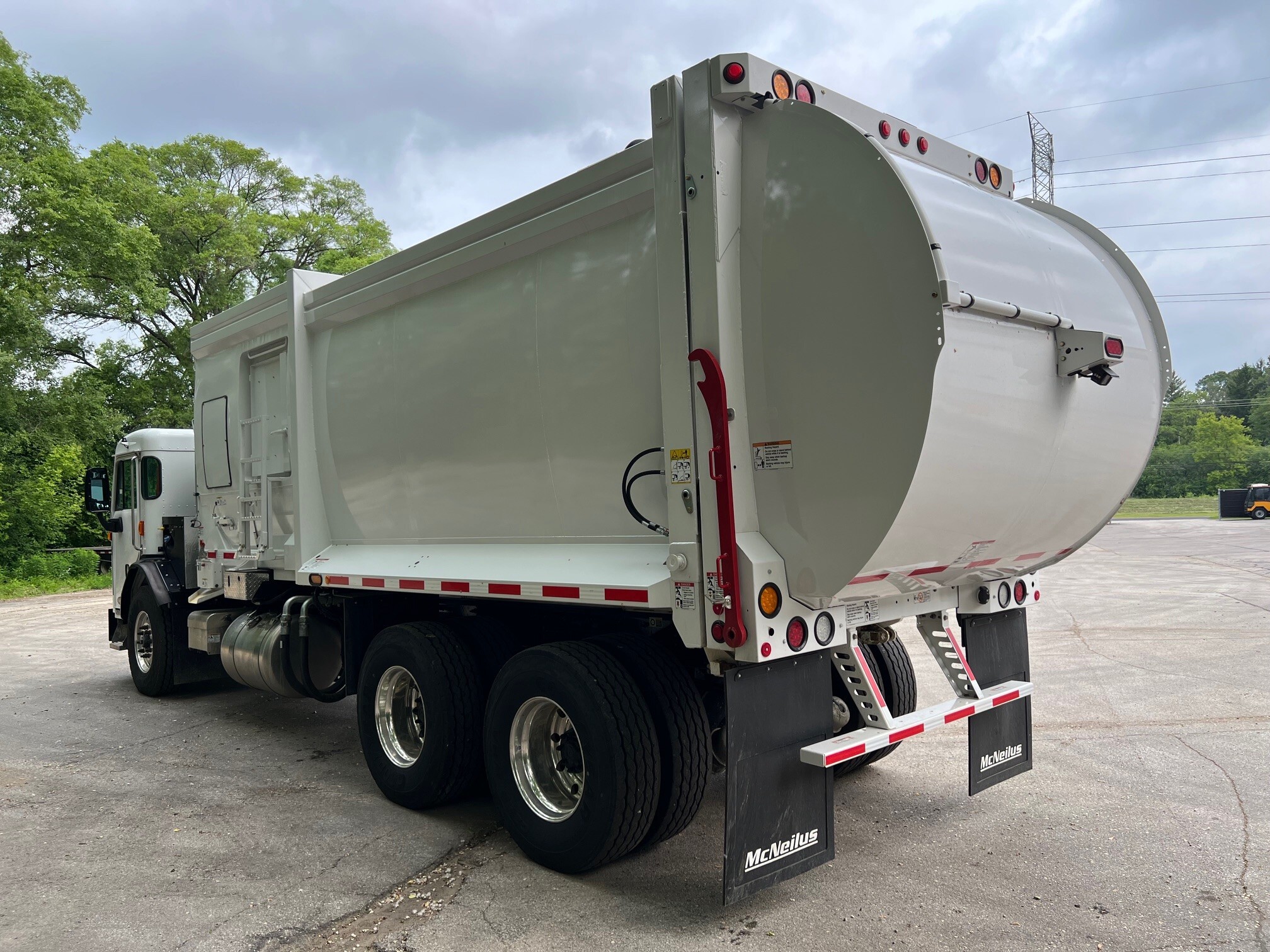

2025 McNeilus ZR

Chassis

• Packer Type: ZR Model 48 (Sauer Hydraulics)
• GVW Category: 33,001 lbs or greater
• Chassis: Peterbilt 520
• Steering: Dual seated steering
• Fuel: Diesel (Stainless Steel tank)
• Engine: PACCAR MX-11 (Post-1/1/2017 emissions) – >300 HP
• Transmission: Allison 4500 RDS with guard
• Exhaust: Left-hand vertical
  Suspension:

• Front: Spring shackle wide

• Rear: Hendrickson Haulmaax spring

• Pump Drive: SS CV DS remote mount constant mesh PTO
• Battery Box: Street side frame mounted
• Cab Mirrors: Aero style

Body

• Model: ZR Zero Radius ASL (Model 2848), 28-yard
• Tailgate: 72" wide, 10 GA AR200 side panels, hard rubber seal
• Hopper: Cover panel (ZR only), 3/16" AR400 floor with 1/4" liner
• Body Floor: 3/16" AR200 (Heavy Duty)
• Front Light Bar: Standard 14 GA

Body Options

• Tailgate Type: Non-TG-mounted CNG
• Controls: Switches in dash
• Cameras/Guards: Hopper light cam guard, arm valve cover not applicable
• Packer Follower: Standard 10 GA 50KSI panel with hinge cover
• Wear Protection: X-Wear standard
• Cleanout Tray: Curbside and street side
• Tailgate Prop Opening: Standard opening
• Joystick Style: Roller style, traditional
• Telematics: Enabled

Hydraulics

Pump: Piston
Reservoir: Steel, Stainless Steel (inside body)
Filters:

• Return: Schroeder (in-reservoir)

• Sample Port: Check fluid KP14NV 90-degree
  Cylinders: Mailhot packer/ejector
  Cooler & Temp Monitoring:

• Hydraulic cooler

• Built-in display temp gauge

• Temp sensor in reservoir

• Shutoff Valve: Red handle ball valve
• Fill Through Filter: #6 Male QD Eaton 3K21
• Breather Cap: Filler/Breather on reservoir
• Filler Cap: Standard
• Low Oil Warning: Warning light
• Service Lift: Service lift

Lighting

DOT Lights: Economy LED
Smart Lights: 4" programmable amber strobes (tailgate)
Center Stop Light: Economy LED (center of tailgate)
Mid-Body DOT Light: Oval amber turn signal/marker
Work Lights:

• Hopper: One 5" Economy LED

• Arm: One 5" Economy LED
  Tailgate Corner Lights: None
  Smart Light Activation: Cab switch
  Display Location: Doghouse

Camera System

System: 3rd Eye 7" Color Monitor (4-port)
Mount: Center overhead (RAM mounted)
Monitor Display (Reverse): Tailgate camera
Cameras: Qty 2

• Hopper: Street side rear hopper

• Tailgate: Reverse camera
  DVR in Cab: None

Arms & Forks

Model: ZR 12' Extended Reach Arm – 96 gal
Fingers: Standard finger grabber
Controls: Dual joystick
Digital Features:

• Can counter: Standard in digital display

• Grabber Interlock: Standard in ZR software

• AutoLoad: Not equipped

• CartSeeker: Not equipped
