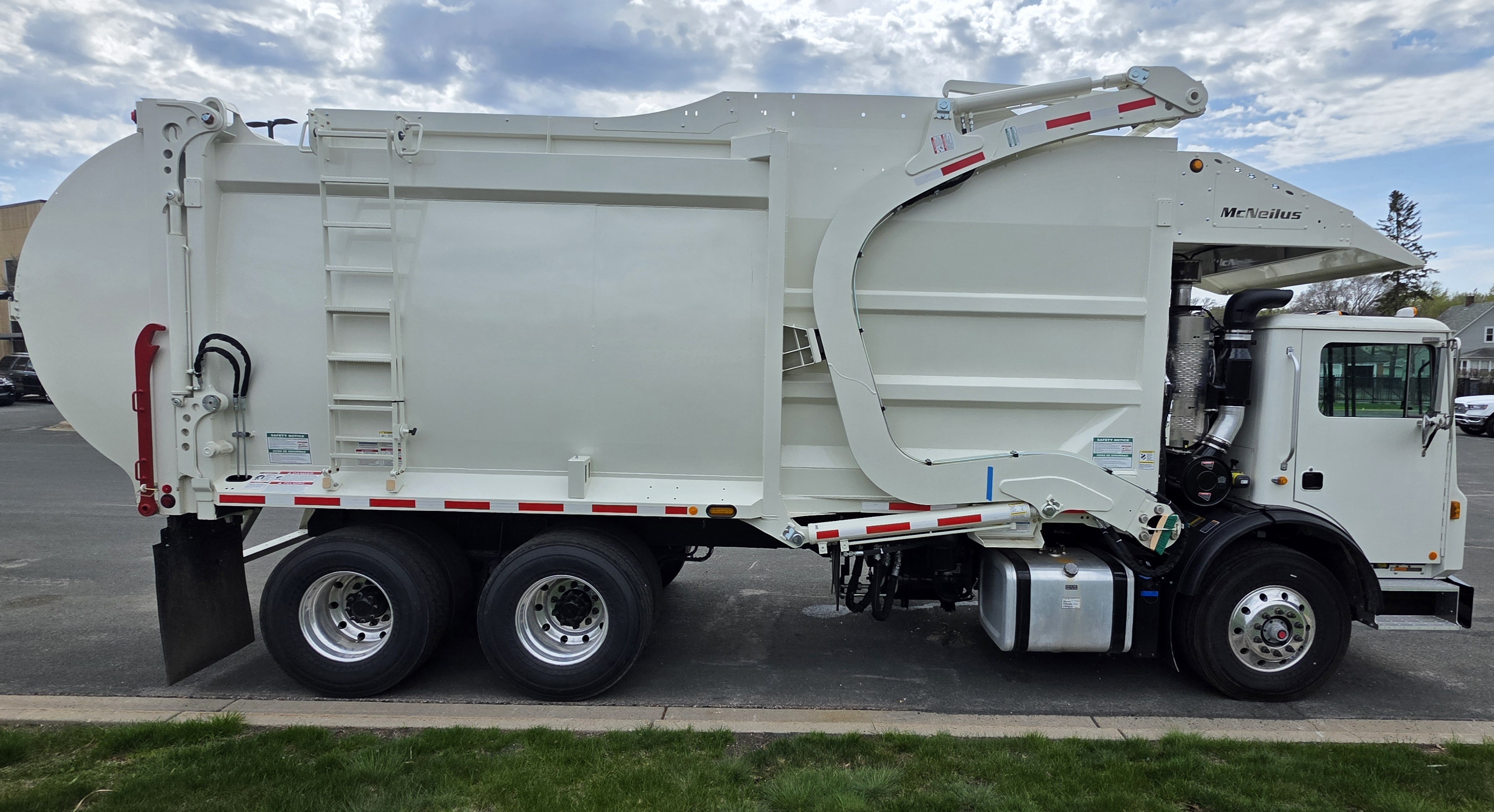

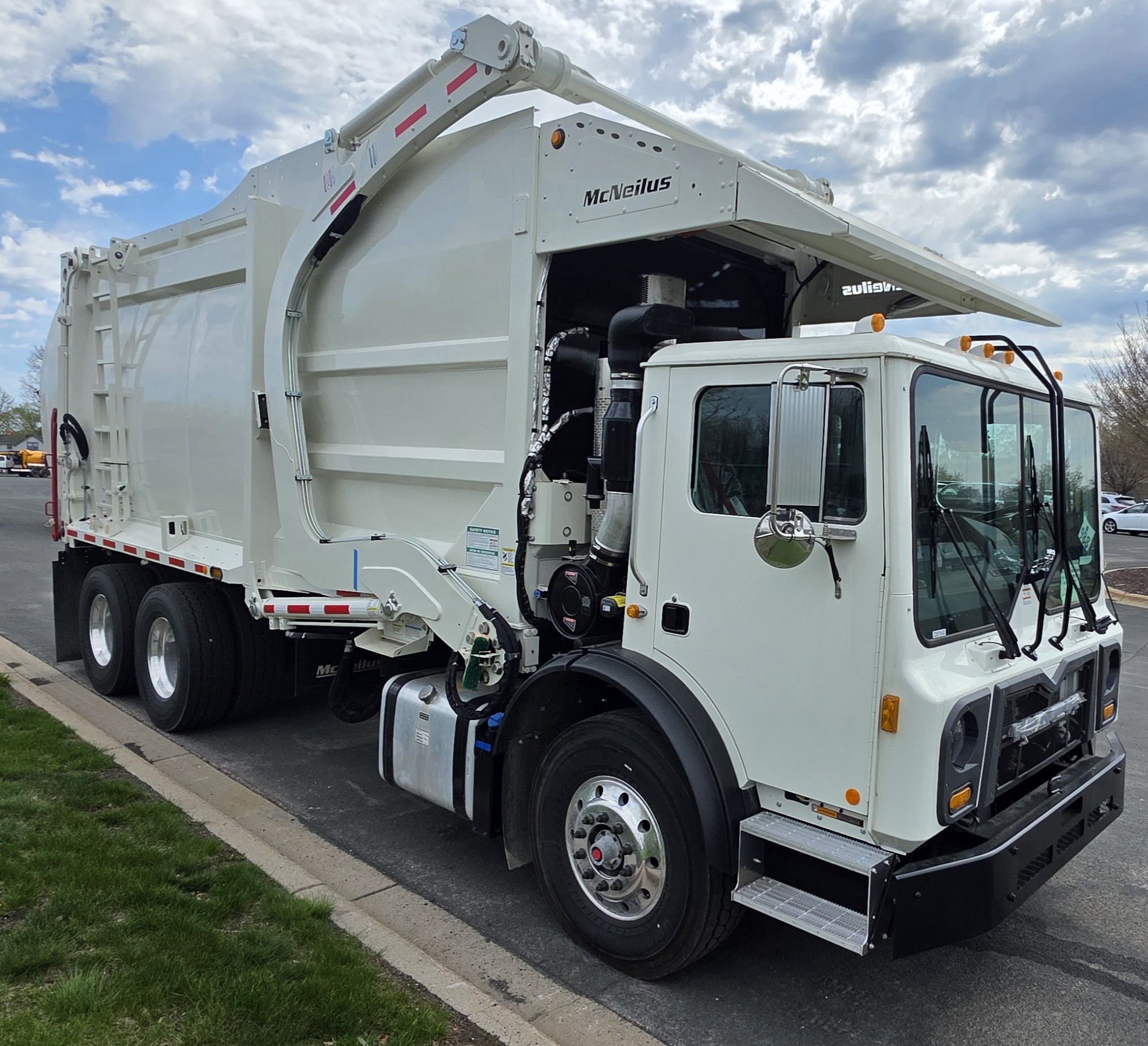

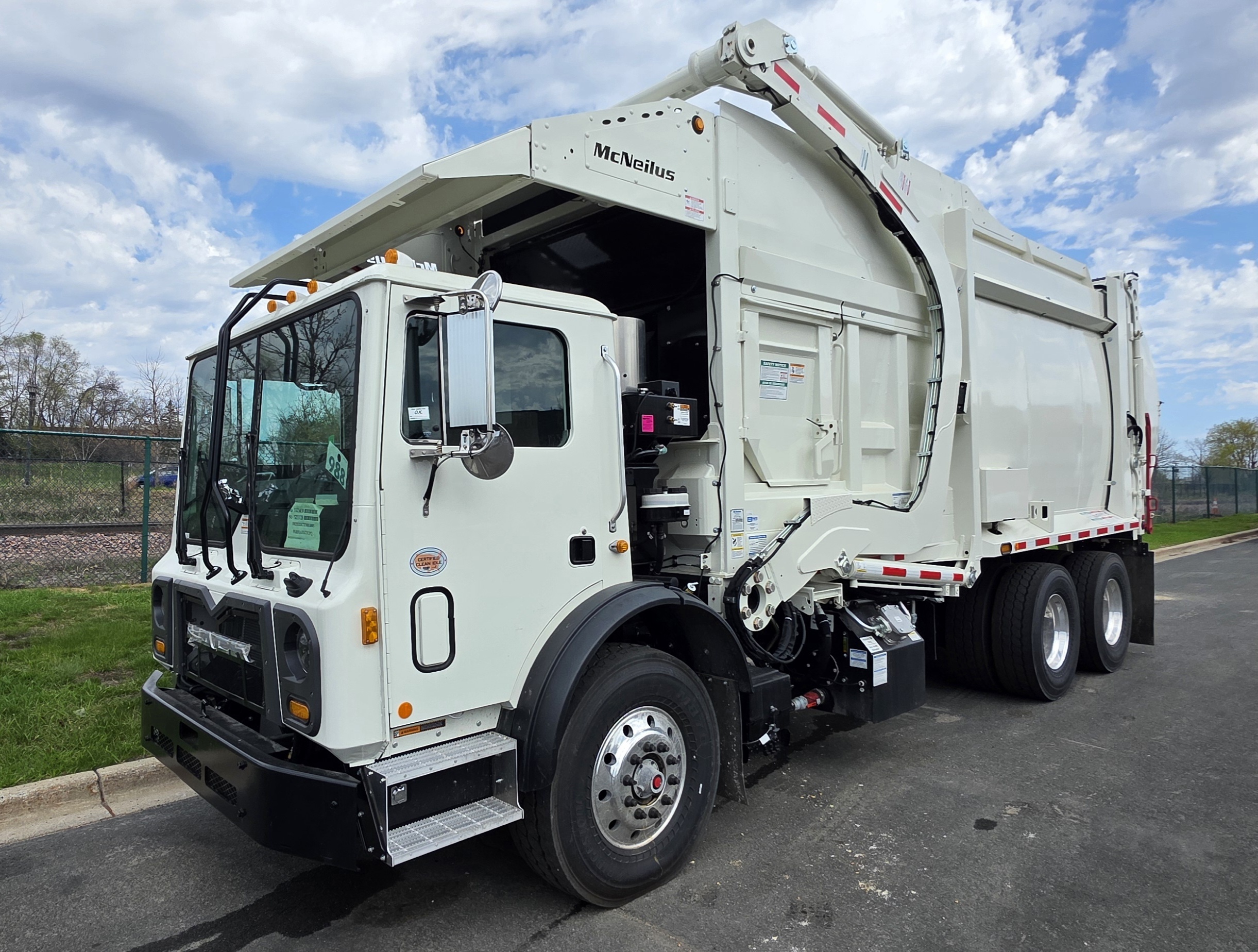

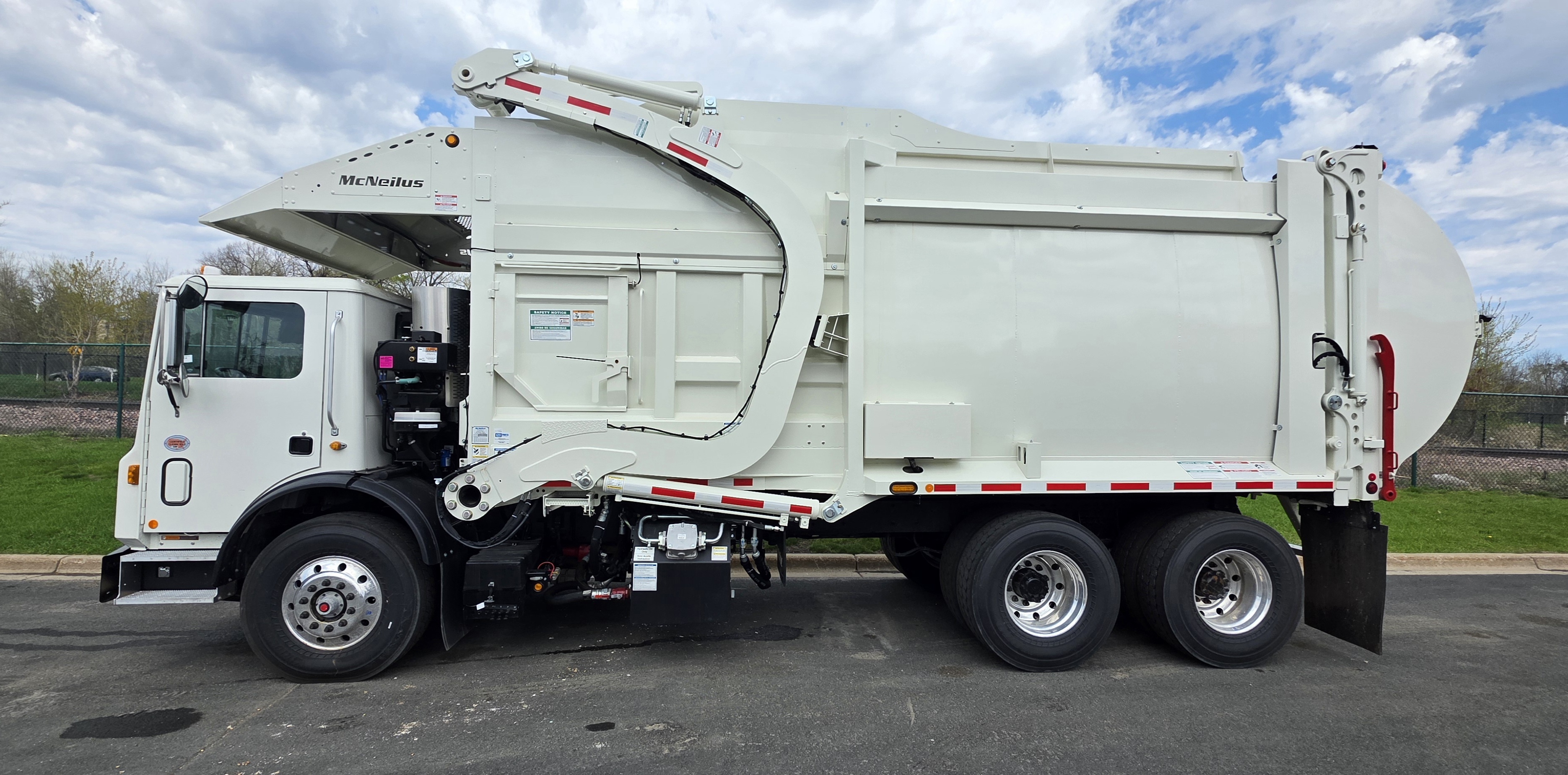

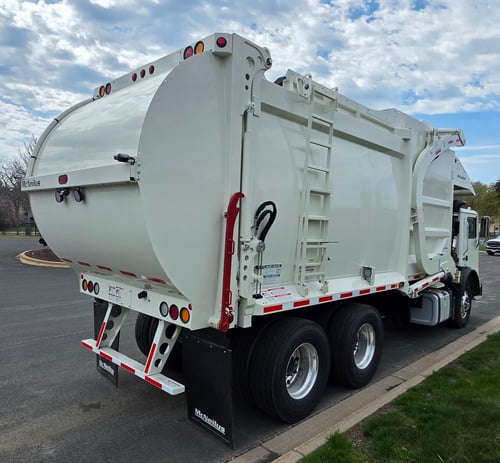

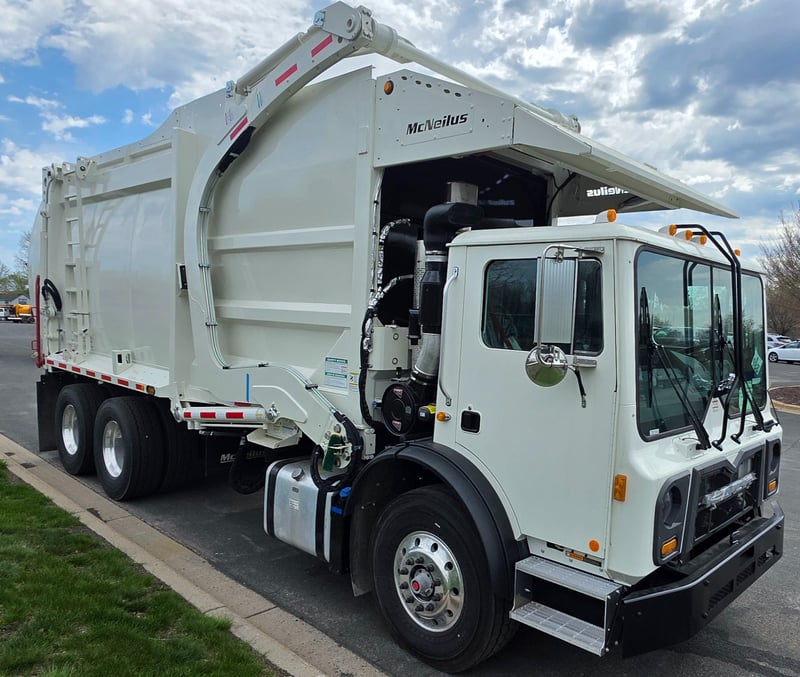

2026 McNeilus Atlantic

Chassis

Packer Type: Model 29 – Atlantic Front Loader
GVW Category: 33,001 lbs or greater

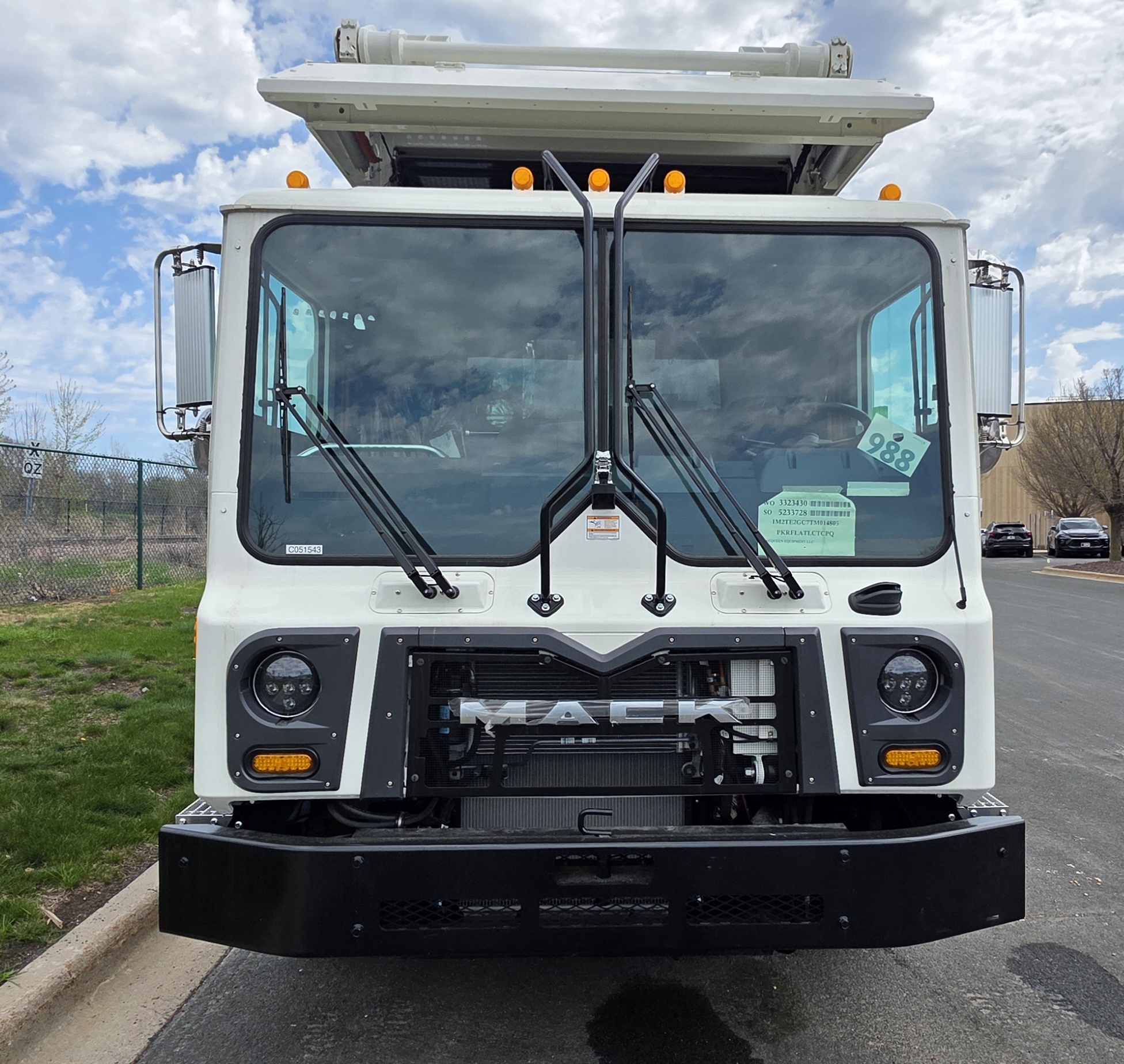

Chassis: Mack TerraPro 64R (Dual Axle)

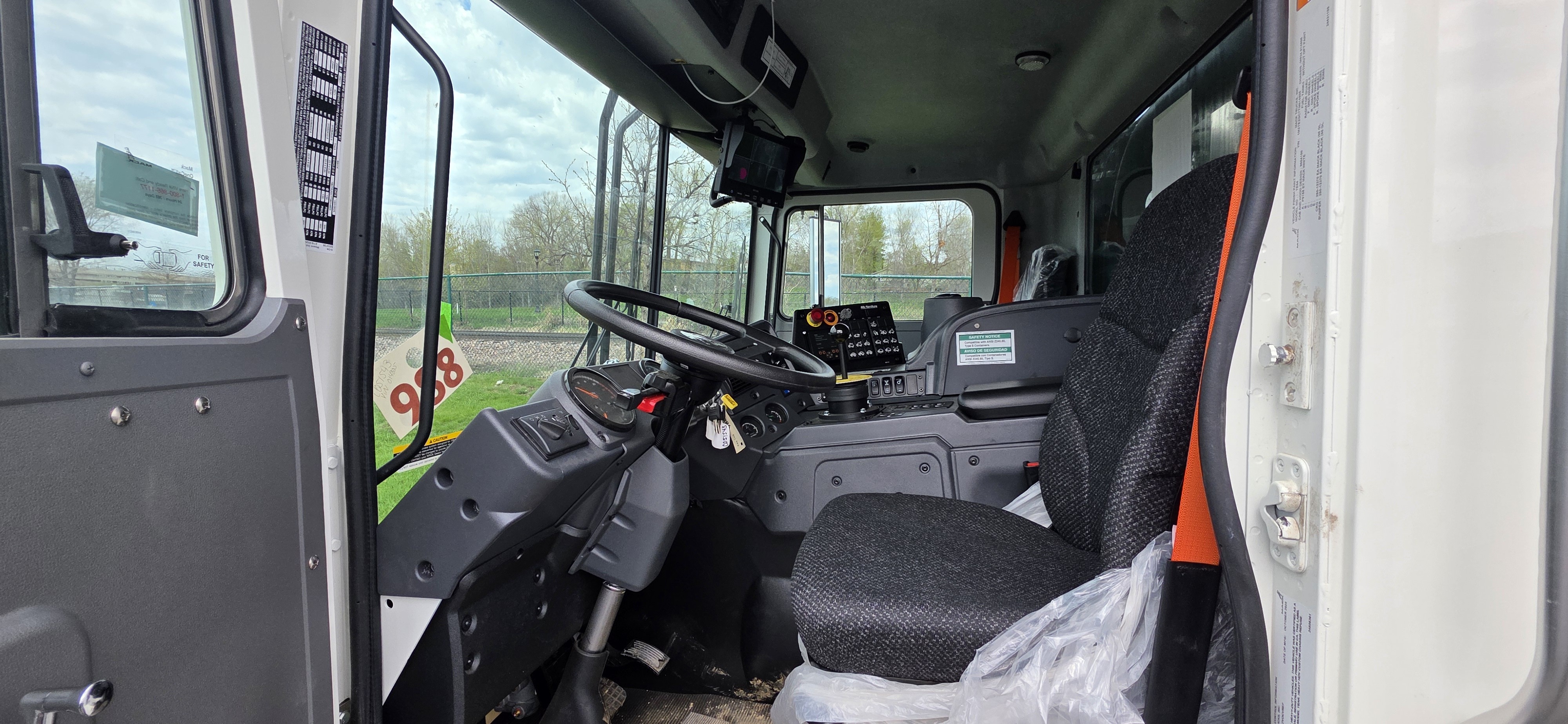

Steering: Streetside seated
Engine: Mack (Post-1/1/2017 emissions)
Transmission: Allison 4500 RDS
Battery Box: Street side frame mounted
Cab Mirrors: Aero style
Top Spot: Streetside
Pump Drive: MTM install SS 897 constant mesh

Body

Model: 4029 Atlantic – Medium Body
Rated Capacity: 4029 Commercial
Body Configuration: Medium body with large tailgate

Body Construction:

• Standard wall
• AR400 floor

Hopper:

• Standard hopper floor
• Curbside hopper cleanouts
• Curbside spill tray

Canopy: Universal square steel
Canopy Lift Control: Curbside push-pull air switch
Windguard: Standard

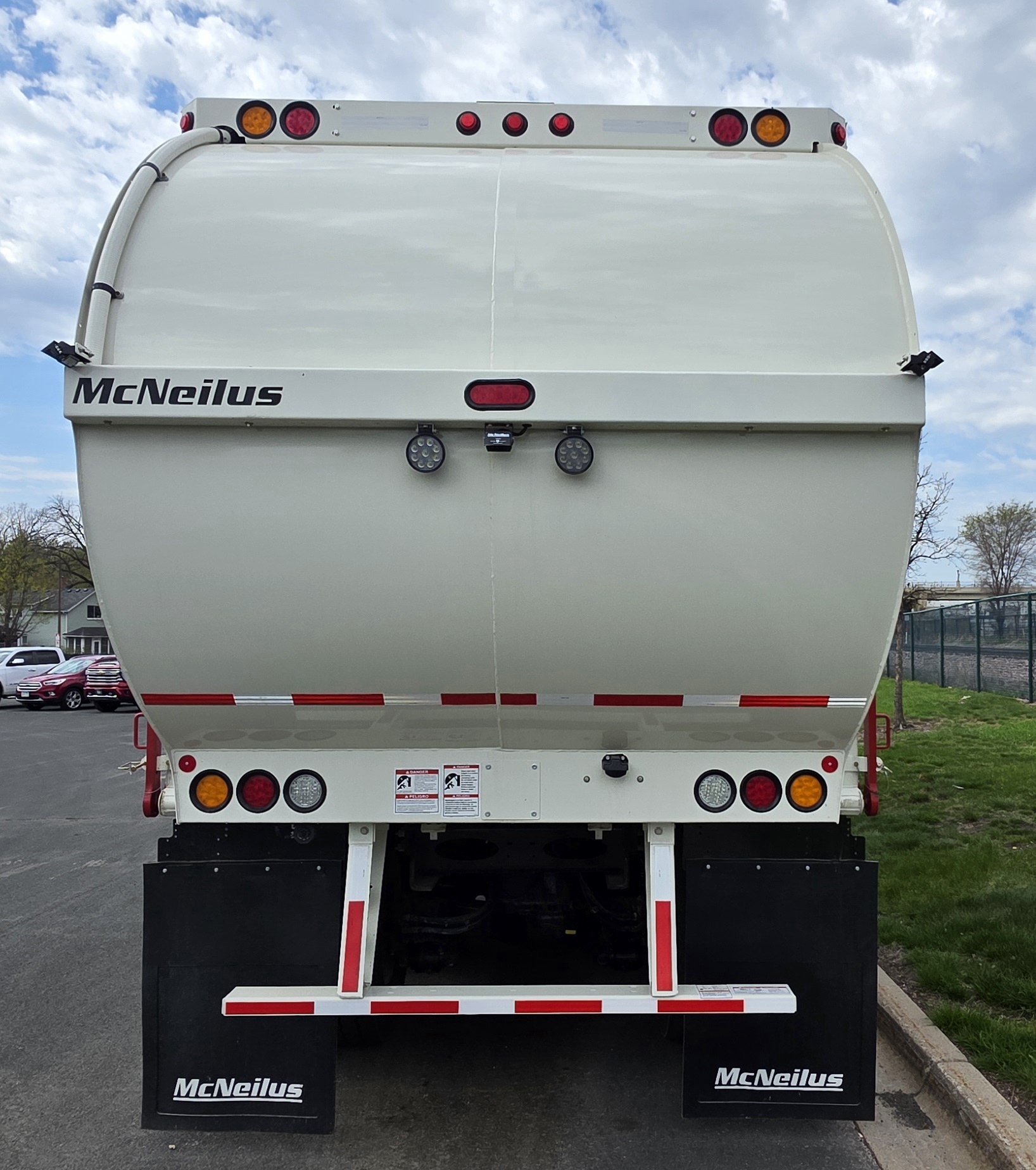

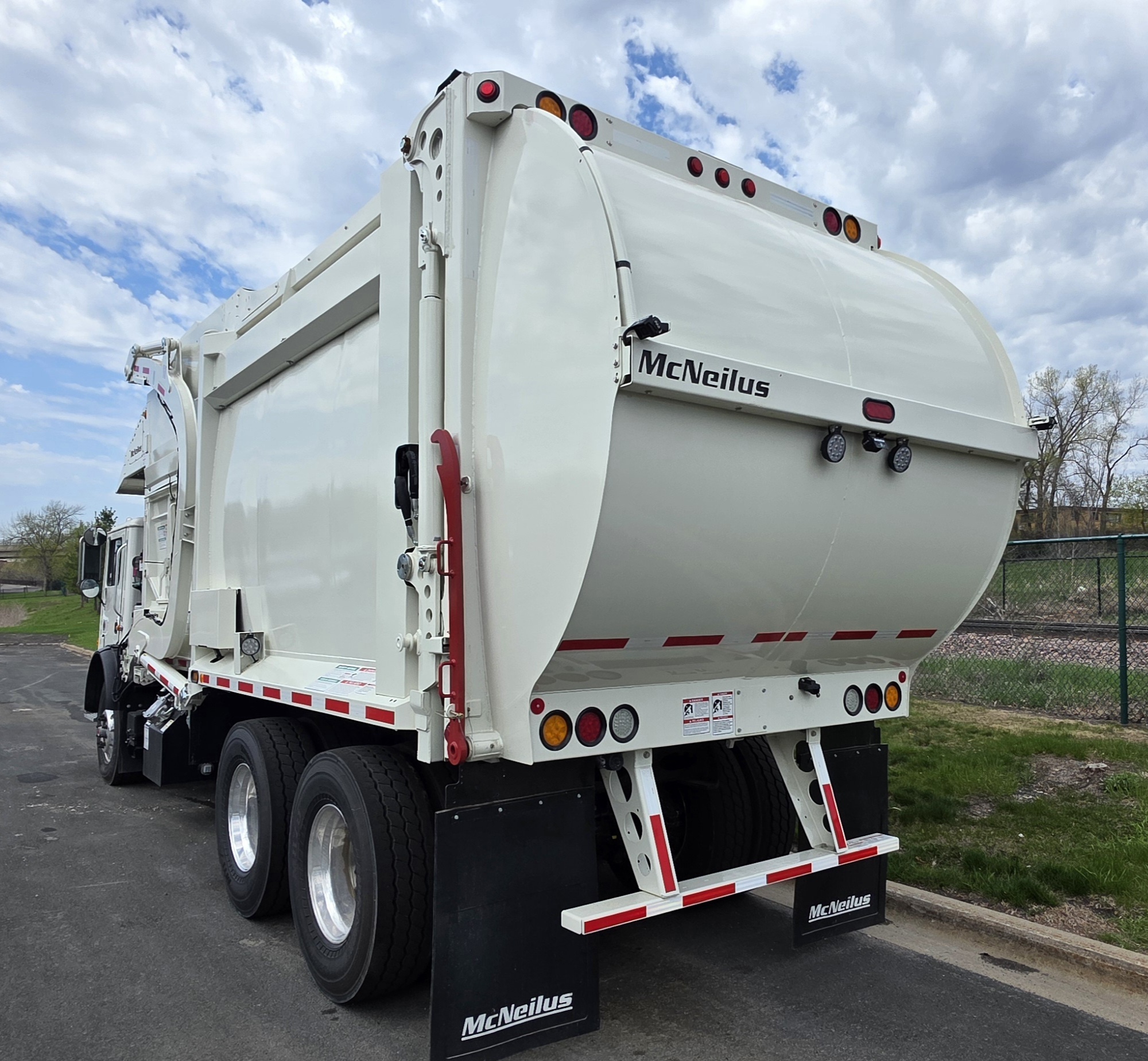

Tailgate:

• 72" steel bumper
• 10 GA AR200 side panels
• Hard rubber seal

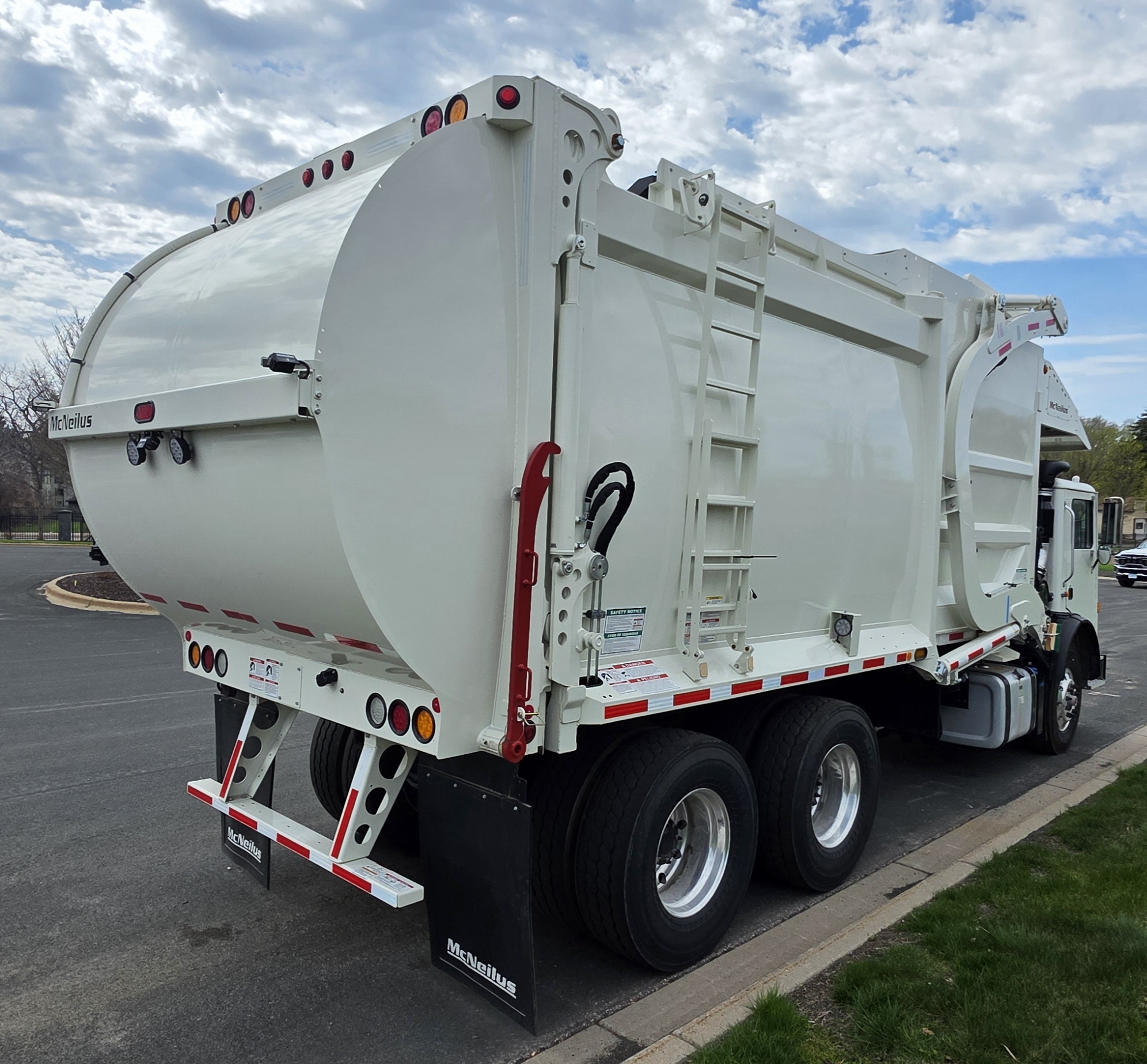

Access Ladder: Center rung slide-out

Body Options

Hopper Floor Liner: 3/16" AR400
Paper Screen: Heavy-duty solid

Roof Ladder: ANSI rearward ladder (curbside)
Top Door: Heavy-duty Atlantic top door

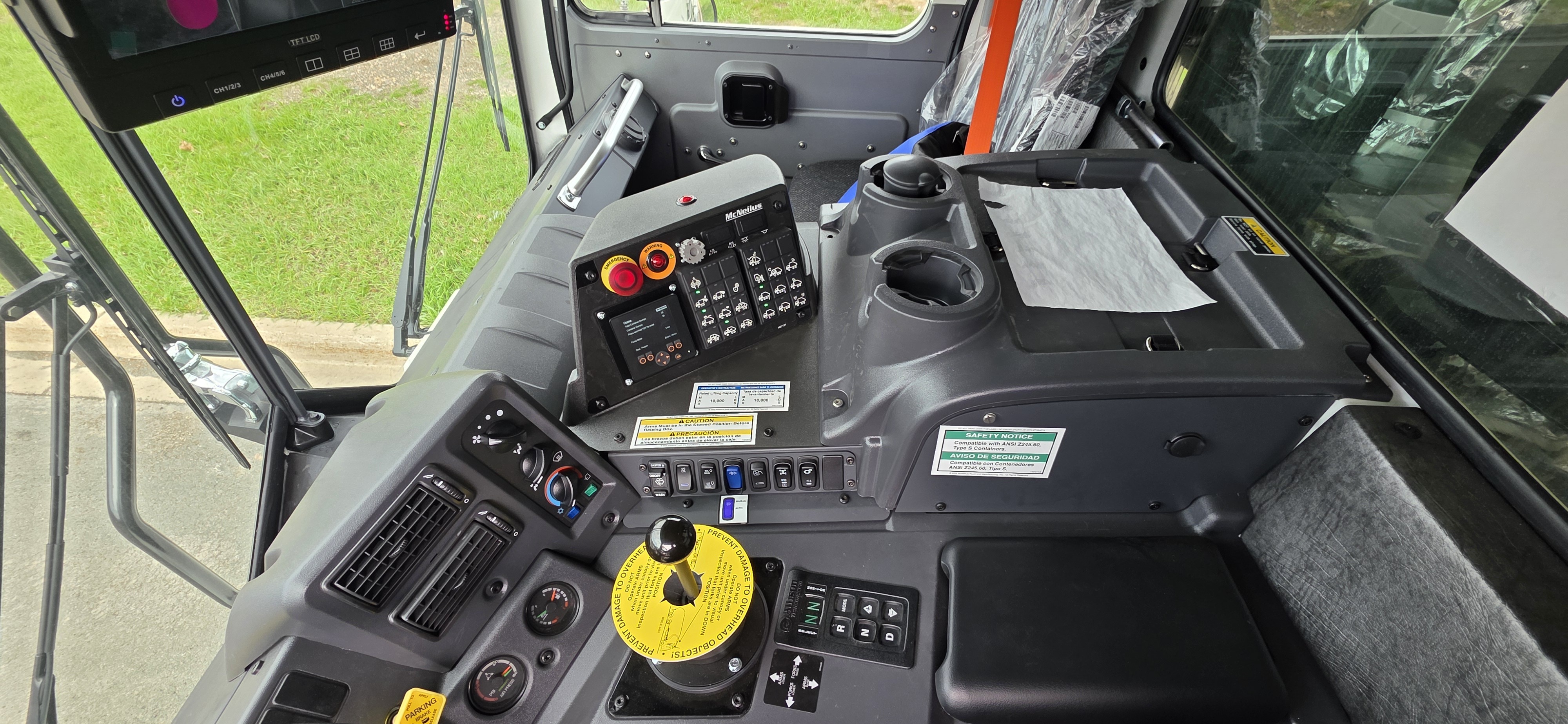

Controls:

• Cab: Low-profile control
• Streetside: Pneumatic joystick

AutoPack: Disabled on arm down
Display Location: Doghouse

Hydraulics

Pump: Long-life vane pump
Main Valve: Air/Hydraulic mounted on headframe

Reservoir: Standard steel, frame-mounted (street side)
Shutoff Valve: Red handle ball valve

Hydraulic Fluid: ISO46 – US Oil

Filters & Ports:

• Return filter: Schroeder (in reservoir)
• Pressure test port: SS FOB #4 Aeroquip FD45 QDC
• Sample port: Preinstalled in filter (LF-7611)

Breather / Filler: Filler/breather on reservoir; standard filler cap

Low Oil Warning: Warning light and buzzer
Hose Protection: Cordura wrap (required hoses)

Body Lift: Liftable body without service lift
Reservoir Temp Compensation Marking: Not included

Lighting

DOT Lights: Economy LED
Light & Harness Package: Standard 12V

Smart Lights: 4" Peterson (tailgate)
Center Stop Light: Economy LED (tailgate center)

Mid-Body DOT Light: Oval amber turn signal/marker

Work Lights:

• Container dump light: Canopy-mounted 5" LED
• Mid-body work lights: Box-mounted 5" LED

Tailgate Corner Lights: None (smart strobes selected)

Camera System

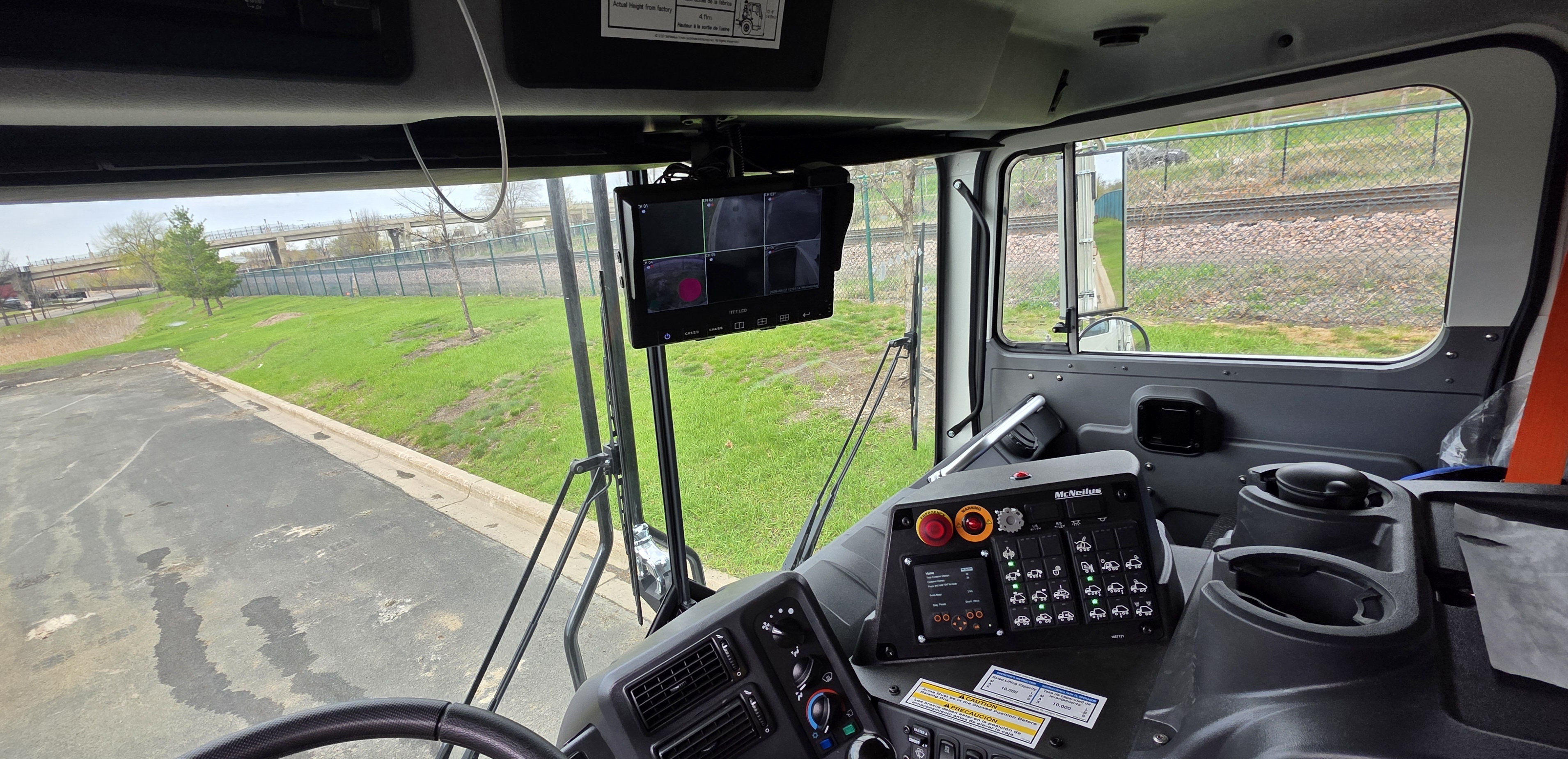

System: SSV 9" Monitor/DVR (6-port)
Monitor Mount: Center overhead with swivel
Monitor Display (Reverse): Tailgate camera

Cameras: Qty 4

• Alley cameras: Curbside and streetside
• Hopper camera: Curbside rear hopper
• Tailgate: Reverse camera

Assist Lights: Dual 5" economy round LEDs

Residential Options

Residential Container: Not included
Residential Package: None
Fork Model: 62" fixed forks

Arms & Forks

Arm Type: Atlantic front loader arm
Fork Cylinder: Standard
Fork Tips Removed: No

Bumper Pads: Two
